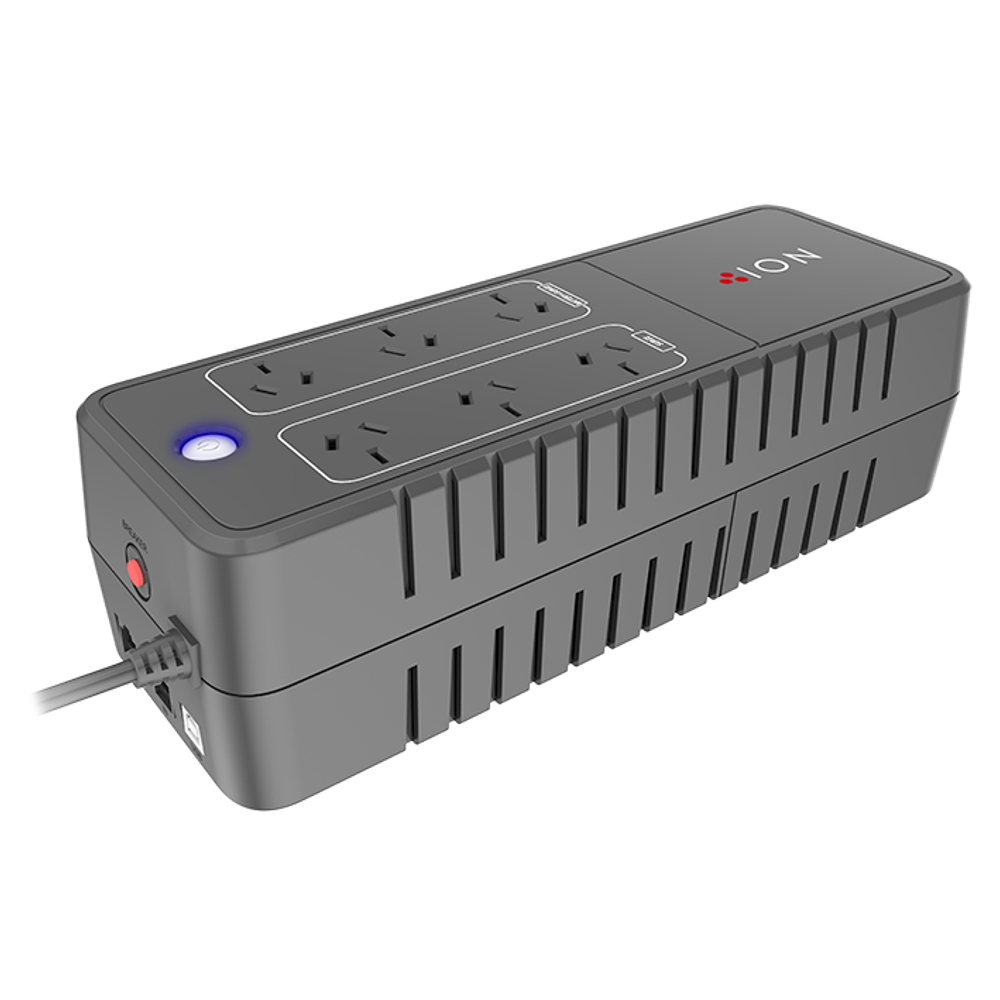

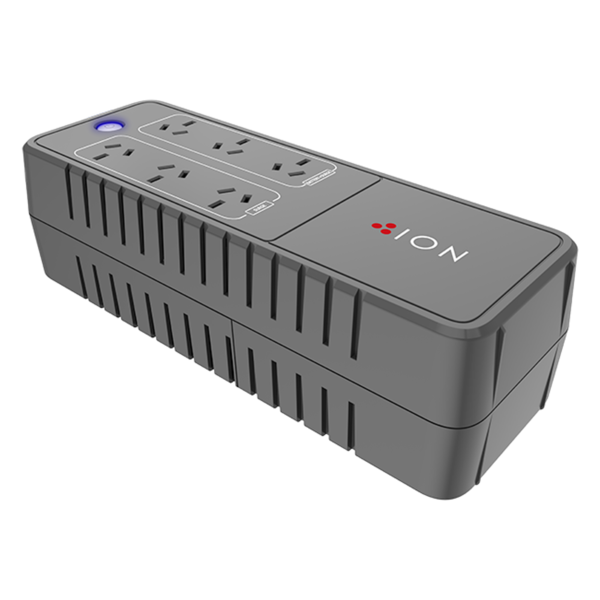

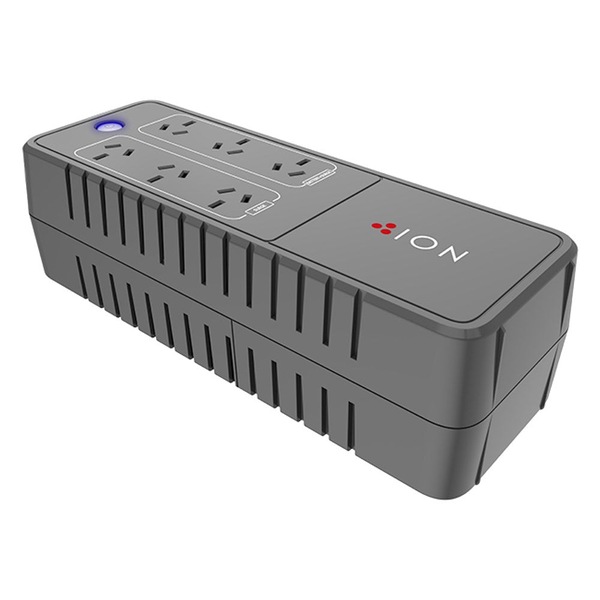

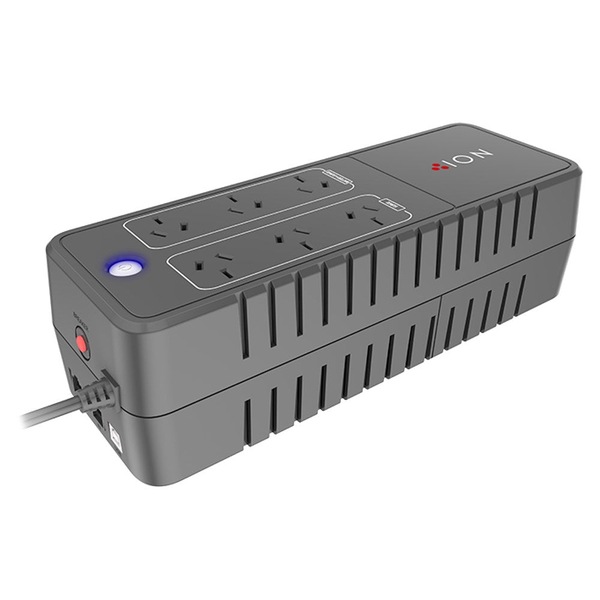

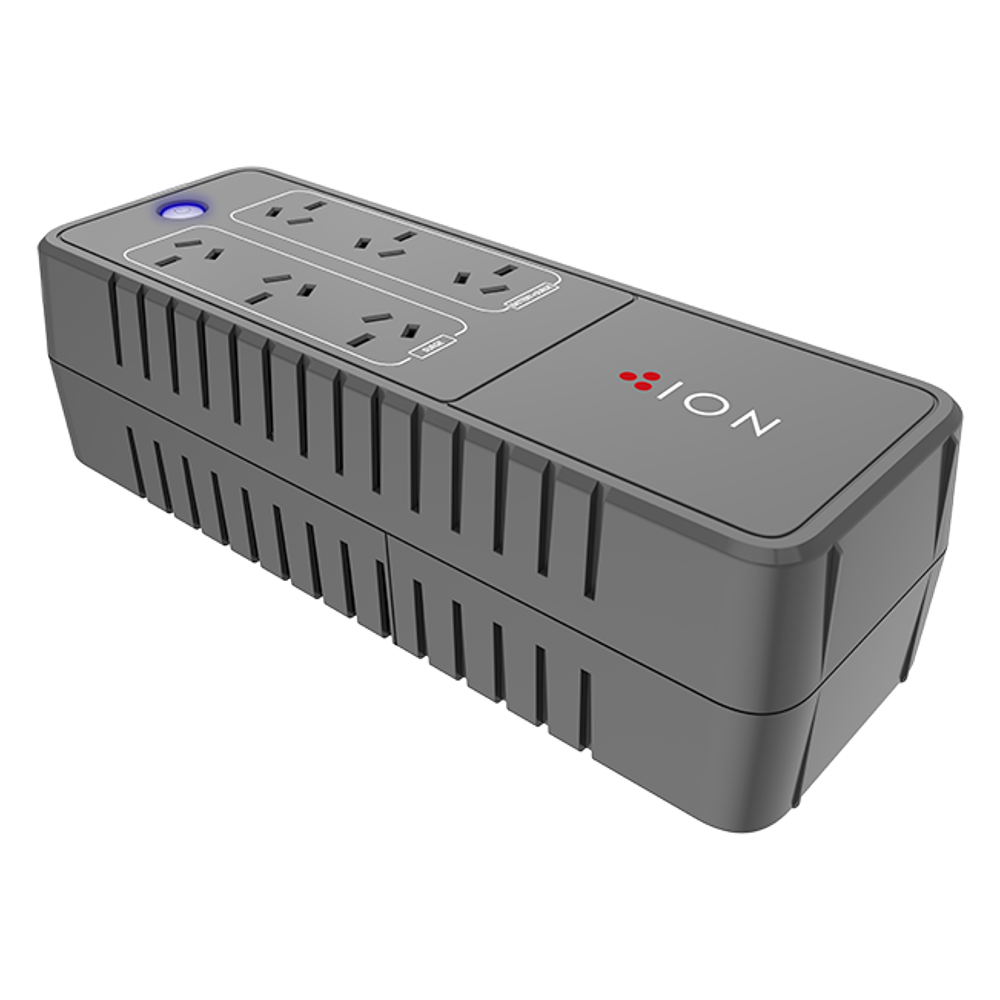

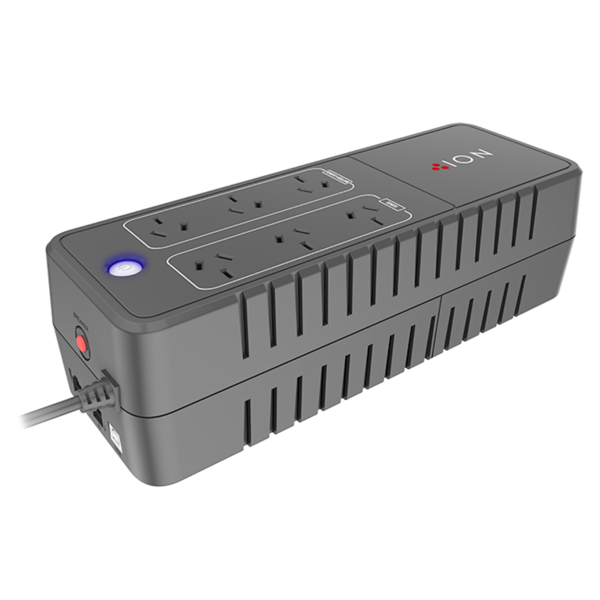

ION F10 Power board UPS has been designed as an affordable compact power protection solution. The F10 is the perfect way to protect Point Of Sale (POS), Security applications, Small Office Home Office (SOHO) PC/Work Stations, Telephone Equipment, Routers, Storage devices, Modems, Home theatres, Gaming products and more. With its six Australian 3 Pin outlets, three for surge protection and three for battery backup and surge protection it allows for easy connection for multiple devices reducing exposure to potential data loss, corruption and downtime.

F10 Features

• 2 Year Advanced Replacement Warranty



• Six Australian outlets



• Compact Solution



• Fanless Technology



• Supports APFC Equipment





• Auto-Restart/Auto-Charge



• Cold Start Function on battery Mode



• Intelligent LED Indicator

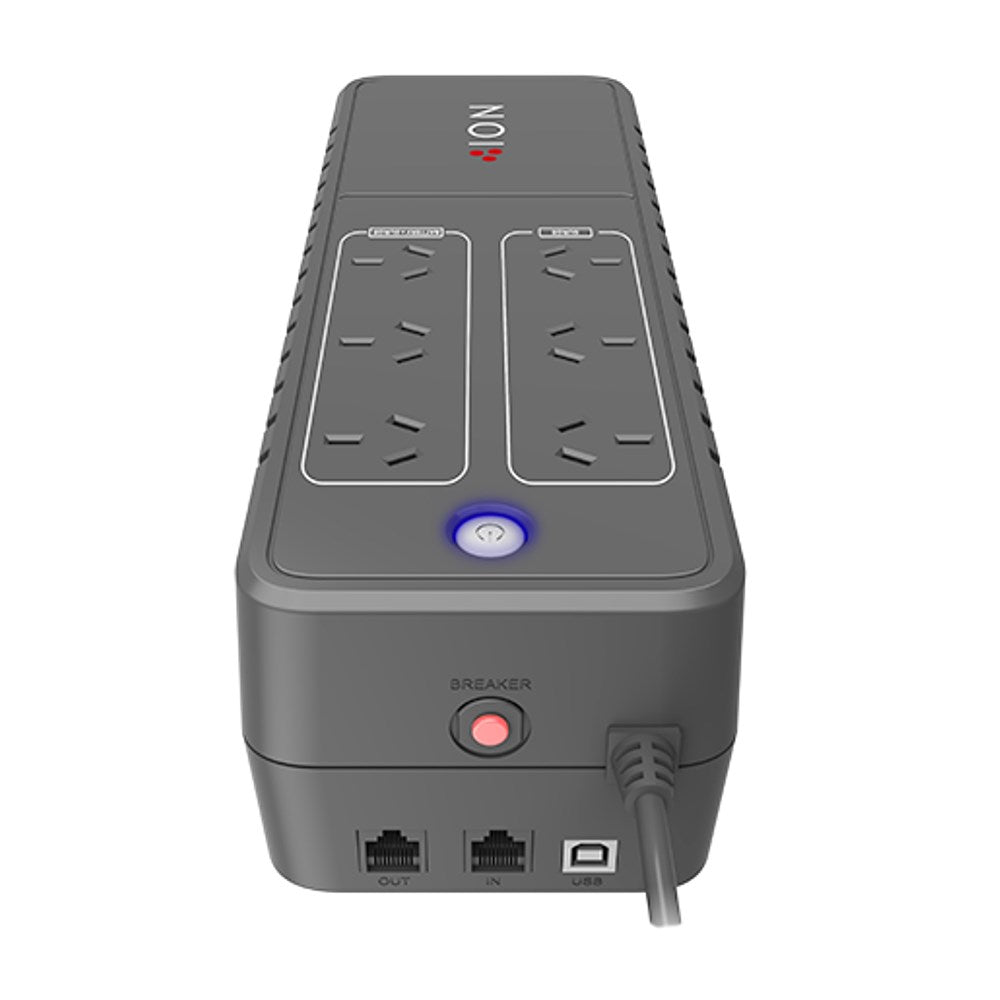

• USB Communication Port & RJ-11/RJ-45 Protection



• Wall mountable



Specifications

Output

• Output Power Capacity 490W/850VA



• Max Configurable Power 490W/850VA



• Nominal Voltage (Batt.mode) 220-240Vac



• Frequency (Batt.mode) 50/601% Hz



• Waveform (Batt.mode) Simulated Sinewave



• THDv 3% @ linear load, 5%@non-linear load



• Transfer Time 4ms typical



• Overload Protection Circuit breaker or inner firmware protection

Input

• Nominal Input Voltage 220-240Vac



• Voltage Range 180-270Vac



• Frequency 50/60Hz (Auto sensing)

Indicators

• Display LED



• Alarm Batt. Mode, low battery, overload, fault, etc.

Battery

• Battery Voltage 12V



• Battery Type 5.6AH



• Total Battery Quantity 1



• Recharge Time (to 90%) 8H



• Charger Current 0.7A

UPS Physical

• Maximum Height 90mm



• Maximum Width 110mm



• Maximum Depth 309mm



• Net Weight 3kg

Communication

• USB Yes



• RJ 11/45 Yes

Management

• Auto Recharge Yes



• Auto Restart Yes



• Power Management Software Yes

Environment

• Operation Temperature 0-40oC



• Operation Humidity 0-90% non-condensing

Conformance

• Approvals CE



• Standard Warranty 2 Year Advanced Replacement
