IOCREST IOUSB428502 Usb2.0 To Rs422 Rs485 - 1.8M 1.8M USB2.0 TO RS422 RS485 - 1.8M

IOCREST IOUSB428502 Usb2.0 To Rs422 Rs485 - 1.8M 1.8M USB2.0 TO RS422 RS485 - 1.8M

Hurry! 1 items left!

Price	$45
	Collect 45 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

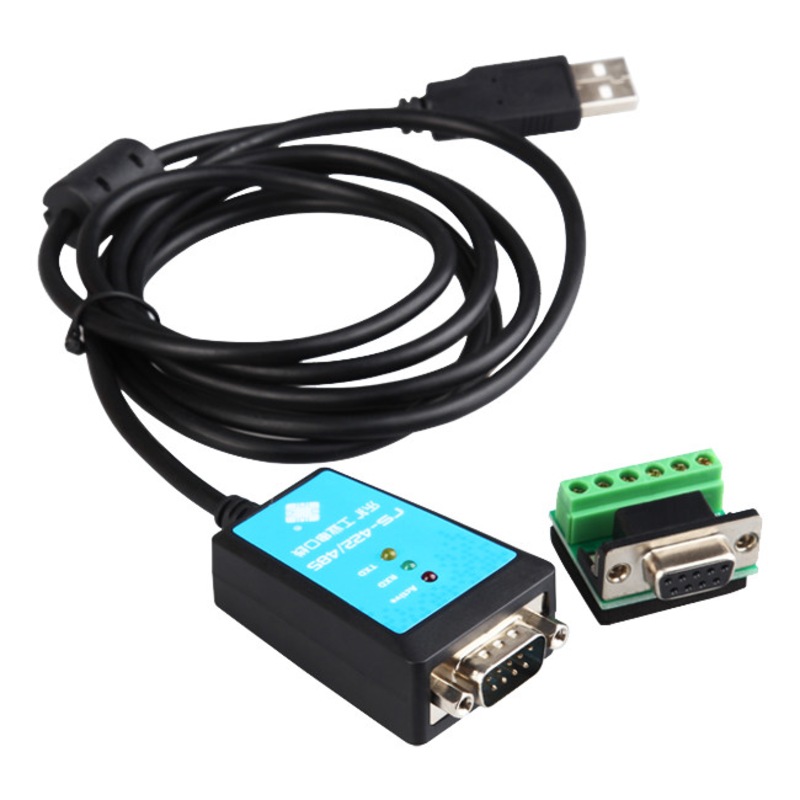

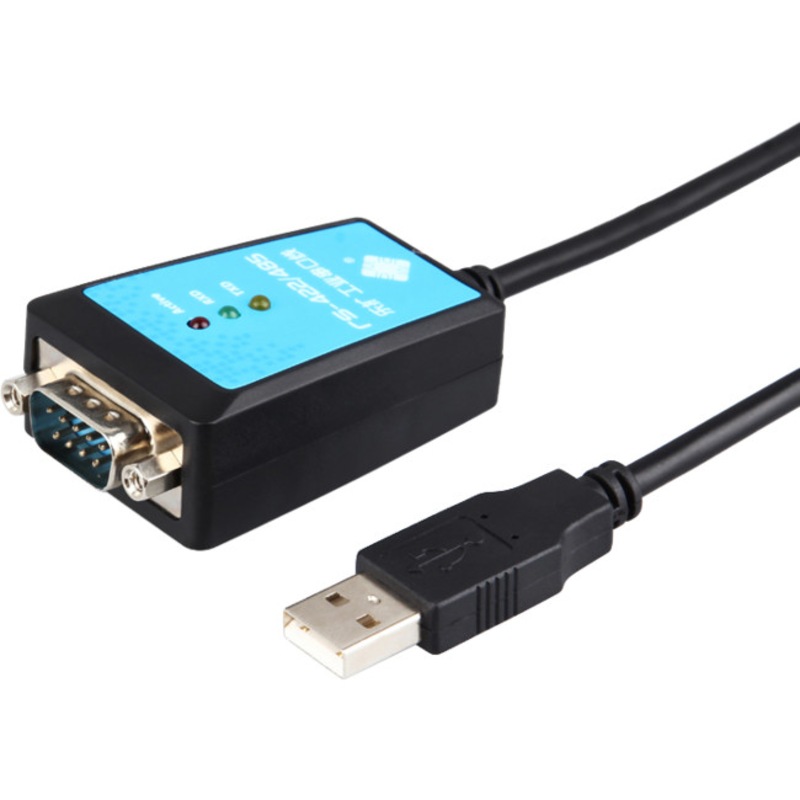

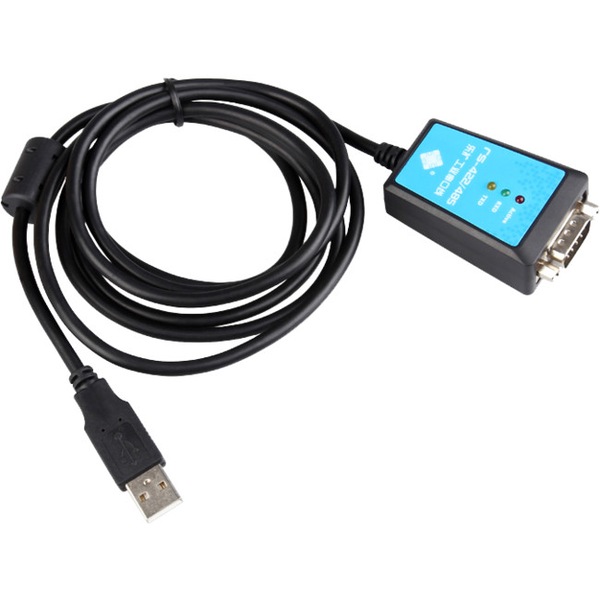

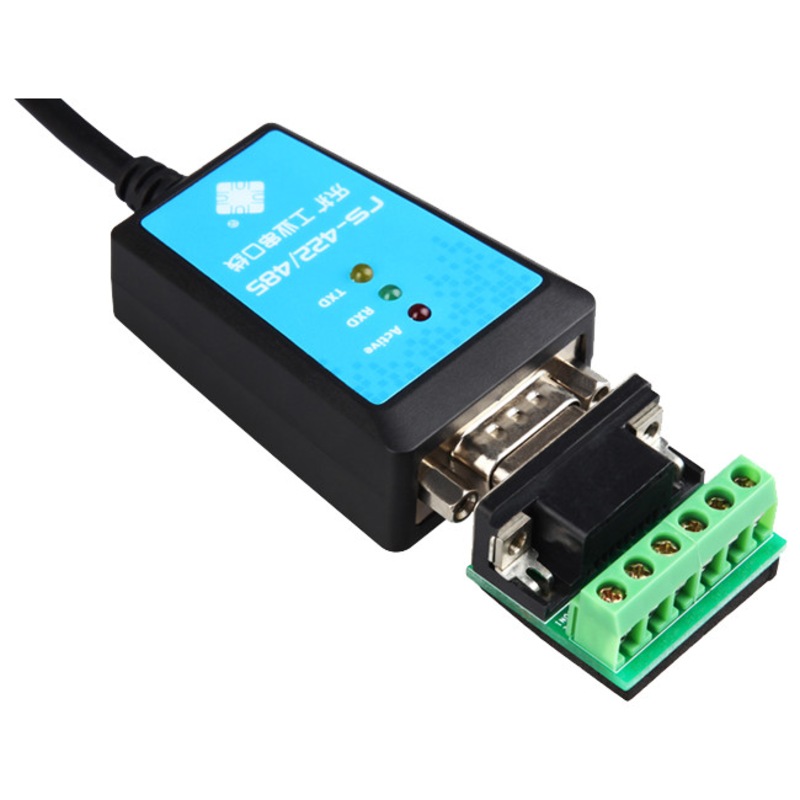

IOCrest USB 2.0 to RS422/485 (FTDI chipset)

Features

Standards: conforming to USBV1.0, 1.1 and 2.0
RS-485,RS-422 TIA/EIA Standard
USB signals: VCC, DATA+, DATA-, GND and FG
RS-422 Signal: T/R+,T/R-,RXT+,RXD-,GND; RS-485 signals: T/R+,T/R-.GND
Working mode: asynchronous working?point-to-point or point-to-multipoint 2 wires (half duplex) 4 wires (full duplex)
Single chip USB to asynchronous serial data transfer interface
Direction control: Adopt the technology which automatically controls the data-flow direction?automatically distinguish and control the data-transmission direction;
Support Bits per second Data transfer rates from 300 baud to 921600baud;
UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
.Flow control none, hardware and xon/xoff
Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
Transmission distance: RS-485/422 port:1.2km (300bps-921600bps).USB port : No more han 5 meters
Interface protection: surge protection and ±15KV ESD protection
Load capability; Support point-to-multipoint transmission. Each converter can connect 32 RS-422 or RS-485 interface equipment
Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD)
Transmission media: twisted-pair cable or shielded cable;
Extended operating temperature range; -40 to 85°C

Applications

USB to UART Cable
POS Printer Terminal
Networking System
Industrial and Power Meter
USB Bar Code Reader
USB Digital Camera Interface
USB Wireless/Wired Modem

Package details

1x USB 2.0 to Serial Converter
1x User Manual
1x CD Driver
1x Adapter

Weight: 0.167
