IP66 Inline RCD Circuit Breaker Extension Cable 1.8m
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 59 Everyday Rewards points
Collect 59 Everyday Rewards points

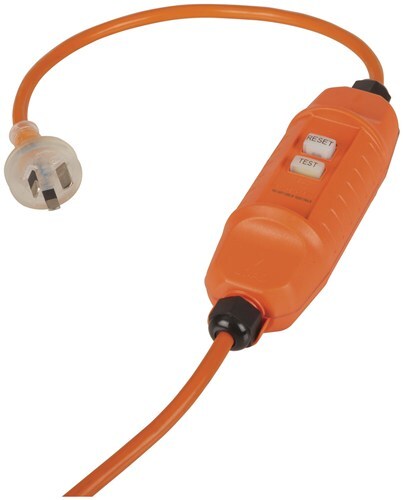

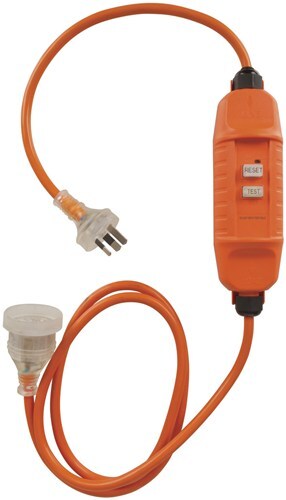

Protect yourself at home or the worksite with this handy inline RCD circuit breaker with 1.8m lead. The built-in Residual Current Device (RCD) provides the best method to protect against electrocution and equipment damage. Faster acting and improved safety compared with standard over-current circuit breakers. It has an IP66 rain and dustproof rating, and includes test and reset buttons. Meets Australian and New Zealand safety approvals.Ā
Features:
- Automatically shuts off power when a fault occurs
- IP66 rain and dustproof rating
- Durable
RCD Specifications:
Residual Non-Operating Current: 15mA
Residual Operating Current: 30mA
Max. Tripping: ā¤0.1S
IP Rating: IP66
Length: 1.8m
AC current rating : 10A |
IP Rating : IP66 |
Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust |
Liquid/Moisture Ingress Protection : 6 - Powerful water jets |
Cable length : 1.8m |
Mains Voltage Range : 220V, 240V |
Frequency : 50Hz, 60Hz |
Rated for AU Mains : true |
Mains Item connection : Mains AU/NZ 3 Pin |
Packaged Volume : 5.81l |
Packaged Weight : 0.68kg |
Packaged Length : 37.7cm |
Packaged Width : 23cm |
Packaged Height : 6.7cm |
Type of Protection : Residual current device (RCD) |
Reset Method : Manual Pushbutton |
Protection Test Button : true |
RCD Operating Current : 30mA |
RCD Non-operating Current : 15mA |
RCD Trip Time : 100ms |
GTIN: 9314857017007
