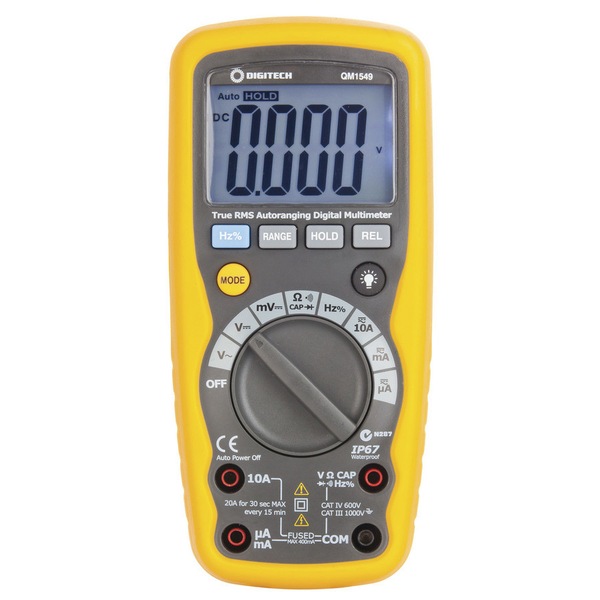

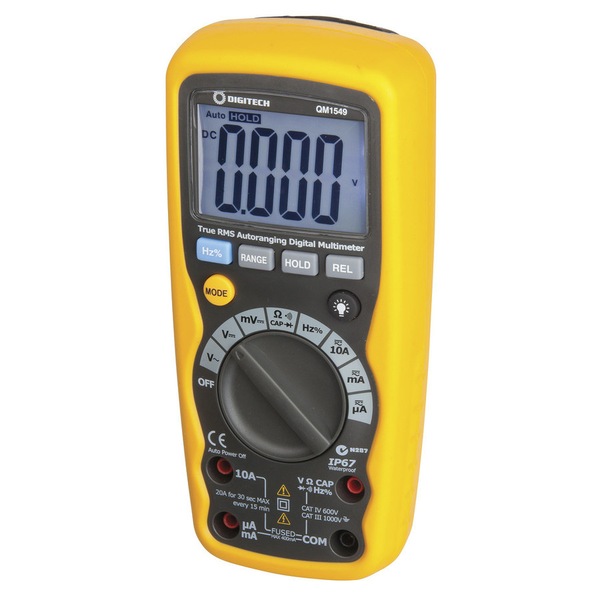

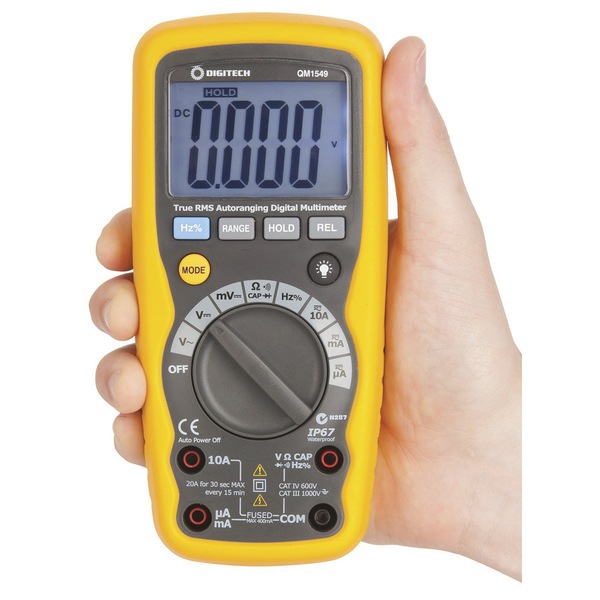

DIGITECH Multimeter IP67 True RMS Autoranging Cat IV DMM

Image 1
Image 2
Image 3
Image 4
Limited Stock
$169

Collect 169 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by MAD Electronics Australia
Secure ways to pay at checkout

This is an excellent true RMS multimeter that features a large, easily read display and carries an IP67 environmental rating. This means the multimeter is waterproof and will not be damaged if accidentally dropped into water or left out in the rain. The meter has data should and relative measurement capabilities and is housed in a robust, double moulded case. Includes leads, soft carry case and user manual.


Features:


* IP67 waterproof
* True RMS
* Auto power-off
* Backlight
* Data hold & relative function
* Diode test
* Autoranging
* Audible continuity
* 10A current range
* Double moulded case
* Display 4000 count
* Security Class Cat IV 600V
* Basic DCV accuracy 0.500%
* Ave/RMS True RMS
* Input impedance 10M
* Special features IP67, data-hold, relative measurement, backlight



Measures Current DC









DC Current Accuracy 1.2%
DC Current Ranges 4mA,40mA,400mA,10A
Measures Current AC









AC Current Ranges 4mA,40mA,400mA,10A
AC Current Accuracy 1.8%
Measures Voltage AC









AC Voltage Ranges 400mV,4V,40V,400V,1000V
AC Voltage Accuracy 0.8%
Measures Voltage DC









DC Voltage Accuracy 0.5%
DC Voltage Ranges 400mV,4V,40V,400V,1000V
Measures Resistance









Resistance Ranges 400 ,4k ,40k ,400k ,40M
Resistance Accuracy 0.8%
Meter Safety Rating









Safety Rating Cat Cat IV
Safety Rating Max Volt 600V
Measures Capacitance









Capacitance Ranges 4nF,40nF,4uF,40uF,100uF
Capacitance Accuracy 3%
Measures Frequency









Frequency Ranges 4kHz,40kHz,400kHz,4MHz,10MHz
Frequency Accuracy 1.5%
Ingress Protection Rating













IP Rating certificate
Dust/Particle Ingress Protection 6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection 7 - Immersion up to 1m
Digital Multi-Meter

















Count Maximum Reading 4000 count
True RMS
Autorange
Measures duty cycle
Meter Data Control









Data Hold
Relative Measure
Measures Continuity





Continuity indicator Needle
Meter Probes









Probe rating voltage 600V
Probe safety rating Cat IV
Meter





















Meter Input Impedence 10
Measures diode
Input Protection Fuse 500mA,10mA
Casing Plastic
Carry Case Included
Power from disposable battery

























Size / Shape 9V
Battery quantity 1pc
Batteries included
Batteries can be replaced by user
Compartment location Internal / In-built
How is battery compartment kept closed Clip and Screw
Product Dimensions













Length 182mm
Width 82mm
Depth 55mm
Meter Display









Display Backlight
Display Type LCD

GTIN: 9319236969304
