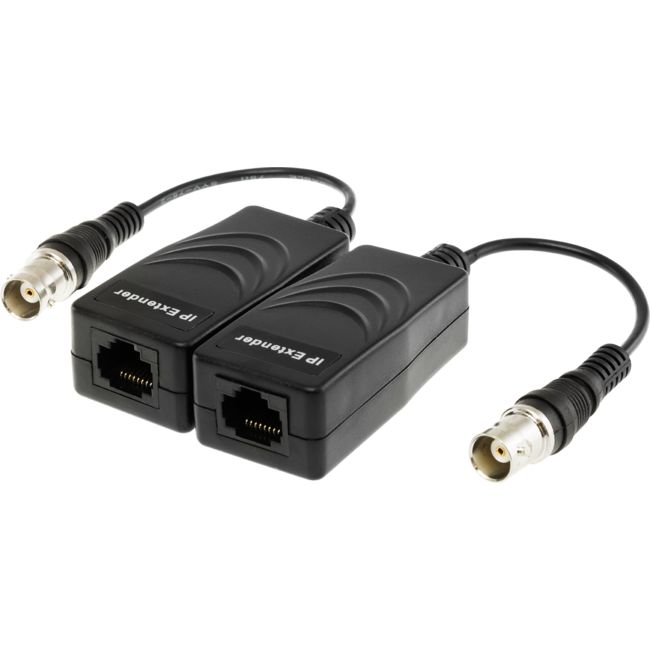

DOSS IPOC200 200M IP Over Coax Extender Passive Pair Bandwidth 10Mbps Distance Up To 200M 200M IP

DOSS IPOC200 200M IP Over Coax Extender Passive Pair Bandwidth 10Mbps Distance Up To 200M 200M IP

Price
$34.95
Collect 34 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Unable to calculate delivery for , please Contact Us Delivery unavailable to Change

24-48 hour dispatch
Quantity
Maximum item limit (46) has been reached.

Product Features:
  • 1-CH IP extender over coax cable
  • Transmit Ethernet signal over coax cable
  • Transmission distance max up to 2 00m
  • Access Control Method and Physical Layer Specification Comply with IEEE802.3,10BASE-T and 100BASE-T
  • Passive device, no power required
  • Real-time transmission
  • Built-in TVS for surge protection
  • Compact size, easy to install
  • ABS engineering housing
Product Overview:

IPOC200 is a kind of Ethernet signal extender over coax cable, which adopts specific technology for media conversion, complies with IEEE802.3, 10BASE-T and 100BASE-T Protocol Standards. The device can transmit Ethernet signal200 meters over coax cable without extra power provided. Built-in TVS for surge protection help IPOC200 can protect interior equipment when encounter badly thunderstorms from. As for the application area IPOC200 can be widely used for network monitoring project, upgrading from coaxial analog monitoring system to network HD monitoring system, and all the field of transmitting Ethernet signal over coax cable.

Please note: this IPOC200 dose not support POE pass through.
Applications:
Security Monitoring System
Triple-Play Transmission Solutions
Intelligent Home System
Industrial Control System
Banking Security
School Security
Store Security
Technical Specifications:

Model

IPOC200

Product Name

Single Channel IP Extender over Coax

Applied Devices

PoE Switch, Network DVR, Video Codec, Other Network Equipments

_

Video

Ethernet Port

10/100 Mbps

Impedance

UTP:100 ohm coax:75 ohm

Distance

Up to 200m(100Mbps)

Power

No Extra Power Needed

_

Connector

Video Port

RJ45 (Female)

Video Port

BNC (Female)

_

Protection Level

Surge Protection Type

RenewableSolid Surge Protection

Coaxial Surge Protection

2KV(Common Mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)

Twisted Pair Interface Surge Protection

2KV(Differential Mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)

_

Operating Environment

OperatingTemperature

-20-85 ?

Storage Temperature

0~95%

Humidity

115mm*82mm*22mm

_

Physical Properties

Dimension(Length*Width*Height)

ABS Engineering Plastic

Housing

Black

Color

90g

Weight

>20000h

Reliability

MTBF

_

Diagram:

Weight: 0.082

Aussie Stock
All our stock is kept in our Melbourne based warehouse. Our stock levels are also updated every 10 minutes! So if it says 10 units in stock, you can trust that it is accurate.

No PO Boxes or Parcel Lockers
At this stage we only use couriers and can only deliver to a road-side address. This means PO Boxes and Parcel Lockers cannot be accepted as StarTrack do not deliver to these addresses.
In instances where a PO Box or Parcel Locker address in entered, we may ask for an alternative road-side address, or cancel and refund your order immediately and urge you to replace your order with an alternative delivery address.

Delivery times
We typically dispatch our goods same day or next day. From there, you can expect 2 - 8 business days Australia wide. Most capital cities can expect 1-2 day delivery times.
Any RTS (Return to Sender) orders due to missing or incorrect address information entered by the buyer may incur an additional charge for redelivery.
GTIN: 9328202016577
