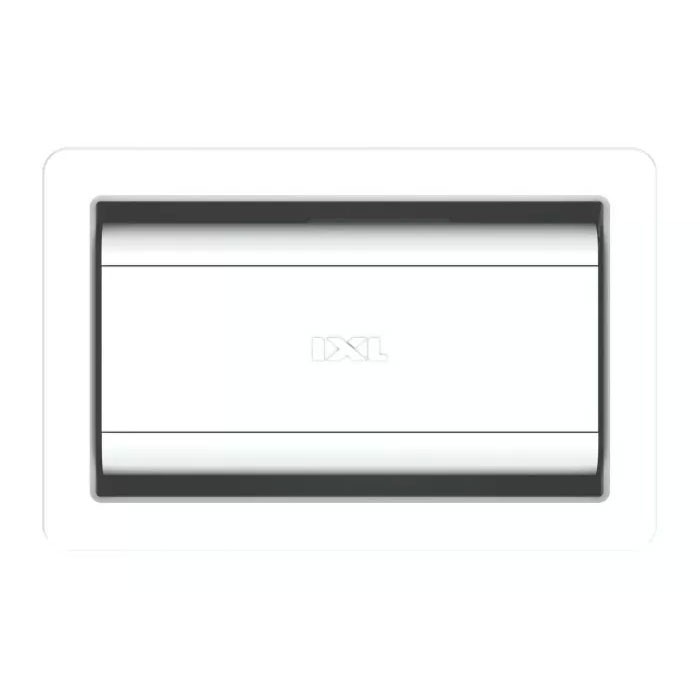

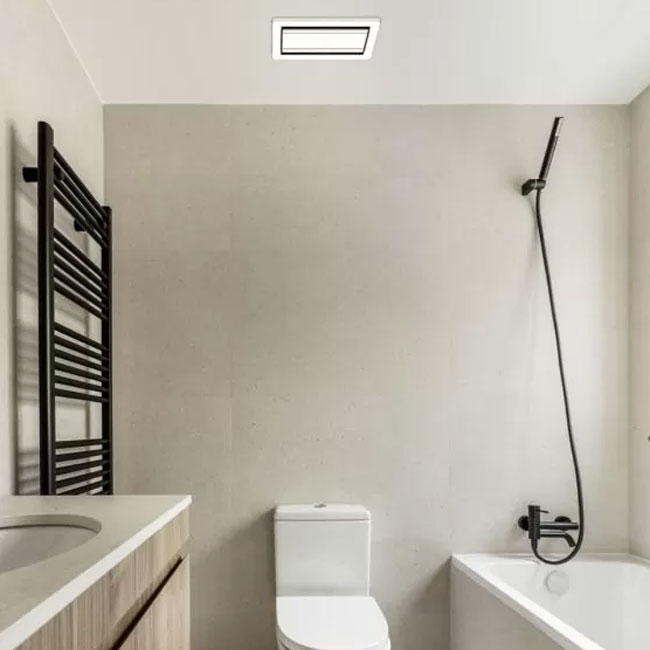

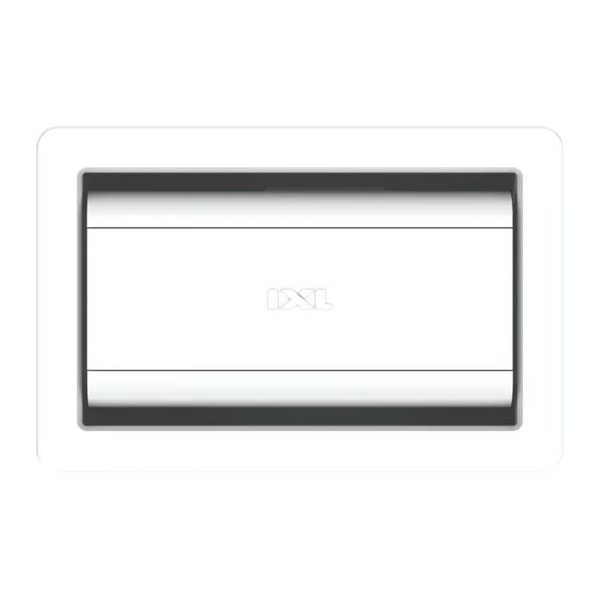

Tastic Luminate Essential Vent Module is suitable for above shower installation with an IPX4 rating. Position it over the shower to remove steam and moisture, and to banish odours effectively without the need for a bulky extraction fan.

Proudly designed and manufactured in Australia, Tastic Luminate Essential Vent Module is compliant with NCC in Australia, and G4 Building Codes and Healthy Home Standard for bathrooms and kitchens in New Zealand.

Tastic Luminate Essential Vent Module is a ventilation fan only. There is no heat or light.

• Powerful Extraction: 400m3/hr Airflow
• Suitable for above shower installation: IPX4 rating
• Exhaust Fan with 6m Duct and Exterior Outlet Vent
• Suitable for areas up to 8.3m2 with shower* and 20.8m2 without shower.

• Airflow Extraction: 400m3/hr
• 75W
• Rated Voltage: 220-240V
• Clearance Required Above Unit: 30mm
• Fascia Dimensions: 243mm (W) x 367mm (D)
• Max Height of Unit: 215mm
• Total Ceiling Cavity Height Required: 245mm
• Unit Dimensions: 367mm (W) x 243mm (L) x 200mm (D)
• Cutout Size: 214mm x 332mm
• IP Rating: IPX4
• Ducted - Inline Fan - 6m Ducting Included
• Back Draught Flaps
• Exhaust Capacity: 111 litres per second
• Fan Size: 170mm
• 1.2m Power Cable Length
• Area Size Suitability: 20.8m2 without shower, 8.3m2 with shower
• Wall Switch Included
• Weight: 4.2kg
• 5 year in home warranty
