JD 9HP Stationary 4 Stroke Engine Recoil Start

Image 1
Image 2
Image 3
Image 4
Shop More Products

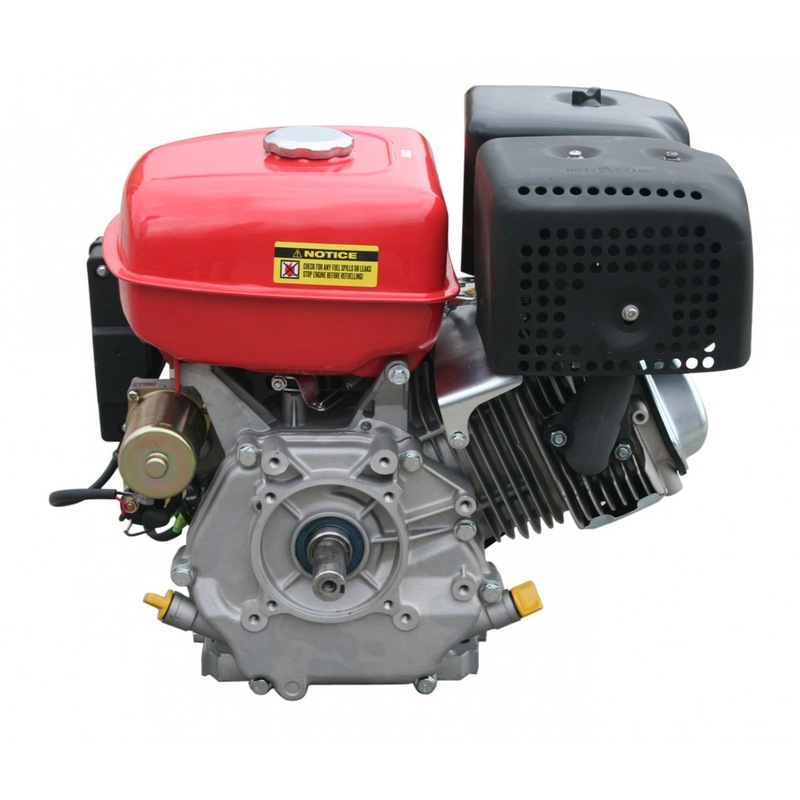

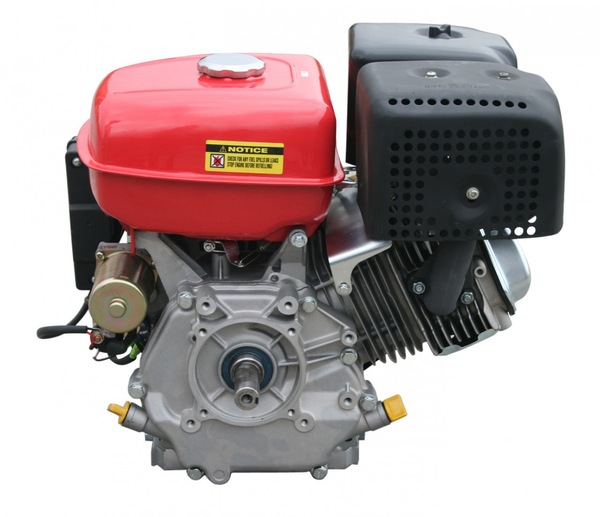

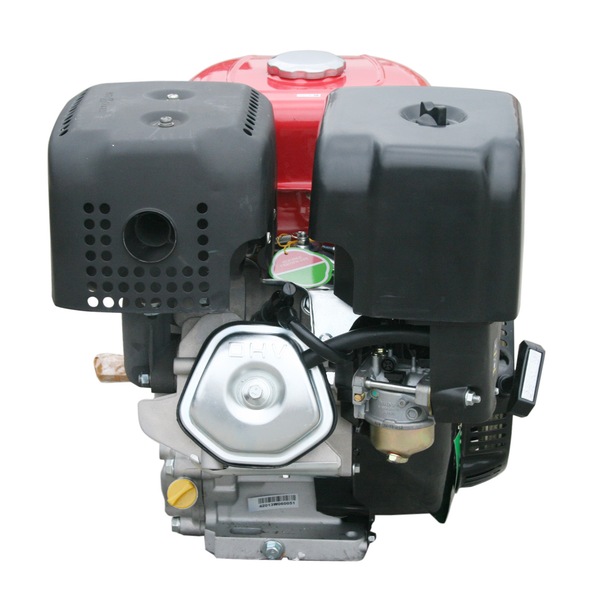

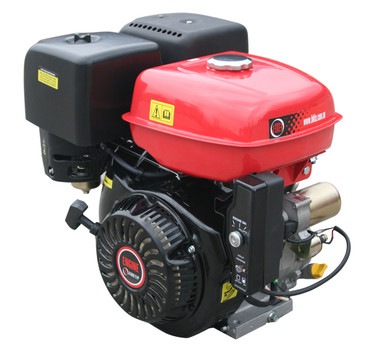

JD 9HP Engine JF270/E

These JD engines come from the 3rd largest engine manufacturer in the world. They have been producing quality reliable engines for more than 60 years and are the engine of choice for many major machinery companies world wide.

Shaft size on this engine is 25mm with a 1/4" or 6.5mm key way.

12 Months Warranty

Model JF240/E JF270/E
Engine type 4-stroke, 25oinclined, single cylinder with Air-cooled
Bore x Stroke (mm/inch) 73 x 58/2.87 x 2.28 77 x 58/3.03 x 2.28
Displacement (ml) 242 270
Compression ratio

8.2:1

Starting output (HP/rpm) 8.0/3600 9.0/3600
Max. torque (N.m/rpm) 16.7/2500 19/2500
Ignition system Non-contact transistorized ignition (T.C.I.)
Start mode Recoil
Air cleaner Semi-dry, oil bath, dual, double silent and cyclone type
Fuel tank capacity (L/gal) 6/1.6
Fuel consumption (g/HP-hour) 290
Engine oil capacity (L/gal) 1.1/0.29
Dimensions (L x W x H) (mm/inch) 460 x 400 x 445/18.1 x 15.7 x 17.5
Net weight (kg/lbs) 25/55 26/57.2
Gross Weight (kg/lbs) 27/59.4 28/61.6
Package Dimension (mm) 560x410x430 40kg

MPN: JD-BE-9HP

Reference ID: 3796734
