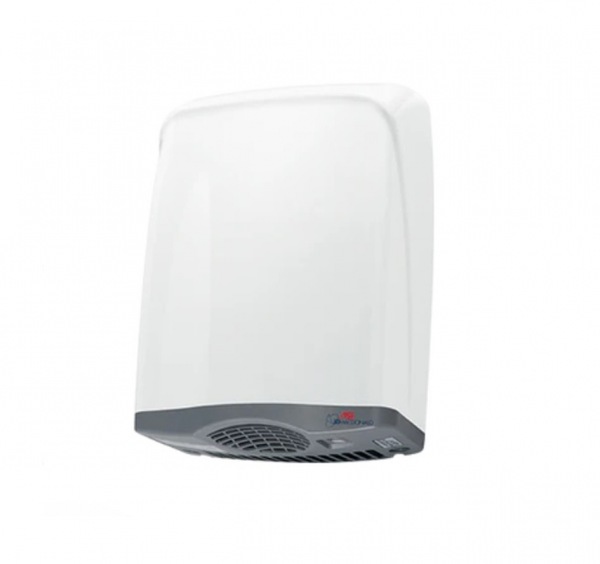

Jd Macdonald Applause Hdapwht Hand Dryer Automatic 55 Decibel - White

Image 1
Hurry! 7 items left!
$526.90

Collect 526 Everyday Rewards points

Log in to MyDeal to link your card

FREE SHIPPING when you spend over $129

Exclusive to products sold by Madken Washroom Accessories

Sold & shipped by Madken Washroom Accessories
Secure ways to pay at checkout
Item code: HDAPWHT - White Powdercoat (previously APP02)


Key Features of the JD Macdonald HDAPWHT Hand Dryer Automatic 55 Decibel:

* White powder coated aluminium finish
* Pivot bracket inside cover for ease of installation
* Safe intake opening and tamper proof
* Operates automatically using infrared sensor
* Suitable for small areas
* No touch, energy efficient operation
* Universal Voltage
* Quick Drying - Under 30 seconds


Specifications:

* Dimensions: 146mm D x 361mm H x 250mm W
* Electrical Supply: AC, 220-240V 50Hz
* Motor: 100 Watt 2800 RPM
* Element: 900 Watt protected by thermal cut-out
* Air Velocity: 43.2 km/hr
* Noise Level: 55 dB-A @2M (Tested in a sound proof room does not include environmental factors)
* Dry Time: Under 30 seconds
* Weight: Gross 4.6kg, Shipping 5.2kg
* Electricial Safety Requirement: AS/NZS 60335.2.23:2004
* Protection category: IPX3


Installation:

1. Turn power switch supply off
2. Mark four mounting holes where you desire the installation to occur
3. Remove and retain 2 cover screws and cover
4. a. For in-wall (concealed power supply):
According to the local code, provide appropriate conduit to entry and then attach securely to chassis with correct strain relief connector
b. For Surface Mounted Conduit (exposed) power supply:
According to local code provide appropriate conduit to entry, and then attach securely to chassis with correct strain relief connector
5. Drill four holes and attach dryer to wall
6. Connect supply and ground wires to terminal block where indicated and connect wire to base plate with ground screw.


Recommended Installation Height:

* Men's washroom 1270mm
* Women's washroom 1194mm
* Children's washroom ages 4-7 889mm
* Children's washroom ages 8-10 991mm
* Children's washroom ages 11-13 1092mm
* Children's washroom ages 14-16 1194mm
* Accessible Compliant washroom 1016mm


Warranty:

* 1 year parts and labour
* For JD Macdonald's Warranty Statement click


Not sure Hand Dryer best suits your needs? Browse JD Macdonald's Hand Dryer Brochure
