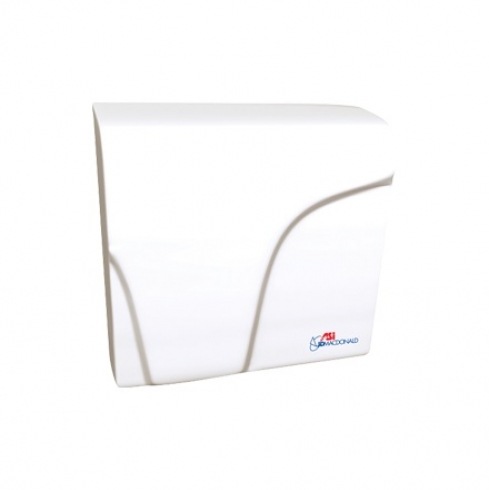

Jd Macdonald Applause Plus Hand Dryer Automatic Sensor 64 Decibel - Powdercoat

Image 1
Image 2
Hurry! 1 items left!
$394.90

Collect 394 Everyday Rewards points

Log in to MyDeal to link your card

FREE SHIPPING when you spend over $129

Exclusive to products sold by Madken Washroom Accessories

Sold & shipped by Madken Washroom Accessories
Secure ways to pay at checkout
Item code:10-0165-2


Key Features of the JD Macdonald Hand Dryer Automatic Sensor 64 Decibel:

* White finish
* Heavy-duty cast aluminium 2.8mm thick finished with acid, chip and resistant epoxy enamel
* Modern and durable design
* Operates automatically using infrared sensor
* Compact and automatic
* Suitable for small areas
* No touch, energy efficient operation
* Universal Voltage
* Quick Drying - Under 30 seconds


Specifications:

* Dimensions: 100mm D
* Electrical Supply: AC, 220-240V 50Hz
* Motor: 1800 Watt 7500 RPM
* Element: 1620 Watt prtected by thermal cut-out
* Air Velocity: 180 CFM (306m3/h)
* Noise Level: 64dB-A (Tested in a sound proof room does not include environmental factors)
* Dry Time: Under 30 seconds
* Weight: Gross 4.54kg, Shipping 4.7kg
* Electricial Safety Requirement: AS/NZS 60335.2.23:2004
* Protection category: IPX3

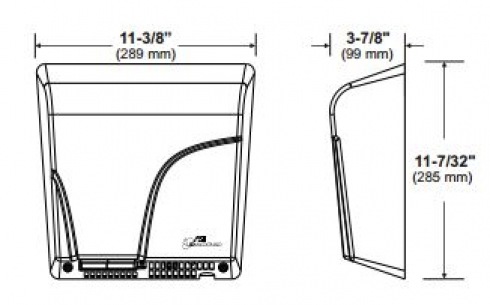

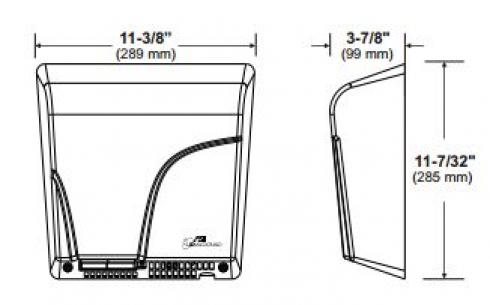

* Overall Dimensions: 289mm W x 285mm H x 99mm D


Installation:

1. Turn power switch supply off
2. Mark four mounting holes where you desire the installation to occur
3. Remove and retain 2 cover screws and cover
4. a. For in-wall (concealed power supply):
According to the local code, provide an appropriate conduit to entry and then attach securely to chassis with correct strain relief connector
b. For Surface Mounted Conduit (exposed) power supply:
According to local code provide appropriate conduit to entry, and then attach securely to chassis with correct strain relief connector
5. Drill four holes and attach dryer to wall
6. Connect supply and ground wires to terminal block where indicated and connect wire to base plate with ground screw.


Recommended Installation Height:

* Men's washroom 1270mm
* Women's washroom 1194mm
* Children's washroom ages 4-7 889mm
* Children's washroom ages 8-10 991mm
* Children's washroom ages 11-13 1092mm
* Children's washroom ages 14-16 1194mm
* Accessible Compliant washroom 1016mm


Warranty:

* 1 year parts and labour
* For JD Macdonald's Warranty Statement click


Not sure Hand Dryer best suits your needs? Browse JD Macdonald's Hand Dryer Brochure
