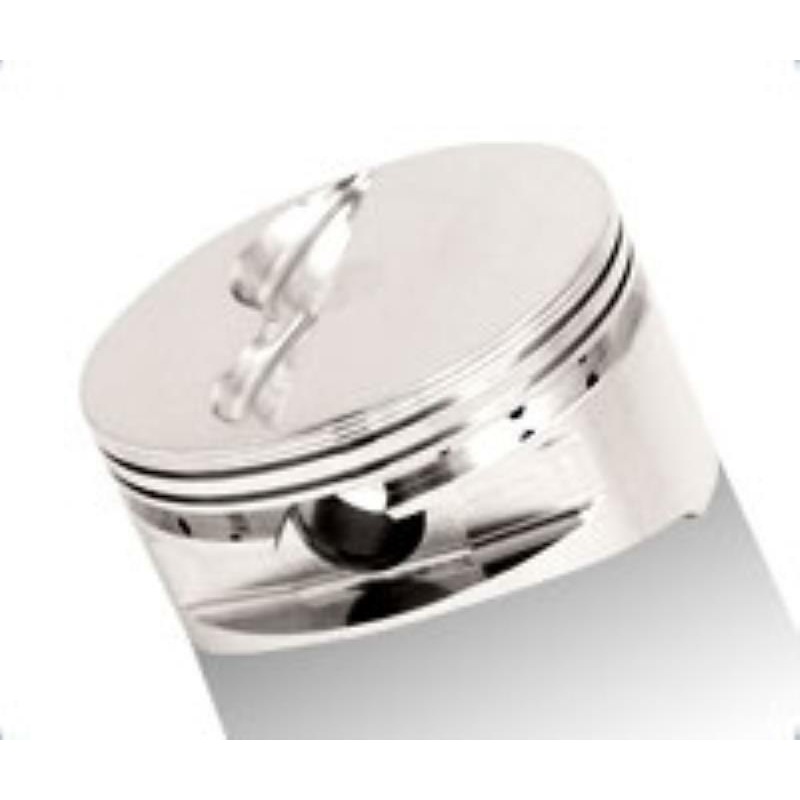

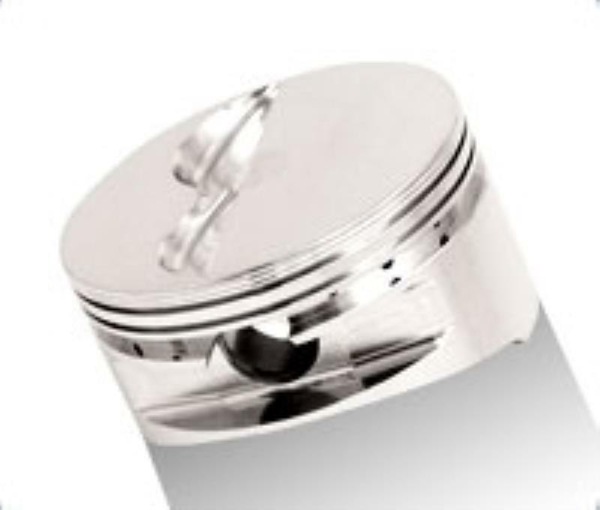

JE Pistons 23° Standard Flat Top Forged Piston 350 Small Block Chev 358 4.035"

Image 1
Hurry! 2 items left!
$1887.85

Collect 1887 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Speed Parts
Secure ways to pay at checkout
These classic, race winning JE flat top pistons work with most aftermarket 23° heads. They have extra deep valve pockets and a low-friction skirt design. These pistons are designed to use 1/16, 1/16, 3/16 rings or 1/16, 1/16, 3mm rings, see footnote J.

Includes:

350 Series use Pin #927-2500-15-51S (118g)
400 Series use Pin #927-2750-15-51S (130g)
Contact Reduction Grooves
Double Spiro Locks #927-042-CS
Double Pin Oilers

Specifications :


Part #: J181912
CID: 358
Bore: 4.035
Stroke: 3.500
Rod Length: 6.125
Block Height: 9.000
Compression Height: 1.125
Compression Ratio with 58cc chamber volume: 11.2
Compression Ratio with 64cc chamber volume: 10.3
Compression Ratio with 76cc chamber volume: 9.1
Dome Volume: -5.0cc
Gram Weight: 390
Footnote: fits 3.480 and 3.500 stroke, Indicates 3.0mm Oil Ring, Made To Order
Oversize: .035
Recommended Ring Set (Check Proseal listing to determine oil ring tension): J30008-4030-5

With over 60 years of experience, JE Pistons is the leader in high performance forged pistons. We've built a reputation that the competition can only follow. JE has a history of manufacturing the highest quality pistons and components that professional engine builders, race teams, and high performance enthusiasts trust and rely on.

The top engine builders in NASCAR, ALMS, NHRA, AMA Supercross and others choose JE Pistons over any other brand. For over 60 years, JE's position at the forefront of performance piston manufacturing has been a result of continuous research and development of unique materials, piston designs and technologies. Utilising State-Of-The-Art CNC machines for manufacturing along with urpose-designed forgings, JE is able to maintain exacting specifications on each and every piston and hold tolerances to millionths of an inch. Also available from JE is industry-leading processes like Ultra Crown, a Digital Three Dimensional piston crown machining process and Finite Element Analysis (FEA). FEA is a computer process whereby stress and fatigue are tested on a computer model before it goes into production. JE is the only performance piston manufacturer to earn the QS-9000 quality standard which confirms that JE provides customers the highest standards in quality control. In addition, we also have State-Of-The-Art inspection equipment and testing equipment which enables us to constantly bring you, the customer, the very latest in piston design configurations.

Specifications:

350 Small Block Chevy - 23° Standard Flat Top Forged PistonSmall Block Chevy 358, 4.035", 6.125" rod length, -5.0cc dome volume

GTIN: 193564034779
