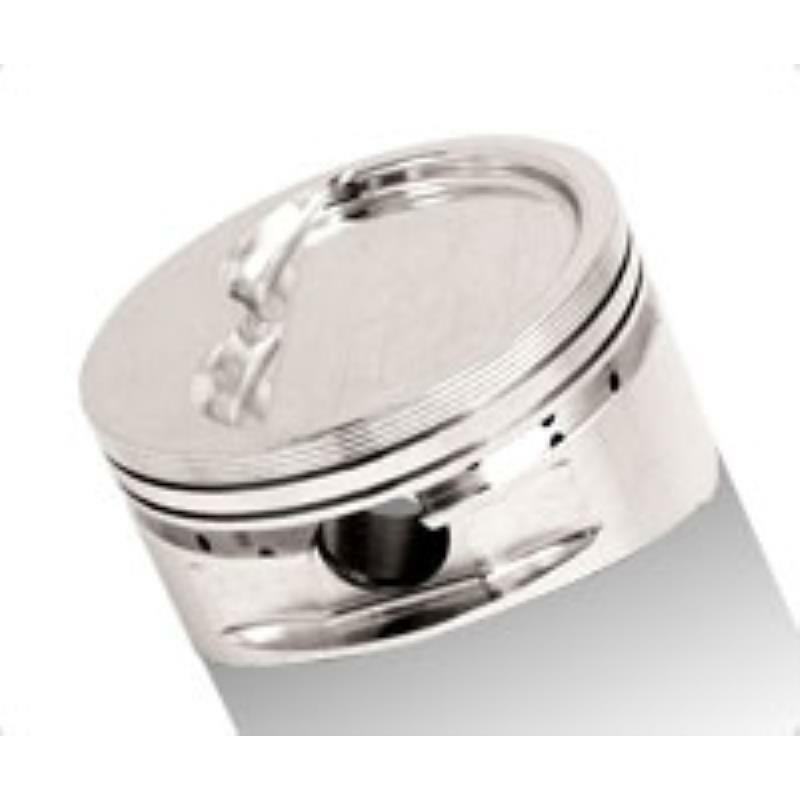

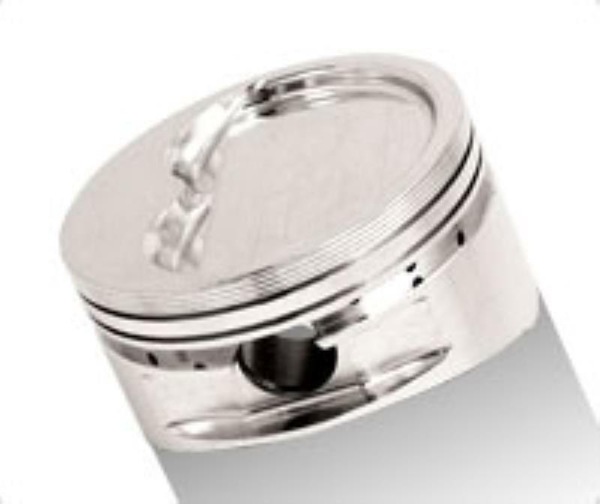

JE Pistons for Ford 302 Windsor Stroker Heavy Duty Inverted Dome Forged Piston 347

Image 1
Hurry! 2 items left!
$1825.34

Collect 1825 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Speed Parts
Secure ways to pay at checkout
The industry standard for
rock-solid durability in a
Heavy Duty blower/turbo
piston set! Will accommodate
oversized valves and
long-duration, tight lobe
separation cams. Precision
CNC machined ring grooves
accept 1/16", 1/16", 3/16"
rings. Pin upgrade
recommended above 700hp.
Recommended ring set contains
low tension oil ring; for
standard tension change ring
prefix to J100F8. Hardened
Nitrous Series (HNS) rings
also available, change ring
prefix to J820F8.
Includes:
Pin #927-2750-15-51S
(130g) Double Spiro
locks #927-042-CS
Contact reduction grooves
Double pin oilers

Specifications:
Part #: J170848
CID: 347 Bore:
4.030 Stroke: 3.400
Rod Length: 5.400
Block Height: 8.200
Compression Height:
1.100 Compression
Ratio with 56cc chamber
volume: 9.1
Compression Ratio with 60cc
chamber volume: 8.8
Compression Ratio with 64cc
chamber volume: 8.5
Dome Volume: -22.0cc
Gram Weight: 422
Footnote: Oil Rail Support is
Included, .927 Pin diameter
Oversize: .030
Recommended Ring Set
(Check Proseal listing to
determine oil ring tension):
J10008-4030-5
With over 60 years of
experience, JE Pistons is the
leader in high performance
forged pistons. We've built a
reputation that the
competition can only follow.
JE has a history of
manufacturing the highest
quality pistons and
components that professional
engine builders, race teams,
and high performance
enthusiasts trust and rely
on.The top engine
builders in NASCAR, ALMS,
NHRA, AMA Supercross and
others choose JE Pistons over
any other brand. For over 60
years, JE's position at the
forefront of performance
piston manufacturing has been
a result of continuous
research and development of
unique materials, piston
designs and technologies.
Utilising State-Of-The-Art
CNC machines for
manufacturing along with
purpose-designed forgings, JE
is able to maintain exacting
specifications on each and
every piston and hold
tolerances to millionths of
an inch. Also available from
JE is industry-leading
processes like Ultra Crown, a
Digital Three Dimensional
piston crown machining
process and Finite Element
Analysis (FEA). FEA is a
computer process whereby
stress and fatigue are tested
on a computer model before it
goes into production. JE is
the only performance piston
manufacturer to earn the
QS-9000 quality standard
which confirms that JE
provides customers the
highest standards in quality
control. In addition, we also
have State-Of-The-Art
inspection equipment and
testing equipment which
enables us to constantly
bring you, the customer, the
very latest in piston design
configurations.

Specifications:

Ford 302W Stroker - Heavy Duty Inverted Dome Forged Piston347 c.i., 4.030" bore, 3.400" stroke, 5.400" rod length, -22.0cc dome volume

GTIN: 193564047090

Estimated Delivery Time Frame:4 - 10 business days

Ask a Question About This Product

Reference ID: 5256309
