JimiLab Mini Asset Tag PL601 personal tracker, Includes 10-year Subscription [PL601]

Image 1
Hurry! 18 items left!
$133.40

Collect 133 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout

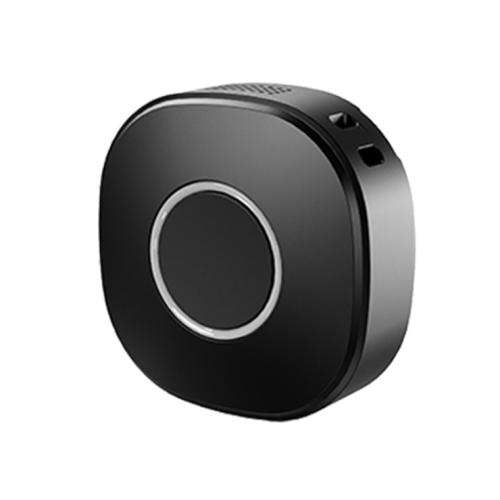

JimiLab Mini Asset Tag PL601 personal tracker, Includes 10-year Subscription




The PL601 is a compact, portable personal tracker designed to safeguard children and the elderly. It supports GNSS, Wi-Fi, and LBS positioning, and features 4G Cat 1 connectivity, two-way communication, panic button, geo-fence and route playback, providing comprehensive real-time protection. Additionally, the device is ideal for item and pet tracking, making it a versatile solution for a wide range of needs.
Product is including the tracking platform of 10 years subscriptions. Contact IPC@pbtech.co.nz, to register account for free softtware and APP.

Positioning & Location
Technology
GPS, BDS
Accuracy
<2m CEP50
Tracking sensitivity
–165dBm
Acquisition sensitivity
–159dBm
TTFF (open sky)
Avg. hot start =1sec
Avg. cold start =26sec
Cellular
Technology
LTE Cat 1
Frequency
PL601_LA:
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
GSM: 850/900/1800/1900
PL601_NA:
LTE-FDD: B2/B4/B5/B7/B12/B14/B17/B25/B26/B66
LTE-TDD: B41
PL601_EA:
LTE-FDD: B1/B3/B7/B8/B20/B28
LTE-TDD: B34/B38/B39/B40/B41
GSM: 900/1800
Power
Battery
650mAh/3.8V industrial-grade Li-Polymer battery (disposable)
Working modes
Intelligent mode
Timing mode
Battery life
Up to 4 days in intelligent mode, 2 hours moving per day (update every 60s)
Operating environment
Operating temperature
–20? to +70?
Operating humidity
5% to 95%, non-condensing
IP rating
IP65
Physical specifications
Dimensions
45.0 x 45.0 x 17.0mm
Weight
33g
Interface
LED indication
Tri-color LED for power, cellular, and GNSS
SIM
Nano-SIM
Memory capacity
1000 GPS data entries
Button
1 button for SOS, power on/off, and more
USB
Type-C (for charging)
GNSS antenna
Internal
Bluetooth antenna
Internal
Features
Voice monitoring range
3m
Sensors Accelerometer, Barometer (optional)
Scenarios
SOS alert, Geo-fence entry/exit alert, Abnormal noise alert, Low battery alert, Power on/off alert
Mount method
Lanyard, back clip
Bluetooth
BLE 5.0
Configuration support
Bluetooth
Certification
CE, FCC
- MPN: PL601

MPN: PL601
