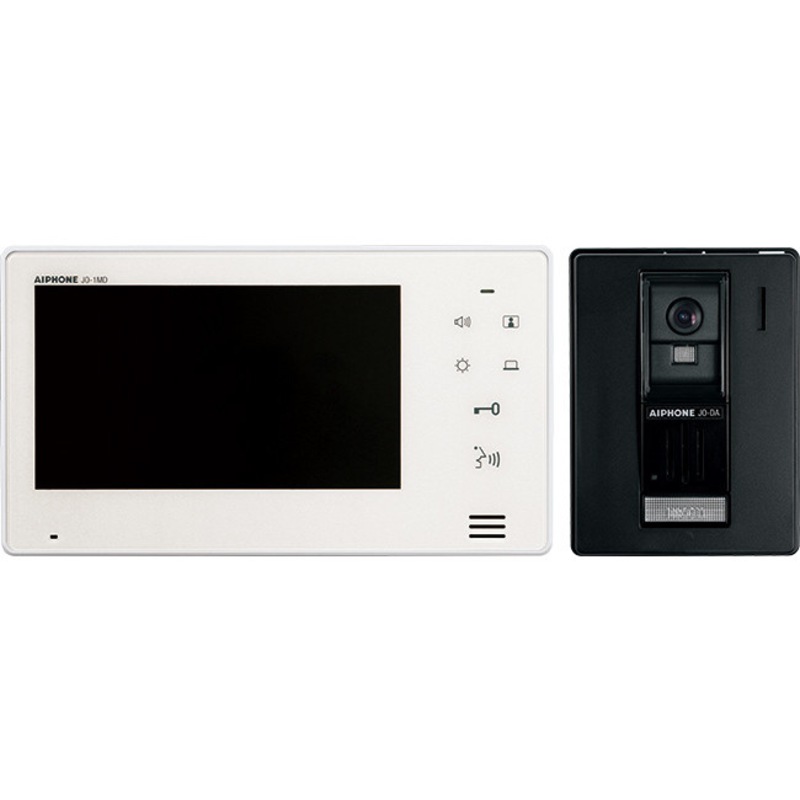

JOS1A 7" COLOUR VIDEO INTERCOM KIT WITH JO1MD, JODA AND P/S

Image 1
Hurry! 13 items left!
$726

Collect 726 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by MAD Electronics Australia
Secure ways to pay at checkout

The JO series is a stylish design 7" screen that delivers high quality images. The JO Series can accommodate one door and up to two inside stations.


Easy to identify and use touch buttons makes it simple tooperate allowing identification and communication withvisitors at locked doors.


Door / gate release button allows you to accept your visitor with out leaving the screen.


The JO series is equiped with an advanced light adjustment feature to compensate for varying light levels


The JOS1A includes:


1 x JODA plastic surface mount door station


1 x JO1MD master station


1 x 18 volt power supply



OPTIONAL:


1 x JO1FD Expansion monitor



FEATURES:



  • Power Source 18V DC

  • Communication

    • Hands-free: Auto-voice actuation

    • PTT: Push-to-talk, release-to-listen


  • Video Monitor 7" color LCD screen

  • Door Release Contact rating: 24V AC/DC, 500mA - use RY-18L for larger contact rating

  • Min. Illumination 5 lux at 1'6"

  • Wiring Door to master: 2 conductor, mid cap, solid, non-shielded

  • Wire Type KBWIRE


Ready to install box sets include one door station, one inside station, and power supply.



other Kits available


JOS1F - Includes 1 x JODVF door station and 1 x JO1MD master station and 1 x 18 volt power supply
JOS1V - Includes 1 x JODV door station and 1 x JO1MD master station and 1 x 18 volt power supply


SPECIFICATIONS:















































































JO-1MD Master Station


  • Power supply

18 Volts DC


  • Current consumption

( Standby ) 24 mA ( Max ) 410 mA


  • Communication

Hands-free: Auto-voice actuation
PTT: Press-to-talk, release to listen


  • Ambient temperature

0 - 40oC ( 32oF - 104oF)


  • Monitor

7 inch color LCD screen


  • Mounting

Wall mount


  • Electrical Box

3 gang box


  • Material

Flame resistant ABS resin


  • Color

White


  • Dimmension

130 (H) x 230 (W) x 21 (D) (mm)

5-1/8 (H) x 9-1/16 (W) x 13/16 (D) (inches)


  • Weight

Approx. 470g (1.04 lbs.)
JO-DA/JO-DV/JO-DVF (Video door station)


  • Camera Unit

1/4 - inch color CMOS


  • Ambient temperature

-20 - 60oC (-4oF - 140oF)


  • Minimum illumination

Approx. 5 lux at 50 cm (1'6'') distance

































  • Dimensions (JO-DA)

129 (H) x 97 (W) x 36 (D) (mm)

5-3/32 (H) x 3-27/32 (W) x 1-13/32 (D) (inches)



  • Dimensions (JO-DV)

173 (H) x 98 (W) x 27 (D) (mm)

6-13/16 (H) x 3-7/8 (W) x 1-3/8 (D) (inches)



  • Dimensions (JO-DVF)

209 (H) x 135 (W) x exposed area 3.5 (D) (mm)

8-1/4 (H) x 5-5/16 (W) x 5/16 (D) (inches)



  • (Flush mount back box for JO-DVF)

180 (H) x 110 (W) x 45 (D) (mm)

7-3/32 (H) X 4-3/8 (W) X 1-25/32 (D) (inches)



  • Weight (JO-DA)

Approx. 200 g (0.44 lbs.)


  • Weight (JO-DV)

Approx. 650 g (1.43 lbs.)


  • Weight (JO-DVF)

Approx. 580 g (1.27 lbs.)

    ...

GTIN: 4968249592402
