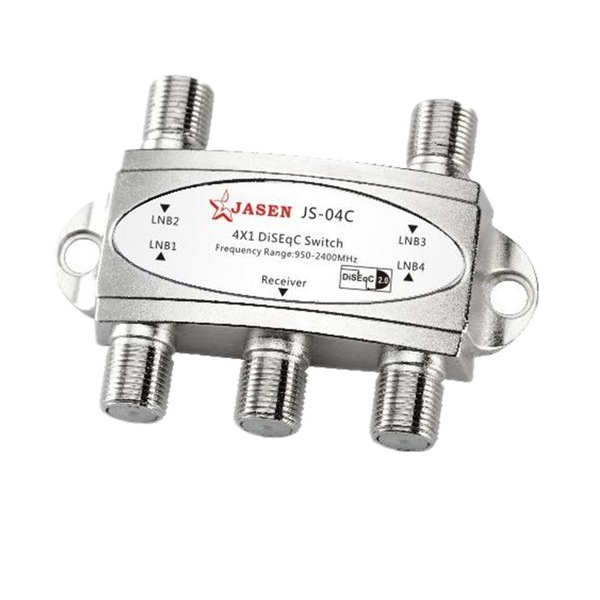

JS-04C 4 in 1 4x1 DiSEqC Satellites FTA TV LNB Switch
,gravity=Center,allowExpansion)
Collect 30 Everyday Rewards points
Dispatch in 2 business days
Collect 30 Everyday Rewards points
Dispatch in 2 business days
Features:
?
Zinc die-cast housing, nickel-plated
Excellent quality component , professional circuit design and low loss
Excellent quality chip , professional program design and compatible with more types of satellite receiver
Can work normally outdoors under unsheltered circumstance, exquisite plastic case shell attached
DiSEqC 2.0 , support bi-directional DiSEqC full control functions
Select one of two satellite signals through DiSEqC commands supplied from satellite receiver
Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously
Support DiSEqC “standby” commands
Specifications:
?
Item | Specification | Item | Specification |
Frequency?Range | 950-2400(MHz) | Normal?Working?Voltage | 12-20(V) |
Insertion?Loss | 3(dB) | DC?Power?Consumption | 10(mA) |
Isolation | 20(dB) | DC?Max?Power?Passing | 500(mA) |
Return?Loss | 8(dB) | Impedance(all?ports) | 75(Ω) |
Package Included:
1 x?JS-04C Switch
