JTS 8012DBKITBBB1 2 Channel Beltpack Wireless System 520-556Mhz 1 X Ru8012db Rx -2 X Ru850ltb B/P Tx

JTS 8012DBKITBBB1 2 Channel Beltpack Wireless System 520-556Mhz 1 X Ru8012db Rx -2 X Ru850ltb B/P Tx

Hurry! 1 items left!

$1036

Collect 1036 Everyday Rewards points

Log in to MyDeal to link your card

Sold & shipped by Radio Parts

Secure ways to pay at checkout

Overview

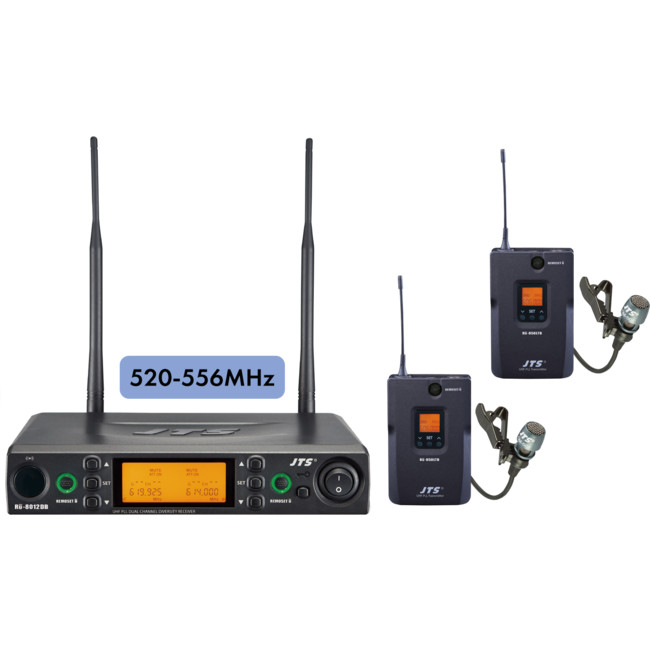

JTS 8012DBKITBBB1

528-556MHz 2 channel wireless belt pack with CM-501 Lapel mics microphone kit

Includes:

RU-8012DB Receiver
2 × RU-850LTB Belt-pack Transmitters
2 × CM-501 Lapel Mics

RU-8012DB

RU-8012DB Receiver

Based on US-8001 successful experience RU-8012 is designed with JTS 2nd generation REMOSET technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The REMOSET technology sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available on option.

Specifications

Frequency Preparation	PLL Synthesised Control
Carrier Frequency Range	520-556MHz
Frequency Setting	Ultrasonic / REMOSET (Transmit)
Receiving Mode	Antenna Diversity
Bandwidth	36MHz
S/N Ratio	> 105dB
THD	<0.6% @ 1KHz
Sensitivity	−95dBm, S/N >80dB
Rejection Ratio	>80dB
Frequency Response	50Hz~16KHz ±2dB
Antenna Type	BNC socket
Antenna Booster Power	12~15V DC / 100mA
Display Contents	Group, Channel, Frequency, Antenna A/B, Mute Display, AF Meter, RF Meter, Battery Status
Display	LCD
Controls	Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad
Audio Level Output	Ref/ ±22.5KHz Dev@1KHz Tone ψ6.3 Phone Jack / −10dBV XLR Jack / −4dBV (Line) / −24dBV (MIC)
AF Output Impedance	600
Squelch	Pilot Tone, Noise, Mute
Output Connector	2 independent balanced XLR and 2 Ø6.3mm unbalanced
Power Supply	12~15V DC / 500mA
Dimensions (W×H×D)	212.3mm × 38.3mm × 144mm

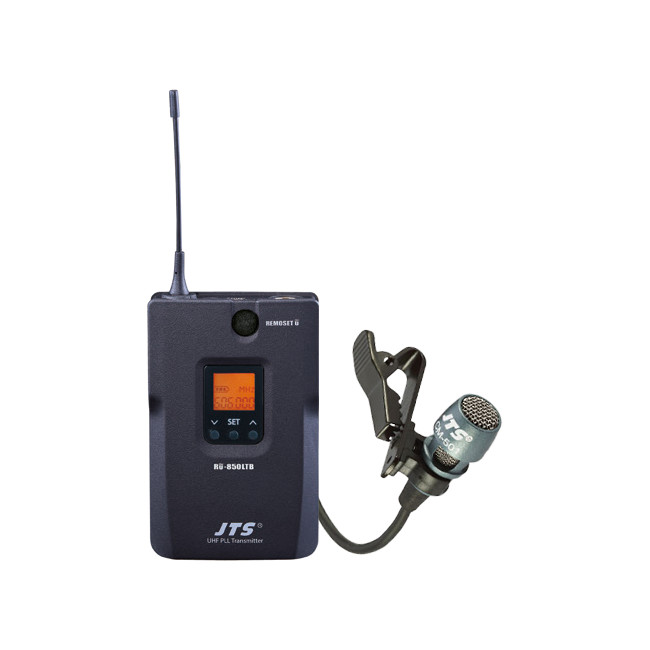

RU-850LTB

2 × RU-850LTB Belt-pack Transmitters

Features:

This innovative bodypack transmitter is designed with both REMOSET U and full function setting at itself. The settings include Frequency, Group/Channel, Sensitivity, RF Power, and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at receiver's front panel. Auto Power Off feature can be set OFF or ON with selection of 10, 30 and 60 minutes without audio input. This will save battery life and avoid over discharge. Besides REMOSET U a user can carry out setting at transmitter side.

To cope with music instruments a pad of −20 dB is designed. Recharging circuit and connector are already built in case users want to upgrade the system.

Specifications:

Frequency Preparation	PLL Synthesised Control
Carrier Frequency Range	520-556MHz
Frequency Setting	REMOSET U (Receive)
RF Outputs	Low / High
Stability	< ±10KHz @ Fc
Frequency Deviation	±48KHz
Spurious Emissions	< −50dBc
Function	Mute, Auto Power Off, Sensitivity Adjust, Low Battery
Display	LCD + LED
Controls	Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock
Battery	UM# AA × 2

CM-501

2 × CM-501 Lapel Mics

Uni-direction for high-quality voice pick-up.
Wide dynamic range and frequency response for excellent sound reinforcement.
Small size for minimum visibility.
Together with clip for easy attaching to a tie, lapel, dress etc.

SPECIFICATIONS

Connector	4P Mini XLR
Frequency Response	100~15,000 Hz
Polar Pattern	Cardiod
Sensitivity (at 1KHz)	−60 ±3dB* (1mV)*0dB=1V/µbar
Impedance	2.2k
Max. SPL for 1% THD	130dB
Dimensions (W×H)	Ø10.1mm × 26.4mm
Net Weight	21.5g
