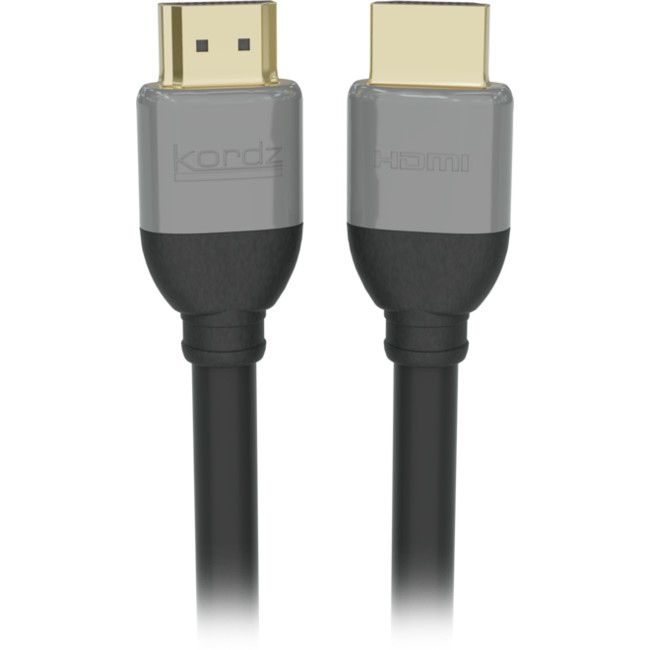

KORDZ K36426-0050-CH Prs4 Series 48Gbps 8K Passive HDMI Cable - 0.5M Ultra High Speed Certified

Image 1
Image 2
Hurry! 9 items left!
$62

Collect 62 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
Kordz
K36426-0050-CH PRS4 Series 48Gbps 8K Passive Certified HDMI Cable - 0.5m

The new Kordz PRS4Series 48Gbps Passive Ultra High Speed Certified HDMI Cables are designed to meet the high demands and rigour of professional integration.

They're constructed to be compact, robust and flexible, while supporting the full features and benefits of the latest HDMI technologies at 48Gbps when using 4K HFR or 8K devices.

Key Features
  • Ultra High Speed certified
  • 48Gbps support for 8K/10K, HDR, VRR, HFR, 3D, FRL
  • Robust engineering and construction with premium materials
  • 15µ" gold-plated solid copper pins
  • Compact connector with full internal zinc-alloy diecast housing
  • Easy installation aided by the unique Kordz shark-nose dust-cap
  • Convenient easy tear bulk packaging minimising waste on site
  • UL CMG rating
  • High contrast detailed labelling with inventory management design
  • Backed by the Kordz Lifetime Guarantee
  • Available in 0.5m, 1m, 1.5m, 2m, 3m, 4m, 5m
_
Application
HDMI Signal Support

Video Format: 8K/4K/1080p, 120fps/60fps, Dynamic HDR
Data Rate: 10.2Gbps/ 18Gbps/ 48Gbps
Control Signal: HDCP 2.2/EDID/ CEC/ DDC
Audio Support: DTS Master, DTS:X, Dolby TrueHD, Dolby Atmos

480i/p, 576i/p:≤ 540Mbpsc/1.62Gbps, 270MHz
720p/1080i: 742.5Mbpsc/2.22Gbps, 371.25MHz
1080p: 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0:
23.98/24/29.97/30: 742.5Mbpsc/2.22Gbps, 371.25MHz
50/59.94/60: 1.485Gbpsc/4.455Gbps, 742.5MHz
3D-24/30: 1.485Gbpsc/4.455Gbps, 742.5MHz
3D-50/60: 2.97Gbpsc/8.91Gbps, 1.485GHz
1080p: 10/12/16-bit RGB/YCbCr 4:4:4

_

Technical info
    HDMI CERTIFICATION≤ 5.0m PASSIVE

    HDMI CTS Certification: Ultra High Speed HDMI® Cable
    Certified Data Rate: ≥12.0Gbpsc, 48Gbps agg (8K UHD)
    Supported HDMI Clock: 1200MHz

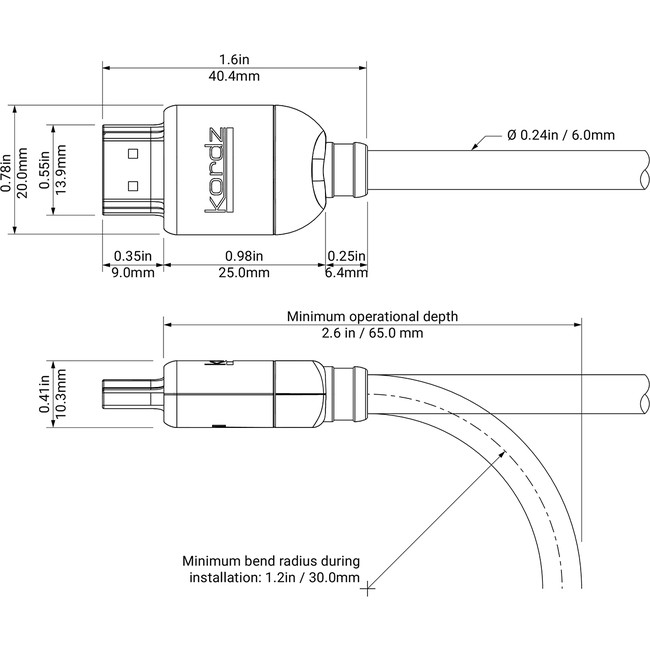

    MECHANICAL

    Cable Diameter: 0.5m - 3.0m: 30 AWG 6.0mm / 0.24in Ø | 4.0m - 5.0m: 26 AWG, 8.0mm | 0.31in Ø
    Mounting Length: 0.5m - 3.0m: 30AWG, 60.5mm/2.38" | 5m: 28 AWG, 67.5mm/2.66"
    Cable Bend Radius: 0.5m - 3.0m: 30 AWG, 36.0mm/1.42" | 5m: 28 AWG, 48.0mm/1.89"
    Retention Force (nominal): 20N (approx. 2kg / 4.4lbs) +10/-5%

    CONSTRUCTION

    Primary Conductors: Solid 30-26 AWG OFC, length dependent
    Insulation on TMDS: Polyethelyene / Polypropylene, length dependent
    Insulation on 4C + HEAC Pairs: Polyethelyene / Polypropylene, length dependent
    Shielding on TMDS Pairs: AL/Mylar, 100% Coverage with 25% Overlapping
    Shielding Overall: AL/Mylar, 125% Coverage + Tinned copper braid, min 85% coverage
    Cable Jacket: UL CMG fire-rated PVC composite materials
    HDMI Connector Shell: Anti-fatigue die cast Zn alloy, 1µ" 24K Gold plated
    HDMI Connector Pins: Solid OFC, 15µ" 24K Gold plated
    Termination: High Frequency Soldering
    HDMI Backshell: ABS front shell with PVC injection moulded boot and strain relief

_

Length options
  • K36426-0050-CH
0.5m / 1.6ft
  • K36426-0100-CH
1.0m / 3.3ft
  • K36426-0150-CH
1.5m / 4.9ft
  • K36426-0200-CH
2.0m / 6.6ft
  • K36426-0300-CH
3.0m / 9.8ft
  • K36426-0400-CH
4.0m / 13.1ft
  • K36426-0500-CH
5.0m / 16.4ft

_

_


Weight: 0.052

Aussie Stock
All our stock is kept in our Melbourne based warehouse. Our stock levels are also updated every 10 minutes! So if it says 10 units in stock, you can trust that it is accurate.

No PO Boxes or Parcel Lockers
At this stage we only use couriers and can only deliver to a road-side address. This means PO Boxes and Parcel Lockers cannot be accepted as StarTrack do not deliver to these addresses.
In instances where a PO Box or Parcel Locker address in entered, we may ask for an alternative road-side address, or cancel and refund your order immediately and urge you to replace your order with an alternative delivery address.

Delivery times
We typically dispatch our goods same day or next day. From there, you can expect 2 - 8 business days Australia wide. Most capital cities can expect 1-2 day delivery times.
Any RTS (Return to Sender) orders due to missing or incorrect address information entered by the buyer may incur an additional charge for redelivery.

GTIN: 9340382011920
