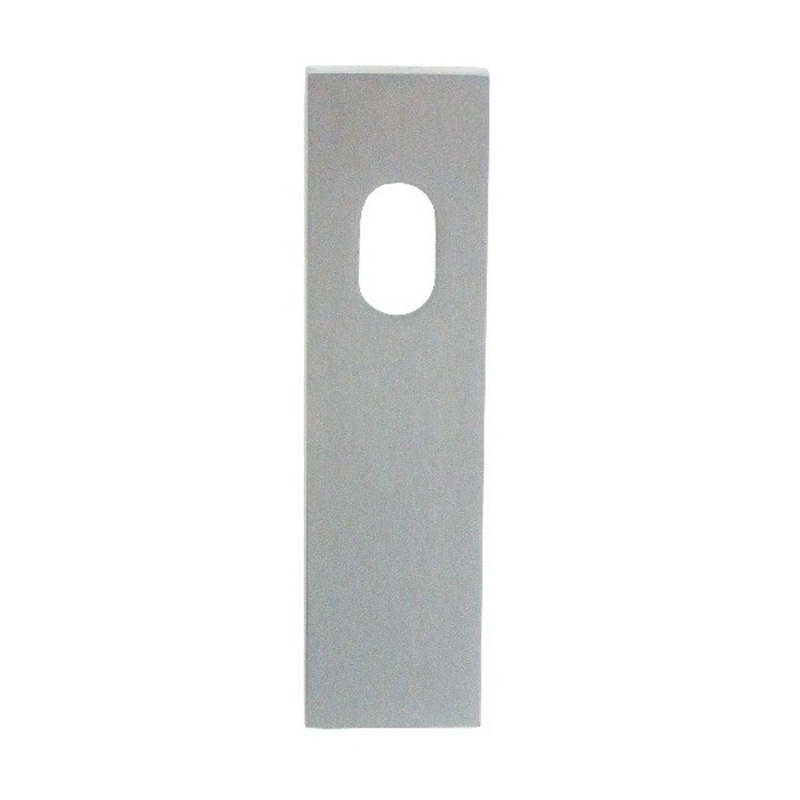

Kaba Plate Furniture 600 Series w/ Cylinder Hole
604CSCP

Square End Plate Furniture is used for most commercial standard backset mortice locks. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Furniture Function - external plates with lever designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

The Kaba 600 series square end solid forged brass door furniture is designed for use with contemporary Australian style mortice locks and latches

Features:

• Stainless Steel drive plate, an integrated precision ground 12mm bush that provides enhanced handle support plus a lever torsion spring to eliminate handle sag
• Fixing: Plates are 12mm thick and are designed to fit back to back with either concealed or visible fixing to outside plate
• Tiebolt M5 fixing screws have a cross-recessed head
• Handing: Plates and knobs are non-handed with levers reversible on site in most cases
• Door Thickness: Suits door thickness from 32mm minimum to 50mm maximum
• Thicker doors require extended spindles, turn bars and longer tiebolt fixing screws

Specifications:

• Lever Type: 25
• Height: 165mm
• Width: 44mm
• Depth: 12mm
• Door Thickness: 32mm - 50mm
• Finish: Satin Chrome Plate
