Kaba EN2-5 Door Closer with Standard Arm Back Check Fire Rated Silver 9025SIL

Kaba EN2-5 Door Closer with Standard Arm and PA Bracket
9025SIL

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

• A high end unit offering multi-functional operation suitable for most common doors in architectural and commercial applications
• Heavy duty commercial grade door closer
• Closing force power adjustable (EN2-5)
• A single closer provides variable power sizes
• Non-handed installation
• Compact extruded aluminium body design with minimal projection allowing installation to door with adjacent wall at 90°
• Back check - beyond approx 60° (valve adjustable)
• Delayed action - between 180° and 65°
• Parallel arm bracket supplied as standard
• Fixing screws supplied to suit timber or metal fixing

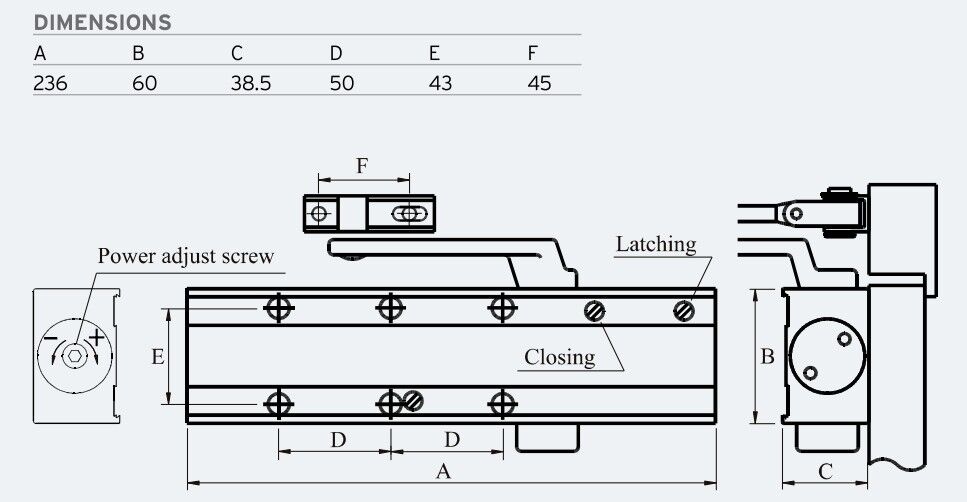

Specifications:

• Material: Aluminium
• Spring Strength: EN 2-5
• Length: 236mm
• Height: 60mm
• Depth: 38.5mm
• Adjustable closing speed and latching speed:
  • Closing speed action (180 - 15 Degrees)
  • Latching speed action (15 - 0 Degrees)
• Max Door Weight: 100kg
• Max Door Width: 1250mm
• Max Opening: 180 Degrees
• Back Check: Yes
• Delayed Action: Yes
• Include PA Bracket: Yes
• Includes Fixing Screws: Yes
• Finish: Silver

Compliance:

• Fire Rated: Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
