Brand: KAIWEETS

Features:

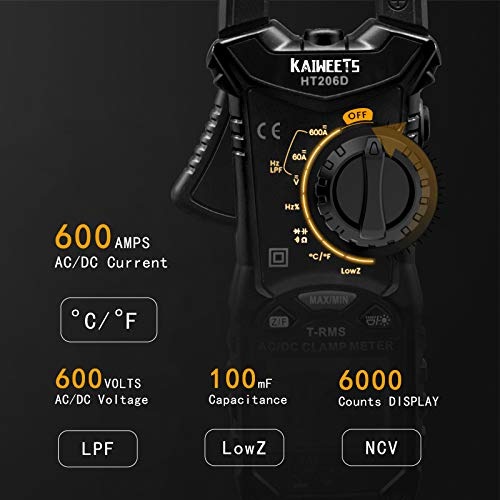

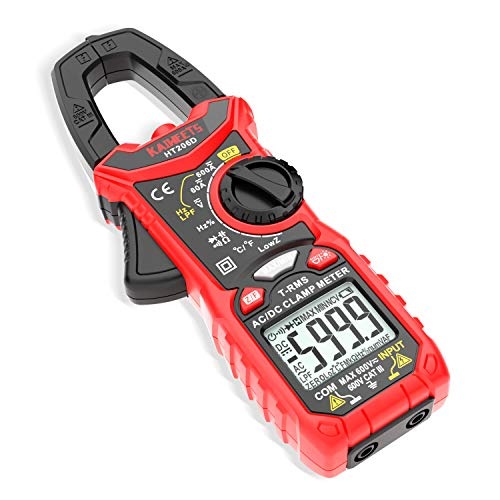

• True-RMS clamp meter: This multimeter can accurately measure AC/DC Current, AC/DC Voltage, Frequency or Duty Cycle, Resistance, Capacitance and also provides Diode, Continuity and Temperature tests. True RMS for accurate measurements on non-linear loads. Easy to use for labs factories and household.
• LowZ & LPF: Low input impedance helps prevent false readings due to ghost voltage. Low Pass Filter (LPF) for accurate measurement of variable frequency drive signals when measuring motors and transformer. To measure the current you need to clamp the meter around one of the wires and not the whole power cord.
• NCV Detection Function: Non-contact voltage detection effectively check electrical status through measuring EM field intensity without touching any wires; The NCV button lies on the right side. Simply place your thumb on it and push.
• Multi-function: Two-color backlit LCD Display - When the voltage > 80V, the current > 3A, the LCD backlit screen turns red to warn you of high voltage/ LED Flashlight / Temperature Measurement for liquids and air conditioning ports included K-Type Thermocouple / Low Battery Indication / Auto power off after 15 minutes inactivity.
• Safety Service: Safety standard IEC 61010-1, CAT III 600V. Double insulation.

Binding: Tools & Home Improvement

Details: Características principales: 1. T-RMS Tensión y corriente de CA RMS para mediciones precisas en señales no lineales. 2. 6000 unidades. El valor máximo mensurable es 5999, que es suficiente para uso industrial. Es un medidor de abrazadera profesional con alta precisión. 3. Apagado automático. Sin operación en 15 minutos, el medidor emitirá un pitido 3 veces, lo que indica que Aoto se apaga. 4. Pantalla LCD. La pantalla LCD de fácil lectura te ofrece mediciones claras. 5. Clasificación de seguridad. Calificación de seguridad CAT III 600 V. Especificaciones: Color: negro y rojo. Corriente CA (A): 60 A/600 A ±(2,5% + 5). Voltaje de CA (V): 6V/60V/600V ±(1.0%+3). Corriente CC (A): 60 A/600 A ±(2,5% + 5). Voltaje CC (V): 600 mV/6 V/60 V/600 V ± (0,5% + 3). Resistencia (Ω): 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1.0%+3) Capacitancia (F): 10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF ±(4.0%+3) Frecuencia (Hz): 10 Hz ~ 10 MHz ± (0,5% + 5). Temperatura: -4.0 °F-1,832.0 °F/-4°F-1832°F NCV: sí. LPF: sí. Bajo z: sí. Máx./min: sí. Almacenamiento de datos: sí. Prueba de diodos: sí. Linterna: sí. Retroiluminación LCD: sí. Timbre de continuidad: sí. Indicación de sobrealcance: sí. Indicación de batería baja: sí. Alimentación: 2 pilas AAA de 1,5 V. Peso: 6.60 oz. Tamaño: 7.598 x 2.874 x 1.339 in. Contenido: 1 medidor de abrazadera digital. 1 sonda de temperatura. 2 cables de prueba (un par). 2 pilas AAA de 1,5 V (no instaladas). 1 funda de transporte suave. 1 manual de instrucciones (idioma español no garantizado).

Package Dimensions: 8.9 x 4.6 x 1.9 inches

To measure Direct Current

Application in automobile repair, DIY, etc.

Specifications:

If current> 3A, the orange display lights up.

The measuring range of DC current is 60A/600A. Accuracy: ±(2.5%+5).

Note:

Before measuring the DC current, long-press and hold the Z/F key until the ZERO character appears to clear the data.

To measure Alternating Current

Press the "Z/F" button to swith to AC Measurement

Specifications:

If current> 3A, the orange display lights up.

The measuring range of AC current is 60A/600A. Accuracy: ±(2.5%+5).

Note:

To measure the current you need to clamp the meter around one of the wires and not the whole power cord. The power cord contains two wires carrying current and ground wire. The current in two wires always flows in opposite directions, so the magnetic fields from two wires canceling each other, therefore the meter reads 0 A.

Grasp the individual current conductor to be measured and close the current clamp again. The measured conductor must be placed in the center of the clamp, otherwise, additional errors will occur.
