Incident and Reflected Light Measurement
Flash Metering and Sync Terminal
Spherical 270o Diffuser
Spot Angle of 1o
Three Measuring Modes
Digital LCD Display
Viewfinder with Diopter Adjustment
Frame Rates from 2 to 360
Shutter Speeds of 30 min to 1/16000 sec
Aperture Range of f/1.0 to f/128
Overview

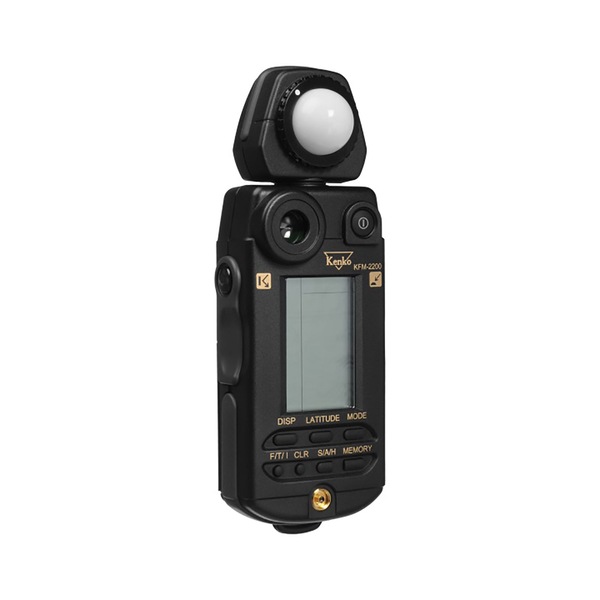

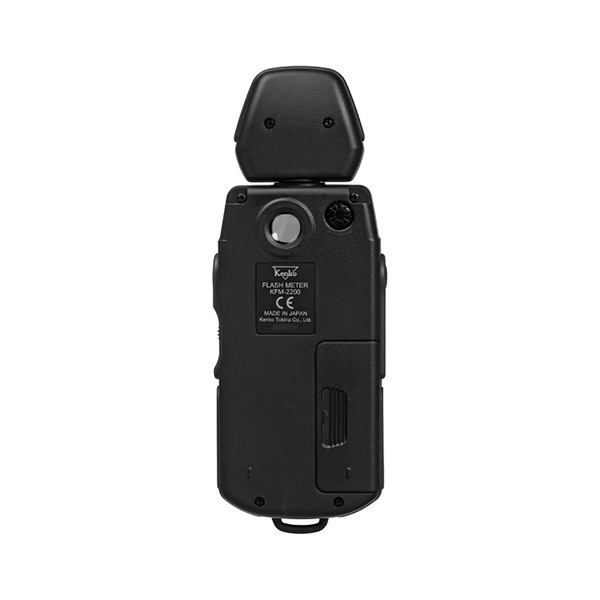

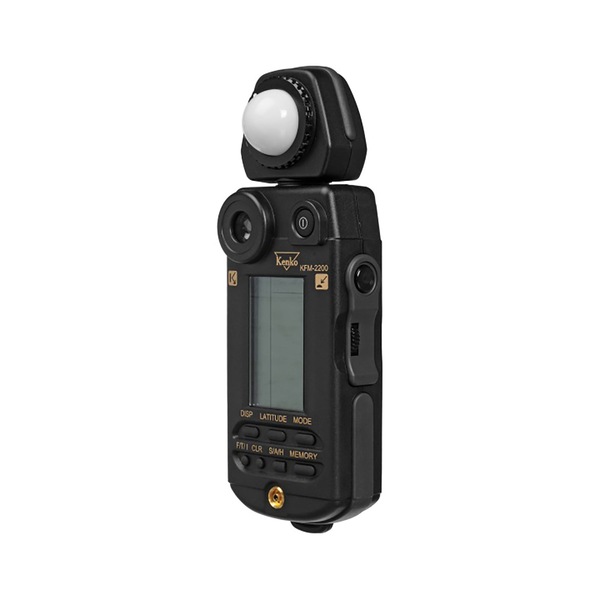

The Kenko KFM-2200 Flash Meter is a digital handheld exposure meter capable of both incident and reflected light measurement, including flash and strobes. The KFM-2200 utilizes a spherical diffuser with a 270o rotation angle for most readings, including the ability to take a 1o spot measurement using the viewfinder. It can then use one of three measurement modes depending on your specific needs.
For working with both cinema and still photography use, there are a variety of additional settings, especially a large selection of shutter speeds from 30 minutes to 1/16000 second. It even features a flash sync terminal for metering your strobes for still photography. Also, it can display an aperture range from f/1.0 to f/128 and 9/10.
The digital LCD display is backlit to increase readability and shows a variety of parameters, each of which can be set to determine proper exposure values for your camera settings. The KFM-220 also features a viewfinder with diopter adjustment for taking spot measurements of reflected light. It includes a soft case and strap for storage and travel.
Determine the proportion of flash to ambient light in a single measurement
Flash sync terminal allows you to easily attach and meter flashes for still photography
Optional flat diffuser is available for use as a simplified Lux meter
Parallax-free optical system for spot measurement
You can change the aperture, shutter speed, or ISO in order to get the data required for your shoot
Latitude display function shows incident and spot light measurement together
Shadow/Average/Highlight-based calculations are possible
Memory function capable of storing up to 10 measured values
Custom "Alt" mode lets you set the meter to your preferences, including exposure correction
Measurements are shown on the analog and digital displays to eliminate possible reading errors
Direct f-number display eliminates the need for f-number conversion
Specifications
Type Handheld ambient and flash light meter
Reception Mode Incident and spot
Receptor Head Spherical diffuser
Receptor Element Silicon photocell
Measuring Modes AMBI Mode: Ambient light
CORD Mode: Flash using a sync cord
N CORD Mode: Flash without using a sync cord, incident light only
Measuring Range ISO 100
Ambient Light, Incident: -2.0 to 19.9 EV
Ambient Light, Spot: 2.0 to 24.5 EV
Flash, Incident: f/1.0 to f/128 + 0.9 stop
Flash, Spot: f/2.8 to f/128 + 0.9 stop
Measuring Distance 1.3 m to infinity for spot measurement
Viewfinder Single-lens reflect type with fixed focal point
Viewfinder Magnification 1.2x
Viewing Angle 12o (vertical) x 17o (horizontal)
Diopter Adjustment -3.0 to +1.0
Repeat Accuracy 0.1 EV
Calibration Incident: C = 330 (spherical diffuser), C = 250 (flat diffuser)
Spot: K = 14
Display Range Exposure: f/1.0 to f/128 + 0.9 stop in 0.1 stop increments
EV: -17 to 40.9 in 0.1 stop increments
Shutter Speed, Ambient: 30 min to 1/16000 sec
Shutter Speed, Flash: 30 min to 1/1000 sec
Frame Rate, 180o: 2, 3, 4, 6, 8, 10, 12, 14, 16, 18, 20, 24, 25, 30, 32, 36, 40, 48, 60, 64, 75, 90, 96, 100, 125, 128, 150, 180, 200, 240, 256, 300, 360
ISO: 3 to 8000 in 1/3 stop increments
Exposure Difference: -10 to +10 in 0.1 stop increments
Analog Scale: f/1.0 to f/90 in 1/2 stop increments
Analyze Scale: Flash light proportion 0-100% in 25% increments
Battery Power 1 x alkaline AA battery (LR-6/1.5 V)
Battery Life Approximately 30 hours of continuous operation
Terminal Flash sync terminal
Memory 10 measured values
Exposure Calibration -10 to +10 in 0.1 stop increments
Other Functions Latitude display function, Light Ratio Analyze function, S/A/H calculation, Brightness difference function
Operating Conditions Temperature: 14 to 122oF (-10 to 50oC)
Humidity: 85% maximum, non-condensing at 95oF (35oC)
Storage Conditions Temperature: -4 to 131oF (-20 to 55oC)
Humidity: 85% maximum, non-condensing at 95oF (35oC)
Dimensions 2.6 x 6.9 x 1.2" (6.6 x 17.5 x 3.1 cm)
Weight 6.5 oz (185 g)
In the box
Kenko KFM-2200 Cine & Flash Meter
Case
Strap
