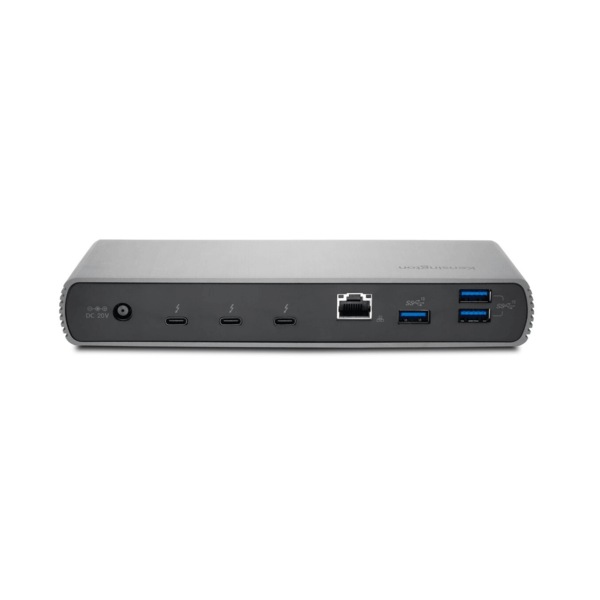

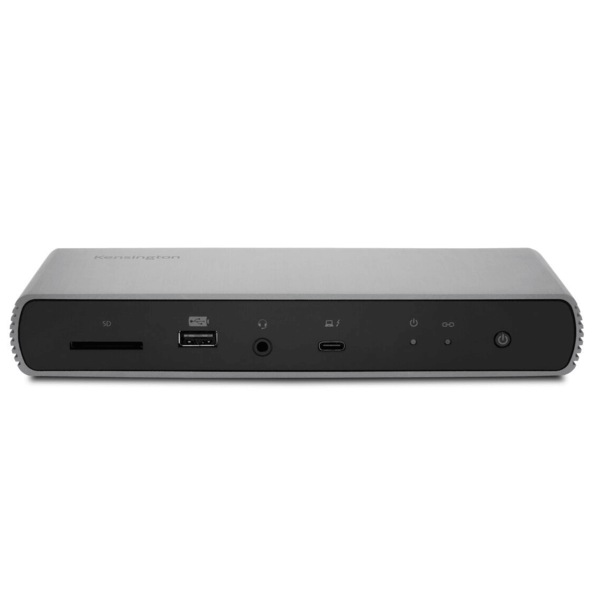

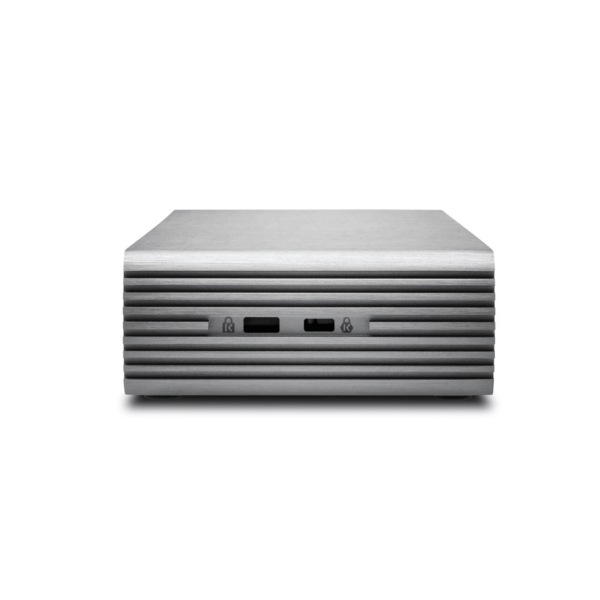

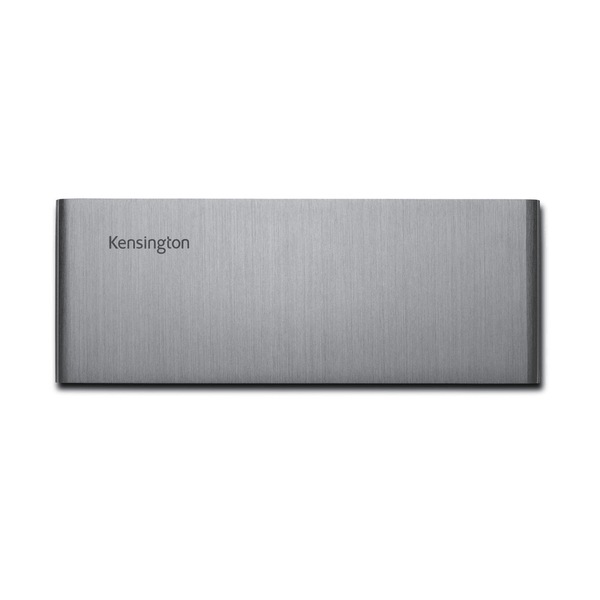

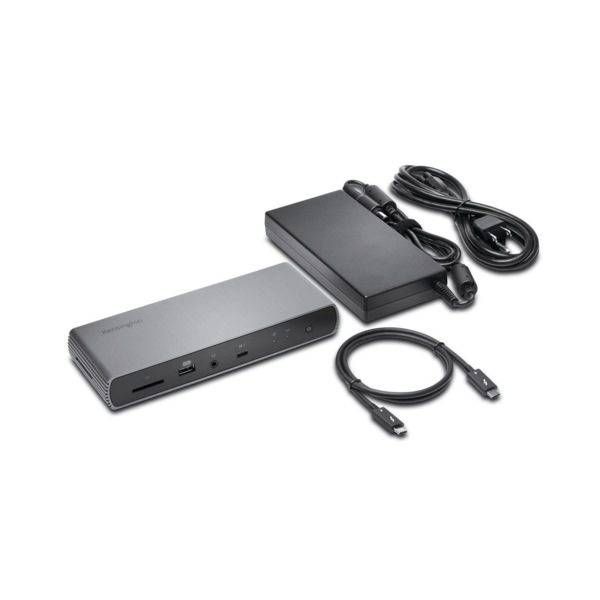

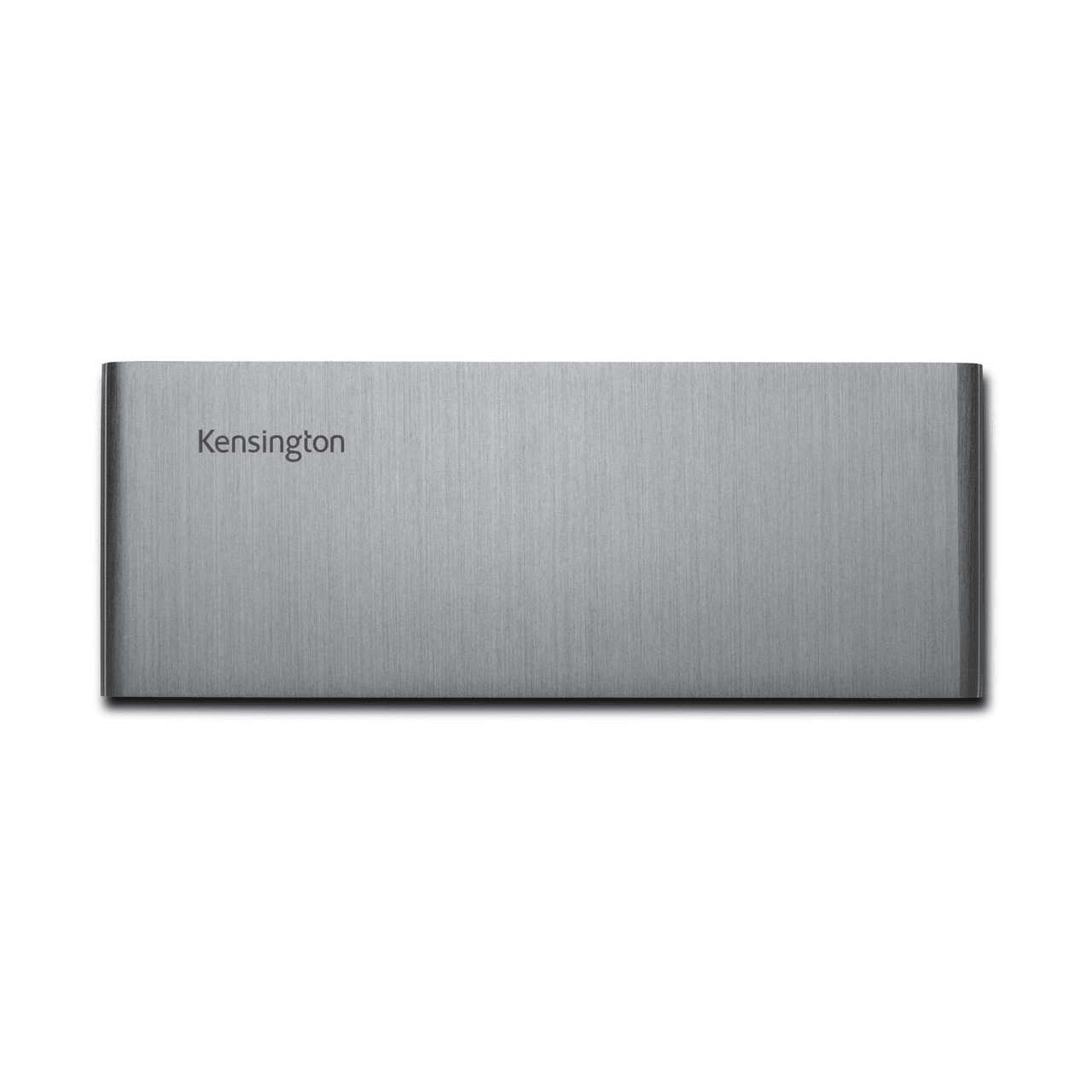

Designed exclusively for Surface, the SD5750T Thunderbolt™ 4 Dual 4K Dock (DFS) offers premium Thunderbolt benefits now and into the future. Compatible with USB4/Thunderbolt 4-enabled Surface laptops, supporting USB-C and USB-A accessories and provides full Power Delivery regardless of how many devices are connected. Features include 11-ports [4 x Thunderbolt 4, 4 x USB-A (1 x 5V/1.5A charging port on the front and 3 x Gen2 @ 10Gbps ports on the rear), 1 x Gigabit Ethernet port, 1 x audio combo jack and 1 x UHS-II SD 4.0 card reader], Single 8K @ 30 Hz or up to Dual 4K @ 60Hz video, 40Gbps data transfer speeds, secure and manageable Intel VT-d DMA protection, a zero-footprint mounting option, security cable lock slots, free Kensington DockWorks™ software and a three-year warranty.

Compatibility

This Thunderbolt-certified desktop docking station is the first of its kind, providing the ultimate plug-and-play solution for USB4/Thunderbolt 4 Surface devices, while also supporting USB-C and USB-A accessories.

Thunderbolt 4 Technology

For the first time, this Thunderbolt 4 modern docking station can connect up to three additional Thunderbolt devices directly (up to five in total via daisy chain) while providing transfer speeds up to 40Gbps, up to Dual 4K video output and audio; all through the included 0.8m Thunderbolt 4 cable, for a quick and powerful plug-and-play experience. Intel VT-d DMA protection blocks peripheral devices from unauthorised access to system memory.

Single 8K or Dual 4K Video Output for Thunderbolt 4-Enabled Devices

Extend visual productivity with the resolution, contrast and colour depth of Ultra HD (Single 8K 30Hz or Dual 4K 60Hz) via the available Thunderbolt 4 ports.

90W Power Delivery

Quickly and easily charge your USB4/Thunderbolt 4 Surface device, in addition to providing full support for your USB-C and USB-A peripheral accessories. No need to worry about what you have connected to the dock - our solution provides the only full-powered offering on the market, so you can connect anything and be sure to receive optimal performance

Features

• Best For: USB4/Thunderbolt 4 Surface devices. Supports Single 8K or Dual 4K video
• Connection Technology: Thunderbolt 4
• Power Delivery: Supports USB-C PD 3.0 (90W of laptop charging)
• Compatibility: Windows 10
• of Monitors Supported: 2
• Video Ports: Thunderbolt 4 ports
• Maximum Resolution Supported: Thunderbolt - Single 8K 30Hz or Dual 4K 60Hz via the available Thunderbolt 4 ports
• Plug and Play: Plug and play installation, optional Kensington DockWorks™ software is recommended for the best connection, performance and security from your Kensington docking station
• System Requirements: Compatible with USB4/Thunderbolt 4 Surface devices
• Warranty: 3 Years
• *This dock supports the Gigabit Ethernet standard which provides a maximum data rate of 1Gbps. Actual Ethernet speeds may vary depending on, but not limited to, Internet bandwidth, Ethernet cables, network switches and the hardware and firmware performance of the host computer.

Connection technology Thunderbolt 4

Driverless Yes

Video ports Thunderbolt 4

Maximum resolution

8K

Power delivery 90W

Operating system(s) Windows

USB fast charging Yes

USB4/Thunderbolt 4 Surface devices, supporting Single 8K or Dual 4K video.

Certified For

Designed for Microsoft Surface

Compatibility

Windows 10 or above

Card Reader

SD Card Slot (UHS-II, SD4.0)

USB-A ports

4 x (1) USB 2.0 (front) with 5V/1.5A fast-charging & (3) USB 3.2 Gen2 (back) supporting 5V/0.9A

1 x 3.5mm Combo Microphone & Headphone Port (front)

Supports up to 40Gbps data transfer speed

Ethernet Speed (Mbps) 10, 100, 1000

Maximum resolution supported

Single 8K 30Hz or Dual 4K 60Hz

Plug & play

Plug & play installation without need for drivers or downloads

Thunderbolt Ports 4 x Thunderbolt 4 Ports (1 x upstream and 3 x downstream)

USB-C Power Delivery Supports USB-C PD 3.0 (90W of laptop charging)

Video output Thunderbolt 4 ports

4K support Yes

Device Compatibility Surface Pro 9 (Intel), Surface Laptop 5 (13.5"), Surface Laptop 5 (15"), Surface Laptop Studio, Surface Pro 8

SKU K35175AP

Colour Grey
