KingGates JET Swing Gate Arm Motor/Opener (Up to 3M)

This is swing gate automation/ opener Kit for standard gate wing up to 3M long and max. 600Kg

This Kit  is suitable for standard single wing swing gates up to 3-meter long, and max. 600Kg.

• The motor colour is grey.
• The Kit including all you need for basic installation.

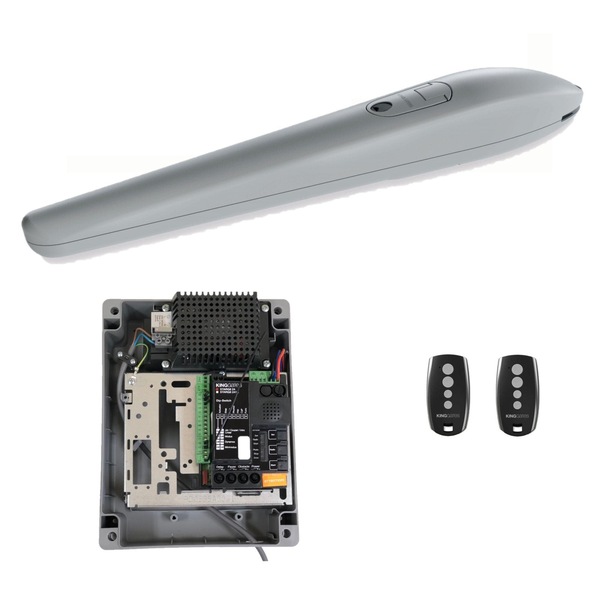

The basic Kit including:

• One (1) JET 24 black colour Motor Unit.

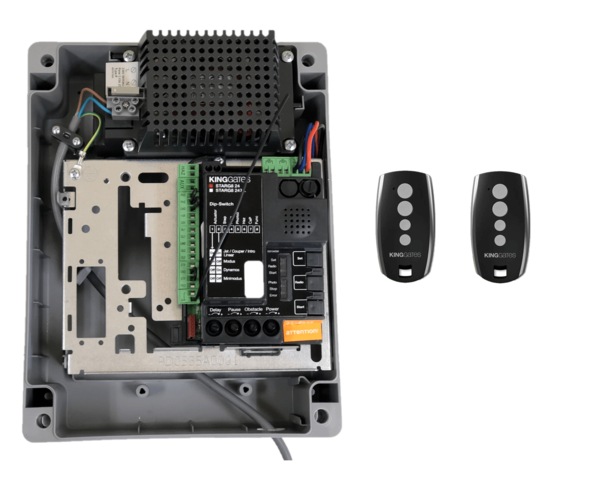

• One (1) Weatherproof digital control Box Star-G8.

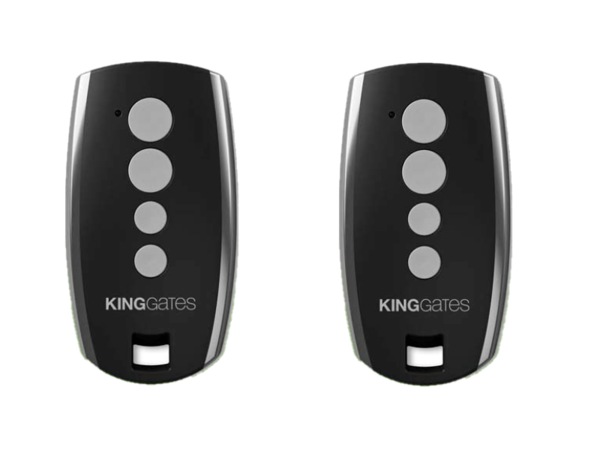

• Two (2) remote control units.
• One (1) Power Cord 240V with Australian / NZ  Plug.
• One (1) cable Gland.
• One (1) post bracket, welded ready to bolts on a post.
• One (1) Gate wing motor Bracket welded ready to bolt.
• One (1) travel stopper.

Made in Italy, the home of gate automation, the Jet 24 Kit is a stylish and modern system. It is mains powered and can easily move gate wings up to 600Kg in weight and 3meters in length leaf. The system is very easy to program thanks to its automatic program function.

The JET 24 boasts many innovative features, including a slow-down facility on opening and closing, obstacle detection to ensure safety, secondary safety input for additional photo cells or safety edges, and has partial opening for pedestrian use.

This Kit comes with 3 years manufacture and Allegro, on the motor and main control board. the warranty applied automatically, no need for registration. For more details see our €œWarranty Terms€�, and the €œTerms and Conditions€�.

The above information is recommendation only, it is the buyer's  responsibility to get the suitable configuration and the correct installation.

you may contact us for more information and for help with getting the best professional installer around your area.

System benefits

• Reliable: mechanical parts made of metal, completely made of steel, bronze and aluminium, no plastic parts in this motor.
• Quick motor release for emergency gate release with a key supplied with the motor.

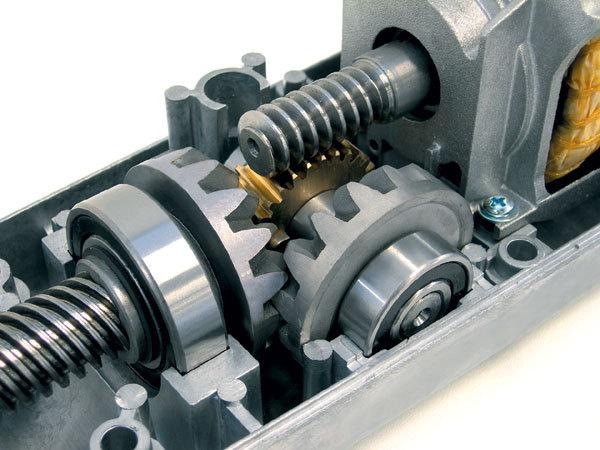

• Maximum strength: the helical gears are built with internal involving teeth.

System features

• Extra safe thanks to the low-voltage connections 24V, the safety accessories and the automatic obstacle detection feature
• Auto-programming: automatically calculates the most suitable operating parameters for your gate
• PWM electronic technology (Pules Width Modulation), regulating the gate travel speed, and smooth the motion
• Adjustable automatic closing delay (Pause)
• Internal antenna and receiver included within the control box

• Tool free remote-control units programming (this feature can be blocked)
• Up to 180 Remote control units or more with extended memory
• Wings synchronization adjustment (for Double swing gates only)
• Obstacle sensitivity adjustment
