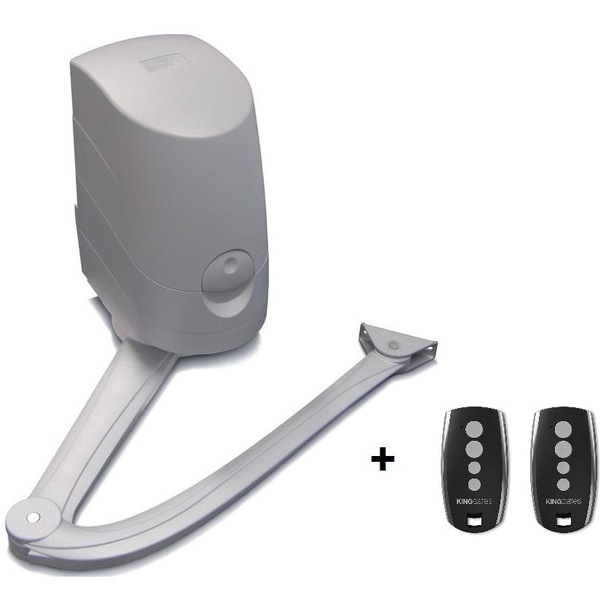

KingGates Modus XL Swing Gate Arm Motor/Opener (Up to 4M)

This is swing gate automation/ opener Kit for standard gate wing up to 4M long and max. 350Kg

This Kit  is best suitable for where the wings installed on pillar or wall. The motor colour is natural grey, make it suitable for many different gate colours.

The Kit including all you need for basic installation.

The basic Kit including:

• One (1) Modus Master motor Unit
• Two (2) remote control Units.

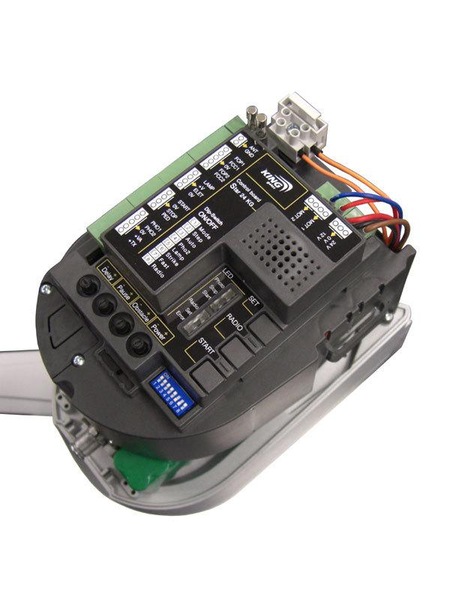

• One (1) build-in control Unit Star G-8
• One (1) build-in 240V to 24V transformer
• One (1) set of articulated Arms.
• One (1) power Cord 240V with Australian / NZ  Plug.
• One (1) basic post mounting plate, ready to bolts on a post.
• One (1) Gate wing Bracket ready to bolt.
• Two (2) travel stoppers set.

System benefits

• Reliable: mechanical parts made of metal, completely made of steel, bronze and aluminium, no plastic parts in this motor.
• Quick motor release for emergency gate release with a key supplied with the motor.

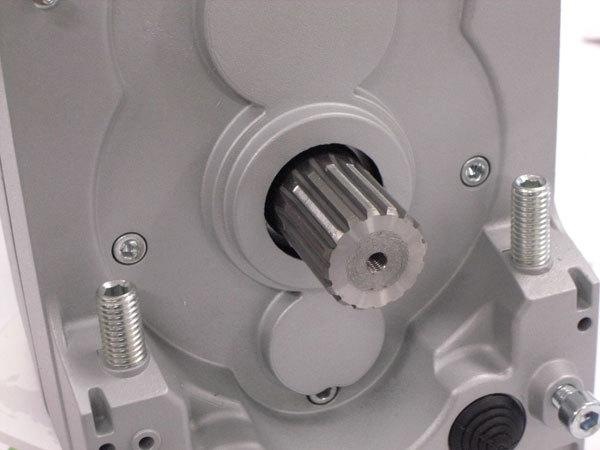

• Maximum strength: the helical gears are built with internal involving teeth.

System features

• Extra safe thanks to the low-voltage connections 24V, the safety accessories and the automatic obstacle detection feature
• Auto-programming: automatically calculates the most suitable operating parameters for your gate
• PWM electronic technology (Pules Width Modulation), regulating the gate travel speed, and smooth the motion
• Adjustable automatic closing delay (Pause)
• Internal antenna and receiver included within the control box

• Tool free remote-control units programming (this feature can be blocked)
• Up to 180 Remote control units or more with extended memory
• Wings synchronization adjustment (for Double swing gates only)
• Obstacle sensitivity adjustment
