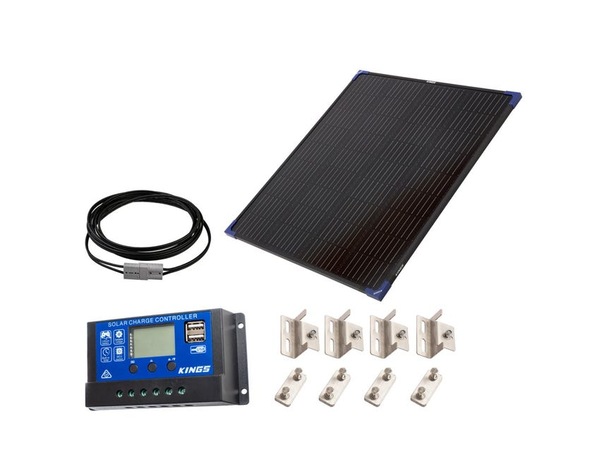

Kings 100W Fixed Solar Panel + 6m Extension Lead + Solar Panel Mounting Brackets + 15A PWM Solar Controller

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Shop More Products

Popular Products

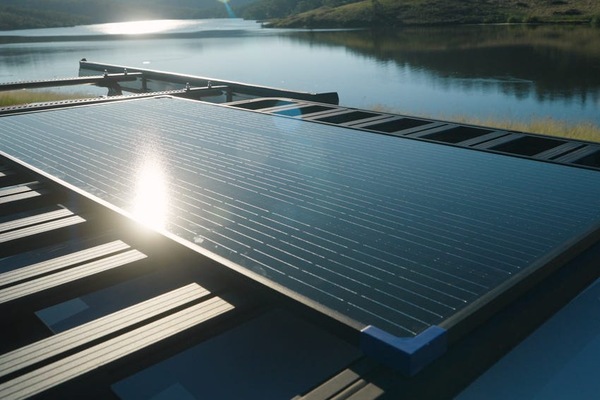

The Adventure Kings 100W fixed solar panel is great for permanent roof mounting on 4WDs, utes, vans, camper trailers, caravans and even boats! It has a 3.2mm thickened glass panel with a reinforced custom aluminum frame, ensures durability when fixed mounted on a vehicle. The slim custom extruded frame reduces wind resistance.

• With the ability to parallel, join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like Inverters, Induction cooktops and off grid air conditioners. measuring at 70cm wide, by 80cm high and 2cm thick including the corner protectors. Even better, two side by side will perfectly fill the roof rack of most common dual cabs

• Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. Of course each wire is individually insulated, plus there’s an extra 1mm thick PVC protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too –STAINLESS STEEL BRACKETS - Securely mount your Adventure Kings 110W or 160W Fixed Solar Panel to your roof rack or other flat surface

• A Controller is a must for safeguarding your battery from the high voltage output of solar panels. This controller uses Pulse Width Modulation (PWM )to reduce the solar input voltage to a safer, lower output voltage, ideal for charging 12V batteries. Along with this, the PWM employs a 3-stage charging program: boost, equalise and float. Keeping your battery charged properly and ready to operate at peak performance.

• With the ability to charge sealed lead acid, AGM, gel and even lithium batteries* plus user adjustable settings and the option to use a load circuit this is a feature packed controller that’ll work well in any setup!

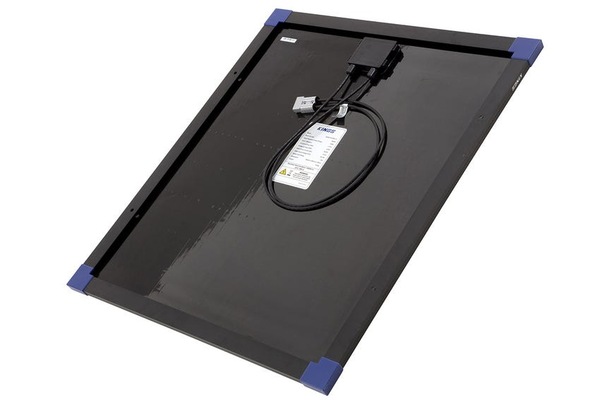

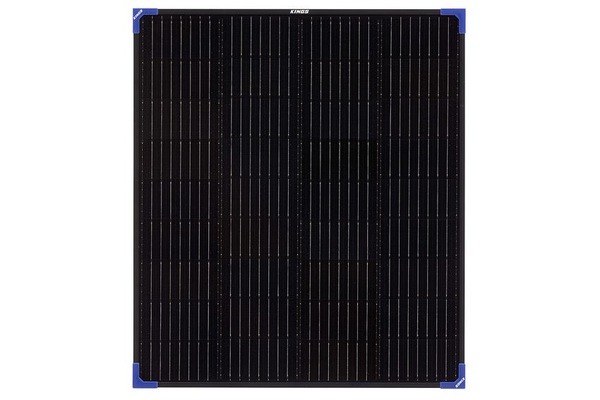

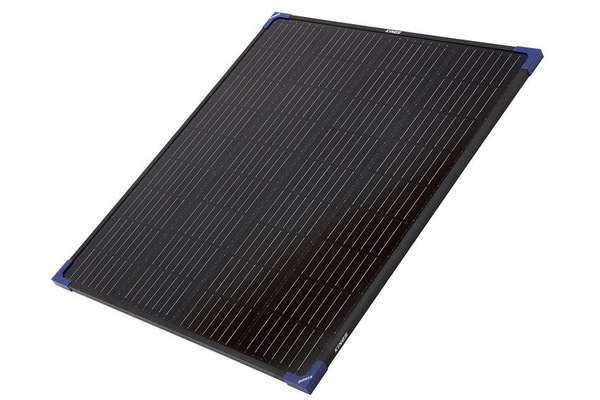

KINGS 100W FIXED SOLAR PANEL
Up to 8.33A of charge at 12V | Grade A cells | 1.8cm Slim Frame


Great for permanent roof mounting, for the roof of your 4WDs, utes, vans, camper trailers, caravans and even boats!


Output 100W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.18V
ISC (Short Circuit Current) 5.51A
VMP (Max Power Voltage) 20.35V
IMP (Max Power Current) 4.95A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Dimensions 70 x 80 x 1.8 cm
Weight 6.6kg

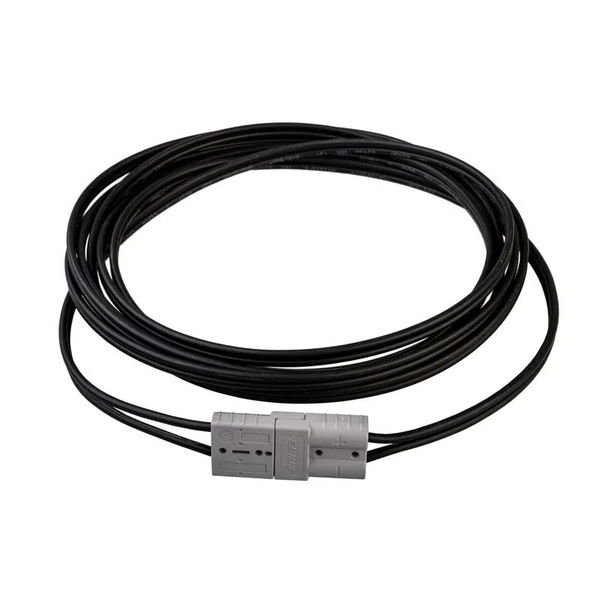

KINGS 6M SOLAR EXTENSION LEAD
2.5mm2  Copper


Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Dia 9.3mm
Max Current 20A
Operating Temperature Range -5°C~+70°
Plug Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Max Rated Voltage 300V

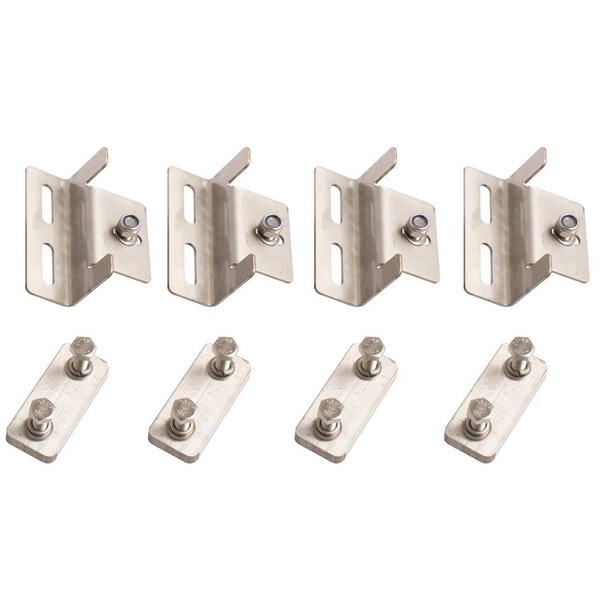

SOLAR PANEL MOUNTING BRACKETS

Stainless Steel 800gm

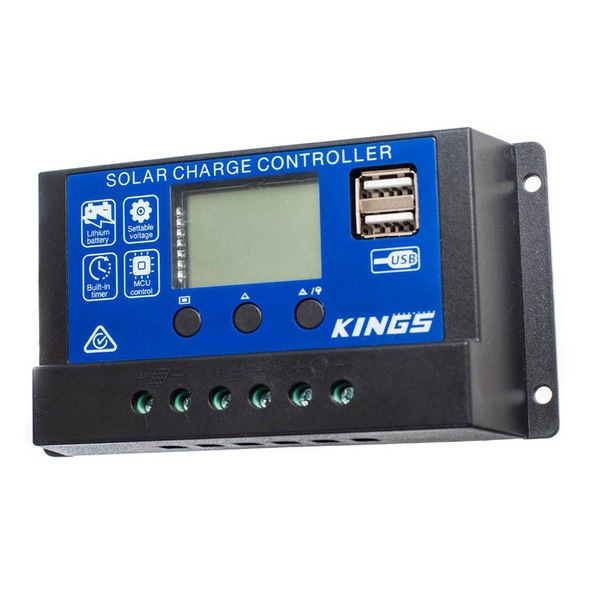

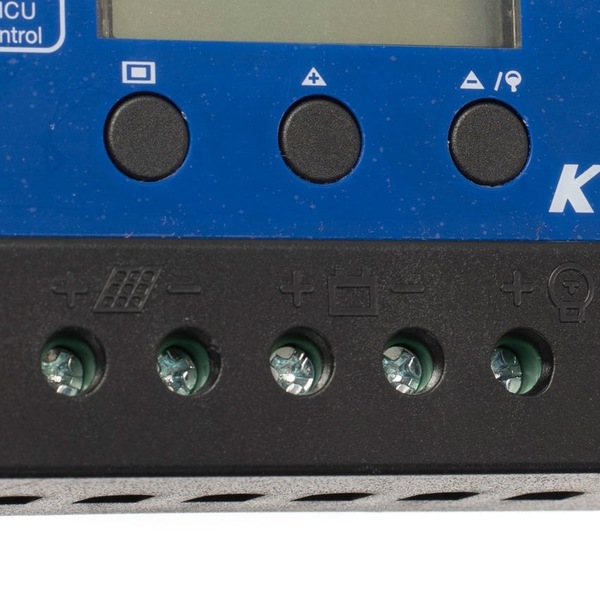

15A PWM SOLAR CONTROLLER


A must for safeguarding battery from high voltage output of solar panels.


Dimensions 133 x 70 x 34mm
Mounting Holes 126 x 49mm
Max Solar Input <50V
Float Charge 13.7 – Default, Adjustable
Discharge Stop 10.7 – Default, Adjustable
Discharge Reconnect 12.6V – Default, Adjustable

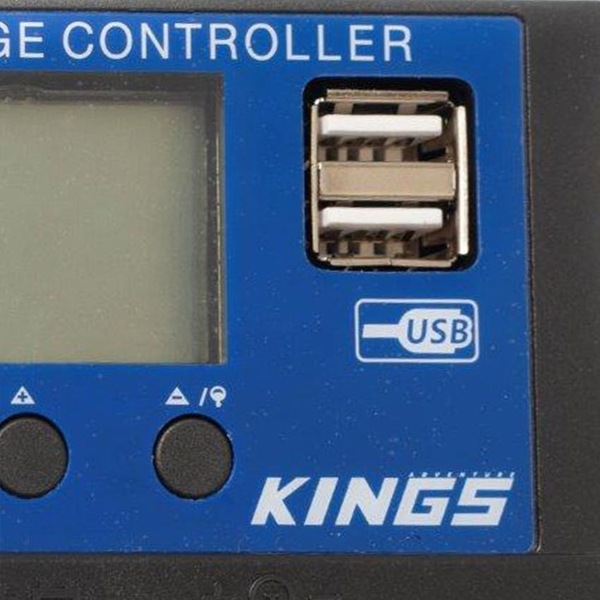

USB Output 5V / 2A
Weight 154g
Overcharge, over-discharge, overload, short-circuit, reverse-connection protection
Transient – Voltage – Suppression (TVS)
Diode – Protects against voltage spikes
Use with the 110W & 160W Adventure King Panels

MPN: SC-CO-100WFX-6MLEAD-110WBRACKET-PWNREG
