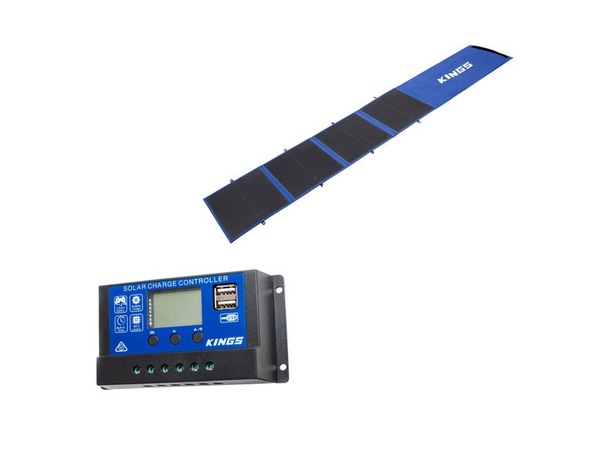

Kings 120W Folding Solar Blanket Grade A PET coated cells+ 15A PWM Solar Controller

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$188.95

Collect 188 Everyday Rewards points

Log in to MyDeal to link your card
$20.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
The Adventure Kings 120 watt portable folding solar blanket is a lightweight, compact power solution to help keep your batteries charged when you're on the move. Weighing just 3.6kg, it delivers up to 10 amps of current at 12V.

• ultra-black solar technology with enlarged busbars, ensuring highly efficient solar power generation. The cells are then protected by a double-layered anti-crack flexible PET film. Its compatible with Adventure Kings PWM or MPPT regulators, DCDC chargers, or BatBlocks

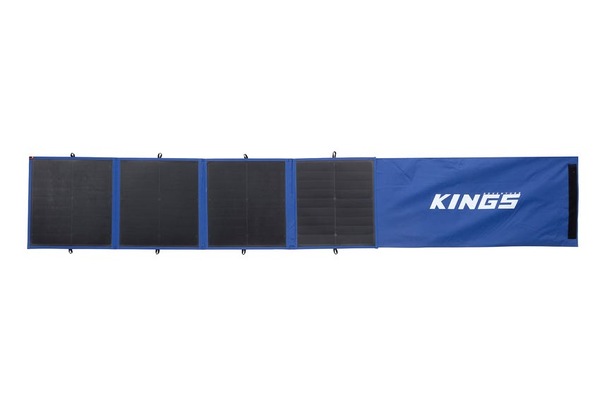

KINGS 120W FOLDING SOLAR BLANKET
Up to 10A of charge at 12V | Grade A PET coated solar cells





A lightweight, compact power solution to help keep your batteries charged when you're on the move. Ultra-black solar technology with enlarged busbars, ensuring highly efficient solar power generation. The cells are then protected by a double-layered anti-crack flexible PET film. Compatible with PWM or MPPT regulators, DCDC chargers, or BatBlocks


Output 120W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 25.04V
ISC (Short Circuit Current) 6.18 A
Note VOC and ISC can vary by up to +/-1v and +/-1A
Review regulator for max voltage and current rating
IMP (Maximum Power Current) 21.99V
VMP (Voltage at Maximum Power) 5.69A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.28%/°C
Pmax Temperature Coefficient -0.36%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug

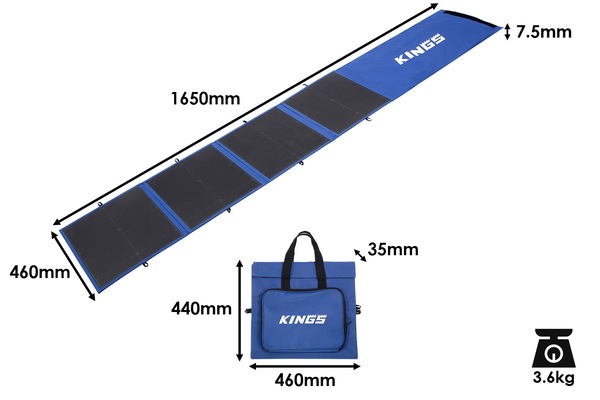

Open Dimensions (LxWXH) 165 x 46 x 0.75cm

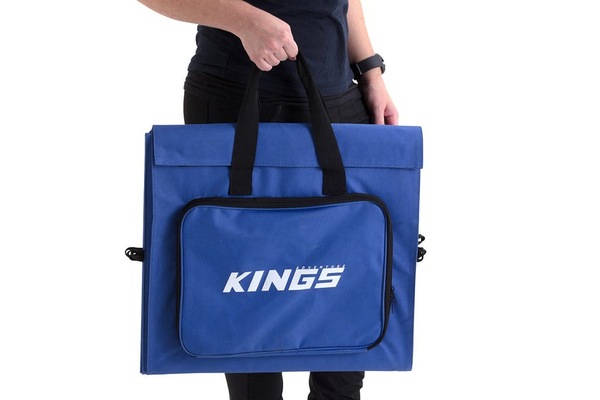

Folded Dimensions (LxWXH) 44 x 46 x 3.5cm
Weight 3.6kg

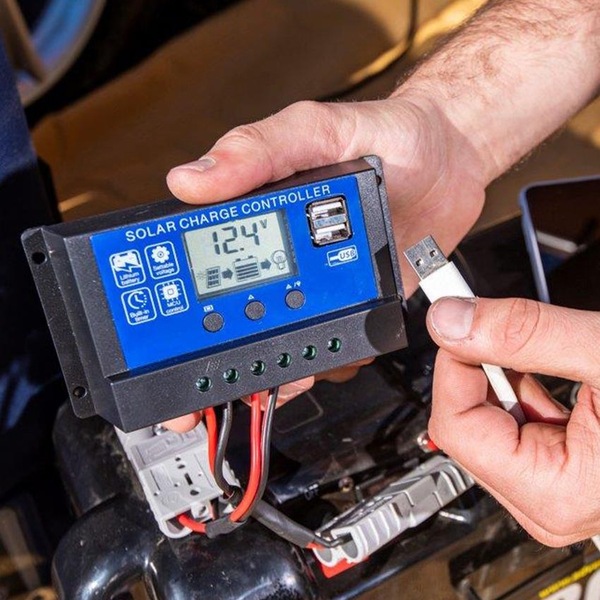

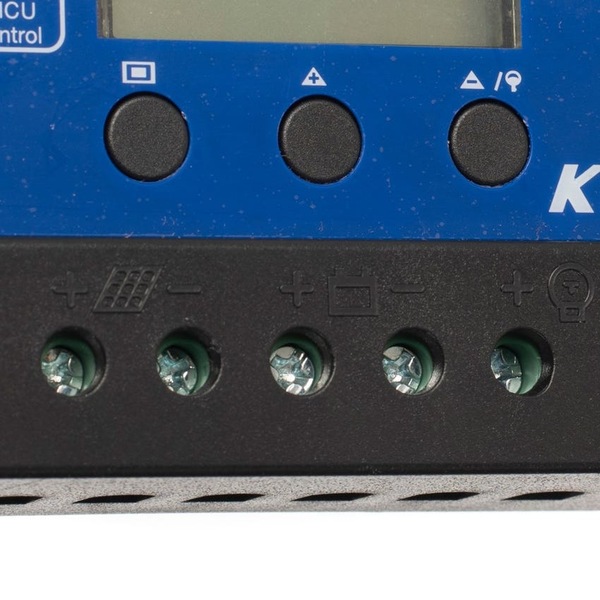

15A PWM SOLAR CONTROLLER 3 STAGE CHARGING LCD DISPLAY BUILT IN PROTECTIONS PWM TECHNOLOGY


Safeguarding your battery from the high voltage output of solar panels. This controller uses Pulse Width Modulation (PWM )to reduce the solar input voltage to a safer, lower output voltage, ideal for charging 12V batteries.





• Dimensions : 133 x 70 x 34mm


• Mounting Holes: 126 x 49mm


• Max Solar Input: <50V


• Float Charge: 7 – Default, Adjustable


• Discharge Stop: 7 – Default, Adjustable


• Discharge Reconnect: 6V – Default, Adjustable

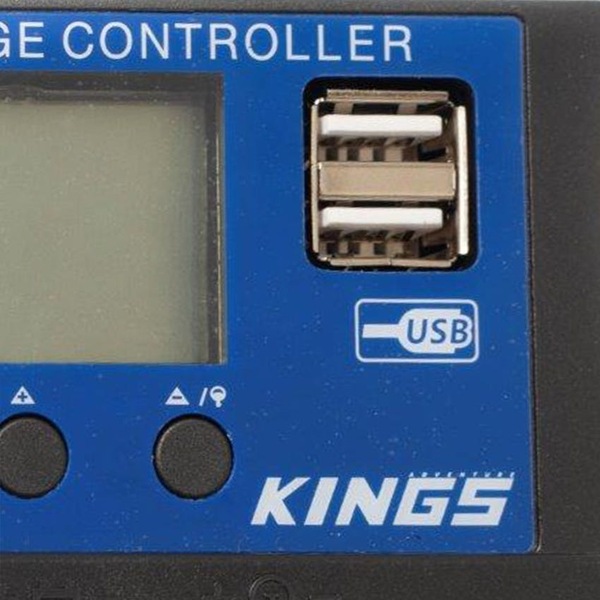

• USB Output: 5V / 2A


• Weight: 154g

MPN: SC-CO-120W-PWNREG
