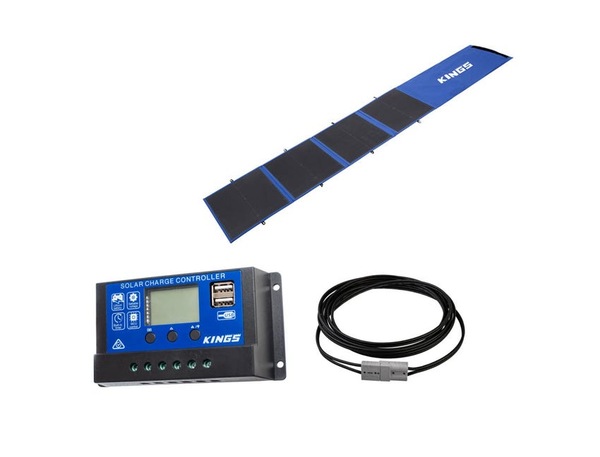

Kings 120W Folding Solar Blanket Grade A PET coated cells+ 15A PWM Solar Controller + 6m Extension Lead

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Limited Stock
$213.90

Collect 213 Everyday Rewards points

Log in to MyDeal to link your card
$25.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
The Adventure Kings 120 watt portable folding solar blanket is a lightweight, compact power solution to help keep your batteries charged when you're on the move. Weighing just 3.6kg, it delivers up to 10 amps of current at 12V.

• ultra-black solar technology with enlarged busbars, ensuring highly efficient solar power generation. The cells are then protected by a double-layered anti-crack flexible PET film. Its compatible with Adventure Kings PWM or MPPT regulators, DCDC chargers, or BatBlocks

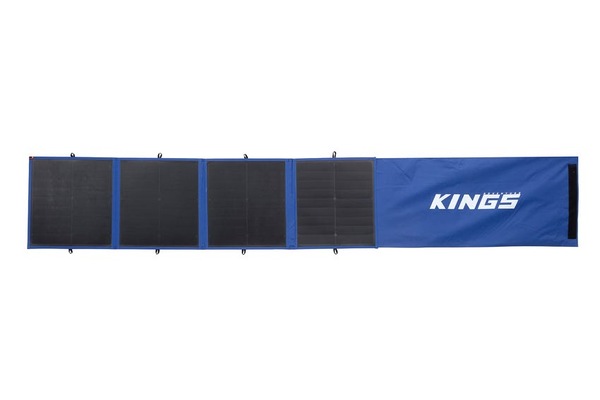

KINGS 120W FOLDING SOLAR BLANKET
Up to 10A of charge at 12V | Grade A PET coated solar cells





Output 120W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 25.04V
ISC (Short Circuit Current) 6.18 A
Note VOC and ISC can vary by up to +/-1v and +/-1A
Review regulator for max voltage and current rating
IMP (Maximum Power Current) 21.99V
VMP (Voltage at Maximum Power) 5.69A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.28%/°C
Pmax Temperature Coefficient -0.36%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Open Dimensions (LxWXH) 165 x 46 x 0.75cm
Folded Dimensions (LxWXH) 44 x 46 x 3.5cm
Weight 3.6kg

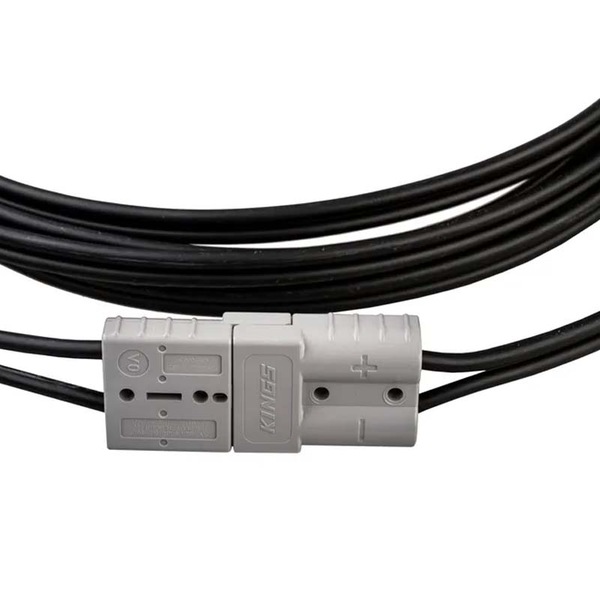

ADVENTURE KINGS 6M SOLAR EXTENSION LEAD
2.5MM2 HIGH QUALITY COPPER








Length 6m
Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V

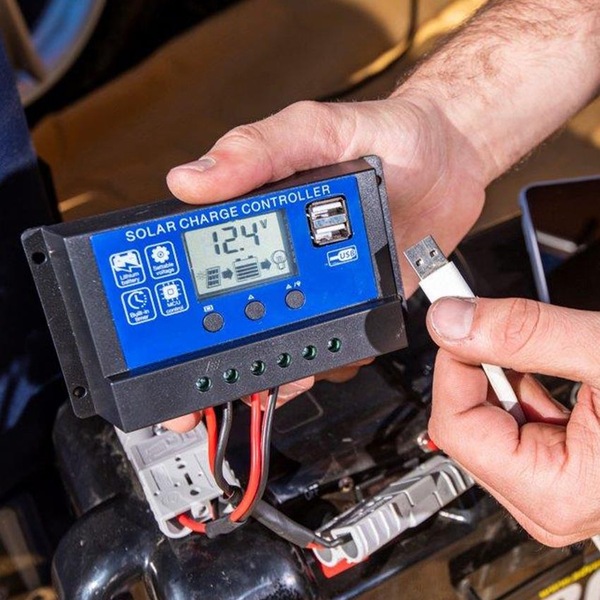

15A PWM SOLAR CONTROLLER 3 STAGE CHARGING LCD DISPLAY BUILT IN PROTECTIONS PWM TECHNOLOGY





• Dimensions : 133 x 70 x 34mm


• Mounting Holes: 126 x 49mm


• Max Solar Input: <50V


• Float Charge: 7 – Default, Adjustable


• Discharge Stop: 7 – Default, Adjustable


• Discharge Reconnect: 6V – Default, Adjustable


• USB Output: 5V / 2A


• Weight: 154g

MPN: SC-CO-120W-PWNREG-6MLEAD

Estimated Delivery Time Frame:5-10 business days
