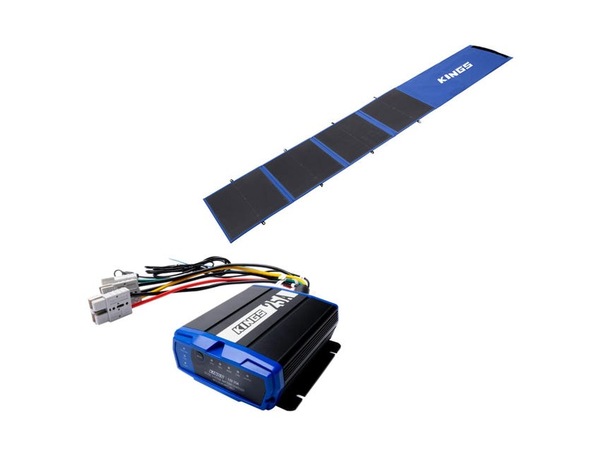

Kings 120W Folding Solar Blanket Grade A PET coated cells+ 25A DCDC Charger

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
$298

Collect 298 Everyday Rewards points

Log in to MyDeal to link your card
$20.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
The Adventure Kings 120 watt portable folding solar blanket is a lightweight, compact power solution to help keep your batteries charged when you're on the move. Weighing just 3.6kg, it delivers up to 10 amps of current at 12V.

• ultra-black solar technology with enlarged busbars, ensuring highly efficient solar power generation. The cells are then protected by a double-layered anti-crack flexible PET film. Its compatible with Adventure Kings PWM or MPPT regulators, DCDC chargers, or BatBlocks

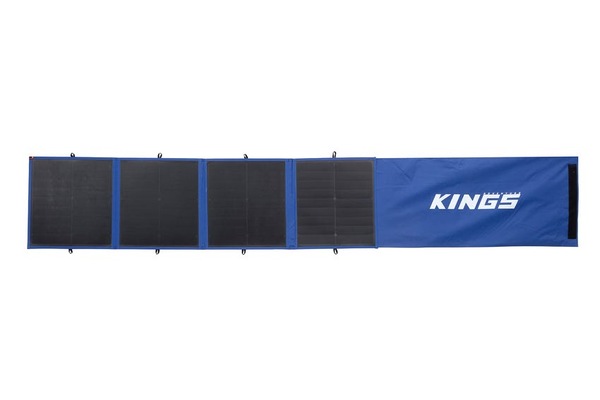

KINGS 120W FOLDING SOLAR BLANKET
Up to 10A of charge at 12V | Grade A PET coated solar cells





A lightweight, compact power solution to help keep your batteries charged when you're on the move.


Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 25.04V
ISC (Short Circuit Current) 6.18 A
Note VOC and ISC can vary by up to +/-1v and +/-1A
IMP (Max Power Current) 21.99V
VMP (Voltage at Max Power) 5.69A
ISC Temp Coefficient 0.05%/°C
VOC Temp Coefficient -0.28%/°C
Pmax Temp Coefficient -0.36%/°C
Std Test Condition: 1000W/m2, 25ºC, AM1.5

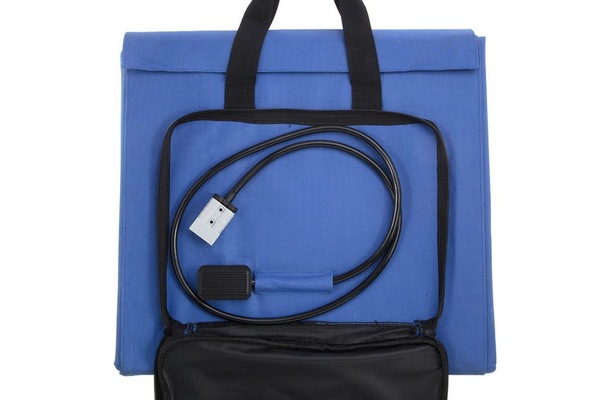

Kings Quick Connect (Anderson Style) Plug

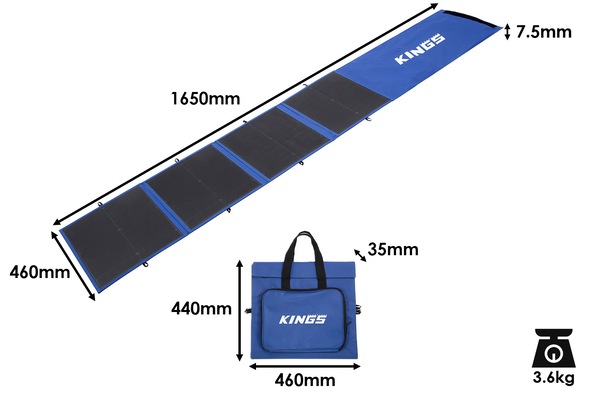

Open 165 x 46 x 0.75cm
Folded 44 x 46 x 3.5cm
Weight 3.6kg

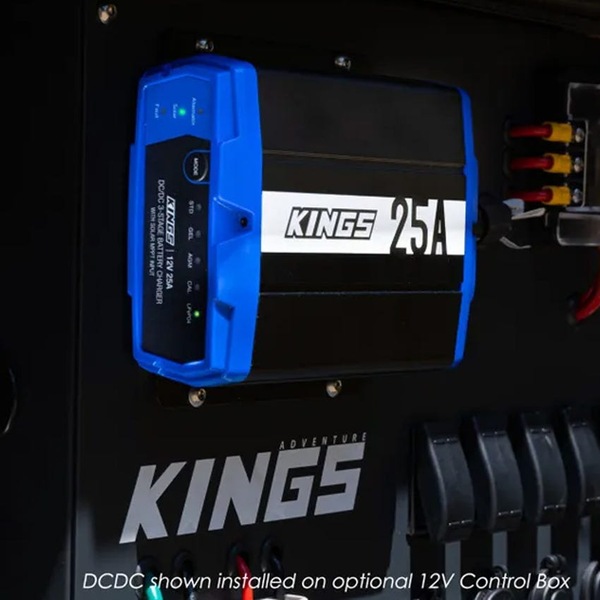

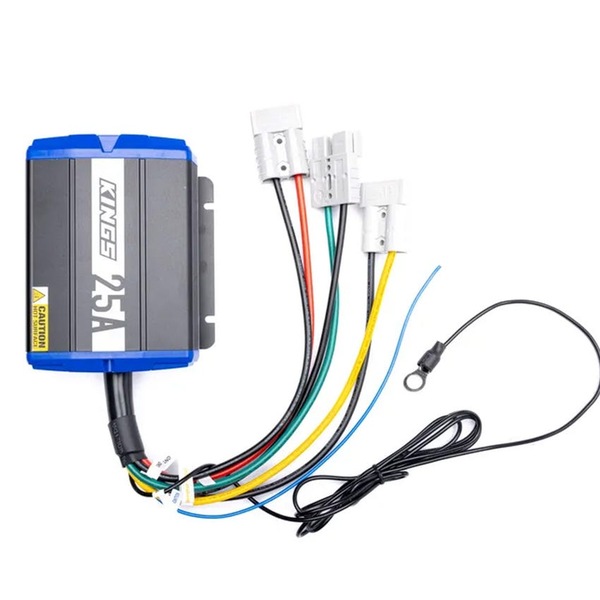

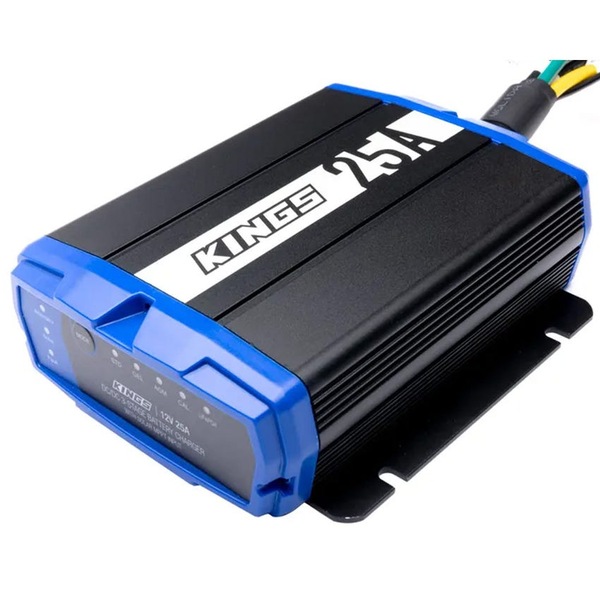

Kings 25A DCDC Charger

MPPT Solar Regulator| Lithium | 12/24V Input | IP66 Rating



Max. Continuous Charging Current 25A
Max. Output Power 300W
Max. Input Current 27A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Min. Input start-up Voltage - Vehicle 10V to recognize battery (12V to start charging)
Solar Input Range 10 - 32V
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 16V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C
(LxWxH) 151mm x 121mm x 44mm
Weight ~1kg
Temp Compensation Yes ±18mV/°C
Temp Sensor(s) Yes, internal + external
Housing Powder coated aluminium
LED Indicator lights Yes – for connection, charging status and errors
Battery Chemistry Selection Yes – Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes – not supplied (50A Suggested)
IP Rating IP66

MPN: SC-CO-120W-DC25A02
