Kings 120W Folding Solar Blanket Grade A PET coated cells+ MPPT Solar Regulator + 6m Extension Lead

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Limited Stock
$188.90

Collect 188 Everyday Rewards points

Log in to MyDeal to link your card
$25.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
The Adventure Kings 120 watt portable folding solar blanket is a lightweight, compact power solution to help keep your batteries charged when you're on the move. Weighing just 3.6kg, it delivers up to 10 amps of current at 12V.

• ultra-black solar technology with enlarged busbars, ensuring highly efficient solar power generation. The cells are then protected by a double-layered anti-crack flexible PET film. Its compatible with Adventure Kings PWM or MPPT regulators, DCDC chargers, or BatBlocks

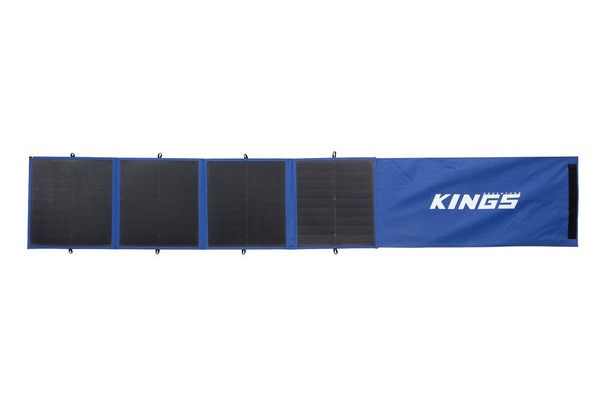

KINGS 120W FOLDING SOLAR BLANKET
Up to 10A at 12V | Grade A PET coated solar cells


Output 120W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 25.04V
ISC (Short Circuit Current) 6.18 A
Note VOC and ISC can vary by up to +/-1v and +/-1A
Review regulator for max voltage and current rating
IMP (Maximum Power Current) 21.99V
VMP (Voltage at Maximum Power) 5.69A
ISC Temp Coefficient 0.05%/°C
VOC Temp Coefficient -0.28%/°C
Pmax Temperature Coefficient -0.36%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug

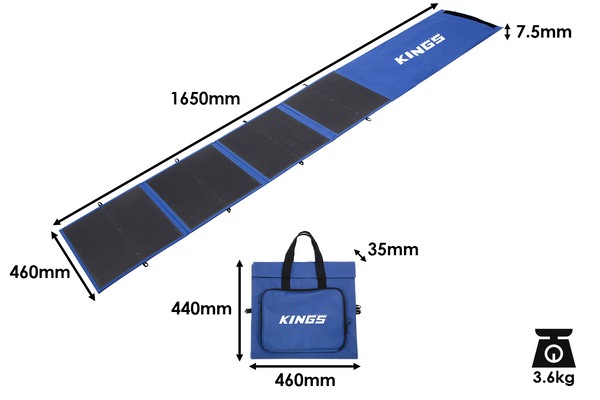

Open (LxWXH) 165 x 46 x 0.75cm
Folded (LxWXH) 44 x 46 x 3.5cm
Weight 3.6kg

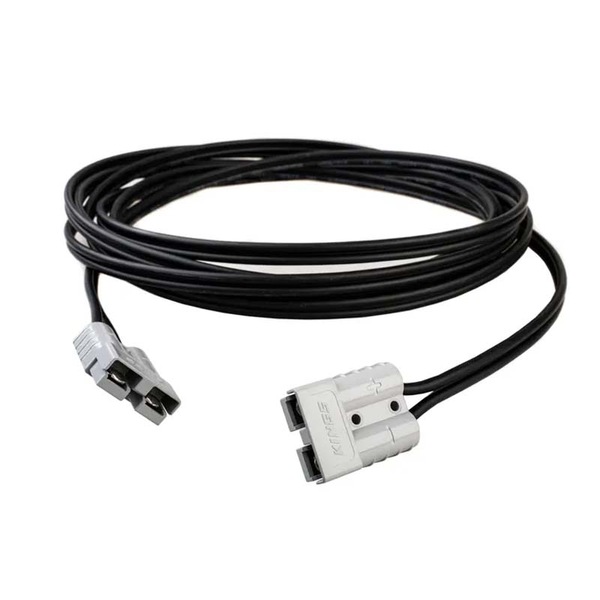

ADVENTURE KINGS 6M SOLAR LEAD
2.5MM2 COPPER





Length 6m
Conductor Multi-Strand Copper 51x0.25
Cross Sectional Area (each wire) 2.5mm2
Insulation 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Max Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Max Rated Voltage 300V

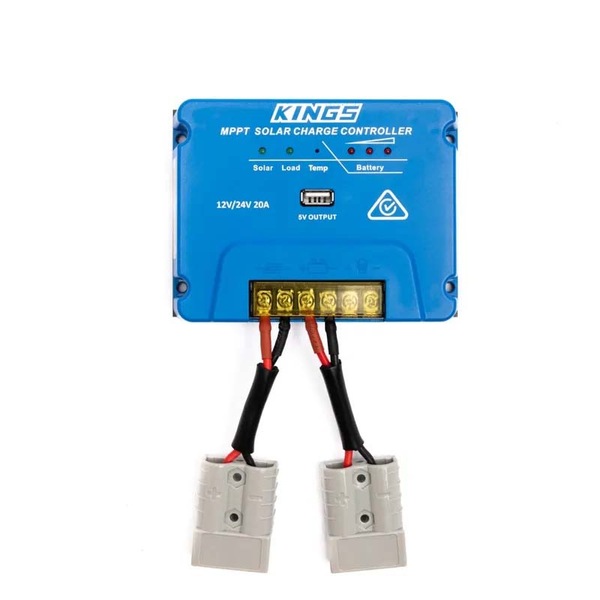

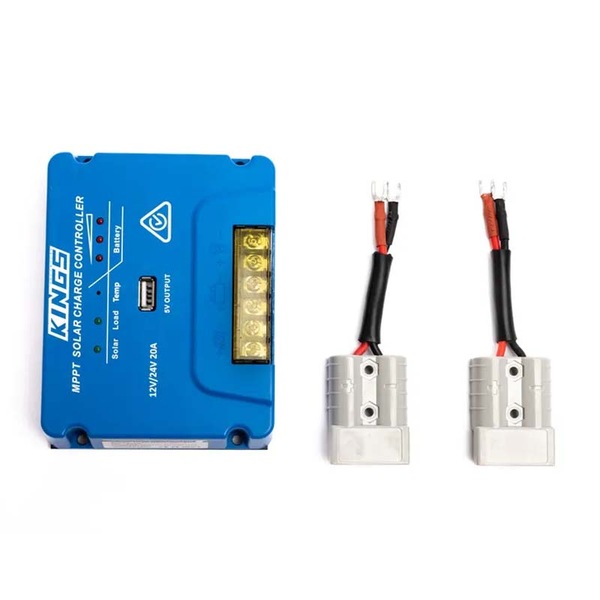

MPPT Regulator





• Up to 20Amps multi-stage Charging Capacity for Up To 300W of Solar


• For 4WDs, Caravans, Motorhomes & Off-Grid 12v Setups


• Regulator Type: Maximum Power Point Tracking


• Dimensions: 131×99.5×29.5(mm)(L×W×H)


• Regulator current rating: 20A charge / discharge


• Regulator Voltage: Suitable for 12V or 24V systems (automatic)


• Maximum Regulator Voltage input: 50V


• No-load current (standby current): <10mA


• Safety: Overload & short circuit protection ≥1.5x rated current


• USB output: 5V 1A

MPN: SC-CO-120W-MPPTREG-6MLEAD
