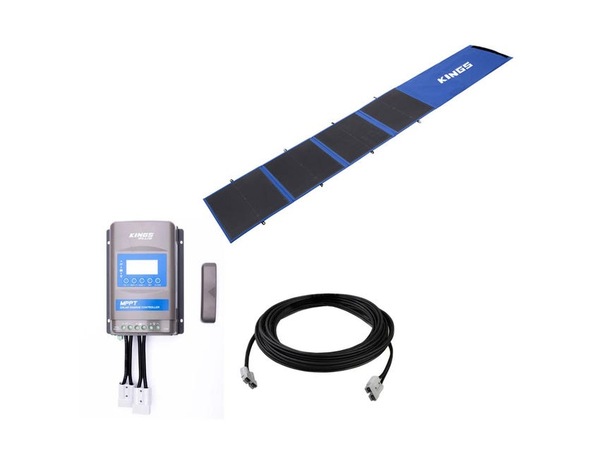

Kings 120W Folding Solar Blanket Grade A PET coated cells+ Plus 20A MPPT Solar Regulator + 12m Extension Lead

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$335.95

Collect 335 Everyday Rewards points

Log in to MyDeal to link your card
$25.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
The Adventure Kings 120 watt portable folding solar blanket is a lightweight, compact power solution to help keep your batteries charged when you're on the move. Weighing just 3.6kg, it delivers up to 10 amps of current at 12V.

• ultra-black solar technology with enlarged busbars, ensuring highly efficient solar power generation. The cells are then protected by a double-layered anti-crack flexible PET film. Its compatible with Adventure Kings PWM or MPPT regulators, DCDC chargers, or BatBlocks

KINGS 120W FOLDING SOLAR BLANKET
Grade A PET coated solar cells





Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 25.04V
IMP (Maximum Power Current) 21.99V
VMP (Voltage at Maximum Power) 5.69A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.28%/°C
Pmax Temperature Coefficient -0.36%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5

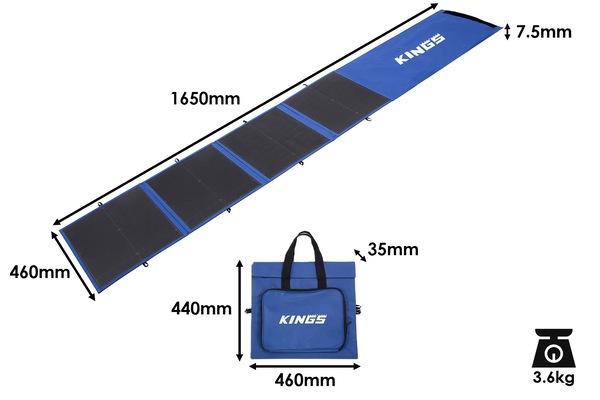

Open Dimensions (LxWXH) 165 x 46 x 0.75cm

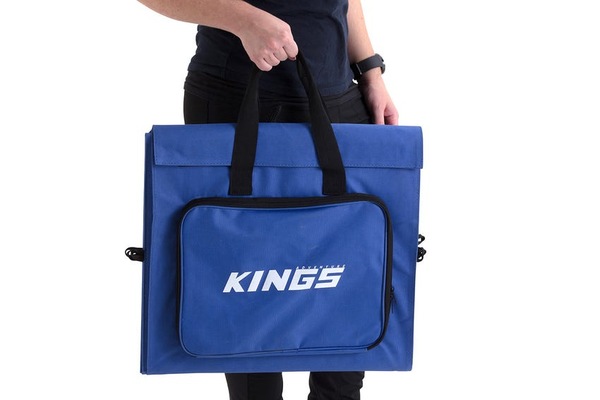

Folded Dimensions (LxWXH) 44 x 46 x 3.5cm
Weight 3.6kg





The 12m Solar Extension Lead


Length 12m
Conductor Material Twin Core Multi-Strand Copper (84x0.3)
Conductor Cross Sectional Area (each wire) 6mm2
Insulation Material 0.8mm Halogen-Free XLPO
Outer Sheath material 0.9mm Halogen-Free XLPO
External Dimensions 13.5mm x 5mm
Max Current 20A
Temperature Range -40°C~+90°
Plug Type Kings Quick Connect Plugs (Anderson Compatible)
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector - Copper
Max Voltage DC 1500V




PREMIUM 20A MPPT SOLAR REGULATOR

lithium compatible , profiles for different battery types


AGM And Lithium Compatible (12V/24V)- Sealed, Gel, Flooded, Lifepo4, Li(NiCoMn)O2

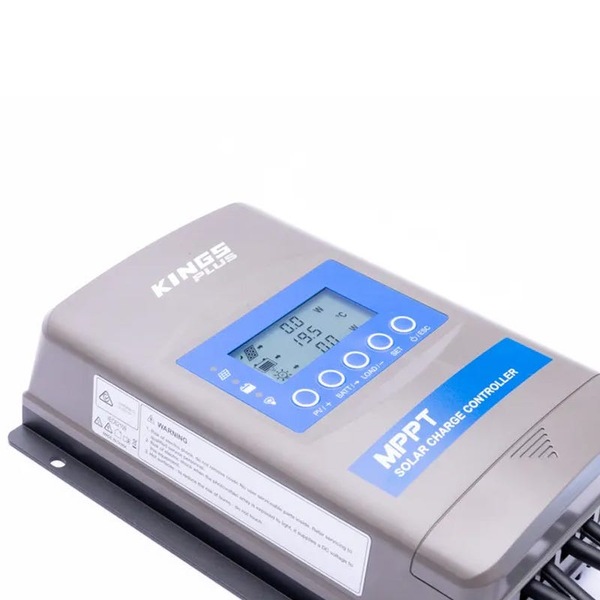

Display Backlit LCD + LED Indicator Lights
Wire Specification - 100mm Double Insulated XLPO 6mm2 + Quick Connect Plugs

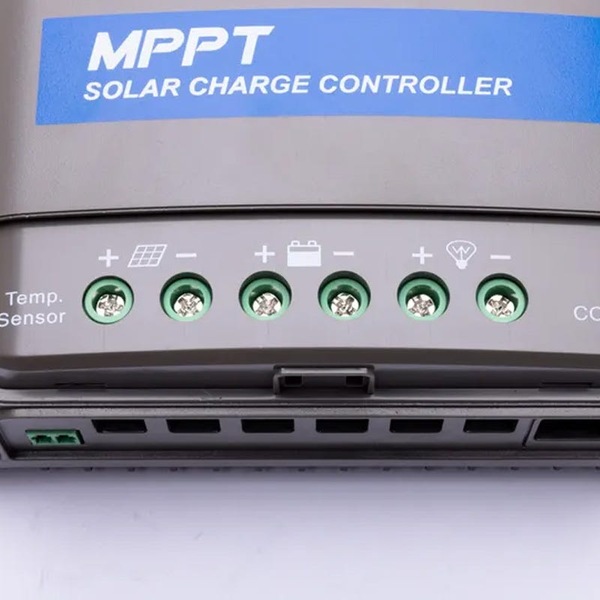

Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant

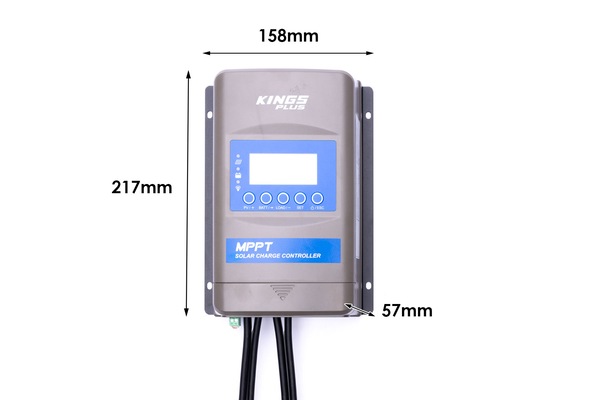

Dimensions  217 X 158 X 57 mm
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Maximum Solar Power Input 390W (12V) 780w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Dc Dc Conversion Efficiency >98%
Tracking Efficiency 99.5%

MPN: SC-CO-120W-PMPPTREG-12MLEAD
