Kings 12V 100Ah Lithium Battery - Integrated BMS - 2000+ Cycles LiFePO4

Image 1
Image 2
Image 3
Image 4
Image 5
Shop More Products
High power output in a compact, lightweight package. Adventure Kings deep cycle lithium batteries use the safe LiFePO4 technology to offer all the benefits of typical lithium-ion batteries as well as a very long life and the higher level of safety

• Lithium batteries weigh around half as much as AGM and can be discharged up to 80% of their rated output. This means they have more usable power, and they also charge more efficiently. They’re sealed and safe to use in your vehicle, plus they won’t ignite if they’re punctured, short circuited or overheated like some other lithium battery types.

• It has a built in BMS that ensures the lithium cells stay within the safe operating parameters. The BMS can disconnect the battery to prevent damage from over or under temperature, high or low voltage, over load and even short circuit. The BMS monitors each individual cell for voltage and temperature and ensures your battery is charging and discharging evenly. The BMS will also perform cell balancing at 3.5V per cell with 35mA of current.

• The Adventure Kings 100Ah Deep Cycle Lithium Batteries battery’s high quality BMS paired with the Grade A cells means these batteries can be constantly discharged at up to 100 Amps and will even output up to 200A of peak current for 5 seconds - ideal for high power appliances like inverters that often surge and use extra power when they are turned on.

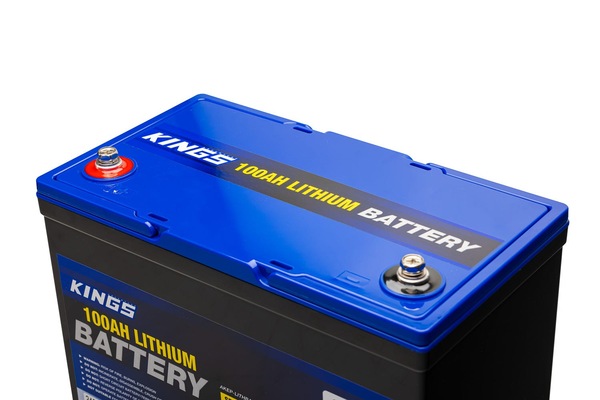

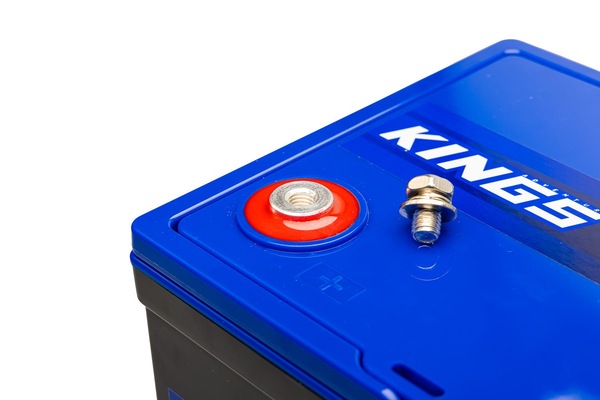

• The internal deep cycle lithium cells are wired in series with heavy-duty busbars to allow for high power applications and then connected to the easy to identify positive and negative terminals. The terminals are copper M8 threaded and come with the bolts and washers required to connect your accessories.
ADVENTURE KINGS 100AH LITHIUM LIFEPO4 BATTERY




Safe Lithium Iron Phosphate (LiFePO4) chemistry


Light weight! 14.5kg for 100Ah capacity


2000+ Cycles at 100% depth of discharge


Integrated High Quality Battery Management System (BMS)


Thermal, Overload, high/low voltage cutoff & Short Circuit Protection





Chemistry LiFePO4
Rated Capacity 100Ah
Rated Energy 1280Wh
Nominal Voltage 12.8V
Recommended Charging Voltage 14.6V
Rated Float Charge Voltage 14.2V
Low Voltage Cut-off 10V
Max Continous Discharge Current 100A
Max Pulse Discharge Current (5 Seconds) 300A
Max Recommended Charge Current 50A
Max Charging Current 100A
BMS Protections Over Charge Voltage, Over Discharge Voltage, Over Charge Current, Over Discharge Current, Short Circuit, Over Temperature, Under Temperature
Operating Temperature - Charging 0 to 50°C
Operating Temperature - Discharging -20 to 60°C
Life Cycles >2000
Cell Construction Prismatic
Case Material ABS
Terminals M8 Threaded
Hardware Included 2 X M8 Bolts, 2 x Flat Washers, 2 x Spring Washers
Included Wiring N/A
Allowed Batteries Connected in Series Bank (Same Batch) 4
Allowed Batteries Connected in Parallel (Same Batch) 2

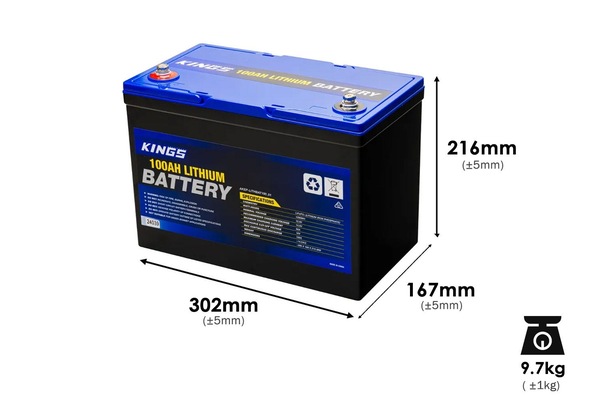

Dimension (LxWxH) ±5mm 302 x 167 x 216mm
Weight ±1kg 9.7kg
Warranty 1 Year
SKU AKEP-LITHBAT100_01

GTIN: 9360515000645

Reference ID: 13951967
