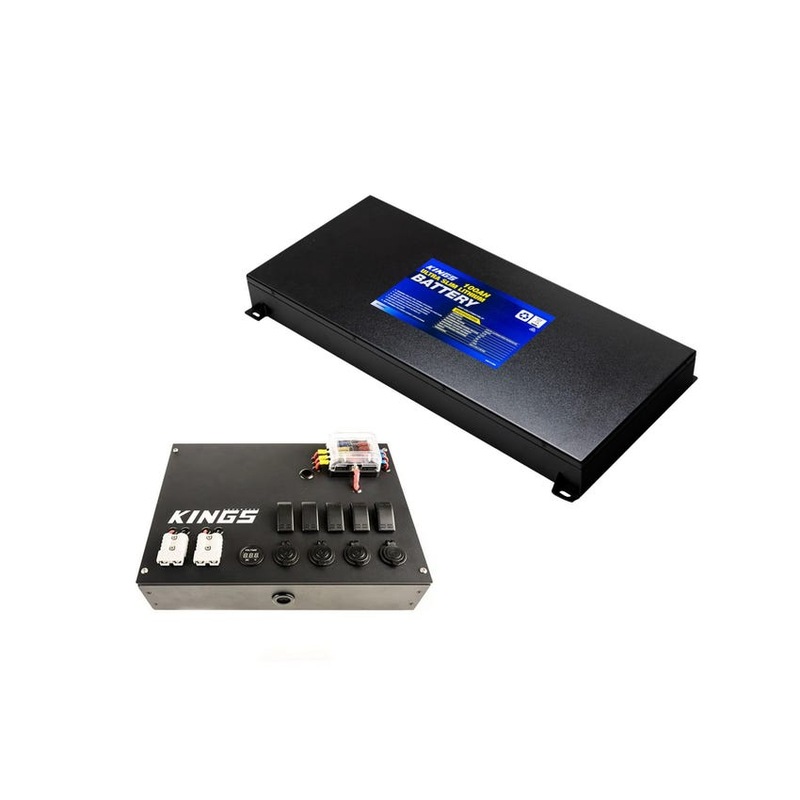

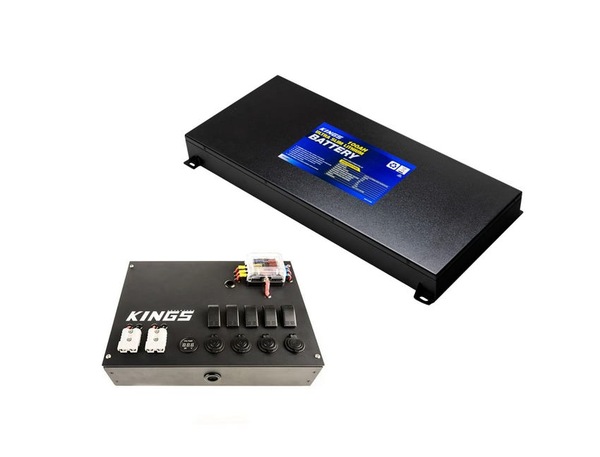

Kings 12V 100Ah Deep Cycle Ultra Slim Lithium LiFePO4 Battery + 12V Control Box

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$648

Collect 648 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

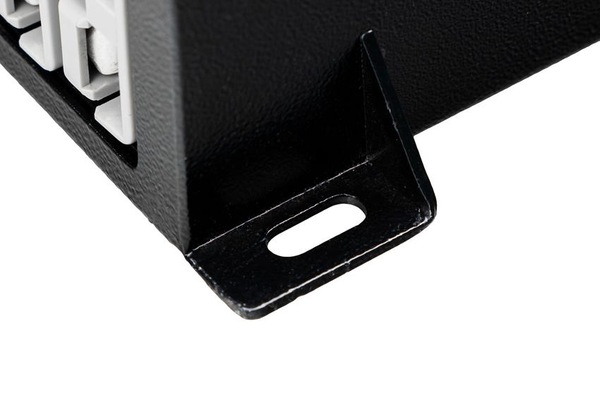

Its the perfect choice in modern setups or for tight spaces, offering plenty of power capacity in a sleek, low profile design. The BMS, quick connect outputs and Lithium Iron Phosphate cells are all built into a tough, ready to install steel case. Built into a tough steel housing, the Kings Deep Cycle Ultra Slim Lithium doesn’t require a separate battery box. Simply bolt the case down and fit your inputs and outputs directly to the quick connect plugs.

• These Batteries are the safe and rugged Lithium Iron Phosphate type - LiFePO4 for short. They offer high power, long life and a huge number of charge/discharge cycles… but most importantly they’re safe! high quality BMS and brand new Grade A cells means that this battery can be constantly discharged at up to 175 Amps and will even output up to 400A of peak current for 5 seconds - ideal for high power appliances like inverters that often surge and use extra power when they are first turned on.

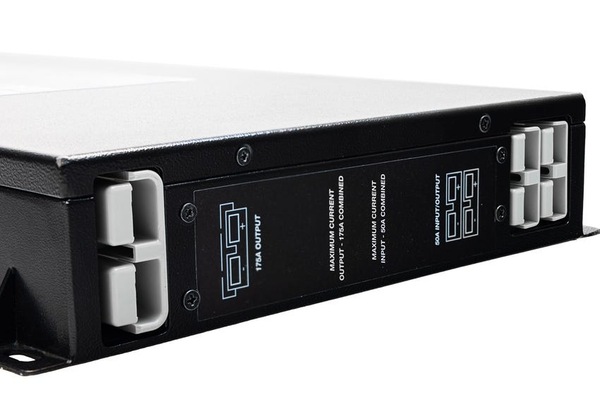

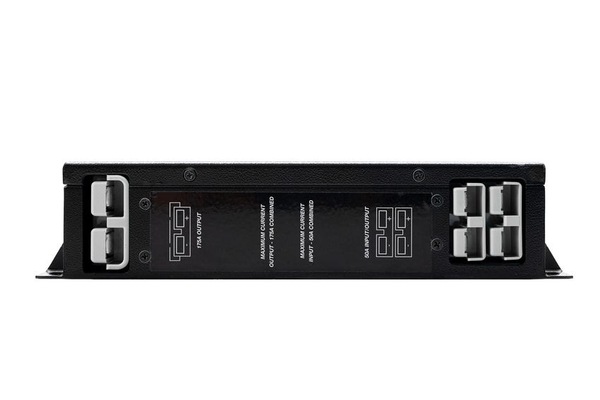

• Fitted with two 50A sized quick connect plugs and a 175A quick connect plugs you can easily fit and then connect up your battery and accessories. The 175A output allows for inverter connecting while the 50A plugs, are ideal for charging the battery, or connecting to 12V accessories like fridges or 12V Adventure Ovens.

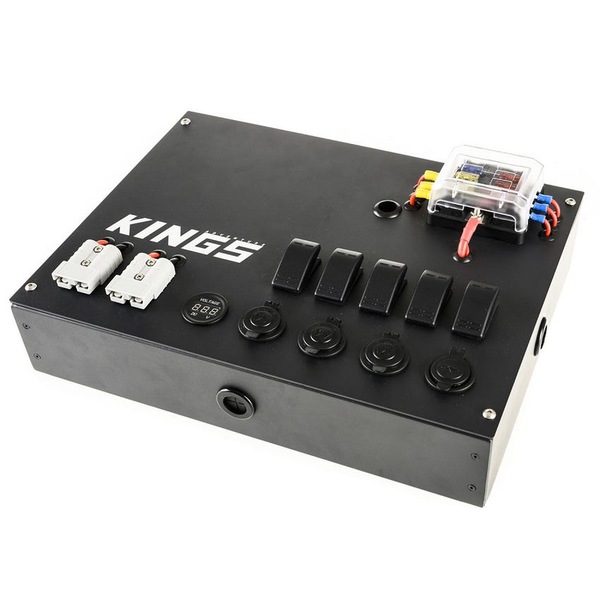

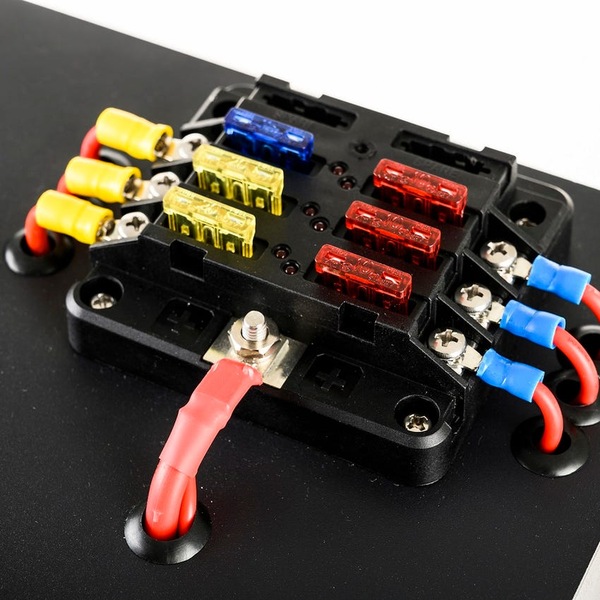

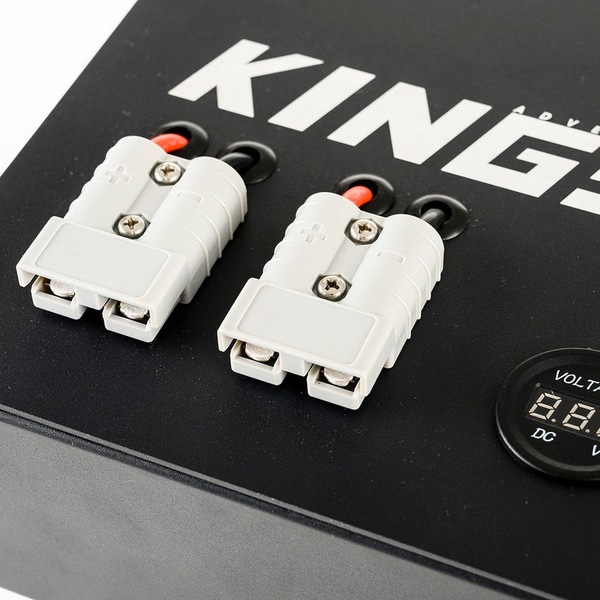

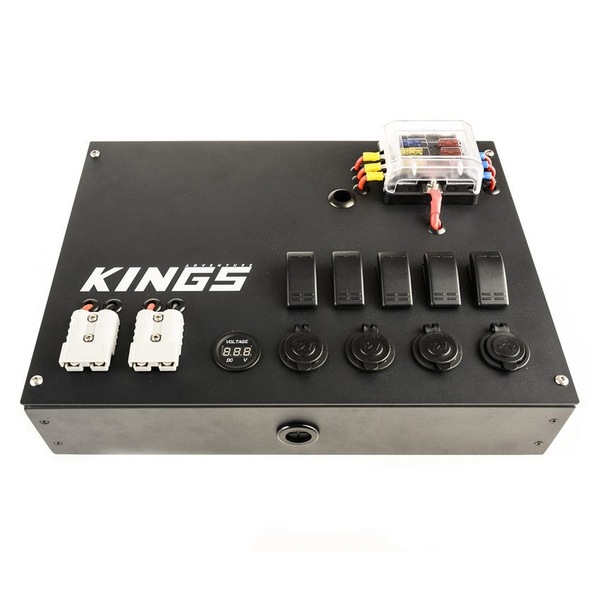

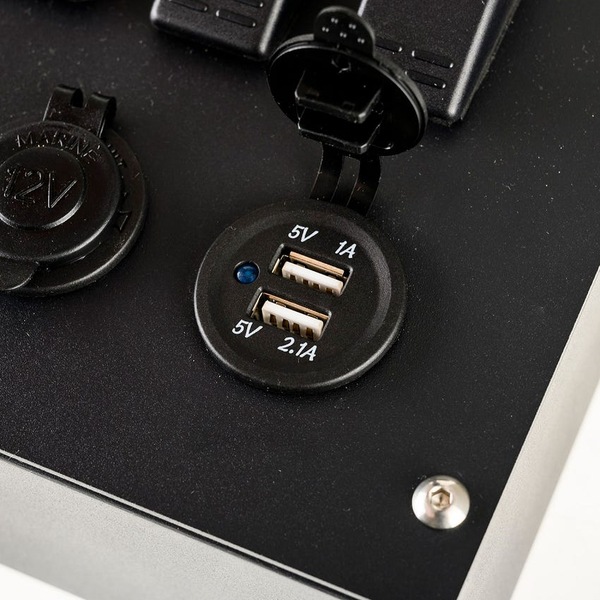

• From left to right The control box has got 2 quick connect plugs – the first can be easily configured as a solar input for your DCDC charger. Then there’s a voltmeter, three 20A-rated cig sockets and a double USB socket with 1amp and 2.1amp USB connections. Above that you’ll see 5 x 16Amp rated rocker switches – these are pre wired with fused power so you can easily switch any added accessories and circuits on and of

• Going from the outside in, there’s a grommet on each side which makes it easy to position and wire this up, no matter where you want to mount it.. On the front you’ll notice the space at the top left, along with the extra grommet – this space is designed so you can mount a DCDC charger directly onto the box – feed the wiring through the grommet and you can wire up to the internal posts for an all-in-one install.

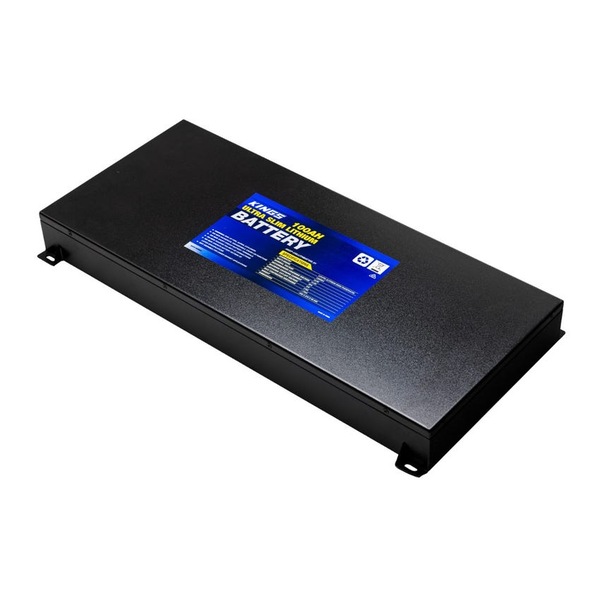

KINGS 12V 100AH ULTRA SLIM LITHIUM LIFEPO4 BATTERY


These Batteries are the safe and rugged Lithium Iron Phosphate type - LiFePO4 for short. They offer high power, long life and a huge number of charge/discharge cycles… but most importantly they’re safe!


Built into a tough steel housing, the Kings Ultra Slim Lithium doesn’t require a separate battery box.



Chemistry LiFePO4 (Lithium Iron Phosphate)
BMS Protections Over Charge, Over Discharge, Over Current
Rated Capacity 100Ah
Rated Energy 1280Wh
Nominal Voltage 12.8V
Max Charging Voltage 14.6V
Discharge Cut-off Voltage 10V
Max Continuous Discharge Current 175A
Max Pulse Discharge (5 seconds) 400A
Maximum Charging Current 50A
Operating Temperature (Charging) 0°C to +50°C
Operating Temperature (Discharging) -20°C to 60°C
Life Cycles to 80% DoD 2000+
Cell Construction Prismatic A Grade
Case Material Steel
Terminals 1x 175A Quick Connect + 2x 50A Quick Connect
Included Wiring 1x 175A Quick Connect plug + crimp terminals
Allowed Batteries In Series Bank (Same Batch) 4
Allowed Batteries In Parallel Bank (Same Batch) 2
Dimensions ±5mm (LxWxH) 630 x 307 x 66mm
Weight 16kg






12V CONTROL BOX


CONTROL 12V EQUIPMENT | 16A PRE-WIRED SWITCHES | CIG SOCKETS | 2X USB PORTS


It has prewired circuits that make wiring an accessory easy





Ideal For Your 4wd, Canopy, Caravan or Cargo Area
Box Material: Black powder coated aluminum
Box Size: 400 x 305 x 80mm
Weight: 2.74kg
Lid Thickness: 2mm
Box Thickness: 1.5mm
Coating: Black Powder Coating
Recommended Fuse Size for Batteries: 40A
Recommended Cable Size for Batteries Depending on Length:
0-1m = 8 Gauge Battery Cable
1-3m = 6 Gauge Battery Cable

MPN: SC-CO-USLLITHBAT100-CONTROLBOX
