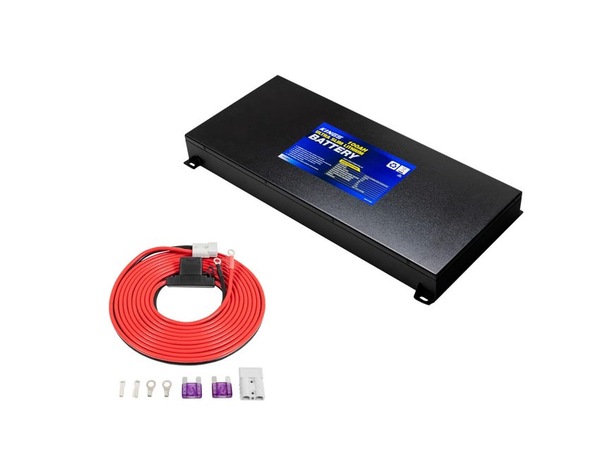

Kings 12V 100Ah Deep Cycle Ultra Slim Lithium LiFePO4 Battery + 25A Wiring Kit

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$598.95

Collect 598 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

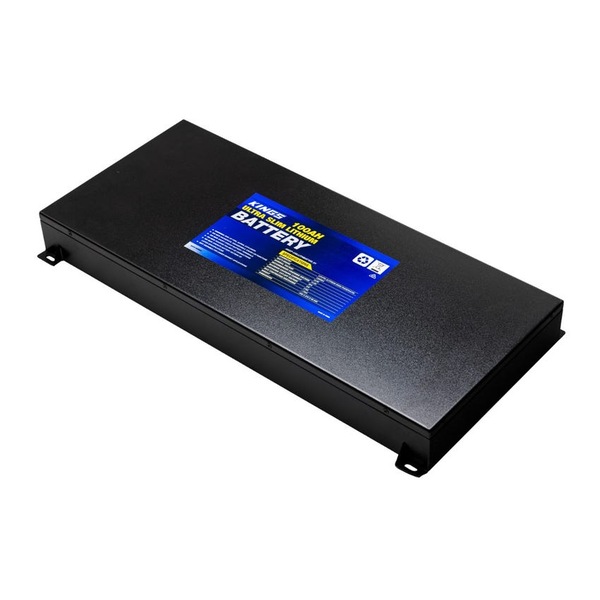

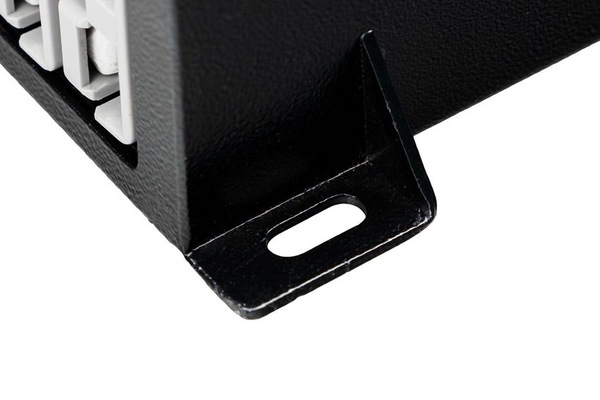

Its the perfect choice in modern setups or for tight spaces, offering plenty of power capacity in a sleek, low profile design. The BMS, quick connect outputs and Lithium Iron Phosphate cells are all built into a tough, ready to install steel case. Built into a tough steel housing, the Kings Deep Cycle Ultra Slim Lithium doesn’t require a separate battery box. Simply bolt the case down and fit your inputs and outputs directly to the quick connect plugs.

• These Batteries are the safe and rugged Lithium Iron Phosphate type - LiFePO4 for short. They offer high power, long life and a huge number of charge/discharge cycles… but most importantly they’re safe! high quality BMS and brand new Grade A cells means that this battery can be constantly discharged at up to 175 Amps and will even output up to 400A of peak current for 5 seconds - ideal for high power appliances like inverters that often surge and use extra power when they are first turned on.

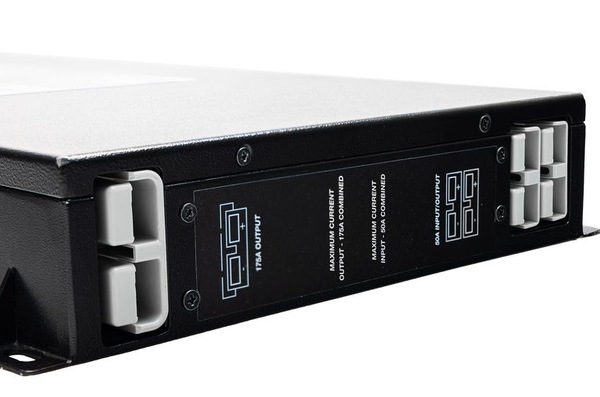

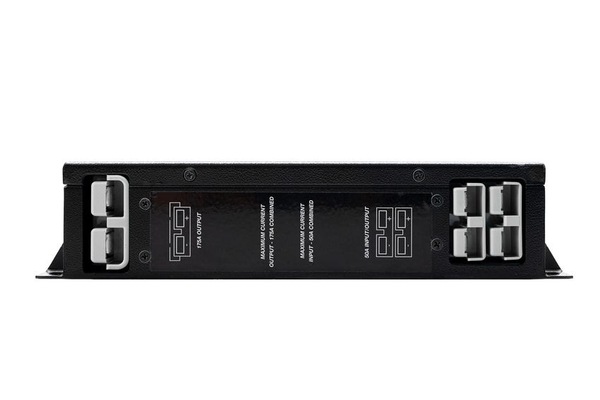

• Fitted with two 50A sized quick connect plugs and a 175A quick connect plugs you can easily fit and then connect up your battery and accessories. The 175A output allows for inverter connecting while the 50A plugs, are ideal for charging the battery, or connecting to 12V accessories like fridges or 12V Adventure Ovens.

• The best way to wire up a DC Charger, a dual battery or, get power to your 12v control box or from your solar panel - the Adventure Kings 25A Wiring Kit! The Kings 25A DC Wiring Kit perfectly suits the Kings 25A DC Charger and measures in at a thumping six metres long, which gives you all the length you need to reach from your starter battery right to the rear of your vehicle. It’s built with 8mm2, 8AWG twin-core wiring, to minimise the voltage drop that comes with using under-sized wiring.

• With six metres of twin-core 8AWG cabling, plus all those included fuses, terminals and more, you’re not just limited to one single install. One single kit is capable of running power from a starter battery to the input of a DCDC charger in the back of most vehicles, and then you can use the remaining cable and terminals to connect your DC charger’s output to your second battery! Or, use for powering a 12v Control Box, or running solar into your setup - the options are almost endless.

KINGS 12V 100AH ULTRA SLIM LITHIUM LIFEPO4 BATTERY


Adventure Kings Lithium Batteries are the safe and rugged Lithium Iron Phosphate type - LiFePO4 for short.



Chemistry LiFePO4 (Lithium Iron Phosphate)
BMS Protections Over Charge, Over Discharge, Over Current
Rated Capacity 100Ah
Rated Energy 1280Wh
Nominal Voltage 12.8V
Max Charging Voltage 14.6V
Discharge Cut-off Voltage 10V
Max Continuous Discharge Current 175A
Max Pulse Discharge (5 seconds) 400A
Maximum Charging Current 50A
Operating Temperature (Charging) 0°C to +50°C
Operating Temperature (Discharging) -20°C to 60°C
Life Cycles to 80% DoD 2000+
Cell Construction Prismatic A Grade
Case Material Steel
Terminals 1x 175A Quick Connect + 2x 50A Quick Connect
Included Wiring 1x 175A Quick Connect plug + crimp terminals
Allowed Batteries In Series Bank (Same Batch) 4
Allowed Batteries In Parallel Bank (Same Batch) 2
Dimensions ±5mm (LxWxH) 630 x 307 x 66mm
Weight 16kg





KINGS 25A WIRING KIT

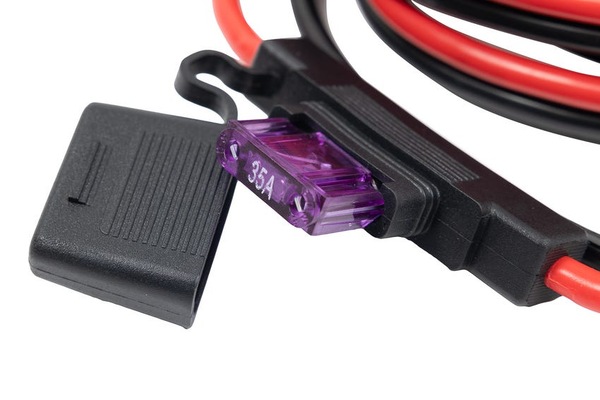

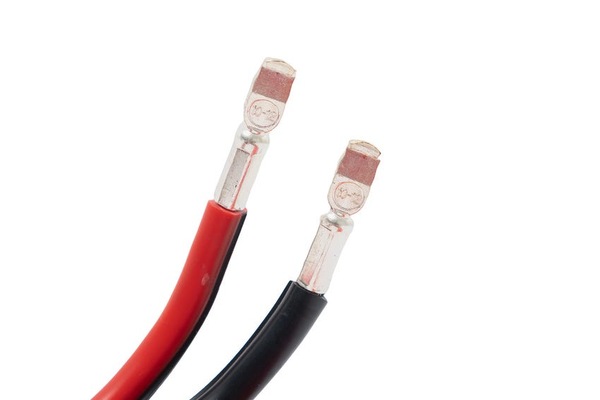

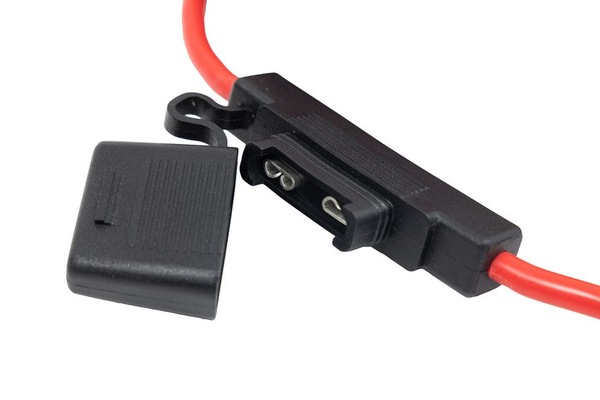

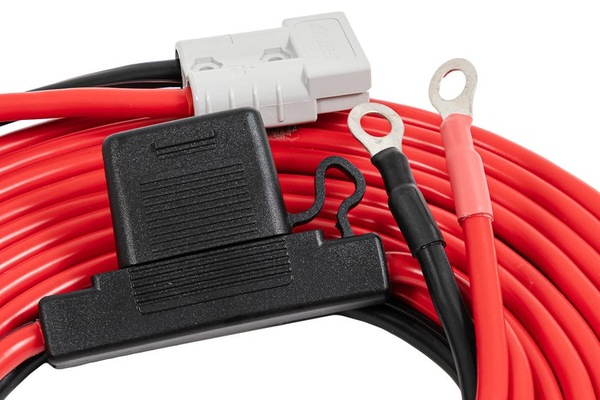

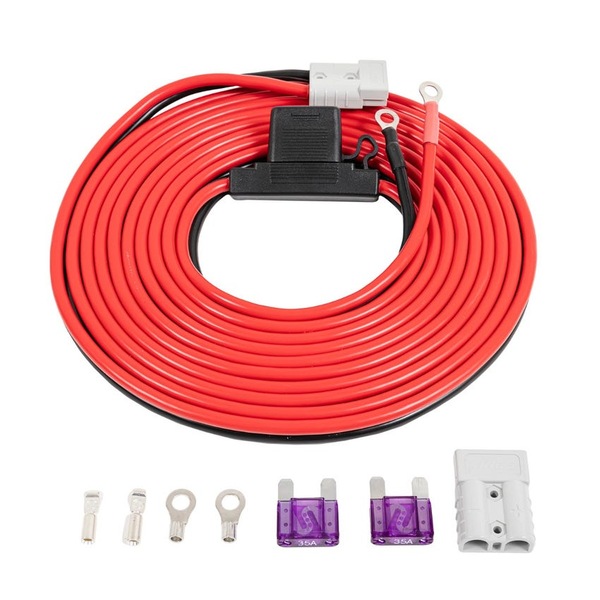

Wire up a DC Charger, a dual battery or, get power to your 12v control box or from your solar panel - the Adventure Kings 25A Wiring Kit! Six metres long it’s built with 8mm2, 8AWG twin-core wiring.Comes pre-terminated with 8mm ring terminals on one end to suit all sizes of Kings lithium and AGM batteries, and an in-line maxi blade fuse holder with two 35A fuses. The other end of the cable is pre-terminated with Anderson-style quick connect plug terminals.


Wire Length 6 Metres
Wire Gauge Twin Core 8AWG / 8mm2
Fuse Type / Rating Maxi Blade Fuse / 60A
Fitted Plug / Terminal Types Pre-fitted Anderson-style plug and terminals + 8mm ring terminals
Extra Terminals Included 8mm ring terminals x 2, Anderson style connectors x 2, Anderson style plastic housing x 2
Included Fuses 2 x 35A maxi blade fuses

MPN: SC-CO-USLLITHBAT100-WIRING25A
