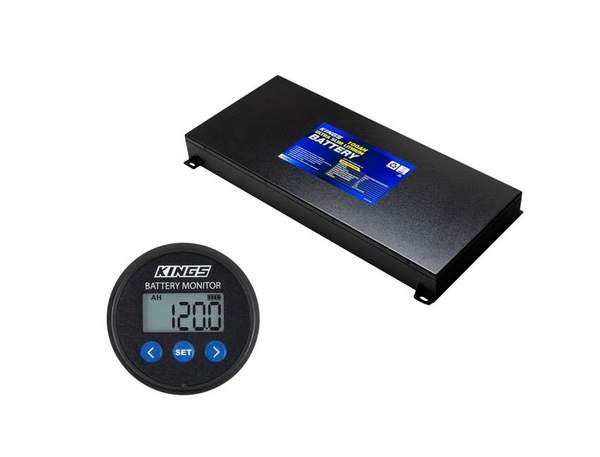

Kings 12V 100Ah Slim 66mm Lithium Battery + Battery Monitor with Shunt

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
$613.95

Collect 613 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
pick up from 27 Kings Company stores across Australia and get postage refunded. The perfect choice in modern setups or for tight spaces, offering plenty of power capacity in a sleek, low profile design. The BMS, quick connect outputs and Lithium Iron Phosphate cells are all built into a tough, ready to install steel case.

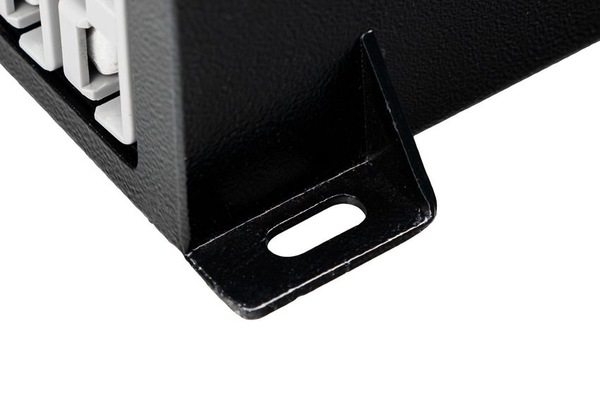

• Built into a tough steel housing, the Kings Ultra Slim Lithium doesn’t require a separate battery box. The integrated mounts allow the case to be easily fitted vertically or horizontally, maximizing available space or allowing you to improve your weight distribution or center of gravity. simply bolt the case down and fit your inputs and outputs directly to the quick connect plugs.

• Safe and rugged Lithium Iron Phosphate type - LiFePO4 for short. They offer high power, long life and a huge number of charge/discharge cycles… but most importantly they’re safe! The battery’s high quality BMS and brand new Grade A cells means that these batteries can be constantly discharged at up to 175 Amps and will even output up to 400A of peak current for 5 seconds - ideal for high power appliances like inverters that often surge and use extra power when they are first turned on.

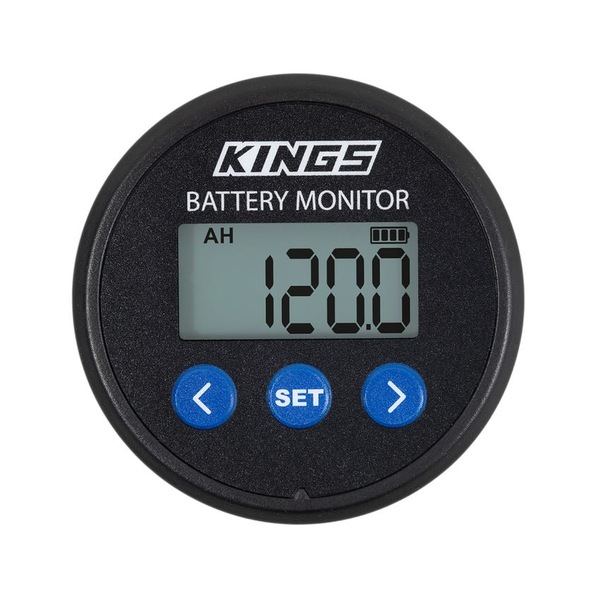

• The easy to read backlit LCD display makes it easy to check your battery status at a glance - and with just the press of a button you can check battery voltage, charging/discharging current, power, temperature or battery capacity percentage.

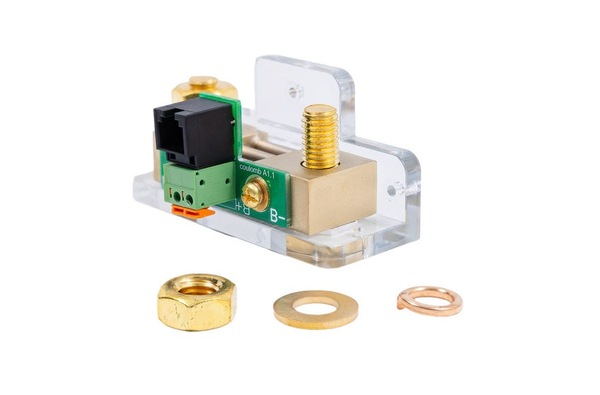

• It uses battery voltage readings, and a high precision 500A shunt to measure current and calculate Amp hours in and out - this means it can accurately display your battery’s capacity whether it’s AGM, Flooded Lead Acid or Lithium - and regardless of whether it’s 12V or 24V. you can program over/under-voltage, over-current or over-temperature alarms - helping to keep an eye on your electrical system in any conditions.

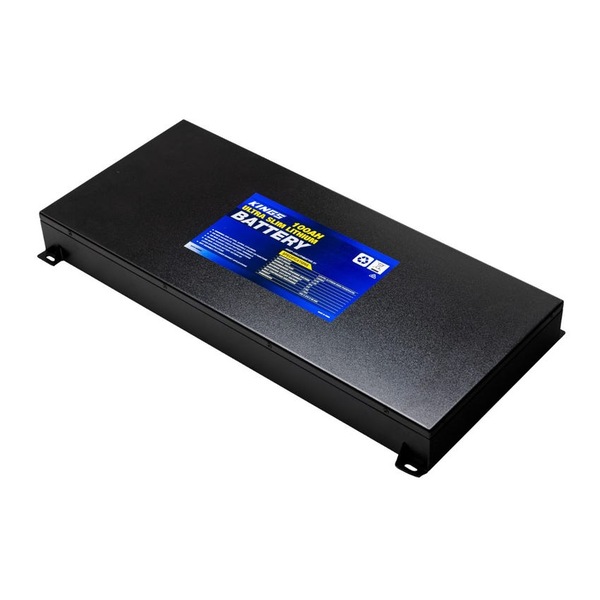

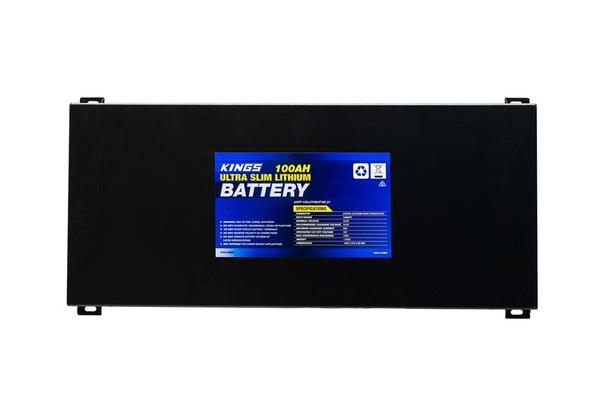

KINGS 12V 100AH ULTRA SLIM LITHIUM LIFEPO4 BATTERY


The battery’s high quality BMS and brand new Grade A cells means that these batteries can be constantly discharged at up to 175 Amps and will even output up to 400A of peak current for 5 seconds - ideal for high power appliances like inverters that often surge and use extra power when they are first turned on.





Chemistry LiFePO4 (Lithium Iron Phosphate)
BMS Protections Over Charge, Over Discharge, Over Current
Rated Capacity 100Ah
Rated Energy 1280Wh
Nominal Voltage 12.8V
Max Charging Voltage 14.6V
Discharge Cut-off Voltage 10V
Max Continuous Discharge Current 175A
Max Pulse Discharge (5 seconds) 400A
Maximum Charging Current 50A
Operating Temperature (Charging) 0°C to +50°C
Operating Temperature (Discharging) -20°C to 60°C
Life Cycles to 80% DoD 2000+
Cell Construction Prismatic A Grade
Case Material Steel

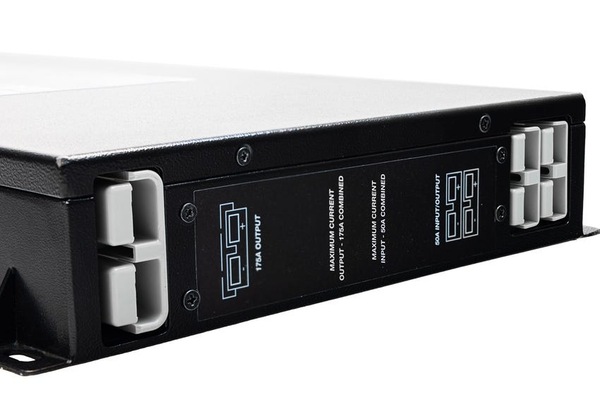

Terminals 1x 175A Quick Connect + 2x 50A Quick Connect
Included Wiring 1x 175A Quick Connect plug + crimp terminals
Allowed Batteries In Series Bank (Same Batch) 4
Allowed Batteries In Parallel Bank (Same Batch) 2
Dimensions ±5mm (LxWxH) 630 x 307 x 66mm
Weight 16kg



KINGS 500A BATTERY MONITOR WITH SHUNT


Supply Voltage Range 8V ~ 100V
Measurable Voltage Range 8V ~ 100V
Measurable Current Range 0 ~ 500A
Working current (with backlight on) 10mA
Working current (with backlight off) 7.5mA
Standby Current <2mA
Compatible Battery Voltage 12V/24V/36V/48V
Battery Capacity Range 1Ah ~ 999Ah
Measurable Battery Temperature -25°C ~ 60°C
Working Temperature -10°C ~ 50°C
Diameter 63mm
Required Mounting Hole Diameter 55mm
Maximum Mounting Panel Thickness 10mm

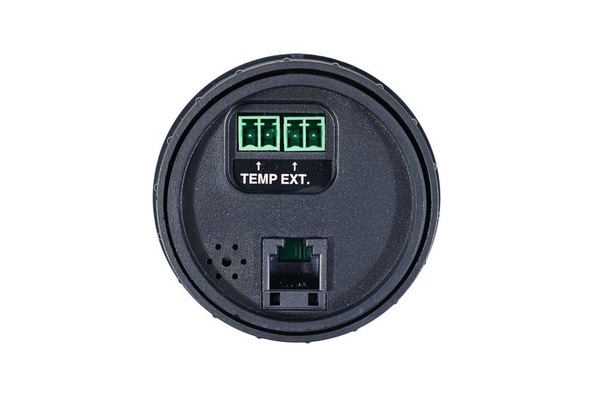

Temperature Sensor Yes, 3m length
Warranty 12 Months

MPN: SC-CO-USLLITHBAT100-BATTMONS
