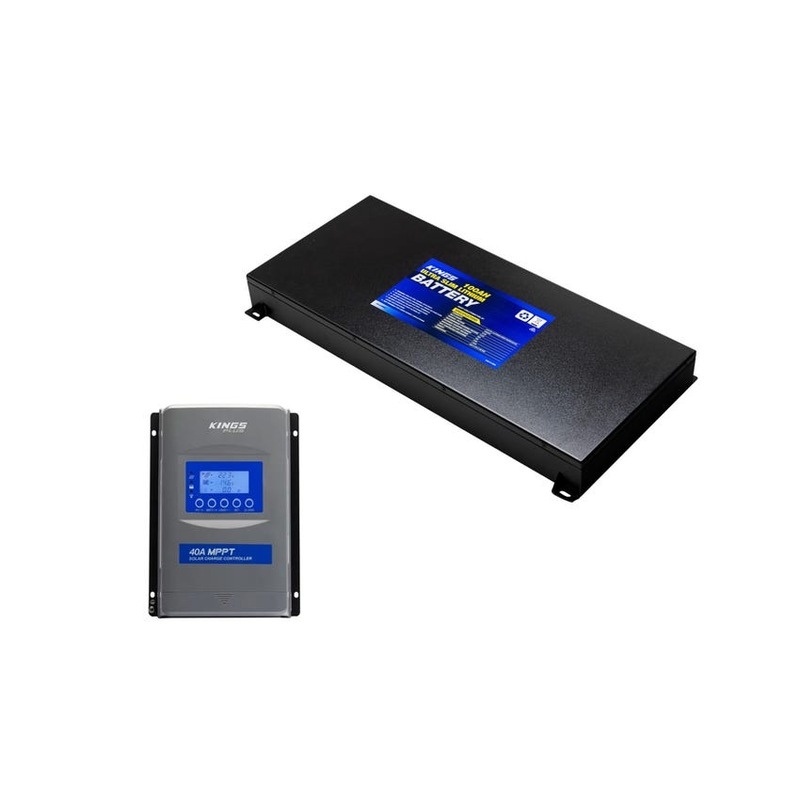

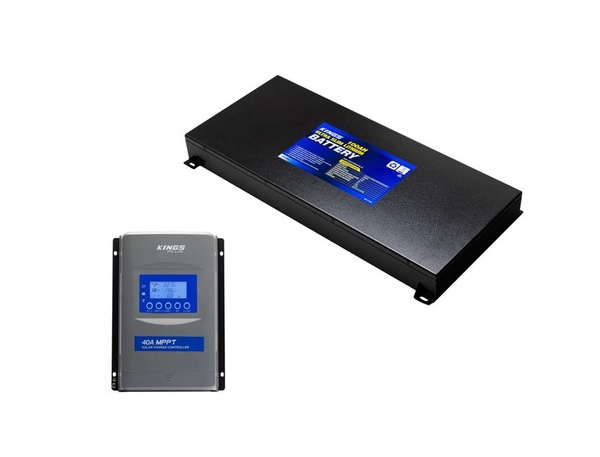

Kings 12V 100Ah Ultra Slim Lithium LiFePO4 Battery + 40A MPPT Regulator

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$748

Collect 748 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

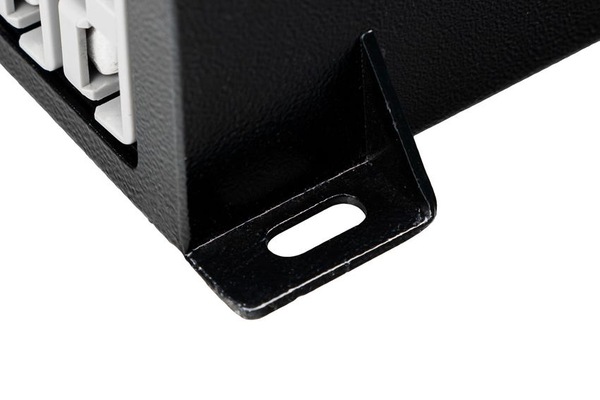

Its the perfect choice in modern setups or for tight spaces, offering plenty of power capacity in a sleek, low profile design. The BMS, quick connect outputs and Lithium Iron Phosphate cells are all built into a tough, ready to install steel case. Built into a tough steel housing, the Kings Deep Cycle Ultra Slim Lithium doesn’t require a separate battery box. Simply bolt the case down and fit your inputs and outputs directly to the quick connect plugs.

• These Batteries are the safe and rugged Lithium Iron Phosphate type - LiFePO4 for short. They offer high power, long life and a huge number of charge/discharge cycles… but most importantly they’re safe! high quality BMS and brand new Grade A cells means that this battery can be constantly discharged at up to 175 Amps and will even output up to 400A of peak current for 5 seconds - ideal for high power appliances like inverters that often surge and use extra power when they are first turned on.

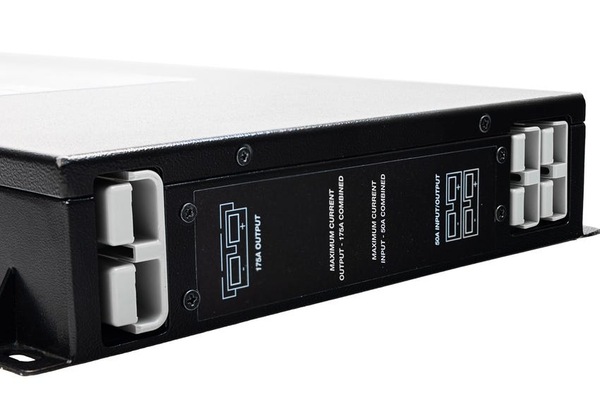

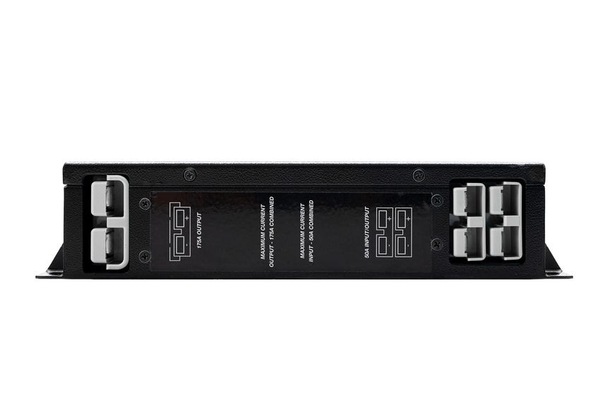

• Fitted with two 50A sized quick connect plugs and a 175A quick connect plugs you can easily fit and then connect up your battery and accessories. The 175A output allows for inverter connecting while the 50A plugs, are ideal for charging the battery, or connecting to 12V accessories like fridges or 12V Adventure Ovens.

• This 40 Amp solar charge controller is lithium compatible with dedicated multi-stage charging profiles for different battery types, has an advanced display that shows real time power stats and can accept up to 92V of solar input in standard conditions! It also offers a huge amount of customisation so it can suit just about any setup - AGM or lithium, up to 780 Watts as a 12 Volt battery system or 1,560 Watts as a 24 Volt battery system with a 40 Amp charge rating

• On the solar input side, it will make use of up to 520W of solar power as a 12V system and of up to 1,040W of solar power as a 24V system. It can also over power by 50%, meaning you can connect up to 780 Watts of solar panels when using this solar regulator as a 12 Volt system and a massive 1,560 Watt of solar panels when setting up a 24 Volt system. This is a super effective way of making the most in cloudy or low light conditions. With over 98% max conversion efficiency and less than 15 milliamps of standby power it’s able to efficiently and effectively charge your batteries!

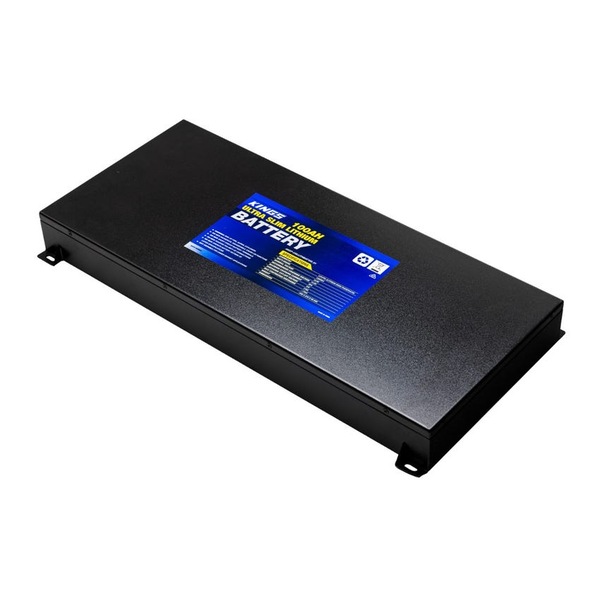

KINGS 12V 100AH ULTRA SLIM LITHIUM LIFEPO4 BATTERY


Built into a steel housing, this doesn’t require a separate battery box.



BMS Protections Over Charge, Over Discharge, Over Current
Rated Capacity 100Ah
Rated Energy 1280Wh
Nominal Voltage 12.8V
Max Charging Voltage 14.6V
Discharge Cut-off Voltage 10V
Max Continuous Discharge Current 175A
Max Pulse Discharge (5 seconds) 400A
Maximum Charging Current 50A
Operating Temperature (Charging) 0°C to +50°C
Operating Temperature (Discharging) -20°C to 60°C
Life Cycles to 80% DoD 2000+
Cell Construction Prismatic A Grade
Case Material Steel
Terminals 1x 175A Quick Connect + 2x 50A Quick Connect
Included Wiring 1x 175A Quick Connect plug + crimp terminals
Allowed Batteries In Series Bank (Same Batch) 4
Allowed Batteries In Parallel Bank (Same Batch) 2
Dimensions ±5mm (LxWxH) 630 x 307 x 66mm
Weight 16kg

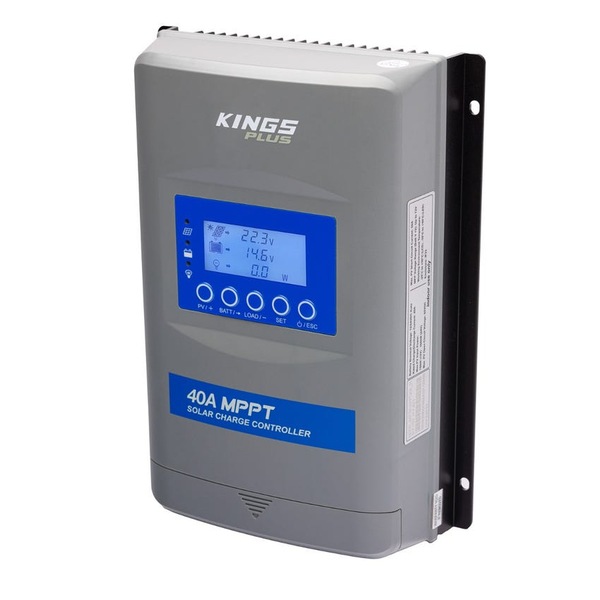

ADVENTURE KINGS PLUS PREMIUM 40 AMP MPPT SOLAR REGULATOR





Battery Chemistry Options Sealed, Gel, Flooded, Lifepo4,Li(NiCoMn)O2, User Adjustable

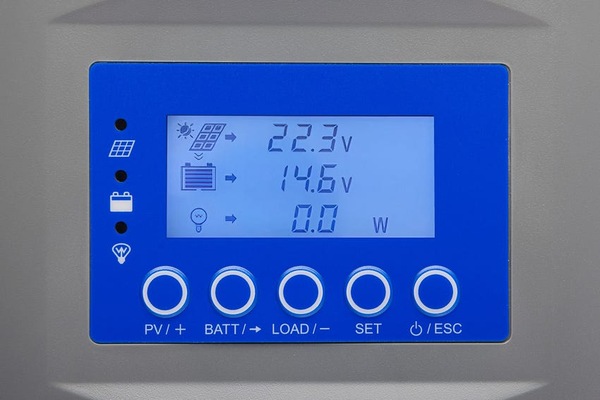

Display Backlit LCD + LED Indicator Lights

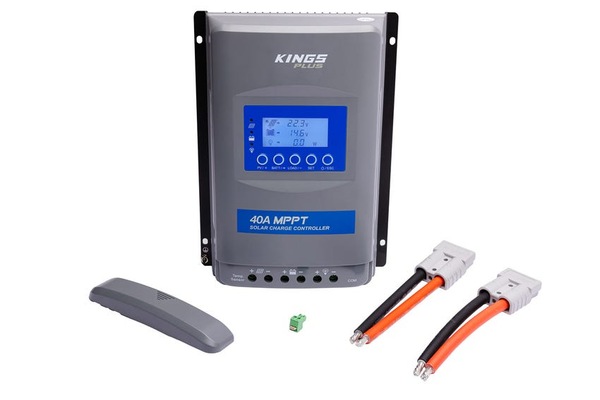

Included cables 100mm Double Insulated XLPO 16mm2 + Quick Connect Plugs

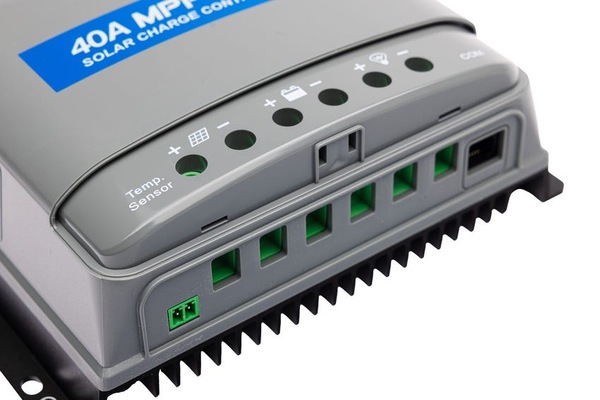

Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant
Body Dimensions (Mounting Hole Dimensions) 255 X 185 X 68mm (200 X 176 mm)
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 92V
Rated Solar Power Input 520W (12V) 1040w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Max Dc Dc Conversion Efficiency >98%
Max Tracking Efficiency 99.5%
Load Circuit Manual On/Off + Programmable Settings

MPN: SC-CO-USLLITHBAT100-40MPPTREG
