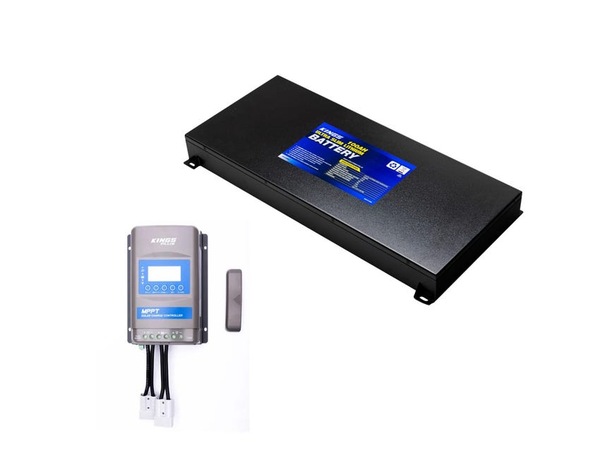

Kings 12V 100Ah UltraSlim Lithium LiFePO4 Battery +Premium MPPT Solar Regulator

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$648

Collect 648 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

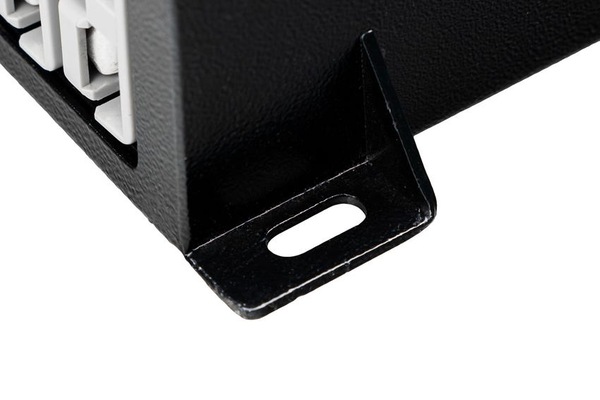

Its the perfect choice in modern setups or for tight spaces, offering plenty of power capacity in a sleek, low profile design. The BMS, quick connect outputs and Lithium Iron Phosphate cells are all built into a tough, ready to install steel case. Built into a tough steel housing, the Kings Deep Cycle Ultra Slim Lithium doesn’t require a separate battery box. Simply bolt the case down and fit your inputs and outputs directly to the quick connect plugs.

• These Batteries are the safe and rugged Lithium Iron Phosphate type - LiFePO4 for short. They offer high power, long life and a huge number of charge/discharge cycles… but most importantly they’re safe! high quality BMS and brand new Grade A cells means that this battery can be constantly discharged at up to 175 Amps and will even output up to 400A of peak current for 5 seconds - ideal for high power appliances like inverters that often surge and use extra power when they are first turned on.

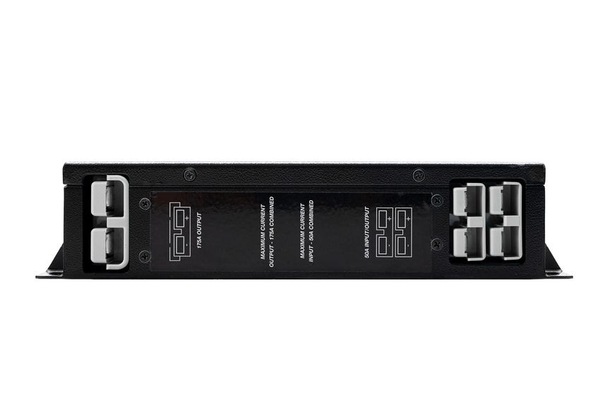

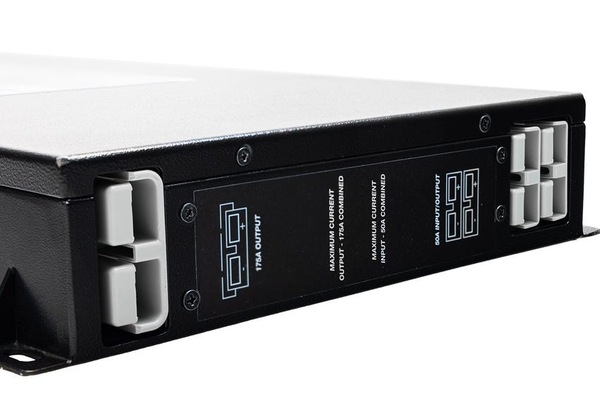

• Fitted with two 50A sized quick connect plugs and a 175A quick connect plugs you can easily fit and then connect up your battery and accessories. The 175A output allows for inverter connecting while the 50A plugs, are ideal for charging the battery, or connecting to 12V accessories like fridges or 12V Adventure Ovens.

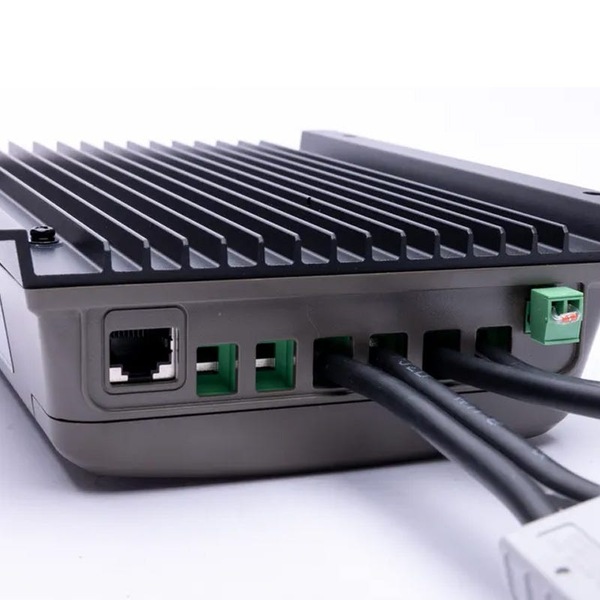

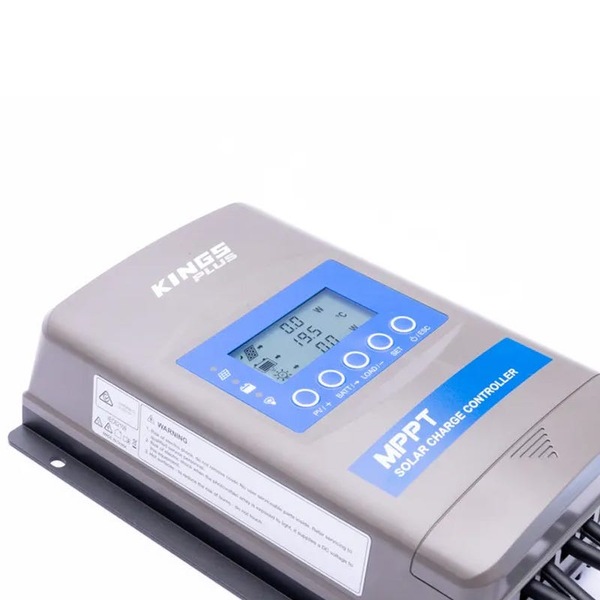

• This 20A solar charge controller is lithium compatible with dedicated multi-stage charging profiles for different battery types, has an advanced display that shows real time power stats and can accept up to 46V of solar input in standard conditions! It also offers a huge amount of customisation so it can suit just about any setup - AGM or lithium, 12V or 24V right up to 780W of solar input with a 20A charge rating.

• For the solar input side, it will accept up to 390W of power from 12V nominal solar panels and 780W from 24V panels. With over 98% max conversion efficiency and less than 15 milliamps of standby power it’s able to efficiently and effectively charge your batteries!

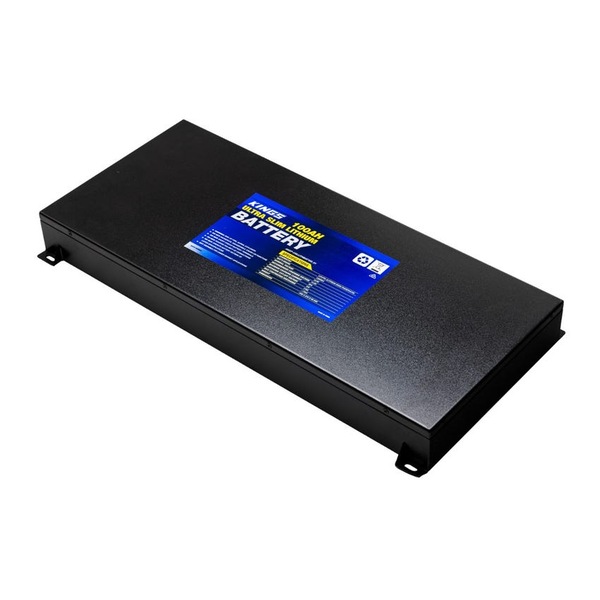

KINGS 12V 100AH ULTRA SLIM LITHIUM LIFEPO4 BATTERY


Adventure Kings Lithium Batteries are the safe and rugged Lithium Iron Phosphate type - LiFePO4 for short.



Chemistry LiFePO4 (Lithium Iron Phosphate)
BMS Protections Over Charge, Over Discharge, Over Current
Rated Capacity 100Ah
Rated Energy 1280Wh
Nominal Voltage 12.8V
Max Charging Voltage 14.6V
Discharge Cut-off Voltage 10V
Max Continuous Discharge Current 175A
Max Pulse Discharge (5 seconds) 400A
Maximum Charging Current 50A
Operating Temperature (Charging) 0°C to +50°C
Operating Temperature (Discharging) -20°C to 60°C
Life Cycles to 80% DoD 2000+
Cell Construction Prismatic A Grade
Case Material Steel
Terminals 1x 175A Quick Connect + 2x 50A Quick Connect
Included Wiring 1x 175A Quick Connect plug + crimp terminals
Allowed Batteries In Series Bank (Same Batch) 4
Allowed Batteries In Parallel Bank (Same Batch) 2
Dimensions ±5mm (LxWxH) 630 x 307 x 66mm
Weight 16kg




PREMIUM 20A MPPT SOLAR REGULATOR




AGM And Lithium Compatible (12V/24V)- Sealed, Gel, Flooded, Lifepo4, Li(NiCoMn)O2
Display Backlit LCD + LED Indicator Lights

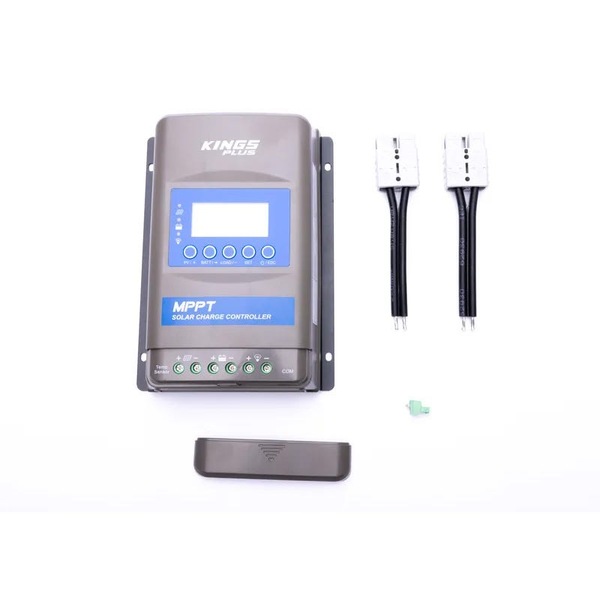

Wire Specification - 100mm Double Insulated XLPO 6mm2 + Quick Connect Plugs

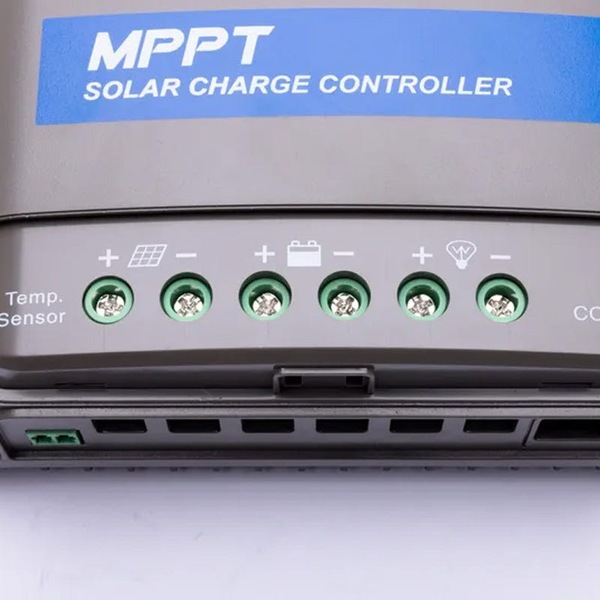

Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant
Body Dimensions (Mounting Hole Dimensions) 217 X 158 X 57 mm (160 X 149 mm)
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Maximum Solar Power Input 390W (12V) 780w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Max Dc Dc Conversion Efficiency >98%
Max Tracking Efficiency 99.5%
Load Circuit Manual On/Off +

MPN: SC-CO-USLLITHBAT100-PMPPTREG
