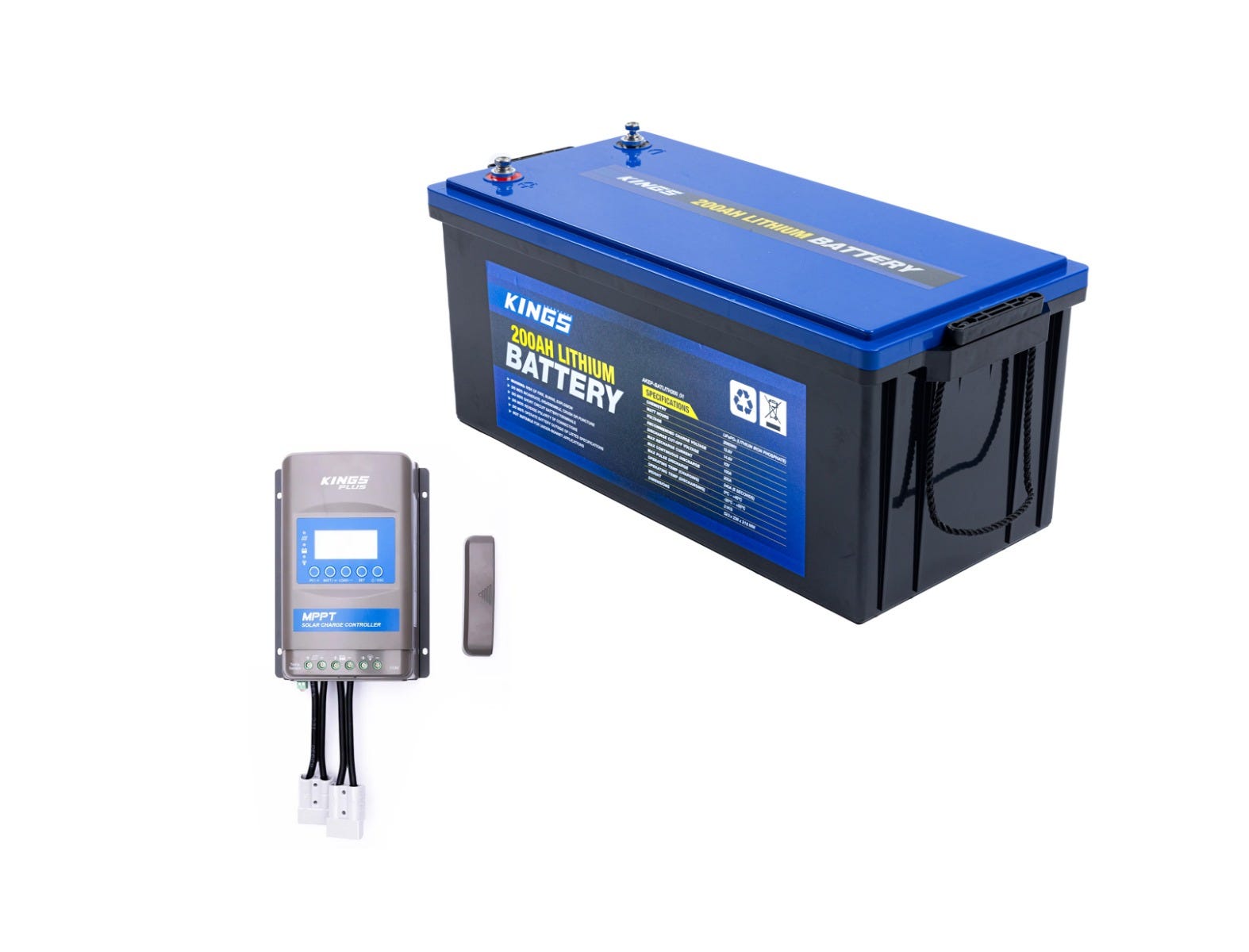

Kings 12V 200Ah Deep Cycle Lithium LiFePO4 Battery + MPPT Solar Regulator

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$618

Collect 618 Everyday Rewards points

Log in to MyDeal to link your card
$45.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
Enjoy a whopping 200Ah capacity to power your fridge or off grid camping set up without the fuss of needing to wire up multiple batteries in series or in parallel to achieve the same capacity. The Adventure Kings 200Ah Deep Cycle Lithium battery is perfect for power hungry setups, including large fridges, camping lights, and inverters that will run your 240V appliances off grid.

• The Battery Management System (BMS) ensures safe and reliable operation. The quality BMS in this Adventure Kings 200Ah deep cycle lithium battery is rated to output a continuous 200 amps, meaning you can easily connect and power any Kings inverter to run any 240V gear without a worry in the world!

• SUPER SAFE LITHIUM IRON PHOSPHATE CHEMISTRY (LiFePO4) the 200 ah lithium batteries use Lithium Iron Phosphate (LiFePO4) cell chemistry. You can connect up to 2 deep cycle lithium batteries together in parallel to double the rated capacity, or connect up to 4 lithium batteries in series for increased voltage, the choice is yours!

• This 20A solar charge controller is lithium compatible with dedicated multi-stage charging profiles for different battery types, has an advanced display that shows real time power stats and can accept up to 46V of solar input in standard conditions! It also offers a huge amount of customisation so it can suit just about any setup - AGM or lithium, 12V or 24V right up to 780W of solar input with a 20A charge rating

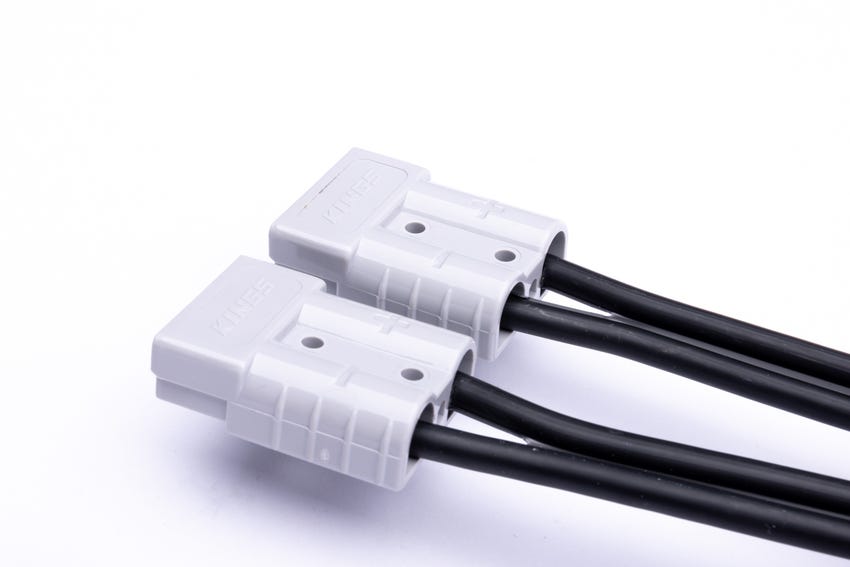

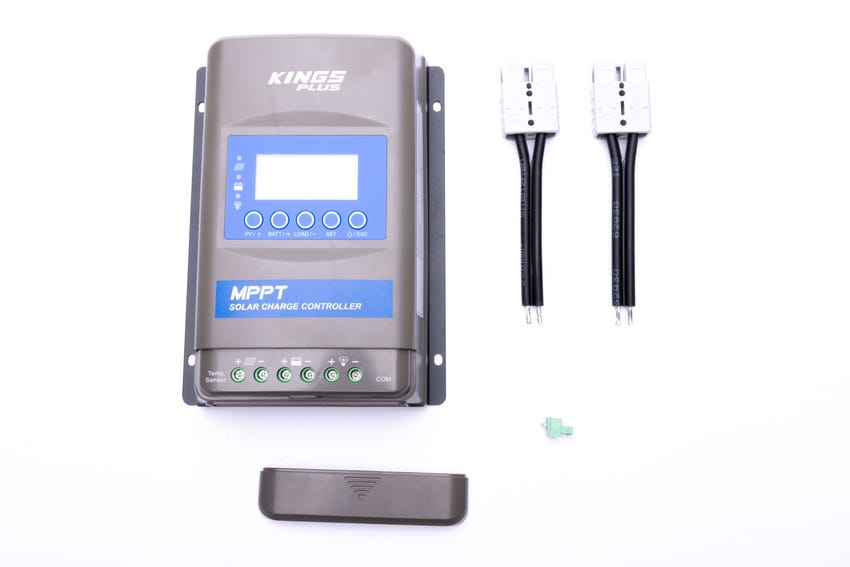

• For the solar input side, it will accept up to 390W of power from 12V nominal solar panels and 780W from 24V panels. With over 98% max conversion efficiency and less than 15 milliamps of standby power it’s able to efficiently and effectively charge your batteries! you get the MPPT Charge Controller, a pair of Kings Quick Connect Plugs with double insulated 6mm2 wire and a temperature sensor

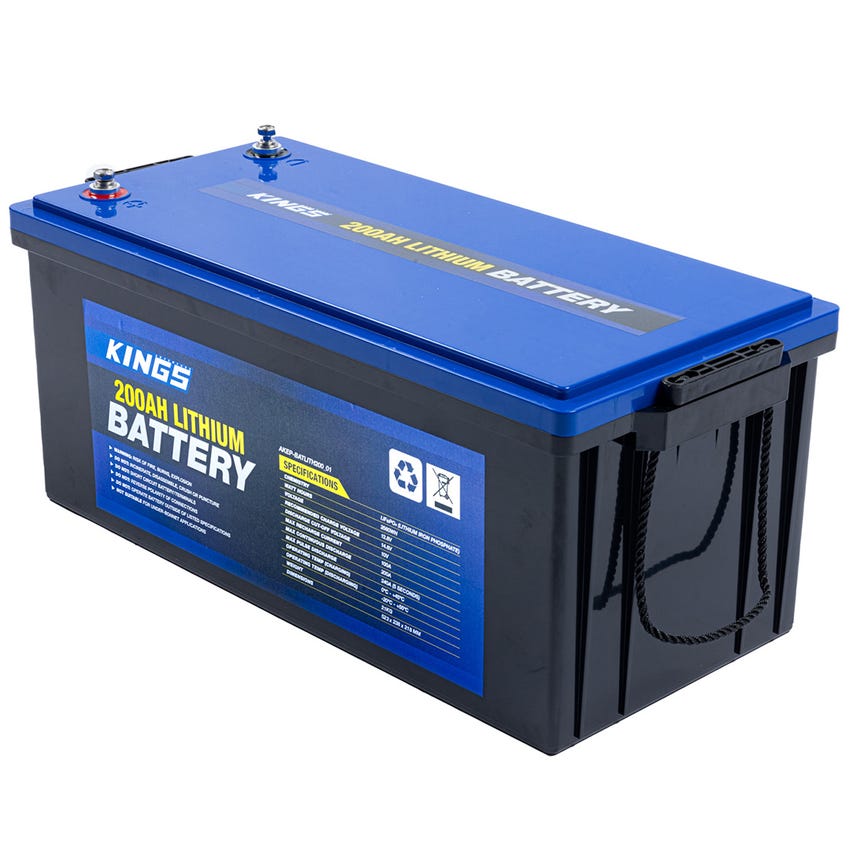

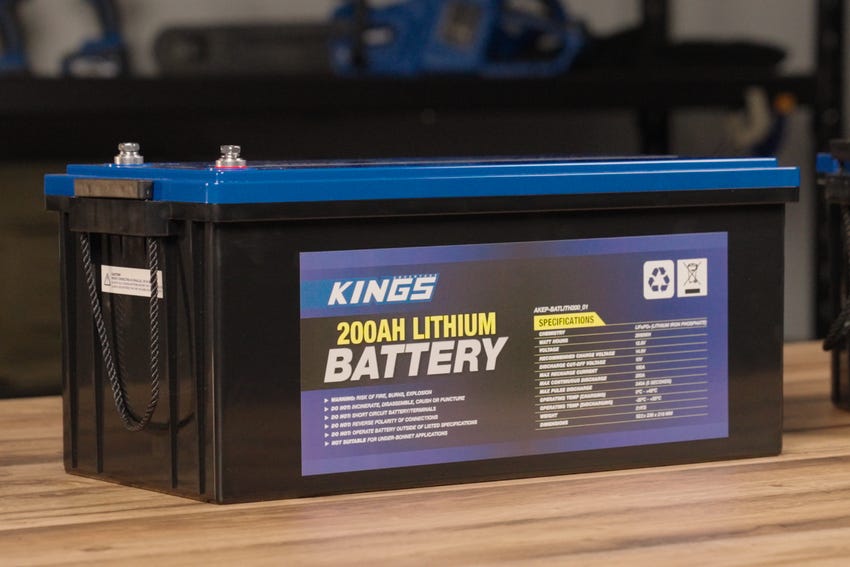

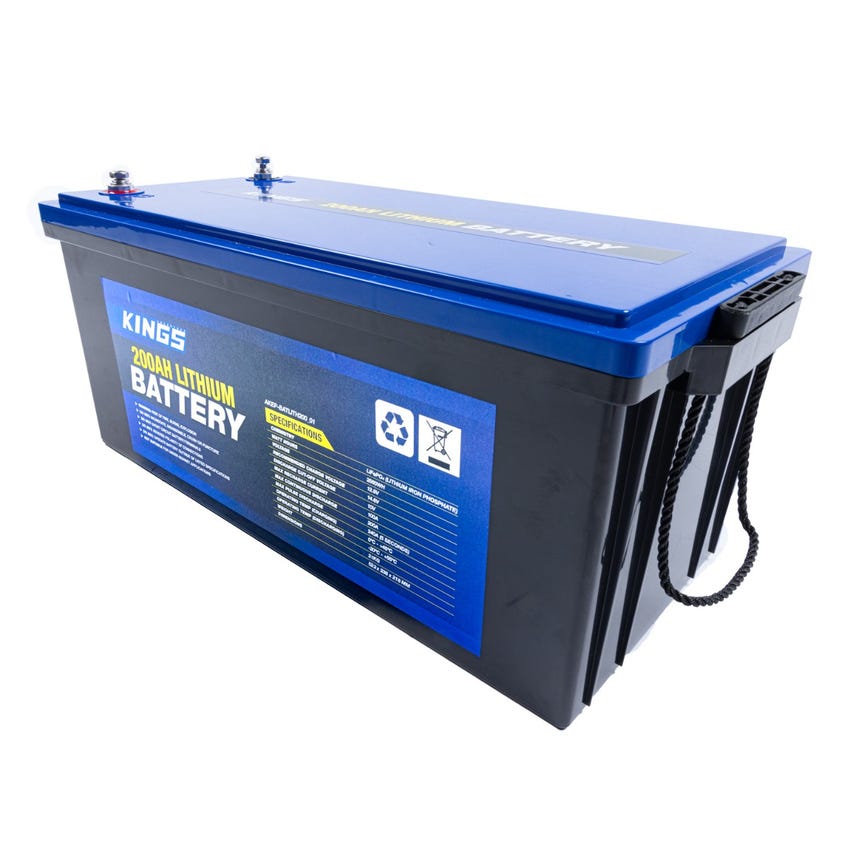

KINGS 200AH DEEP CYCLE LITHIUM LIFEPO4 BATTERY


Enjoy a whopping 200Ah capacity to power your fridge or off grid camping set up. Safe lithium iron phosphate chemistry (LIFEPO4)



Chemistry LiFePO4 (Lithium Iron Phosphate)
BMS Protections Over Charge, Over Discharge, Over Current
Rated Capacity 200Ah
Rated Energy 2560Wh
Nominal Voltage 12.8V
Max Charging Voltage 14.6V
Rated Float Charge Voltage 14.4V
Discharge Cut off Voltage 10V
Max Continuous Discharge Current 200A
Max Pulse Discharge (5 Seconds) 240A
Operating Temperature - Charging 0 - +50°C
Operating Temperature - Discharging -20 - +60°C
Life Cycles >2000
Cell Construction Prismatic A Grade
Case Material ABS
Terminals M8 Threaded
Allowed Batteries Connected in Series Bank (Same Batch) 4
Allowed Batteries Connected in Parallel Bank (Same Batch) 2
Dimension (LxWxH) +-1cm ~507 x 202 x 215
Weight +-3kg ~23Kg

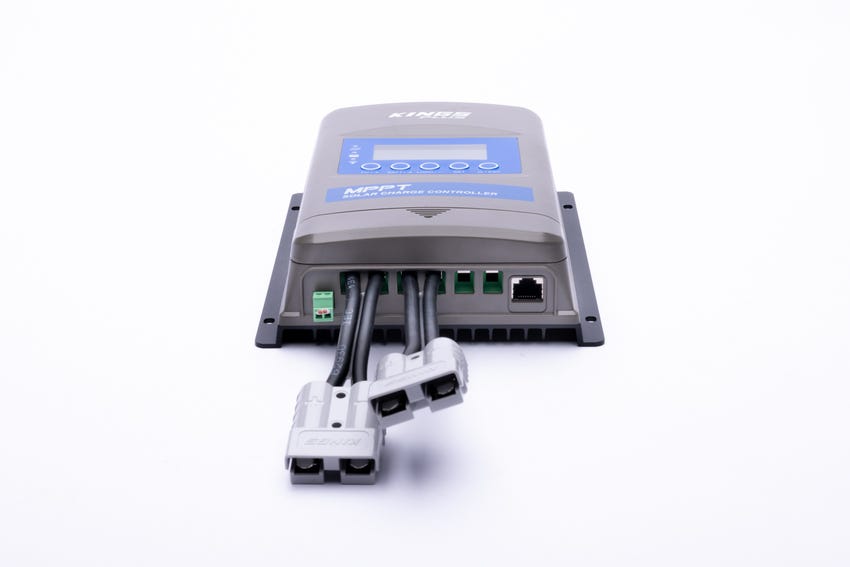

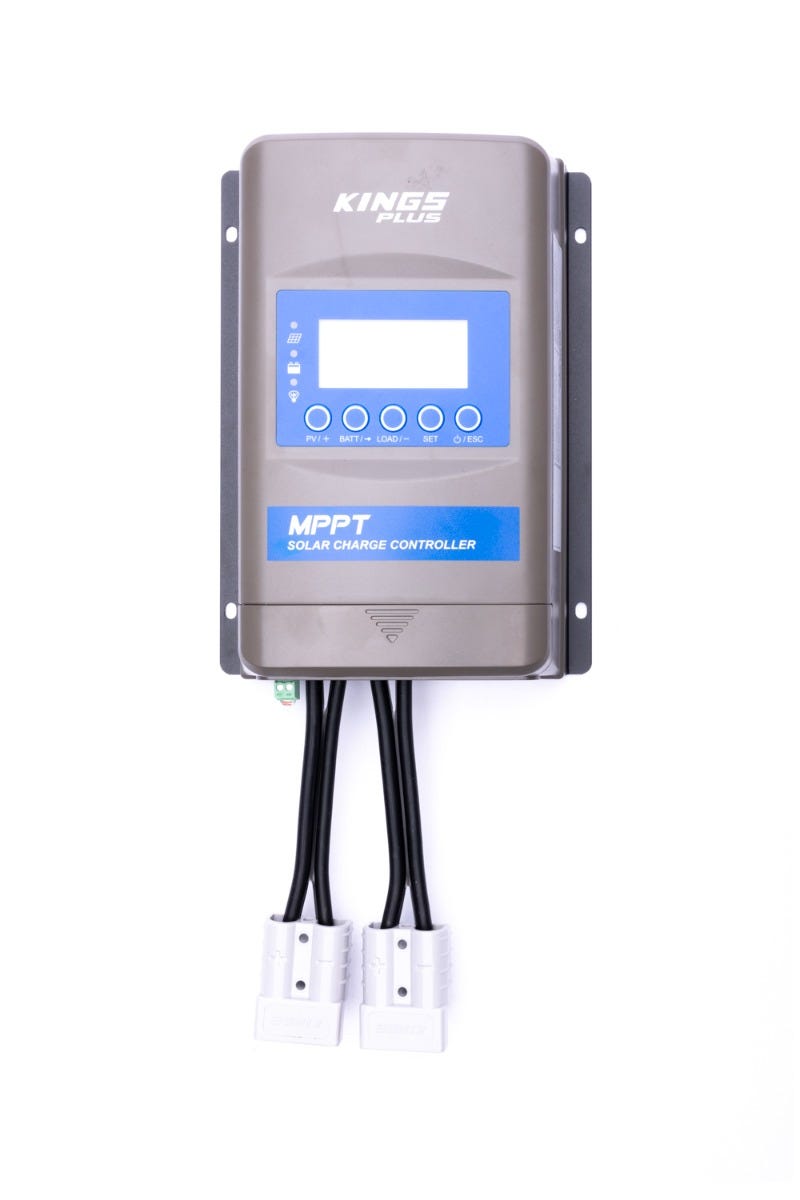

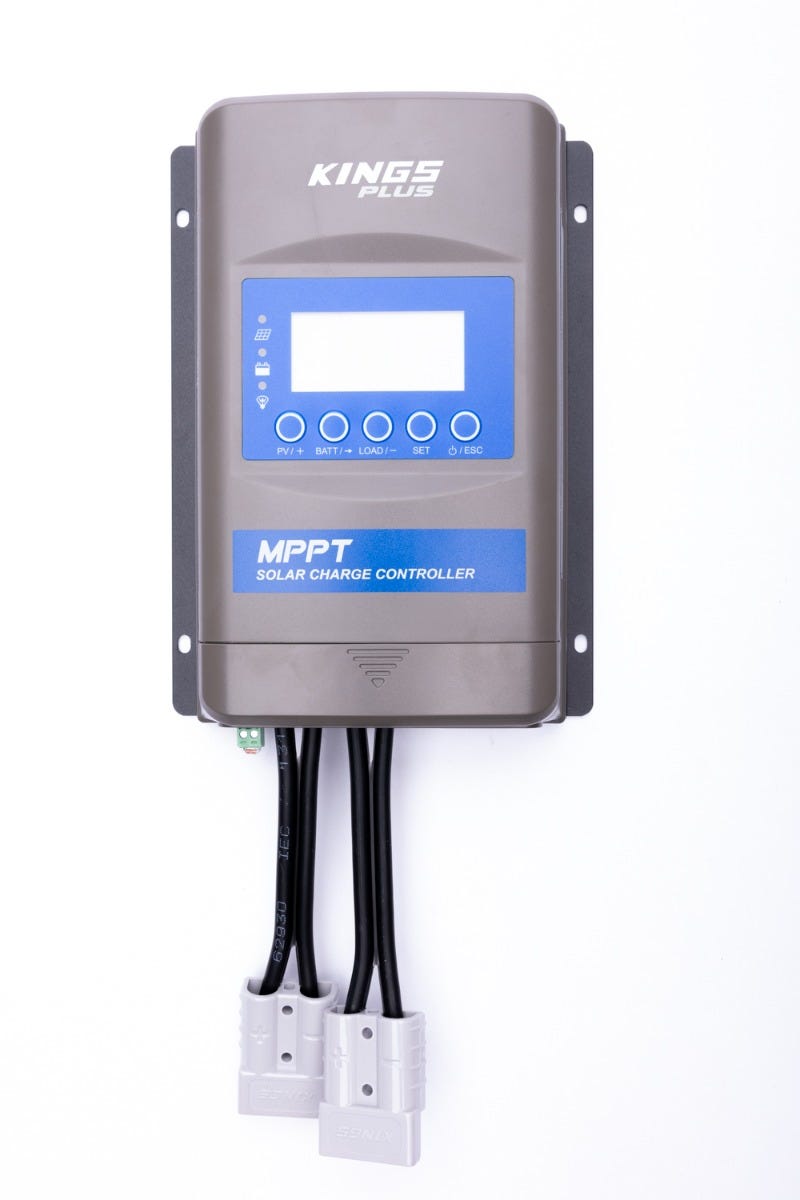

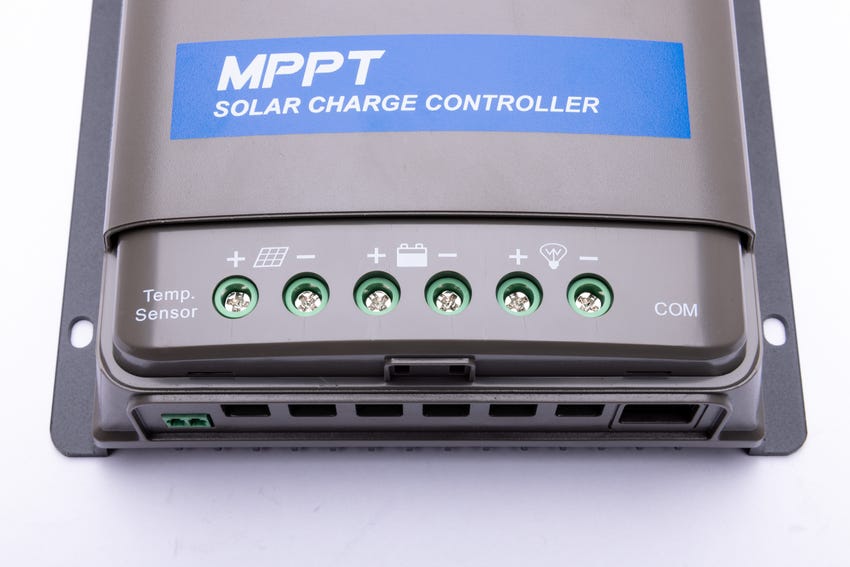

KINGS PLUS PREMIUM 20A MPPT SOLAR REGULATOR





can accept up to 46V of solar input in standard conditions!  up to 390W of power from 12V nominal solar panels and 780W from 24V panels.


AGM And Lithium Compatible (12V/24V) Sealed, Gel, Flooded, Lifepo4, Li(NiCoMn)O2, User Adjustable
Display Backlit LCD + LED Indicator Lights
Wire Specification 100mm Double Insulated XLPO 6mm2 + Quick Connect Plugs
Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant
Body Dimensions (Mounting Hole Dimensions) 217 X 158 X 57 mm (160 X 149 mm)
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Maximum Solar Power Input 390W (12V) 780w (24V)

MPN: SC-CO-BATLITH200-PMPPTREG
