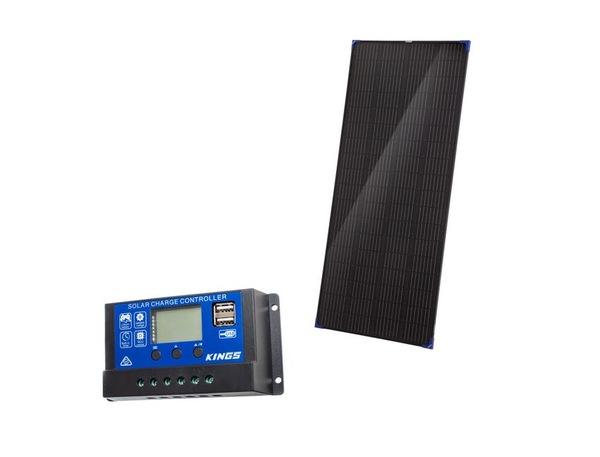

Kings 200W Fixed Solar Panel + 15A PWM Solar Controller

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$118.95

Collect 118 Everyday Rewards points

Log in to MyDeal to link your card
$45.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

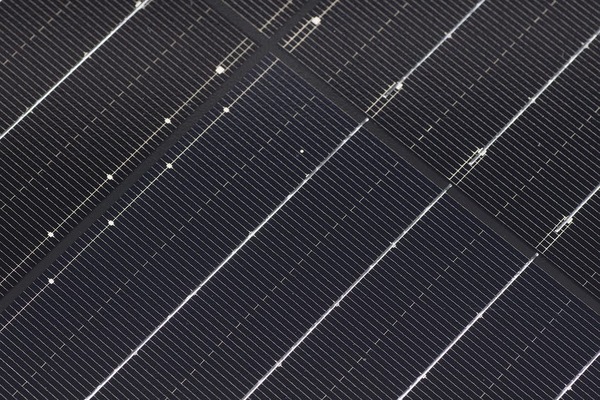

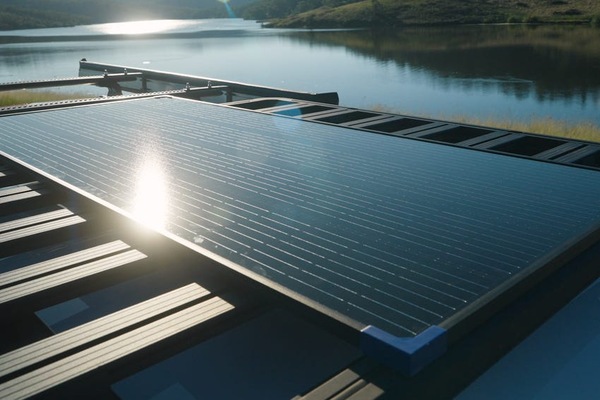

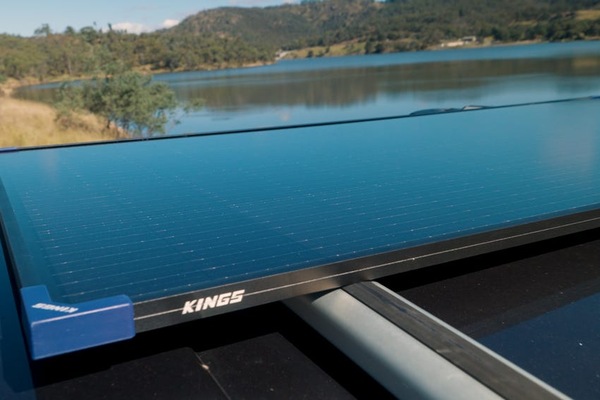

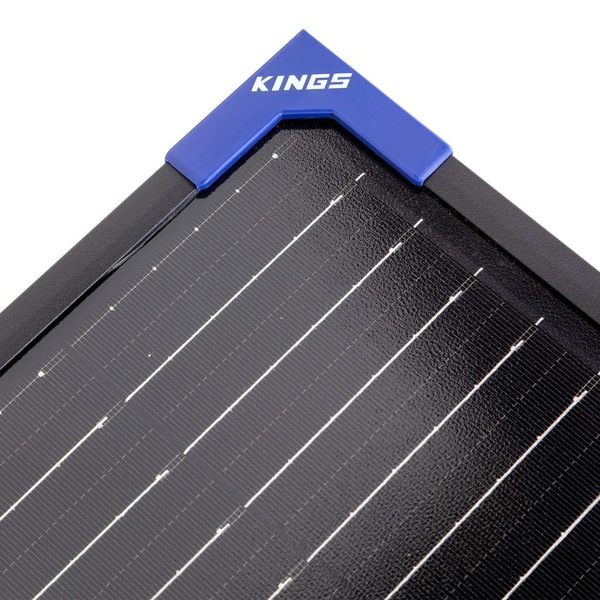

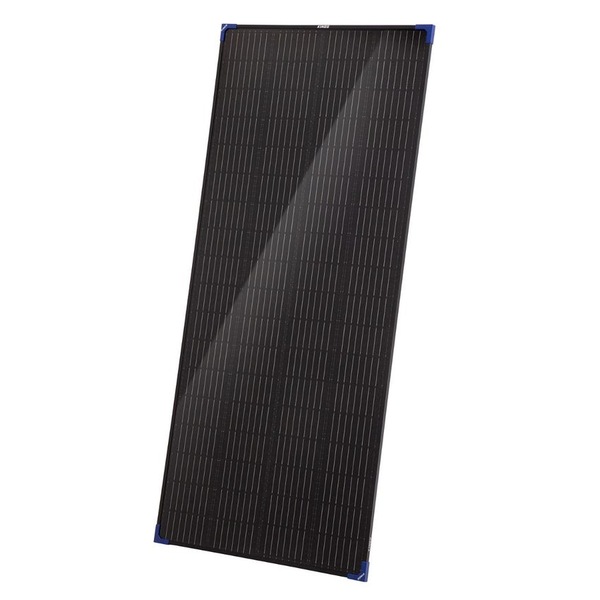

The Adventure Kings 200W fixed solar panel is great for permanent roof mounting on 4WDs, utes, vans, camper trailers, caravans and even boats! It has a 3.2mm thickened glass panel with a reinforced custom aluminum frame, ensures durability when fixed mounted on a vehicle. The slim custom extruded frame reduces wind resistance.

• With the ability to parallel, join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like Inverters, Induction cooktops and off grid air conditioners. measuring at 70cm wide, by 156.5cm high and just 2cm thick including the corner protectors fits neatly on most vehicle roof racks. Two side by side will perfectly fill the roof rack of most common wagons.

• A Controller is a must for safeguarding your battery from the high voltage output of solar panels. This controller uses Pulse Width Modulation (PWM )to reduce the solar input voltage to a safer, lower output voltage, ideal for charging 12V batteries. Along with this, the PWM employs a 3-stage charging program: boost, equalise and float. Keeping your battery charged properly and ready to operate at peak performance.

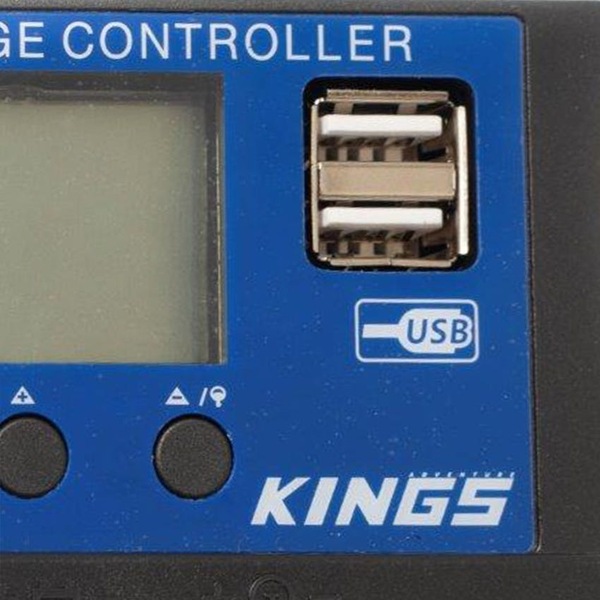

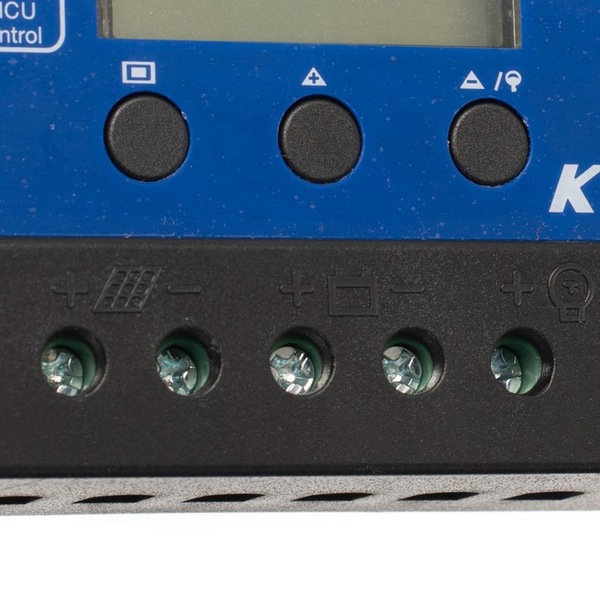

• Utilising screw in terminals, you can easily connect up to your solar panel and 12V system. The LCD screen allows you to easily change settings to best suit your setup. Equipped with an LCD screen so you can keep an eye on charging performance and battery voltage while it’s connected, it even features two USB ports so you can charge your devices directly from the PWM Controller.

• Overcharge, over-discharge, overload, short-circuit, reverse-connection protection and transient voltage suppression diode to protect. With the ability to charge sealed lead acid, AGM, and gel batteries* plus user adjustable settings and the option to use a load circuit this is a feature packed controller that’ll work well in any setup!

KINGS 200W FIXED SOLAR PANEL
Up to 16.67A of charge at 12V


The Adventure Kings 200W fixed solar panel is great for permanent roof mounting, on 4WDs, utes, vans, camper trailers, caravans and even boats!





Output 200W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.20V
ISC (Short Circuit Current) 11.01A
Note VOC and ISC can vary by up to +/-1v and +/-1A Review regulator for max voltage and current rating
VMP (Maximum Power Voltage) 21.20V
IMP (Maximum Power Current) 9.83A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5

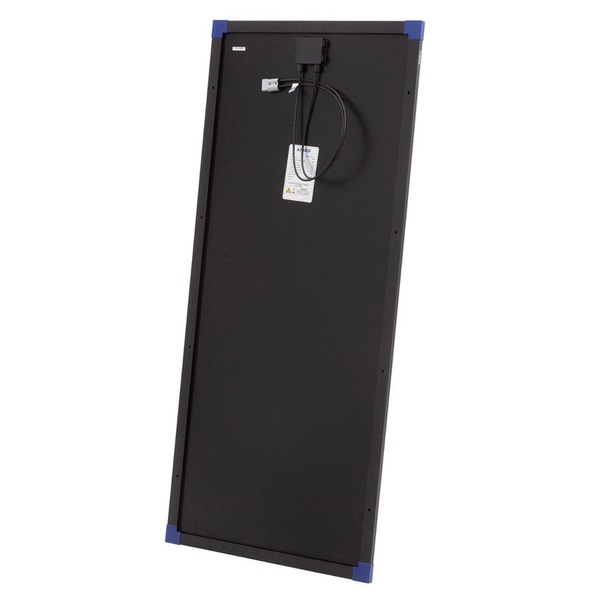

Connection Kings Quick Connect (Anderson Style) Plug
Dimensions 70 x 156.5 x 1.8 cm
Weight 11.6 kg

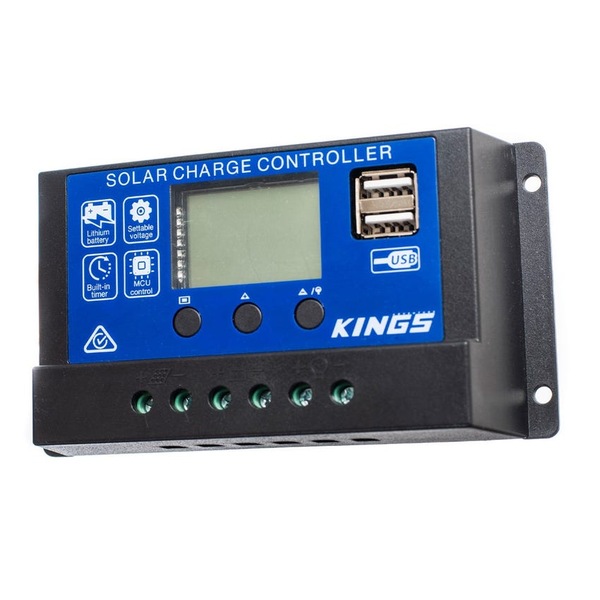

15A PWM SOLAR CONTROLLER 3 STAGE CHARGING LCD DISPLAY BUILT IN PROTECTIONS PWM TECHNOLOGY


A Controller is a must for safeguarding your battery from the high voltage output of solar panels. This controller uses Pulse Width Modulation (PWM )to reduce the solar input voltage to a safer, lower output voltage, ideal for charging 12V batteries. Along with this, the PWM employs a 3-stage charging program: boost, equalise and float. Keeping your battery charged properly and ready to operate at peak performance.





• Dimensions : 133 x 70 x 34mm


• Mounting Holes: 126 x 49mm


• Max Solar Input: <50V


• Float Charge: 7 – Default, Adjustable


• Discharge Stop: 7 – Default, Adjustable


• Discharge Reconnect: 6V – Default, Adjustable


• USB Output: 5V / 2A


• Weight: 154g

MPN: SC-CO-200WFX-PWNREG
