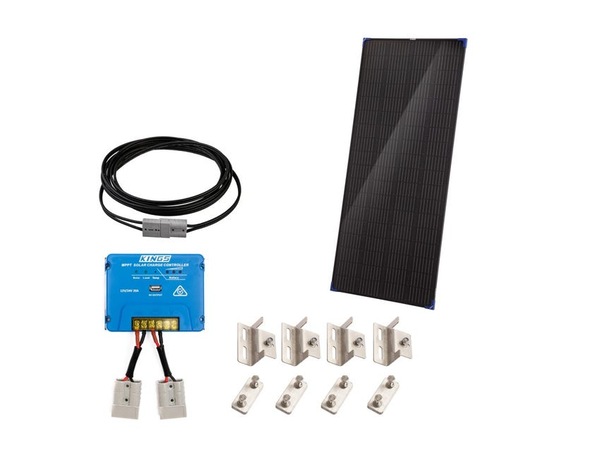

Kings 200W Fixed Solar Panel + 6m Extension Lead + Solar Panel Mounting Brackets + MPPT Solar Regulator

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Limited Stock
$188.85

Collect 188 Everyday Rewards points

Log in to MyDeal to link your card
$35.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

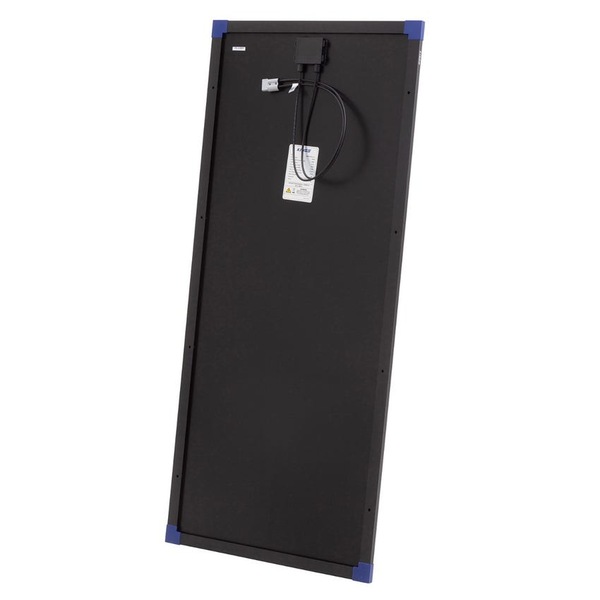

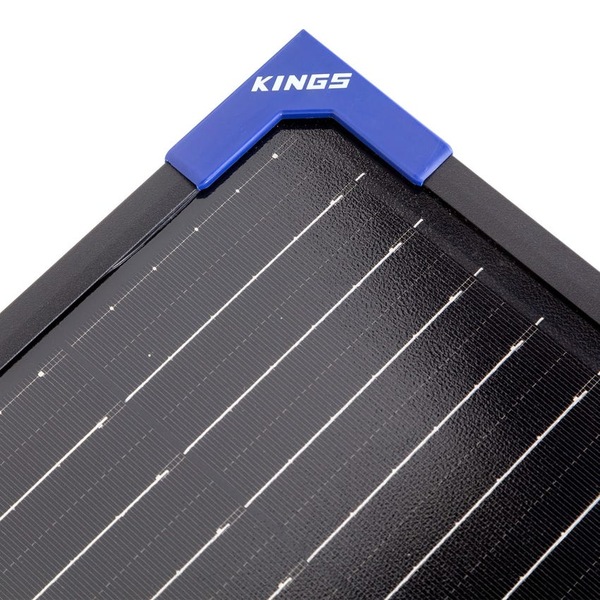

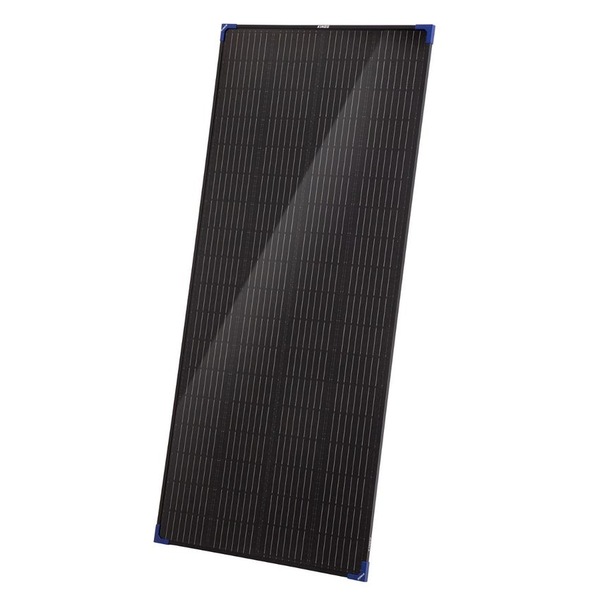

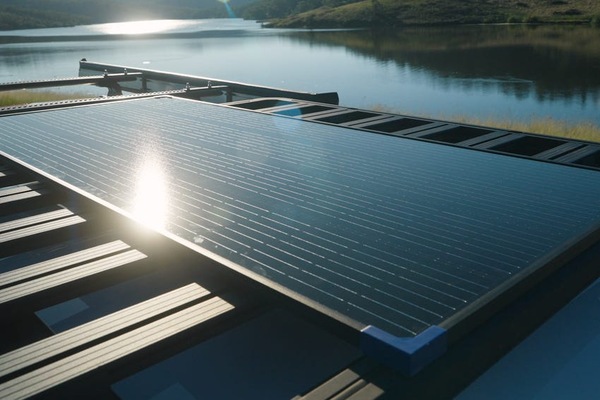

The Adventure Kings 200W fixed solar panel is great for permanent roof mounting on 4WDs, utes, vans, camper trailers, caravans and even boats! It has a 3.2mm thickened glass panel with a reinforced custom aluminum frame, ensures durability when fixed mounted on a vehicle. The slim custom extruded frame reduces wind resistance.

• With the ability to parallel, join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like Inverters, Induction cooktops and off grid air conditioners. measuring at 70cm wide, by 156.5cm high and just 2cm thick including the corner protectors fits neatly on most vehicle roof racks. Two side by side will perfectly fill the roof rack of most common wagons.

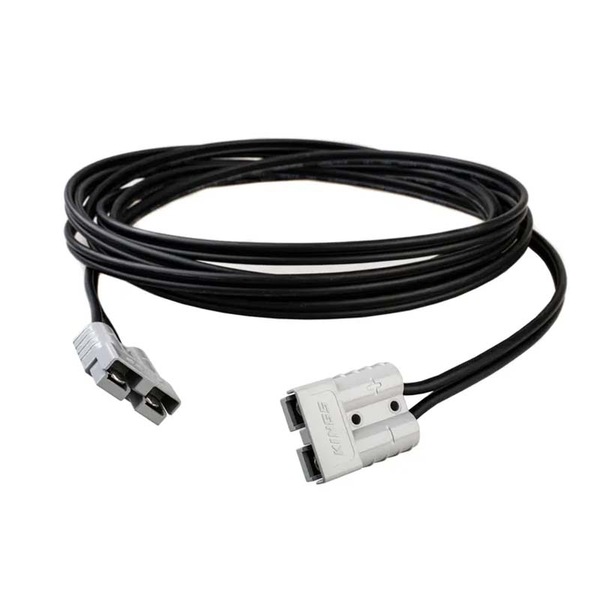

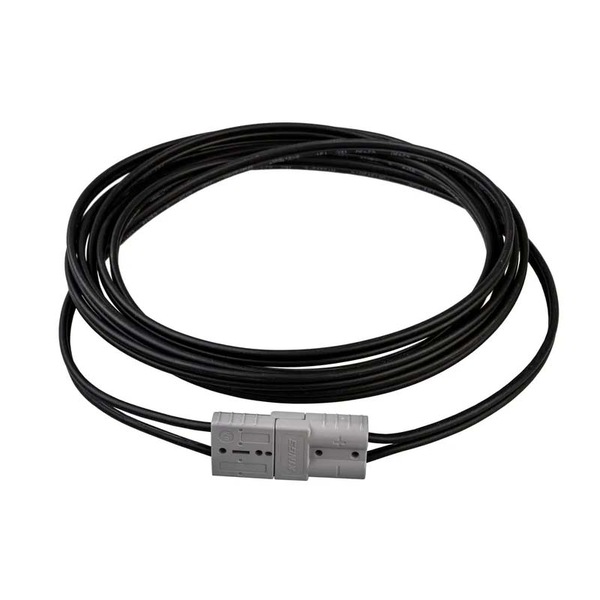

• Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. Of course each wire is individually insulated, plus there’s an extra 1mm thick PVC protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too – perfect for your next trip away or your next DIY project!

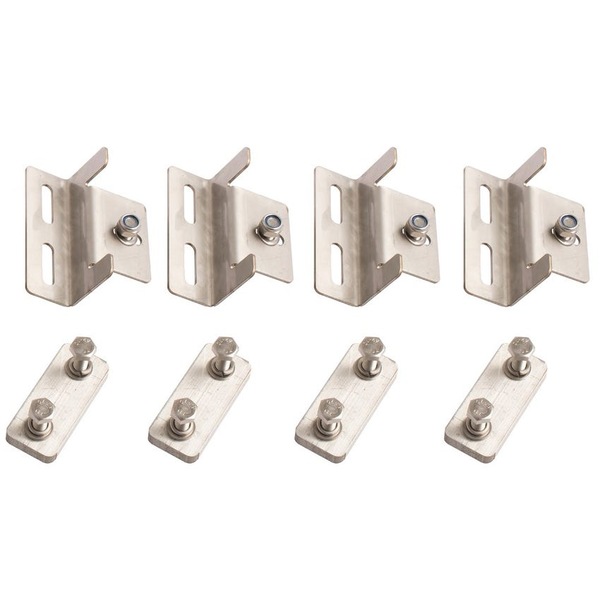

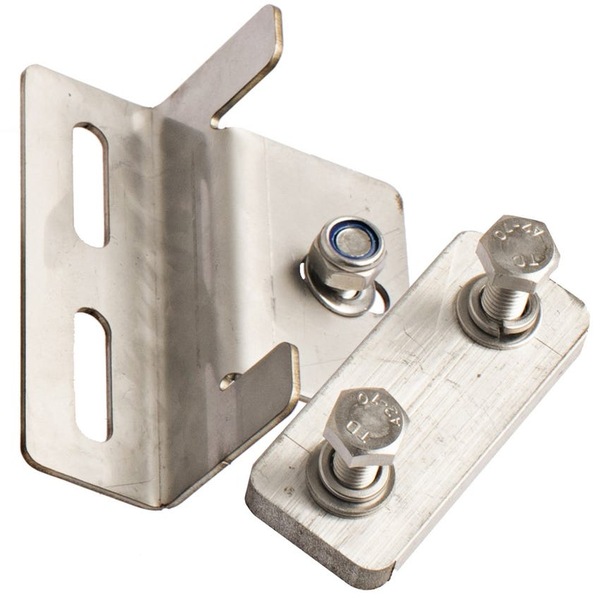

• securely mount your Adventure Kings Fixed Solar Panel to your roof rack or other flat surface with the Adventure Kings Solar Panel Mounting Brackets Kit! Made with tough stainless steel and using threaded alloy blocks they're strong and neat. Raises the solar panel approx. 20mm off the top of the surface to allow airflow underneath to keep your panel cool on hot days.

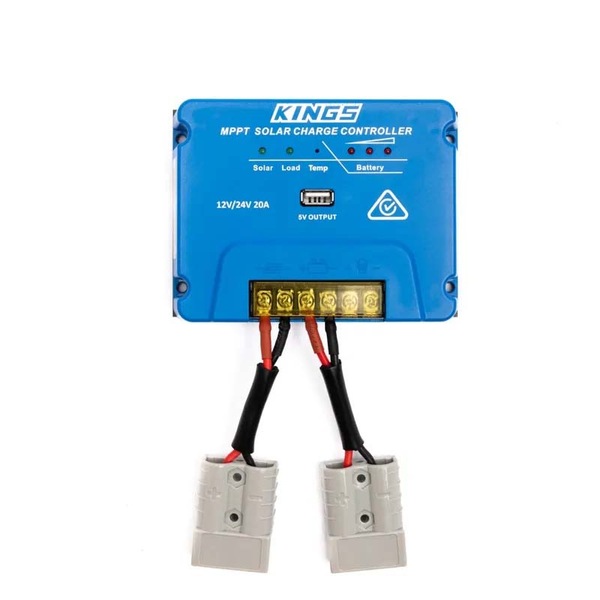

• 20A MPPT Solar Controller. Charge your batteries quickly and efficiently. Rated for up to 50V input it’s suitable for both 12 and 24V systems. safeguarding your battery from the high voltage output of solar panels. 2X QUICK CONNECT PLUGS INCLUDED. The MPPT also includes a temperature sensor that adjusts performance based on conditions. LARGE ALLOY HEAT SINK Keeps the internal electronics and microcomputer cool even in tough conditions!

KINGS 200W FIXED SOLAR PANEL
Up to 16.67A of charge at 12V


Output 200W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.20V
ISC (Short Circuit Current) 11.01A
Note VOC and ISC can vary by up to +/-1v and +/-1A
VMP (Maximum Power Voltage) 21.20V
IMP (Maximum Power Current) 9.83A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect  Plug
Dimensions 70 x 156.5 x 1.8 cm
Weight 11.6 kg



KINGS 6M SOLAR EXTENSION LEAD | 2.5mm2 Copper


Length 6m
Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V



SOLAR PANEL MOUNTING BRACKETS  800gm
Material Stainless Steel


KINGS MPPT SOLAR REGULATOR


Regulator Type Maximum Power Point Tracking
Dimensions 131×99.5×29.5(mm)
Connectors 2.5mm2 twin core~100mm length
Regulator current rating 20A charge / discharge
Regulator Voltage Suitable for 12V or 24V systems
Maximum Regulator Voltage input 50V
No load current <10mA
Safety Overload & short circuit protection ≥1.5x rated current
Voltage settings For 12V systems For 24V systems
For 24V systems 16V 32V
Charging voltage cut-off 14.7V 29.4
Discharge recovery Voltage 12V 24V
Over-Discharge voltage cut-off 10.8V 21.6V
USB output 5V 1A
Lithium Compatible No

MPN: SC-CO-200WFX-6MLEAD-110WBRACKET-MPPTREG
