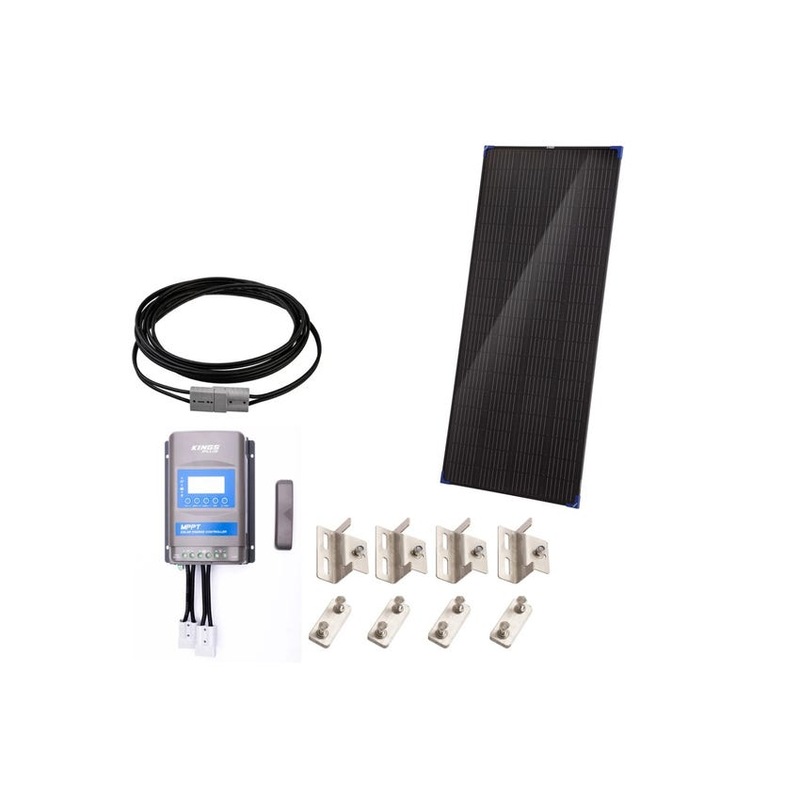

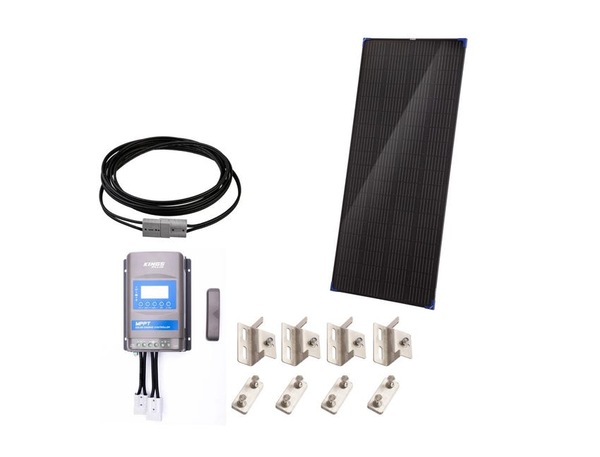

Kings 200W Fixed Solar Panel + 6m Extension Lead + Solar Panel Mounting Brackets + Plus 20A MPPT Solar Regulator

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Limited Stock
$257.90

Collect 257 Everyday Rewards points

Log in to MyDeal to link your card
$55.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
The Adventure Kings 200W fixed solar panel is great for permanent roof mounting on 4WDs, utes, vans, camper trailers, caravans and even boats! It has a 3.2mm thickened glass panel with a reinforced custom aluminum frame, ensures durability when fixed mounted on a vehicle. The slim custom extruded frame reduces wind resistance.

• With the ability to parallel, join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like Inverters, Induction cooktops and off grid air conditioners. measuring at 70cm wide, by 156.5cm high and just 2cm thick including the corner protectors fits neatly on most vehicle roof racks. Two side by side will perfectly fill the roof rack of most common wagons.

• The 20A solar charge controller is lithium compatible with dedicated multi-stage charging profiles for different battery types, has an advanced display that shows real time power stats and can accept up to 46V of solar input in standard conditions! It also offers a huge amount of customisation so it can suit just about any setup - AGM or lithium, 12V or 24V right up to 780W of solar input with a 20A charge rating - and it has a 3 year warranty.

• Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. Of course each wire is individually insulated, plus there’s an extra 1mm thick PVC protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too – perfect for your next trip away or your next DIY project!

• Easily and securely mount your Adventure Kings 110W or 160W Fixed Solar Panel to your roof rack or other flat surface with the Adventure Kings Solar Panel Mounting Brackets Kit! Made with tough stainless steel and using threaded alloy blocks they're strong and neat.

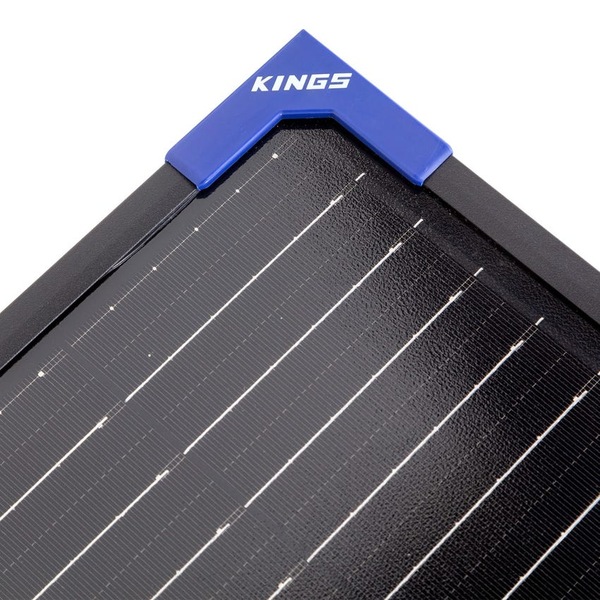

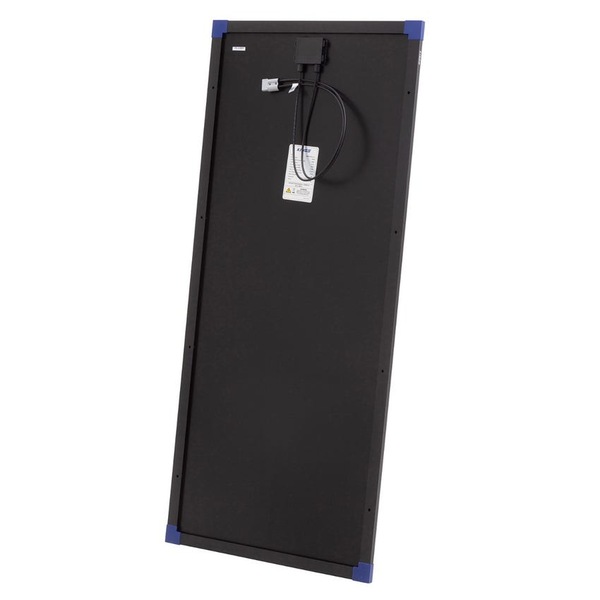

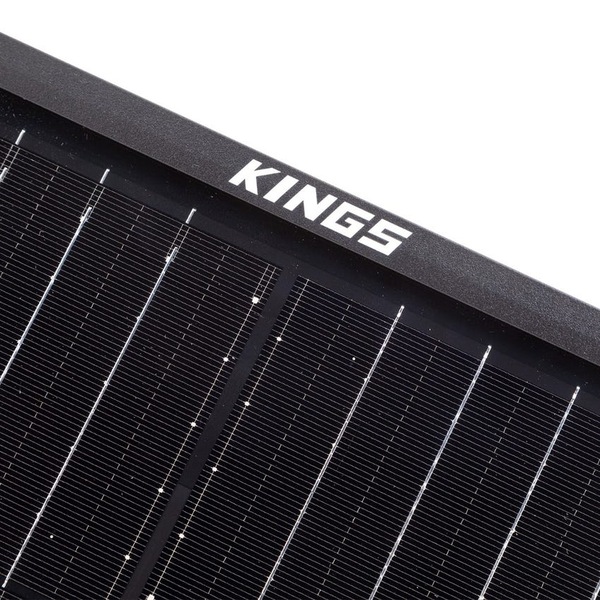

KINGS 200W FIXED SOLAR PANEL (Up to 16.67A of charge at 12V)



Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.20V
ISC (Short Circuit Current) 11.01A
Note VOC and ISC can vary by up to +/-1v and +/-1A
VMP (Maximum Power Voltage) 21.20V
IMP (Maximum Power Current) 9.83A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Condition 1000W/m2, 25ºC, AM1.5
Connection Quick Connect  Plug
70 x 156.5 x 1.8 cm  Weight 11.6 kg

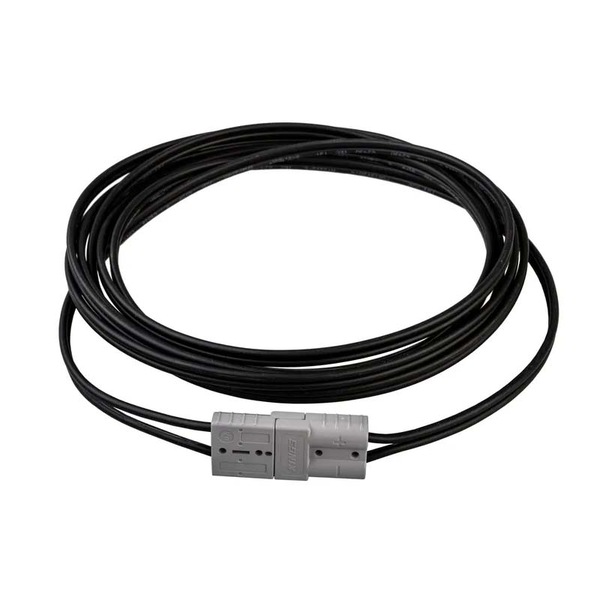

KINGS 6M SOLAR EXTENSION LEAD | 2.5MM2COPPER


Length 6m
Conductor Material Multi-Strand Copper 51x0.25


Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Quick Connect 50A
Plug UL94-V0 Flame Resistant Thermoplastic
Max Rated Volt 300V

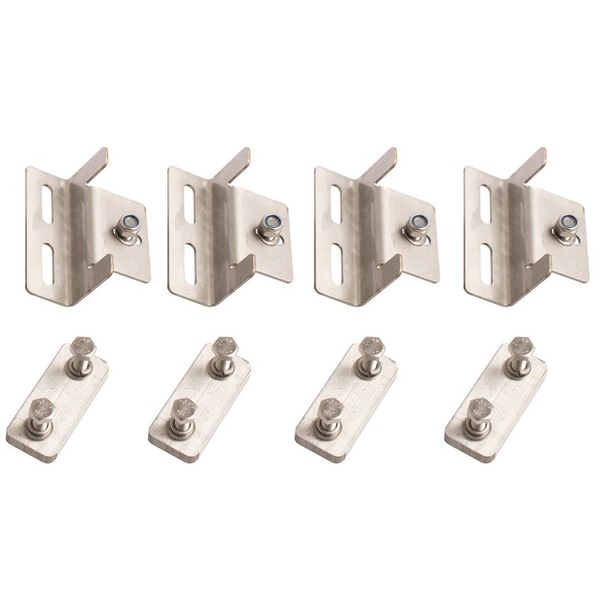

SOLAR PANEL MOUNTING BRACKETS


Material Stainless Steel
Weight  800gm

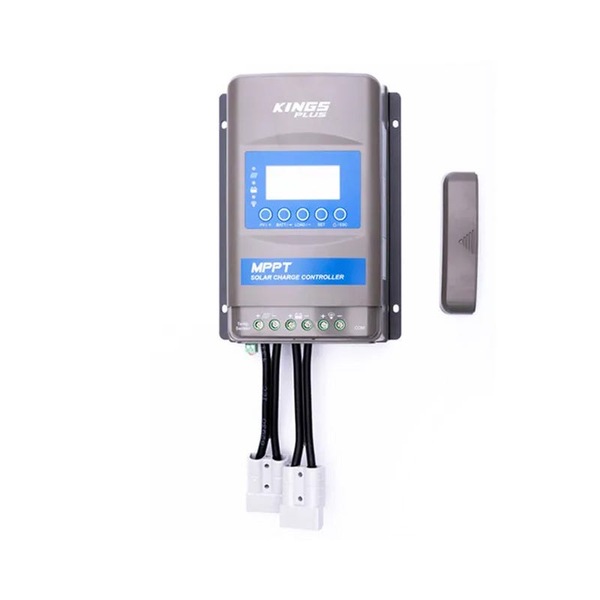

KINGS PLUS PREMIUM 20A MPPT SOLAR REGULATOR


AGM And Lithium Compatible (12V/24V) Sealed, Gel, Flooded, Lifepo4, Li(NiCoMn)O2
Display Backlit LCD + LED Indicator Lights
Wire Specification 100mm Double Insulated XLPO 6mm2 + Quick Connect Plugs
Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant
Body Dimensions 217 X 158 X 57 mm
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Maximum Solar Power Input 390W (12V) 780w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Max Dc Dc Conversion Efficiency >98%
Max Tracking Efficiency 99.5%

MPN: SC-CO-200WFX-6MLEAD-110WBRACKET-PMPPTREG
