Kings 200W Fixed Solar Panel + MPPT Solar Regulator

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
$128.95

Collect 128 Everyday Rewards points

Log in to MyDeal to link your card
$45.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
The Adventure Kings 200W fixed solar panel is great for permanent roof mounting on 4WDs, utes, vans, camper trailers, caravans and even boats! It has a 3.2mm thickened glass panel with a reinforced custom aluminum frame, ensures durability when fixed mounted on a vehicle. The slim custom extruded frame reduces wind resistance.

• With the ability to parallel, join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like Inverters, Induction cooktops and off grid air conditioners. measuring at 70cm wide, by 156.5cm high and just 2cm thick including the corner protectors fits neatly on most vehicle roof racks. Two side by side will perfectly fill the roof rack of most common wagons.

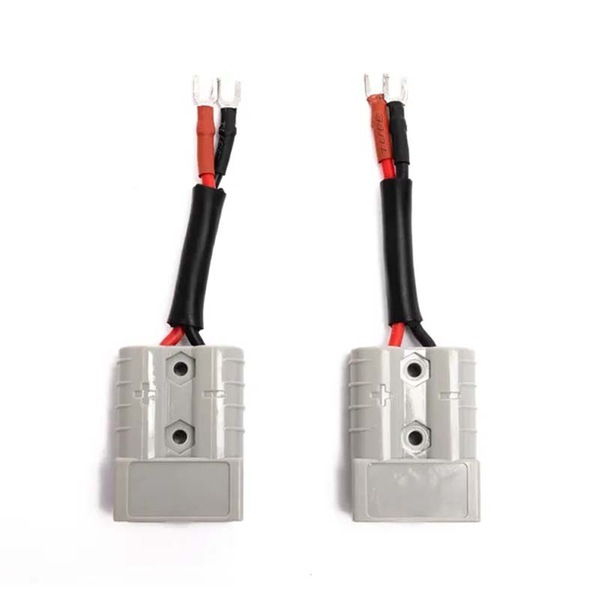

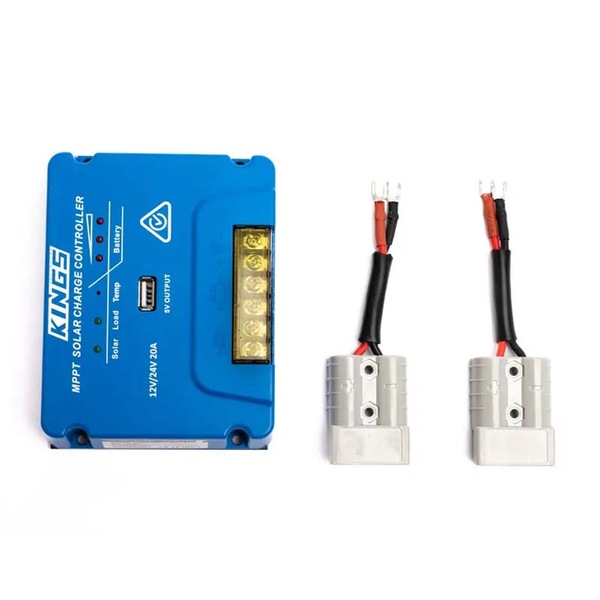

• CHARGE YOUR BATTERIES QUICKLY & EFFICIENTLY Charge your batteries quickly and efficiently with the Adventure Kings 20A MPPT Solar Controller. Rated for up to 50V input it’s suitable for both 12 and 24V systems. two included Quick Connect Plugs. The MPPT also includes a temperature sensor that adjusts performance based on conditions.

• UP TO 20 AMPS MULTI-STAGE CHARGING FOR UP TO 250W OF SOLAR A Solar Controller (also known as a Solar Regulator) is a must for safeguarding your battery from the high voltage output of solar panels. It does this by reducing the voltage to the level that the battery requires, for a safe and efficient charge. MPPT stands for Maximum Power Point Tracking - the unit maximises the output of the solar panel and can offer up to 30% more power from the same panel compared to a PWM regulator.

• LARGE ALLOY HEAT SINK Keeps the internal electronics and microcomputer cool even in tough conditions!

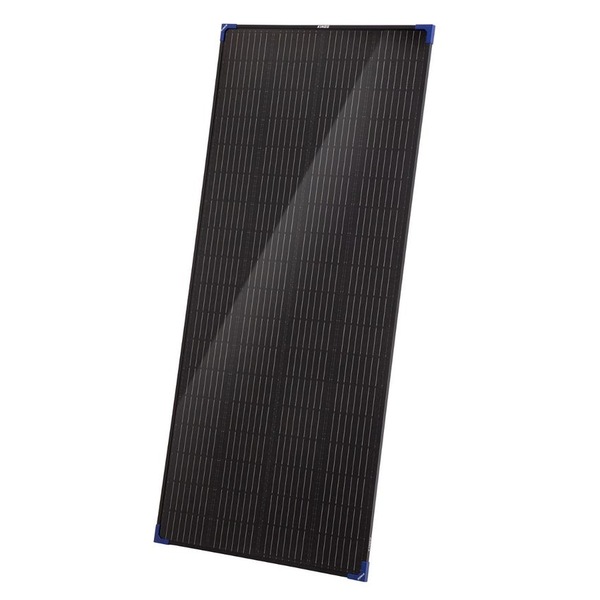

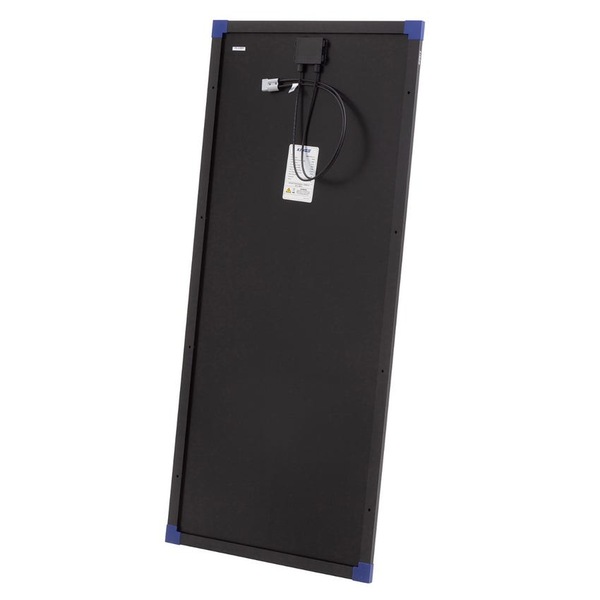

KINGS 200W FIXED SOLAR PANEL
Up to 16.67A of charge at 12V

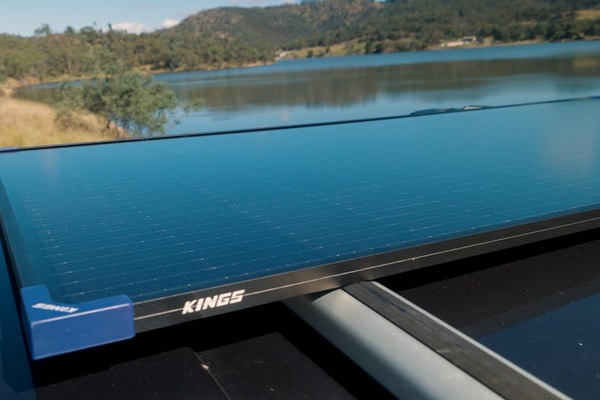

The Adventure Kings 200W fixed solar panel is great for permanent roof mounting, its the perfect choice for the roof of your 4WDs, utes, vans, camper trailers, caravans and even boats! The slimline custom extruded frame not only reduces wind resistance to boost fuel efficiency but also lowers the overall height of your vehicle so you can fit into those tight spaces.


Output 200W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.20V
ISC (Short Circuit Current) 11.01A
Note VOC and ISC can vary by up to +/-1v and +/-1A
VMP (Maximum Power Voltage) 21.20V
IMP (Maximum Power Current) 9.83A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect  Plug
Dimensions 70 x 156.5 x 1.8 cm
Weight 11.6 kg

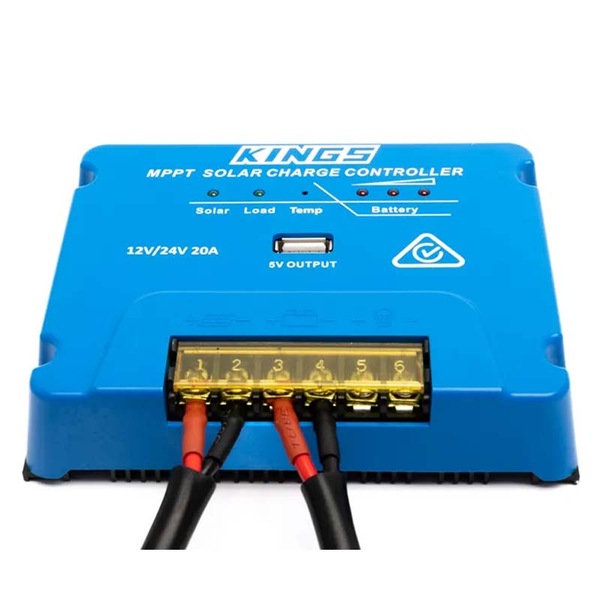

KINGS MPPT SOLAR REGULATOR





A Solar Controller is a must for safeguarding your battery from the high voltage output of solar panels.  Rated for up to 50V input it’s suitable for both 12 and 24V systems.


Regulator Type Maximum Power Point Tracking
Dimensions 131×99.5×29.5(mm)
Connectors 2.5mm2 twin core~100mm length
Regulator current rating 20A charge / discharge
Regulator Voltage Suitable for 12V or 24V systems
Maximum Regulator Voltage input 50V
No load current <10mA
Safety Overload & short circuit protection ≥1.5x rated current
Voltage settings For 12V systems For 24V systems
For 24V systems 16V 32V
Charging voltage cut-off 14.7V 29.4
Discharge recovery Voltage 12V 24V
Over-Discharge voltage cut-off 10.8V 21.6V
USB output 5V 1A
Lithium Compatible- No

MPN: SC-CO-200WFX-MPPTREG
