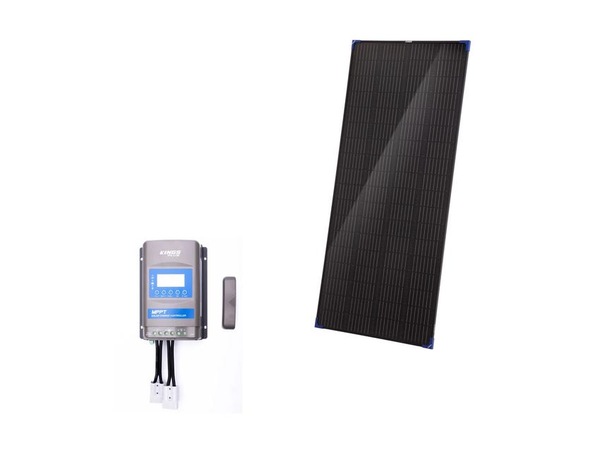

Kings 200W Fixed Solar Panel + Plus 20A MPPT Solar Regulator

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
$218

Collect 218 Everyday Rewards points

Log in to MyDeal to link your card
$45.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
The Adventure Kings 200W fixed solar panel is great for permanent roof mounting on 4WDs, utes, vans, camper trailers, caravans and even boats! It has a 3.2mm thickened glass panel with a reinforced custom aluminum frame, ensures durability when fixed mounted on a vehicle. The slim custom extruded frame reduces wind resistance.

• With the ability to parallel, join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like Inverters, Induction cooktops and off grid air conditioners. measuring at 70cm wide, by 156.5cm high and just 2cm thick including the corner protectors fits neatly on most vehicle roof racks. Two side by side will perfectly fill the roof rack of most common wagons.

• This 20A solar charge controller is lithium compatible with dedicated multi-stage charging profiles for different battery types, has an advanced display that shows real time power stats and can accept up to 46V of solar input in standard conditions! It also offers a huge amount of customisation so it can suit just about any setup - AGM or lithium, 12V or 24V right up to 780W of solar input with a 20A charge rating

• For the solar input side, it will accept up to 390W of power from 12V nominal solar panels and 780W from 24V panels. With over 98% max conversion efficiency and less than 15 milliamps of standby power it’s able to efficiently and effectively charge your batteries!

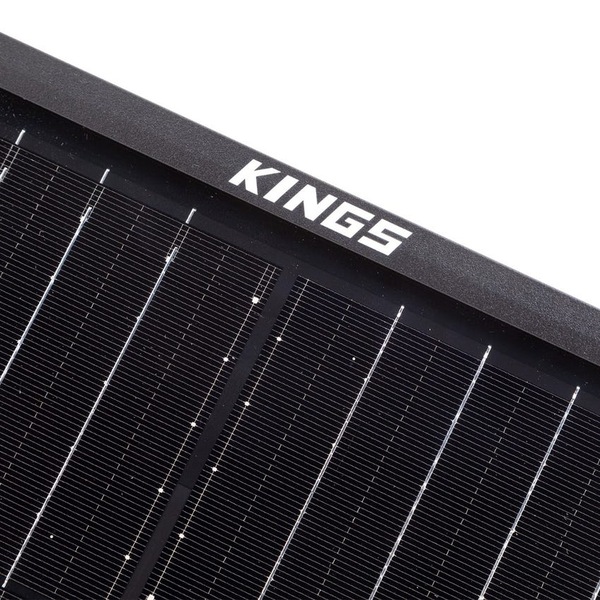

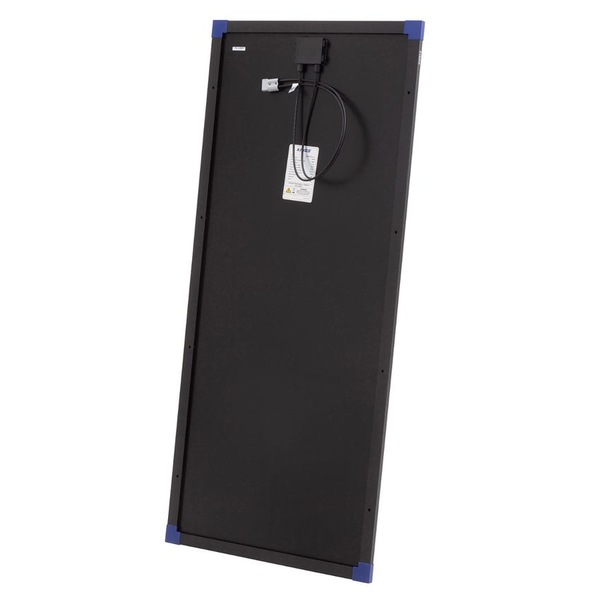

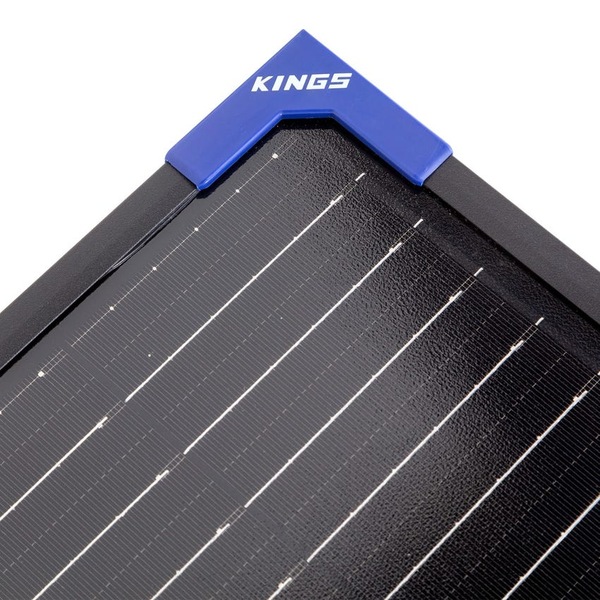

KINGS 200W FIXED SOLAR PANEL (Up to 16.67A of charge at 12V)


perfect choice for the roof of your 4WDs, utes, vans, camper trailers, caravans and even boats!



Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.20V
ISC (Short Circuit Current) 11.01A
Note VOC and ISC can vary by up to +/-1v and +/-1A
VMP (Maximum Power Voltage) 21.20V
IMP (Maximum Power Current) 9.83A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Condition 1000W/m2, 25ºC, AM1.5
Connection Quick Connect  Plug
70 x 156.5 x 1.8 cm  Weight 11.6 kg

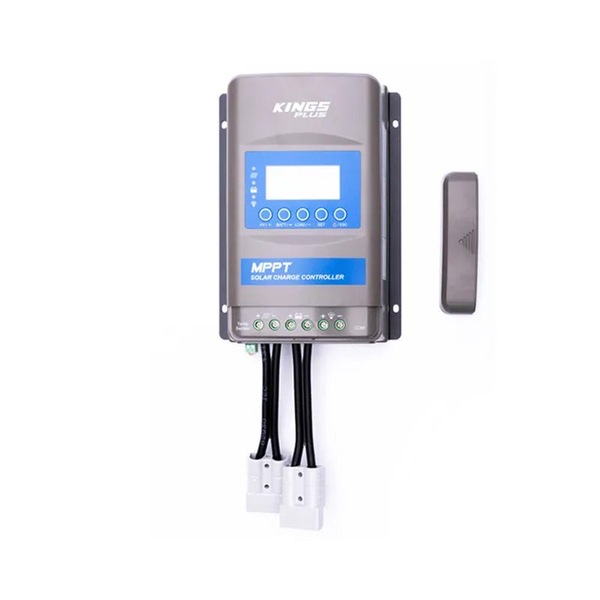

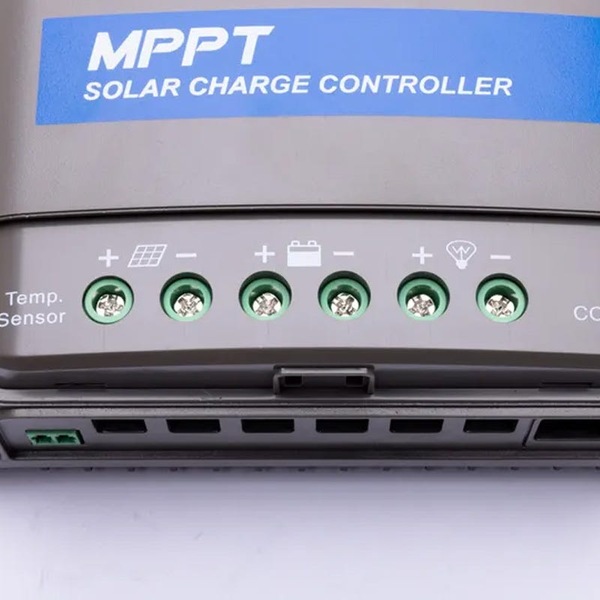

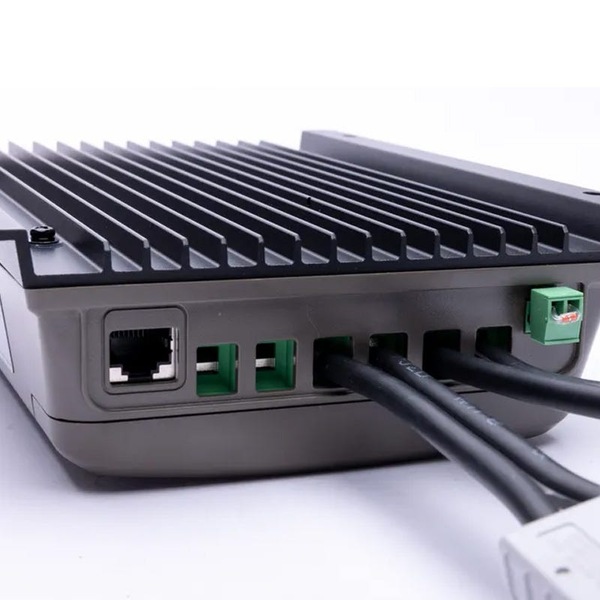

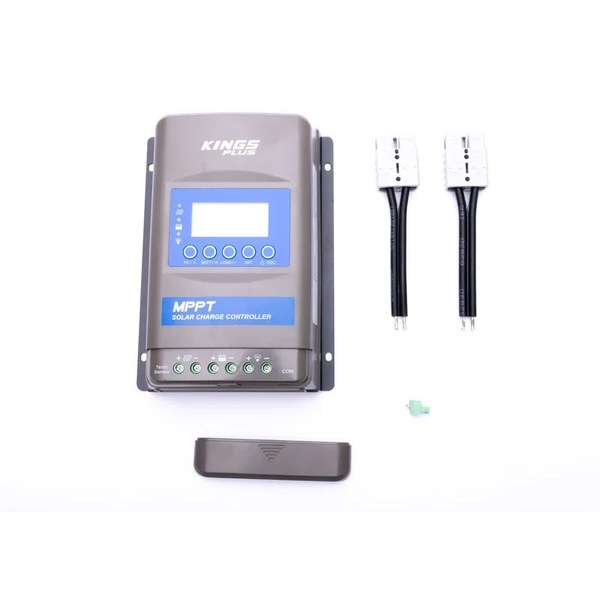

KINGS PLUS PREMIUM 20A MPPT SOLAR REGULATOR


This 20A solar charge controller is lithium compatible with dedicated multi-stage charging profiles for different battery types, has an advanced display that shows real time power stats and can accept up to 46V of solar input in standard conditions! It also offers customisation so it can suit any setup - AGM or lithium, 12V or 24V right up to 780W of solar input with a 20A charge rating


AGM And Lithium Compatible (12V/24V) Sealed, Gel, Flooded, Lifepo4, Li(NiCoMn)O2
Display Backlit LCD + LED Indicator Lights
Wire Specification 100mm Double Insulated XLPO 6mm2 + Quick Connect Plugs
Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant
Body Dimensions  217 X 158 X 57 mm
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Maximum Solar Power Input 390W (12V) 780w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Max Dc Dc Conversion Efficiency >98%
Max Tracking Efficiency 99.5%
Load Circuit Manual On/Off + Programmable Settings

MPN: SC-CO-200WFX-PMPPTREG
