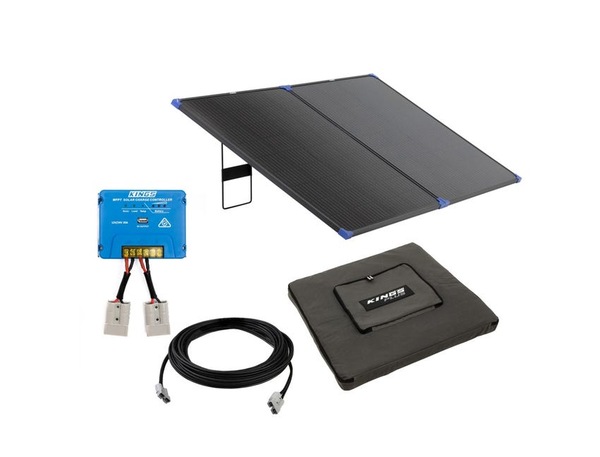

Kings 200W Folding Solar Panel + 12m Extension Lead + Folding Solar Panel Bag + MPPT Solar Regulator

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$297.85

Collect 297 Everyday Rewards points

Log in to MyDeal to link your card
$35.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

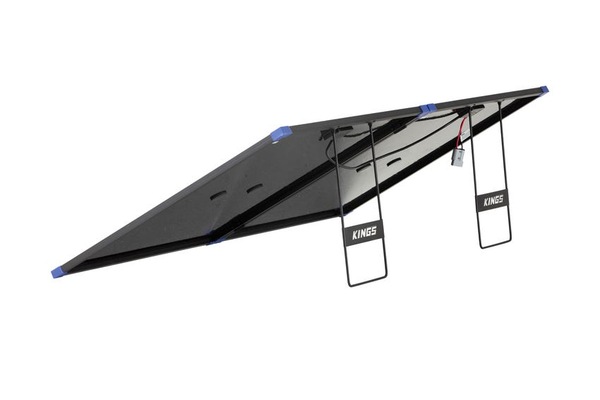

The Adventure Kings 200W Folding solar panel is perfect for capturing power from the sun. With legs designed to capture maximum sun exposure all day, this panel is ideal for charging large battery banks to run power hungry setups. Its compact folding design makes it perfect for on-the-go power needs, whether you're camping, traveling, or embarking on off-grid adventures.

• Made with heavy-duty 2.0mm tempered glass and a lightweight slimline extruded aluminum frame, they can withstand harsh conditions. Its compatible with all Adventure Kings solar regulators and solar leads that feature the Quick Connect icon.Join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like inverters, induction cooktops and even off grid air conditioners.

• Protect your Adventure Kings folding solar panel from the harshest conditions with our dedicated protective cover. This simple yet effective accessory acts as affordable insurance for your solar panel, ensuring it remains in top condition for many years to come.

• Specifically designed for DC solar systems, Kings Solar Leads are H1Z2Z2-K rated, meaning they’re up to standard internally with quality tinned copper strands, and externally with two layers of tough Cross Linked PolyEthylene (XLPE) halogen-free insulation. Each wire is individually insulated with 0.8mm of XLPE, plus there’s an extra 0.9mm thick XLPE protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too – perfect for your next trip away or your next DIY project!

• A Solar Controller (also known as a Solar Regulator) is a must for safeguarding your battery from the high voltage output of solar panels. It does this by reducing the voltage to the level that the battery requires, for a safe and efficient charge. MPPT stands for Maximum Power Point Tracking - the unit maximises the output of the solar panel and can offer up to 30% more power from the same panel compared to a PWM regulator.

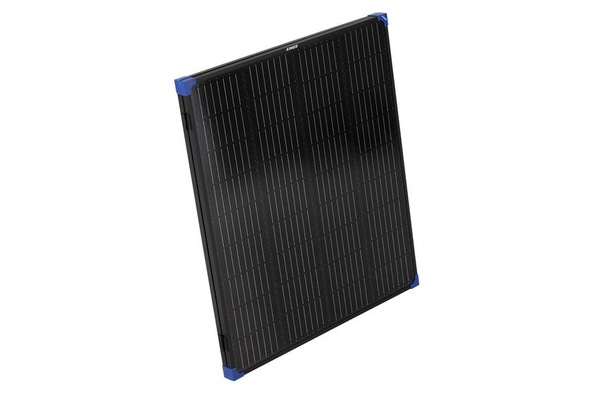

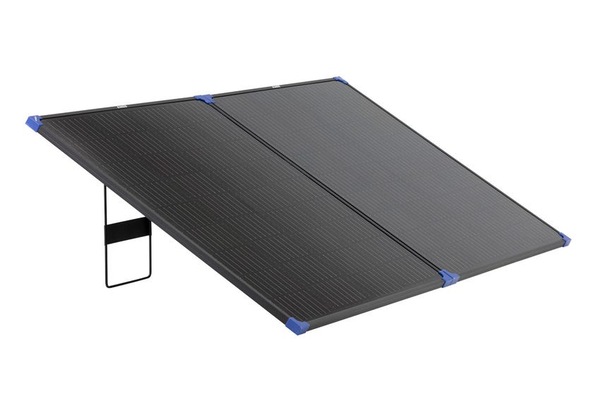

KINGS 200W FOLDING SOLAR PANEL


Ideal for charging battery banks to run power hungry setups. Folding design makes it perfect for on-the-go power needs, whether you're camping, traveling


Output 200W
Power Tolerance +/- 5%
VOC (Open Circuit) 24.20V
ISC (Short Circuit) 11.01A
Note VOC and ISC can vary by up to +/-1v and +/-1A
VMP (Max Power) 20.40V
IMP (Maximum Power) 9.90A
ISC Temp Coeff 0.05%/°C
VOC Temp Coeff -0.39%/°C
Pmax Temp Coeff -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5

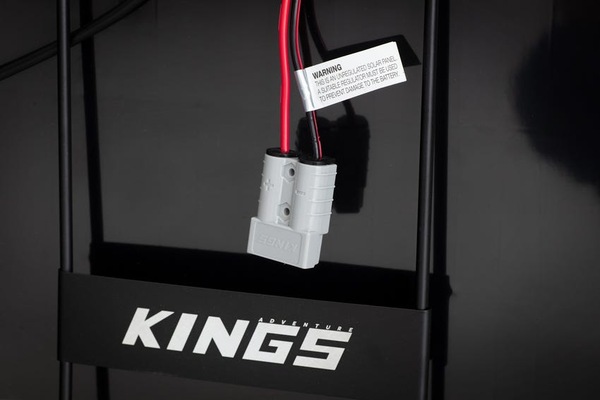

Connection Kings Quick Connect (Anderson Style) Plug
Open Dim 141 x 80 x 1.8 cm
Folded Dim  70 x 80 x 4 cm
Weight 8.9 kg

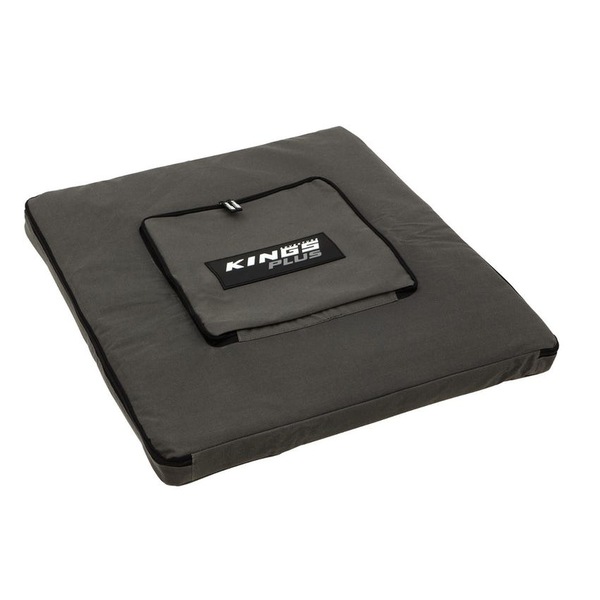

KINGS FOLDING SOLAR PANEL BAG-Protect Your Folding Solar Panels


Material 370GSM gray canvas


Dimensions Internal 70 x 80 x 6.5 cm


Weight 1.4 kg

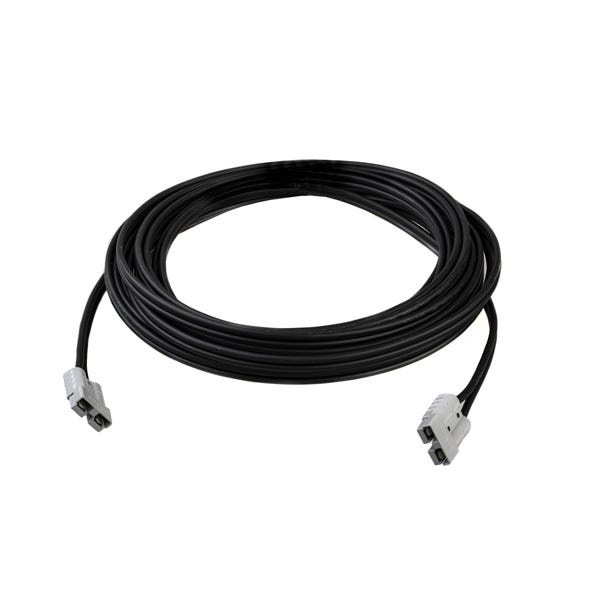

THE 12M SOLAR EXTENSION LEAD


Length 12m
Conductor Material Twin Core Multi-Strand Copper (84x0.3)
Conductor Cross Sectional Area  6mm2
Insulation Material 0.8mm Halogen-Free XLPO
Outer Sheath material 0.9mm Halogen-Free XLPO
External Dim 13.5mm x 5mm
Recommended Max Current 20A
Operating Temperature Range -40°C~+90°
Plug Type Kings Quick Connect Plugs (Anderson Compatible)
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Max Rated Voltage DC 1500V

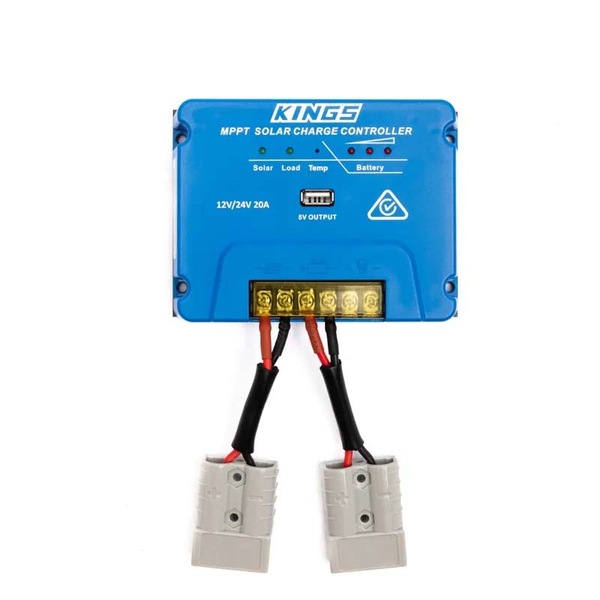

KINGS MPPT REGULATOR


• Regulator Type: Max Power Point Tracking


• Dim : 131×99.5×29.5(mm)


• Regulator current rating: 20A charge / discharge


• Regulator Voltage: Suitable for 12V or 24V systems (automatic)


• Maximum Regulator Volt input: 50V


• No-load current (standby current): <10mA


• Safety: Overload & short circuit protection ≥1.5x rated current


• USB output: 5V 1A

MPN: SC-CO-200WF-12MLEAD-BAGL-MPPTREG
