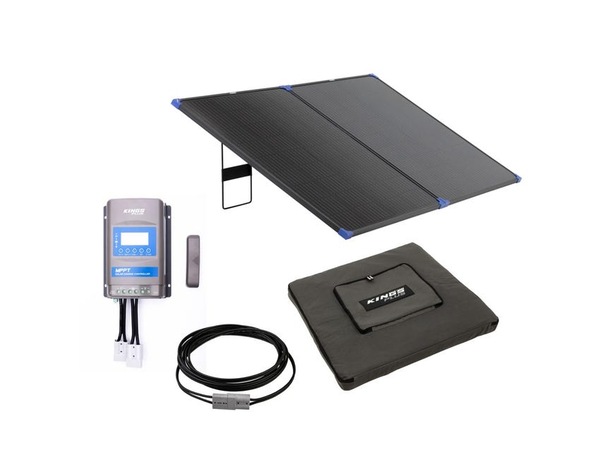

Kings 200W Folding Solar Panel + 6m Extension Lead + Folding Solar Panel Bag + Plus 20A MPPT Solar Regulator

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$355.90

Collect 355 Everyday Rewards points

Log in to MyDeal to link your card
$40.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

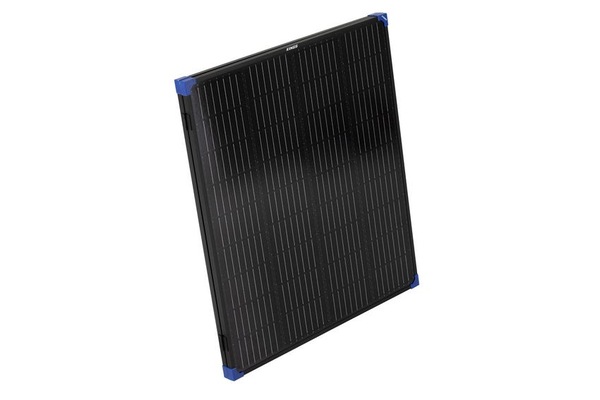

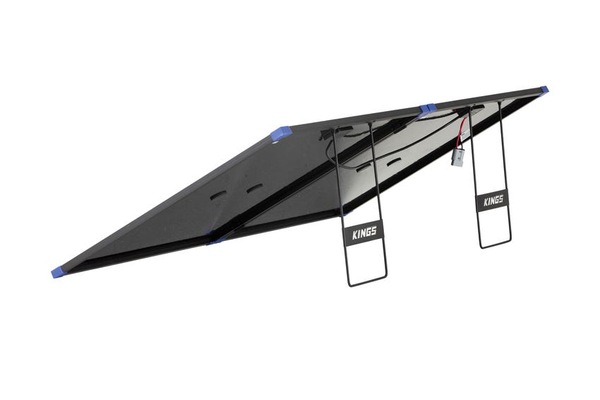

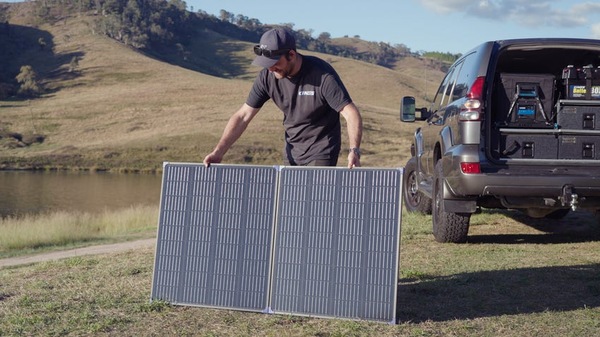

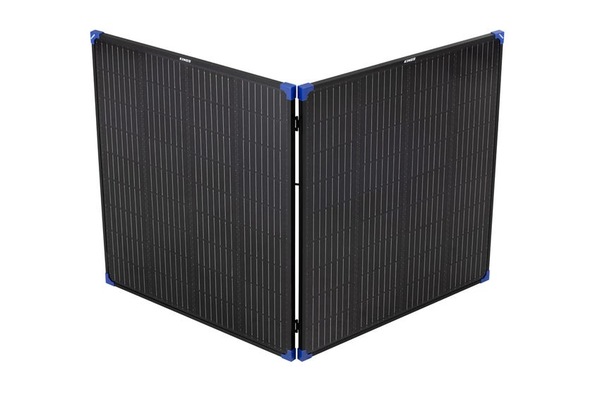

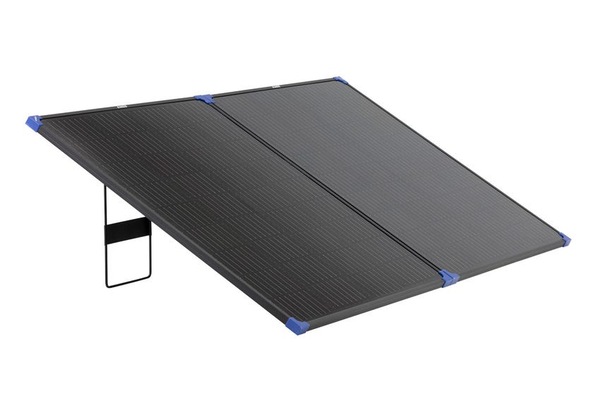

The Adventure Kings 200W Folding solar panel is perfect for capturing power from the sun. With legs designed to capture maximum sun exposure all day, this panel is ideal for charging large battery banks to run power hungry setups. Its compact folding design makes it perfect for on-the-go power needs, whether you're camping, traveling, or embarking on off-grid adventures.

• Made with heavy-duty 2.0mm tempered glass and a lightweight slimline extruded aluminum frame, they can withstand harsh conditions. Its compatible with all Adventure Kings solar regulators and solar leads that feature the Quick Connect icon.Join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like inverters, induction cooktops and even off grid air conditioners.

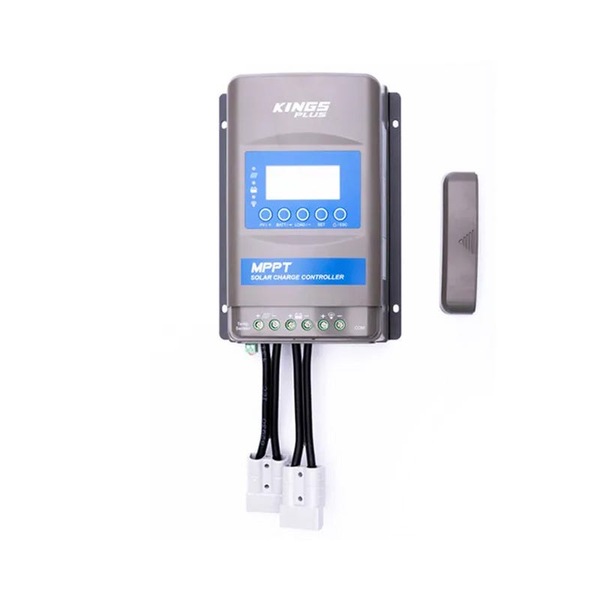

• This 20A solar charge controller is lithium compatible with dedicated multi-stage charging profiles for different battery types, has an advanced display that shows real time power stats and can accept up to 46V of solar input in standard conditions! It also offers a huge amount of customisation so it can suit just about any setup - AGM or lithium, 12V or 24V right up to 780W of solar input with a 20A charge rating

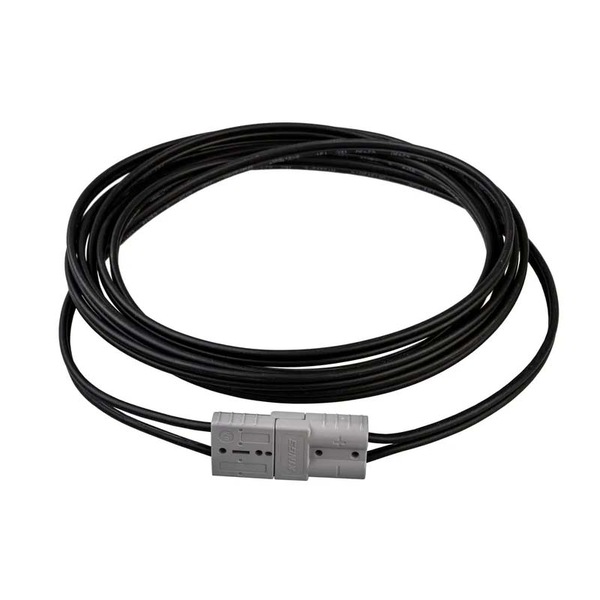

• Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. Of course each wire is individually insulated, plus there’s an extra 1mm thick PVC protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too – perfect for your next trip away or your next DIY project!

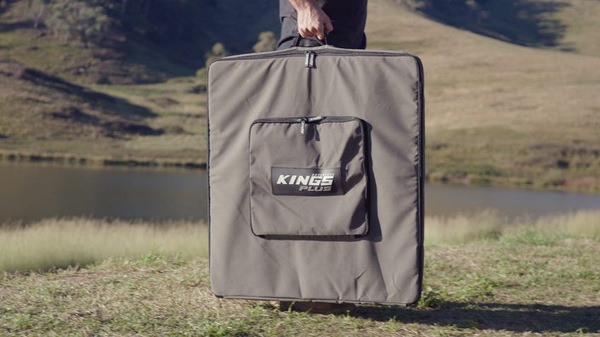

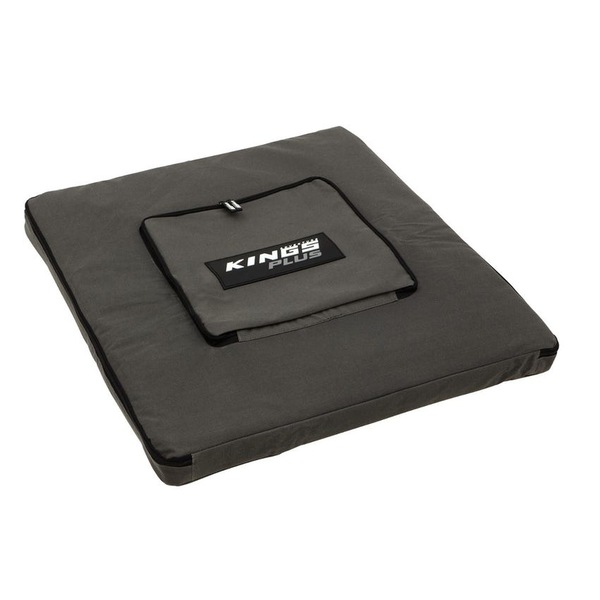

• Bag with full length dual zippers, storing your panel is effortless. No more struggling to squeeze your panel into a small bag, simply lay the bag flat and slide your panel straight in. Plus, the rubberised handle makes it easy to carry around camp. With a large additional storage pocket, you can keep all your solar accessories, like regulators and extension leads, close by for added convenience.

KINGS 200W FOLDING SOLAR PANEL


Power Tolerance +/- 5%
VOC (Open Circuit) 24.20V
ISC (Short Circuit) 11.01A
Note VOC and ISC can vary by up to +/-1v and +/-1A
VMP (Max Power Voltage) 20.40V
IMP (Max Power Current) 9.90A
ISC Temp  Coeff 0.05%/°C
VOC Temp Coeff-0.39%/°C
Pmax Temp Coeff -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Quick Connect (Anderson Style) Plug
Open Dim 141 x 80 x 1.8 cm
Folded Dim 70 x 80 x 4 cm
Weight 8.9 kg


KINGS FOLDING SOLAR PANEL BAG

Material 370GSM gray canvas
Dimensions Internal 70 x 80 x 6.5 cm
Weight 1.4 kg


KINGS 6M SOLAR EXTENSION LEAD

Length 6m
Conductor Copper 51x0.25
Conductor Cross Sectional Area 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Max Rated Voltage 300V


KINGS PLUS 20A MPPT SOLAR REGULATOR
AGM And Lithium Compatible (12V/24V) Sealed, Gel, Flooded, Lifepo4, Li(NiCoMn)O2, Display Backlit LCD + LED Indicator Lights
Wire Spec 100mm Double Insulated XLPO 6mm2 + Quick Connect Plugs
Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant
Body Dim 217 X 158 X 57 mm
Battery Volt Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Maximum Solar Power Input 390W (12V) 780w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Max Dc Dc Conversion Efficiency >98%
Max Tracking Efficiency 99.5%

MPN: SC-CO-200WF-6MLEAD-BAGL-PMPPTREG
