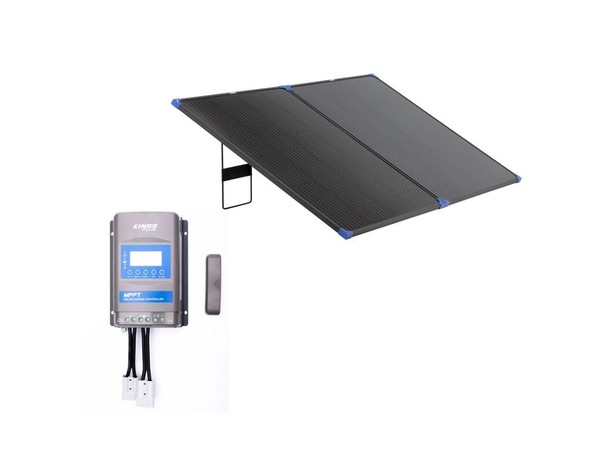

Kings 200W Folding Solar Panel Up to 16.67A at 12V+ 20A MPPT Solar Regulator

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$288

Collect 288 Everyday Rewards points

Log in to MyDeal to link your card
$20.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

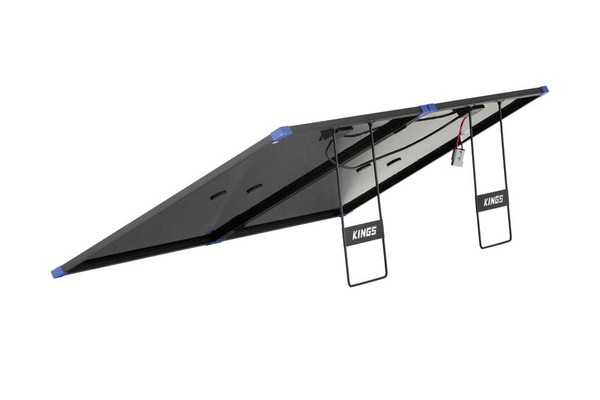

The Adventure Kings 200W Folding solar panel is perfect for capturing power from the sun. With legs designed to capture maximum sun exposure all day, this panel is ideal for charging large battery banks to run power hungry setups. Its compact folding design makes it perfect for on-the-go power needs, whether you're camping, traveling, or embarking on off-grid adventures.

• Made with heavy-duty 2.0mm tempered glass and a lightweight slimline extruded aluminum frame, they can withstand harsh conditions. Its compatible with all Adventure Kings solar regulators and solar leads that feature the Quick Connect icon.Join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like inverters, induction cooktops and even off grid air conditioners.

• This 20A solar charge controller is lithium compatible with dedicated multi-stage charging profiles for different battery types, has an advanced display that shows real time power stats and can accept up to 46V of solar input in standard conditions! It also offers a huge amount of customisation so it can suit just about any setup - AGM or lithium, 12V or 24V right up to 780W of solar input with a 20A charge rating

• For the solar input side, it will accept up to 390W of power from 12V nominal solar panels and 780W from 24V panels. With over 98% max conversion efficiency and less than 15 milliamps of standby power it’s able to efficiently and effectively charge your batteries!

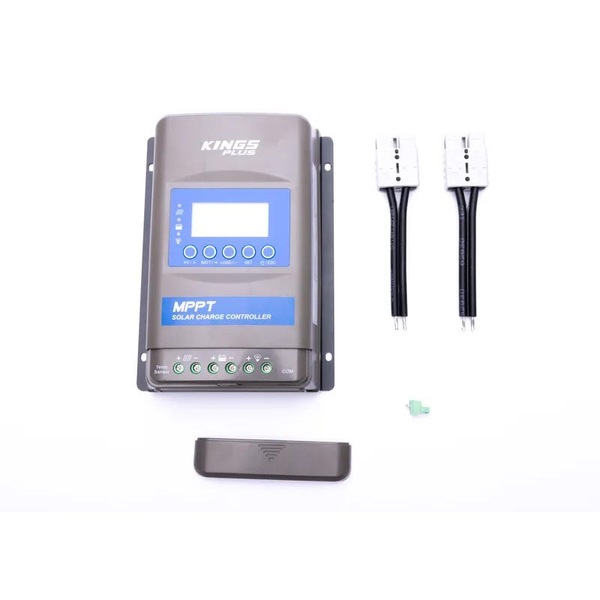

• In the box you get the MPPT Charge Controller, a pair of Kings Quick Connect Plugs with double insulated 6mm2 wire that are compatible with all Adventure Kings solar panels with the same quick connect plugs, PLUS a temperature sensor that plugs into the unit. Without the temperature sensor plugged in, the unit will continue to function and will default all settings to 25°C. Below the terminal cover there are screw terminals that accept up to 16mm2 or 6AWG wiring - as well as an RS485 communications port that allows for data logging or connection to a computer by attaching optional RS485 compatible components.

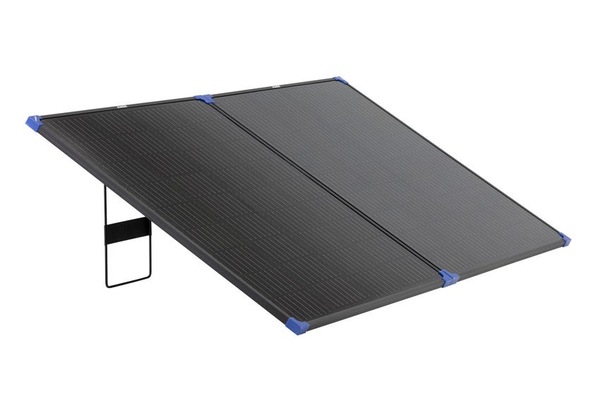

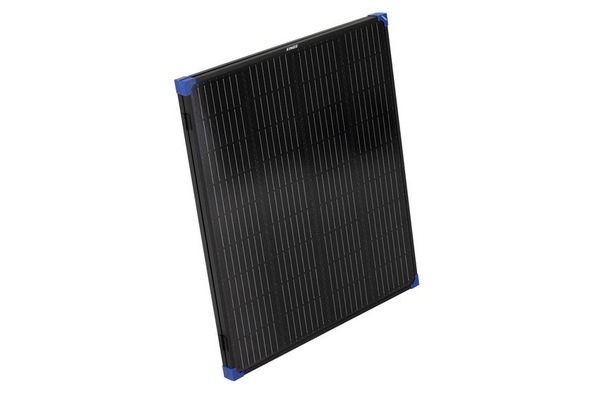

KINGS 200W FOLDING SOLAR PANEL
200W Output | Bi-Fold Compact Design


This panel is ideal for charging large battery banks to run power hungry setups.


Output 200W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.20V
ISC (Short Circuit Current) 11.01A
Note VOC and ISC can vary by up to +/-1v and +/-1A Review regulator for max voltage and current rating
VMP (Maximum Power Voltage) 20.40V
IMP (Maximum Power Current) 9.90A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Open Dimensions 141 x 80 x 1.8 cm
Folded Dimensions 70 x 80 x 4 cm
Weight 8.9 kg

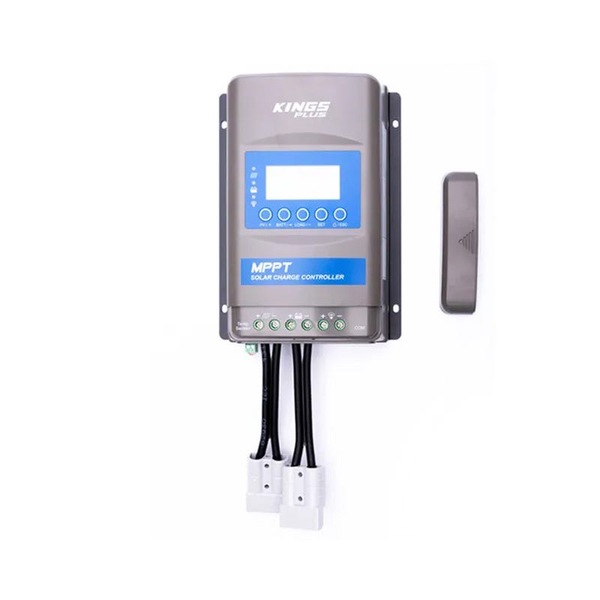

PREMIUM 20A MPPT SOLAR REGULATOR




It accepts up to 390W of power from 12V nominal solar panels and 780W from 24V panels. Over 98% max conversion efficiency and less than 15 milliamps of standby power it’s able to efficiently and effectively charge your batteries!


AGM And Lithium Compatible (12V/24V)- Sealed, Gel, Flooded, Lifepo4, Li(NiCoMn)O2, User Adjustable
Display Backlit LCD + LED Indicator Lights
Wire Specification - 100mm Double Insulated XLPO 6mm2 + Quick Connect Plugs

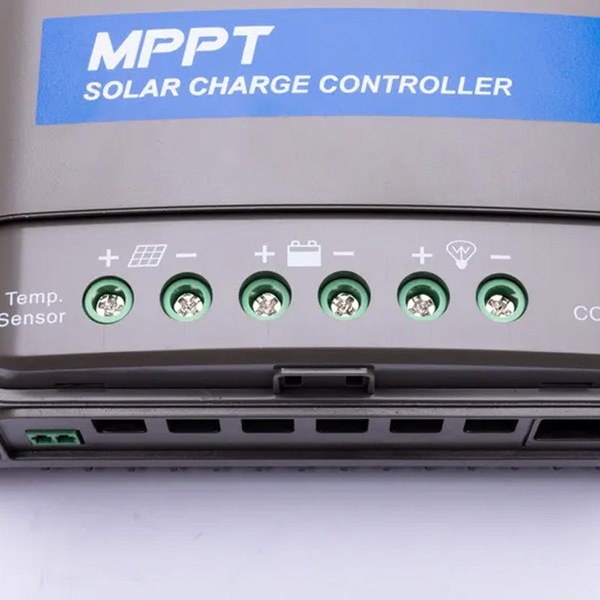

Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant
Body Dimensions (Mounting Hole Dimensions) 217 X 158 X 57 mm (160 X 149 mm)
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Maximum Solar Power Input 390W (12V) 780w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Max Dc Dc Conversion Efficiency >98%
Max Tracking Efficiency 99.5%
Load Circuit Manual On/Off + Programmable Settings

MPN: SC-CO-200WF-PMPPTREG
