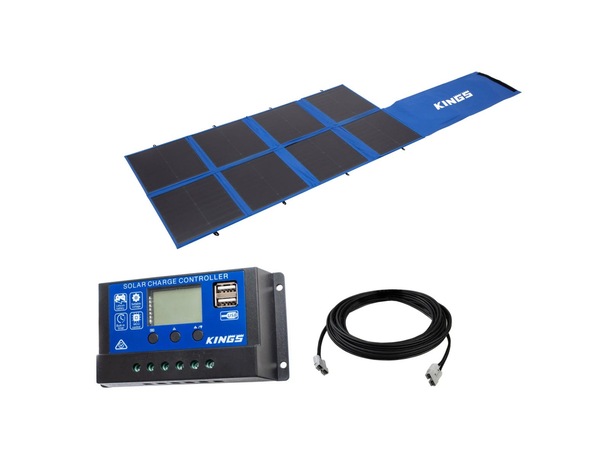

Kings 240W Folding Solar Blanket + 15A PWM Solar Controller + 12m Extension Lead

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$323.90

Collect 323 Everyday Rewards points

Log in to MyDeal to link your card
$25.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

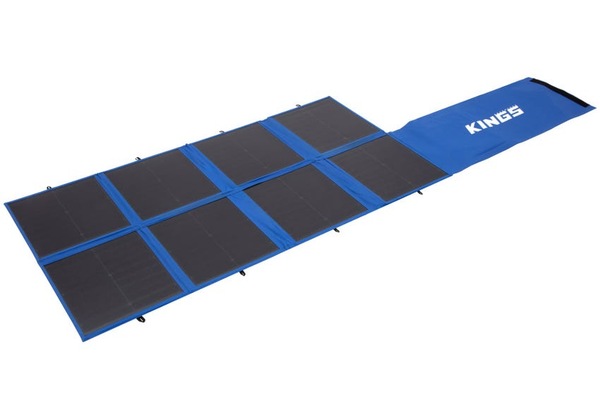

The Adventure Kings 240W Solar Blanket stands out as an ideal choice for medium-sized setups, making it perfect for charging a medium-sized battery bank to run fridge or powering a small inverter off grid. Its compact and lightweight design ensures easy transportation and storage, offering convenience without compromising on power output. Whether you're camping, traveling, or setting up an off-grid system, our solar blanket delivers reliable performance to meet your energy needs.

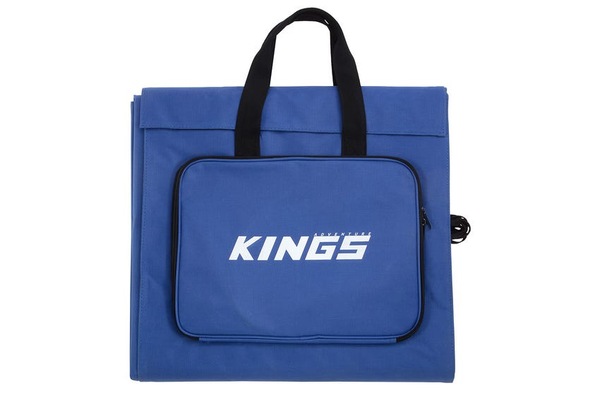

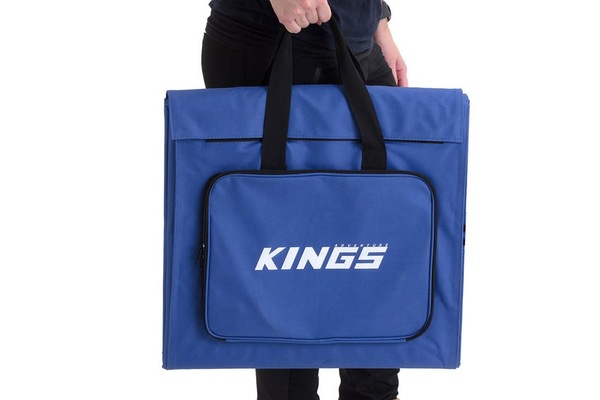

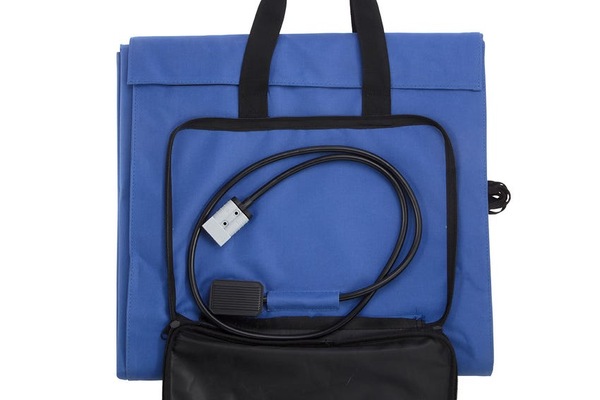

• Each of our solar blankets feature ultra black solar technology with enlarged busbars, ensuring highly efficient solar power generation. The cells are then protected by a double-layered anti-crack flexible PET film, enhancing durability and longevity of the blanket while maximising sunlight transmittance. The 240W Solar blanket measures in at a generous 165cm long, by 94cm wide and just 0.75cm thick. It packs down to a compact 44 x 46 x 6cm with an inbuilt wrap around cover,

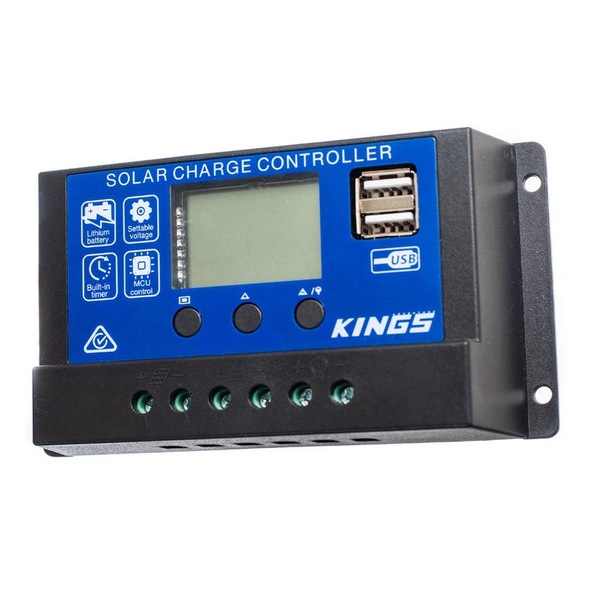

• A Controller is a must for safeguarding your battery from the high voltage output of solar panels. This controller uses Pulse Width Modulation (PWM )to reduce the solar input voltage to a safer, lower output voltage, ideal for charging 12V batteries. Along with this, the PWM employs a 3-stage charging program: boost, equalise and float. Keeping your battery charged properly and ready to operate at peak performance. Not suitable for lithium batteries.

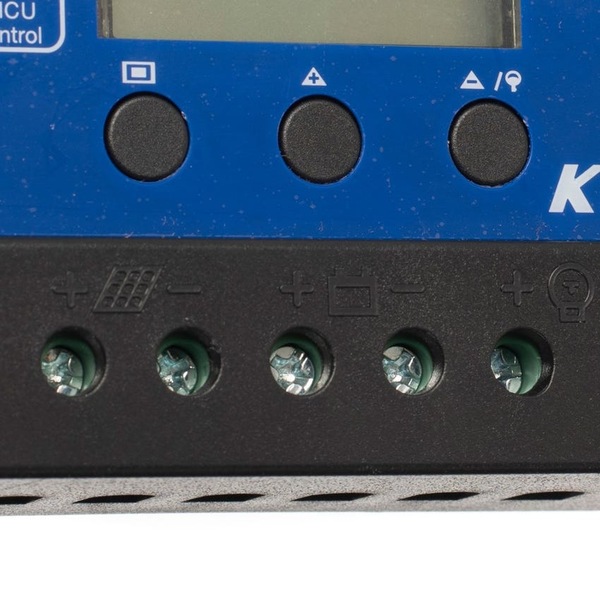

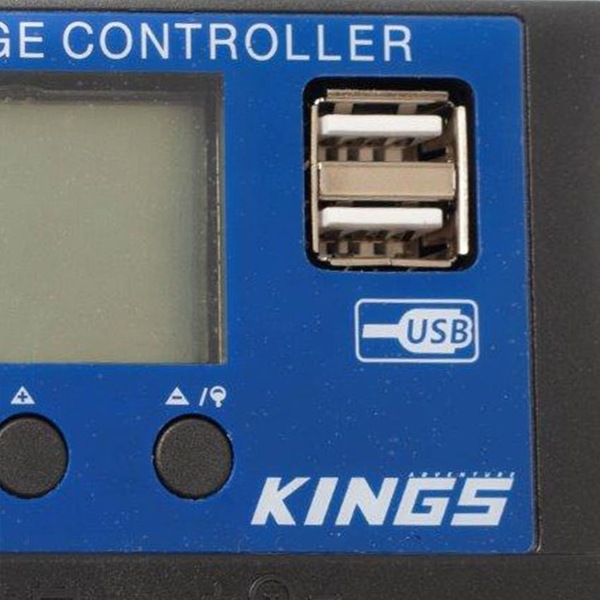

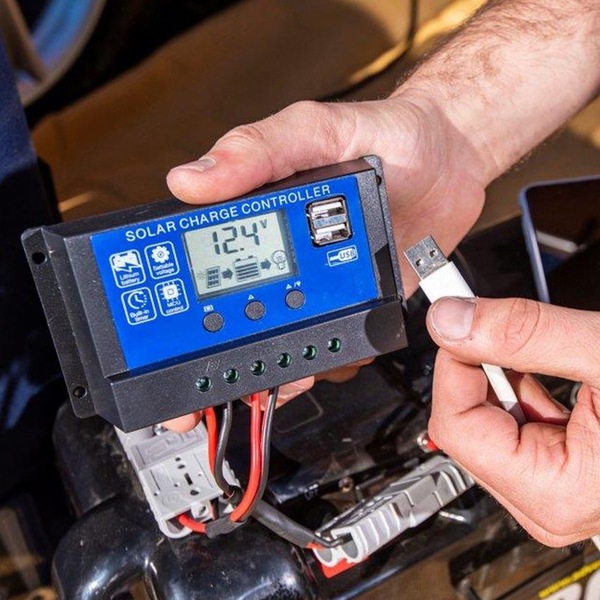

• If you have a solar panel without it's own regulator, add this PWM Controller to your setup to safely and effectively charge your battery. Utilising screw in terminals, you can easily connect up to your solar panel and 12V system. The LCD screen allows you to monitor charging performance and battery voltage while it’s connected, it even features two USB ports so you can charge your devices directly from the PWM Controller.

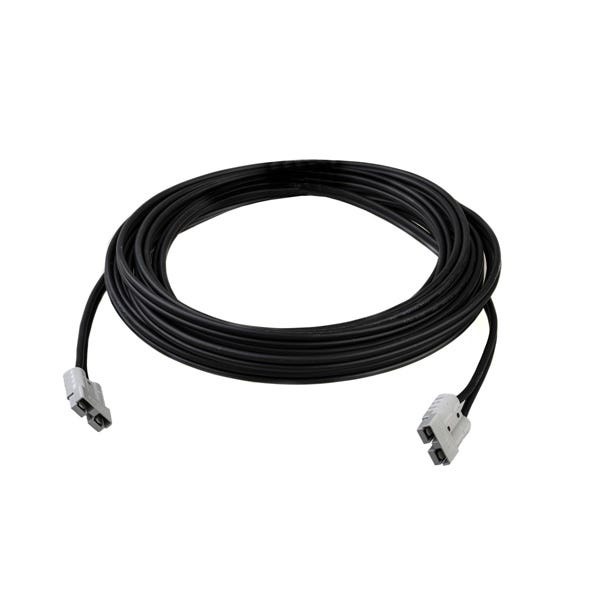

• Specifically designed for DC solar systems, Kings 12m Solar Leads are H1Z2Z2-K rated, meaning they’re up to standard internally with quality tinned copper strands, and externally with two layers of tough Cross Linked PolyEthylene (XLPE) halogen-free insulation. Each wire is individually insulated with 0.8mm of XLPE, plus there’s an extra 0.9mm thick XLPE protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too – perfect for your next trip away or your next DIY project!

KINGS 240W FOLDING SOLAR BLANKET | Up to 20A of charge at 12V | Grade A solar cells | Quick Connect Plug


Output 240W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 25.37V
ISC (Short Circuit Current) 12.39A
Note NOTE: VOC and ISC can vary by up to +/-1v and +/-1A
Review regulator for max voltage and current rating
IMP (Maximum Power Current) 11.65A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.28%/°C
Pmax Temperature Coefficient -0.36%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Open Dimensions 165 x 94 x 0.75cm (LxWXH)
Folded Dimensions 44 x 46 x 6cm (LxWXH)
Weight 6.6kg


15A PWM SOLAR CONTROLLER 3 STAGE CHARGING LCD DISPLAY BUILT IN PROTECTIONS PWM TECHNOLOGY





• Dimensions : 133 x 70 x 34mm


• Mounting Holes: 126 x 49mm


• Max Solar Input: <50V


• Float Charge: 7 – Default, Adjustable


• Discharge Stop: 7 – Default, Adjustable


• Discharge Reconnect: 6V – Default, Adjustable


• USB Output: 5V / 2A


• Weight: 154g





KINGS 12M EXTENSION LEAD





Length 12m
Conductor Material Twin Core Multi-Strand Copper (84x0.3)
Conductor Cross Sectional Area (each wire) 6mm2
Insulation Material 0.8mm Halogen-Free XLPO
Outer Sheath material 0.9mm Halogen-Free XLPO
External Dimensions 13.5mm x 5mm
Recommended Maximum Current 20A
Operating Temperature Range -40°C~+90°
Plug Type Kings Quick Connect Plugs (Anderson Compatible)
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage DC 1500V

MPN: SC-CO-240WSB-PWNREG-12MLEAD
