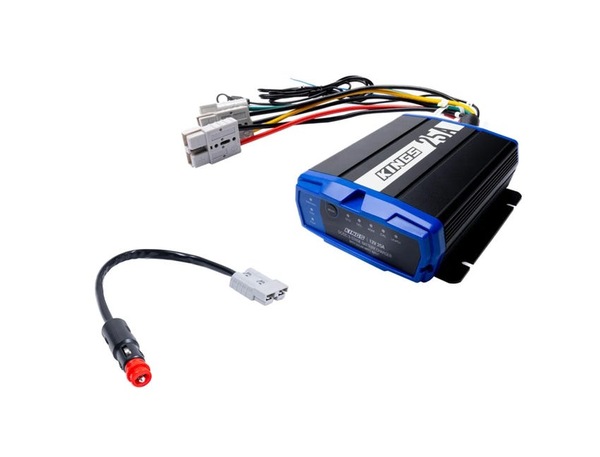

Kings 25A DCDC Charger + Quick-Connect to Cigarette Plug Adapter

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$143.95

Collect 143 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
The Kings Quick-Connect to Cig Plug Adapter is perfect for setups where you have an available cig socket, but need a Quick-Connect Anderson-style plug - like running a 12v Adventure Oven, or the Kings Drawer or Upright Fridges without the need to hard-wire a quick-connect plug into your vehicle. The adapter measures in at 30cm in length, and features a 50A Anderson-style Quick-Connect plug on one end, and a standard 12v cig plug with 15A in-built fuse on the other.

• The Kings 25A DCDC Charger has a built in high-efficiency MPPT Solar Regulator that will track the maximum power point of a connected solar panel, so long as it has a minimum of 15W input. So you know you’re getting the most charge out of your panel no matter the conditions.

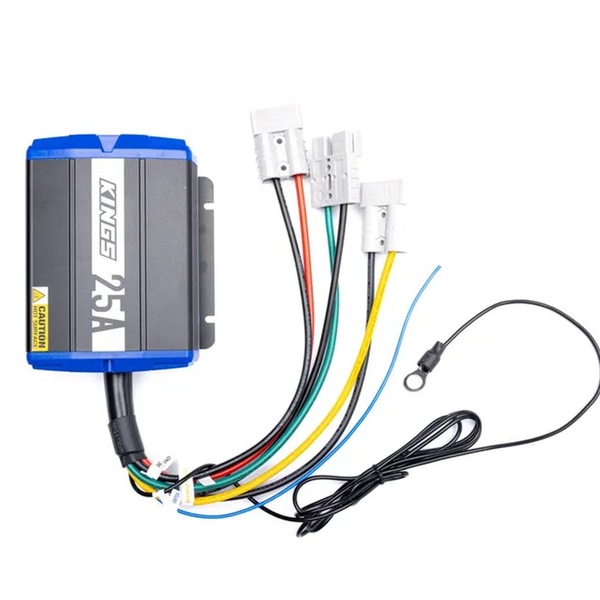

• Connecting your DCDC charger has never been easier - simply connect up the input from your starter battery, the output to your auxiliary battery and then connect solar panel in seconds all thanks to the quick connect plugs. The 25A Charger along with a Kings 50A Wiring Kit is the perfect combo for an easy plug and play install!

• The Kings DCDC Charger has built in high-efficiency MPPT Solar Regulator that will track the maximum power point of a connected solar panel, so long as it has a minimum of 15W input. So you know you’re getting the most charge out of your panel no matter the conditions. If, for example, you're driving at night and there is no solar input, the charger will pull only from your alternator.

• When you stop at camp and turn off your vehicle, the DCDC will automatically swap over to solar charging. If you're driving in the sun with both alternator and solar input, the DCDC will automatically prioritise solar input once it reaches the changeover threshold of 200W of solar power input.

25A DCDC Charger


Quantity: 1



Kings Quick-Connect to Cigarette Plug Adapter


Quantity: 1

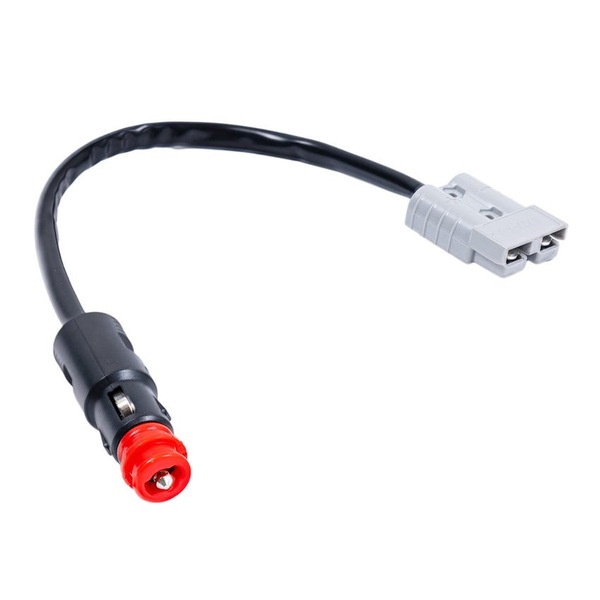

KINGS QUICK-CONNECT TO CIGARETTE PLUG ADAPTER

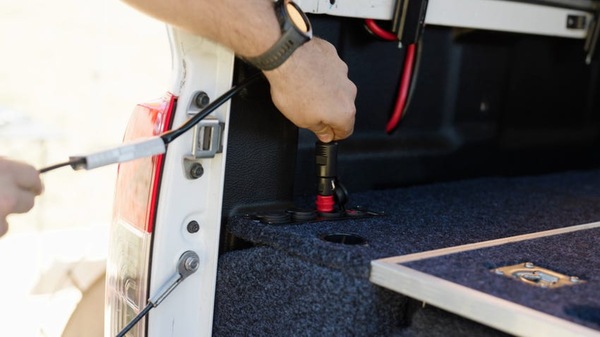

The Kings Quick-Connect to Cig Plug Adapter is perfect for setups where you have an available cig socket, but need a Quick-Connect Anderson-style plug - like running a 12v Adventure Oven, or the Kings Drawer or Upright Fridges without the need to hard-wire a quick-connect plug into your vehicle.

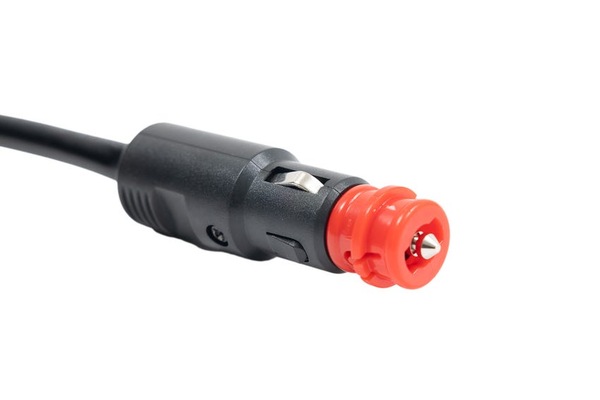

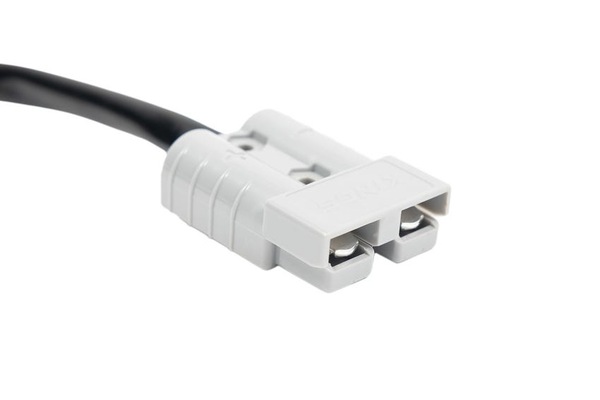

• Connections  Quick-Connect (50A Anderson-style) to 12v Male Cig Plug
•Length 30cm
•Internal Fuse 15A

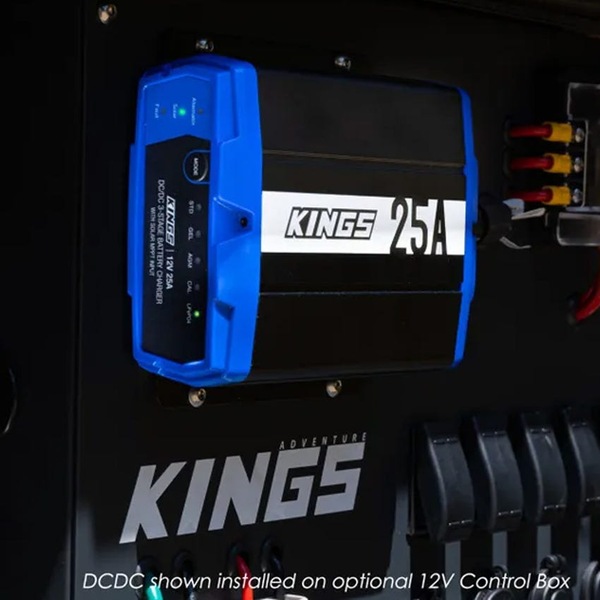

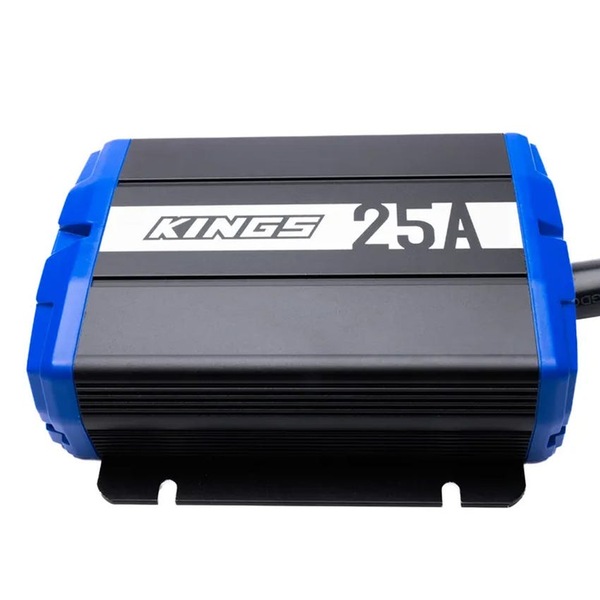

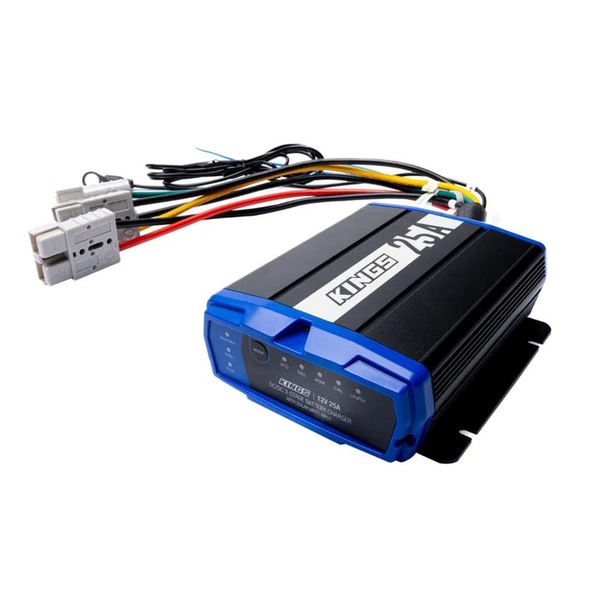

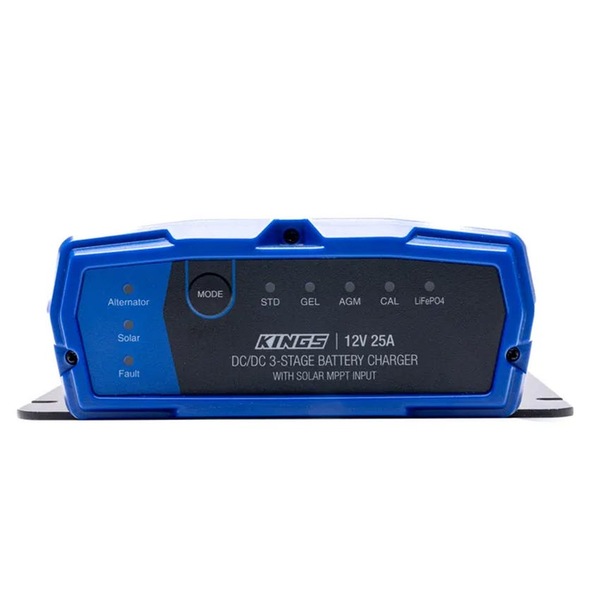

Kings 25A DCDC Charger

The DCDC Charger has built in MPPT Solar Regulator that will track the maximum power point of a connected solar panel, at a minimum of 15W input.

Max. Continuous Charging Current 25A
Max. Output Power 300W
Max. Input Current 27A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Min. Input start-up Voltage - Vehicle 10V to recognise battery (12V to start charging)
Solar Input Range 10 - 32V
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 16V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C
Dimensions (LxWxH) 151mm x 121mm x 44mm
Weight ~1kg
Temperature Compensation Yes ±18mV/°C
Temperature Sensor(s) Yes, internal + external
Housing Powder coated aluminium
Battery Chemistry Selection Yes – Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required – not supplied (50A Suggested)
IP Rating IP66
Built-in Protections Over Voltage, Reverse Polarity, Over-Temperature Protection

MPN: SC-CO-DC25A02-AND2PLUG
