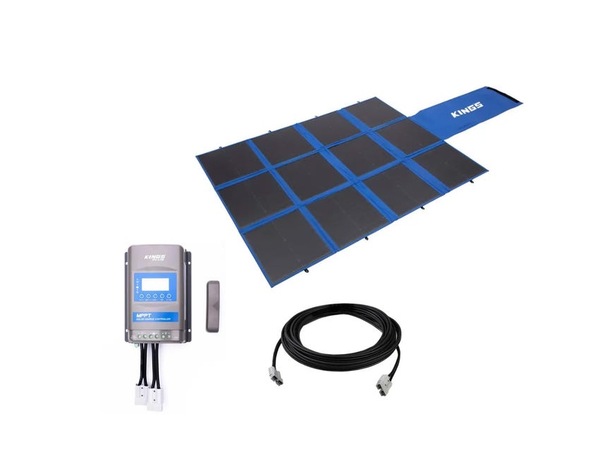

Kings 360W Folding Solar Blanket + 12m Extension Lead + 20A MPPT Solar Regulator

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$442.95

Collect 442 Everyday Rewards points

Log in to MyDeal to link your card
$25.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

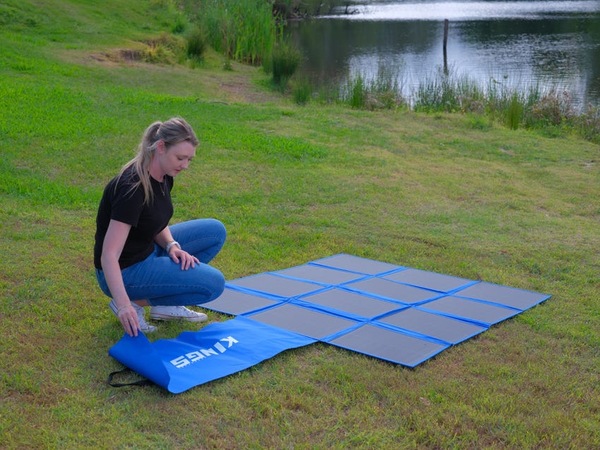

keep your devices charged wherever you go. Designed with portability in mind, its lightweight and compact design makes it easy to transport and store without sacrificing power. Whether you're camping, traveling, or setting up a remote power system. It features ultra-black solar technology with enlarged busbars, ensuring highly efficient solar power generation. The cells are then protected by a double-layered anti-crack flexible PET film

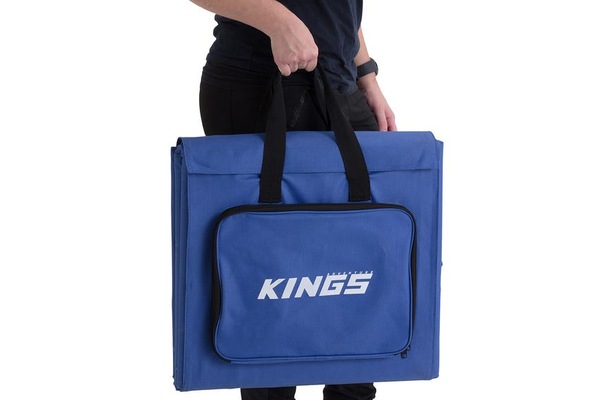

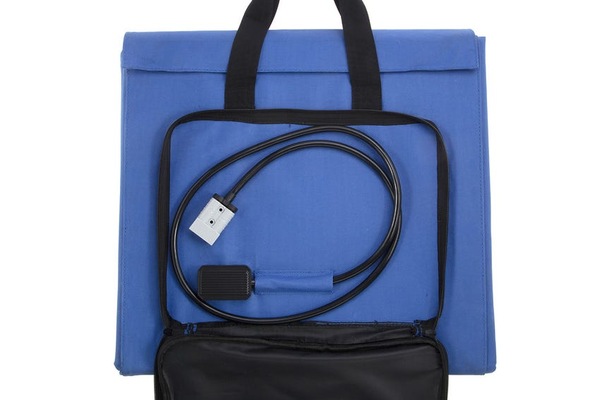

• 2.34m² surface area and thoroughly tested using our in-house solar simulator to meet industry standards. The 360W Solar blanket measures a generous 165cm long by 142cm wide and just 0.75cm thick. It packs down to a compact 44 x 46 x 9cm with an inbuilt wrap-around cover, meaning it will fit just about anywhere in the back of your 4WD.

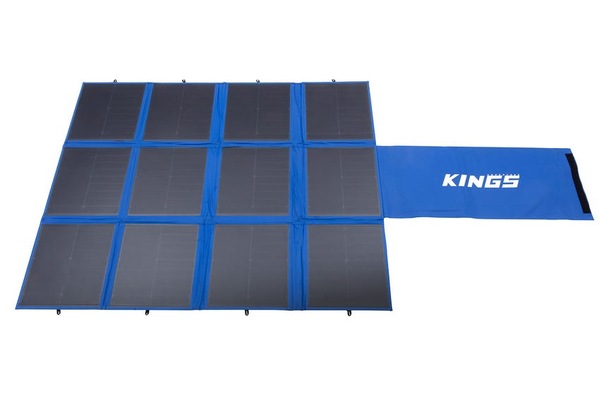

KINGS 360W FOLDING SOLAR BLANKET


Up to 30A of charge at 12V | Grade A PET coated solar cells | Quick Connect Plug





Output 360W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.147V
ISC (Short Circuit Current) 18.85A
IMP (Maximum Power Current) 16.71A
VMP (Voltage at Maximum Power) 21.60V
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.28%/°C
Pmax Temperature Coefficient -0.36%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5
Open Dimensions (LxWxH) 165 x 142 x 0.75cm
Folded Dimensions (LxWxH) 44 x 46 x 9cm
Weight 9.6kg

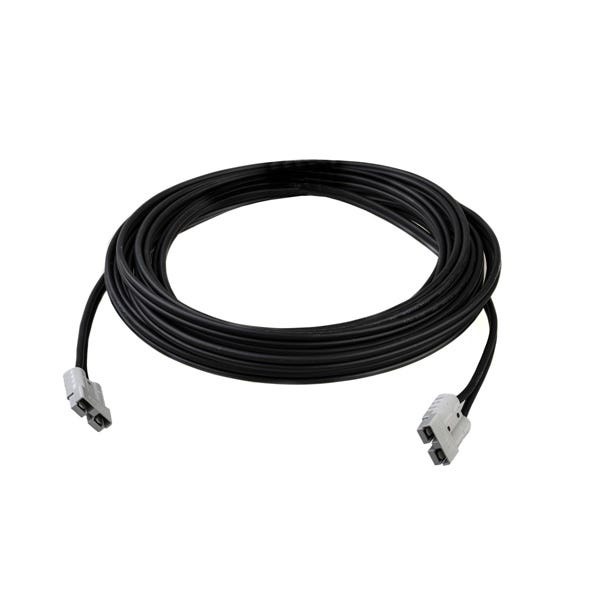

12M SOLAR EXTENSION LEAD





Length 12m
Conductor Twin Core Multi-Strand Copper (84x0.3)
Conductor (each wire) 6mm2
Insulation 0.8mm Halogen-Free XLPO
Outer Sheath 0.9mm Halogen-Free XLPO
External Dimensions 13.5mm x 5mm
Maximum Current 20A
Operating Temperature Range -40°C~+90°
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Copper
Maximum Rated Voltage DC 1500V

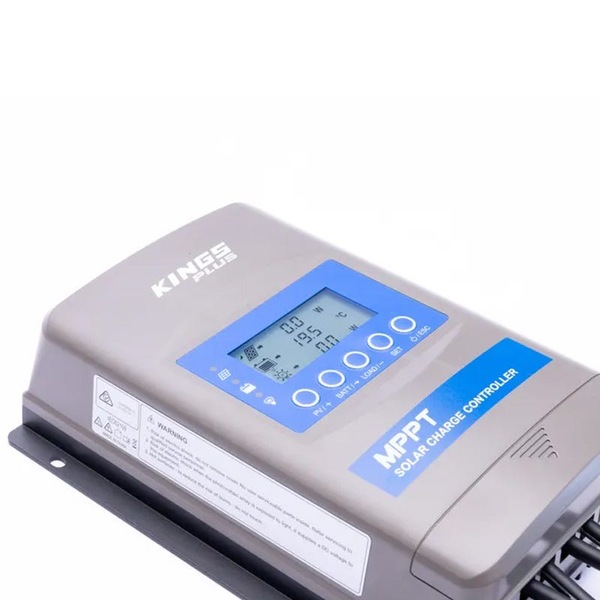

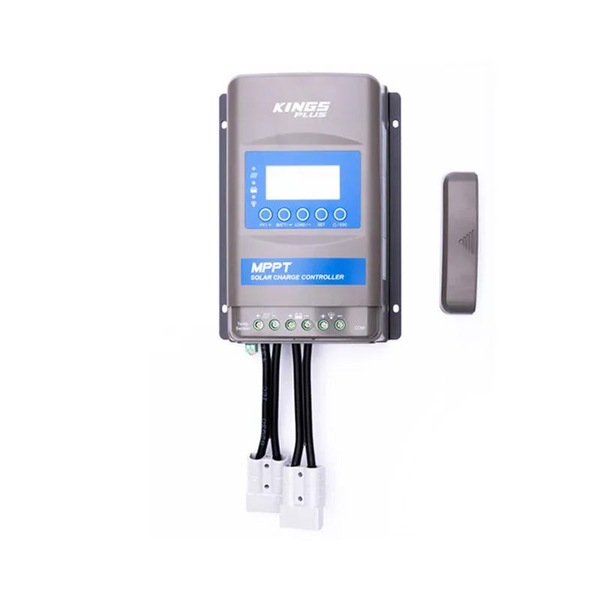

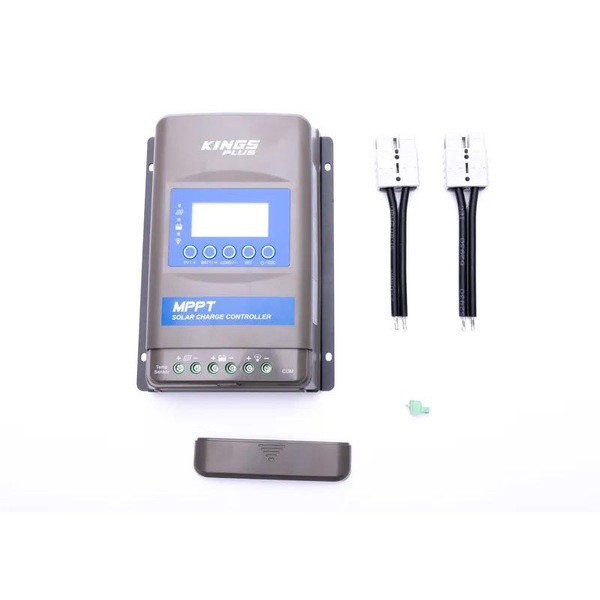

PREMIUM 20A MPPT SOLAR REGULATOR




AGM And Lithium Compatible (12V/24V)- Sealed, Gel, Flooded, Lifepo4, Li(NiCoMn)O2, User Adjustable
Display Backlit LCD + LED Indicator Lights
Wire Specification - 100mm Double Insulated XLPO 6mm2 + Quick Connect Plugs

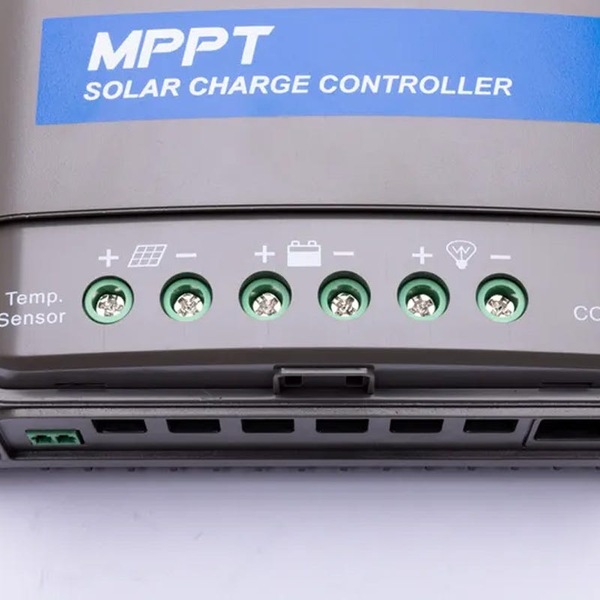

Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant
Body Dimensions (Mounting Hole Dimensions) 217 X 158 X 57 mm (160 X 149 mm)
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Maximum Solar Power Input 390W (12V) 780w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Max Dc Dc Conversion Efficiency >98%

MPN: SC-CO-360W-12MLEAD-PMPPTREG
