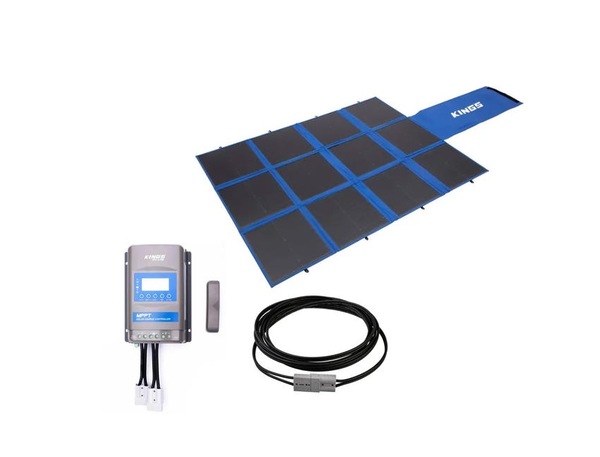

Kings 360W Folding Solar Blanket Grade A PET coated cells+ 6m Lead + Plus 20A MPPT Solar Regulator

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$409.95

Collect 409 Everyday Rewards points

Log in to MyDeal to link your card
$25.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

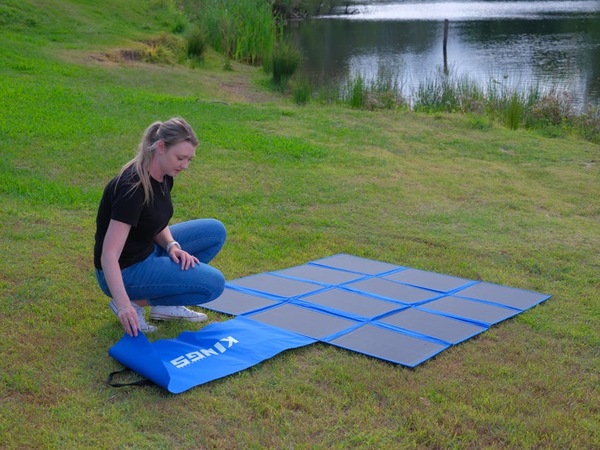

keep your devices charged wherever you go. Designed with portability in mind, its lightweight and compact design makes it easy to transport and store without sacrificing power. Whether you're camping, traveling, or setting up a remote power system. It features ultra-black solar technology with enlarged busbars, ensuring highly efficient solar power generation. The cells are then protected by a double-layered anti-crack flexible PET film

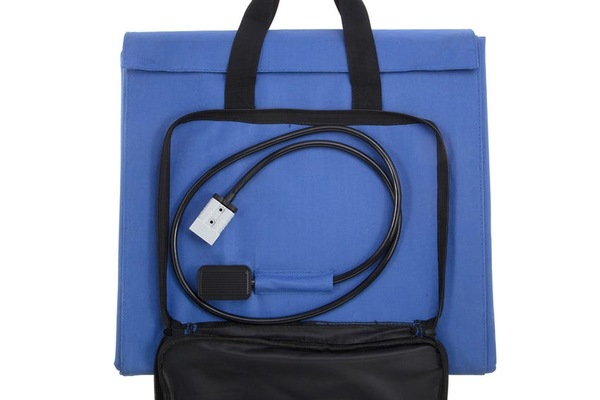

• 2.34m² surface area and thoroughly tested using our in-house solar simulator to meet industry standards. The 360W Solar blanket measures a generous 165cm long by 142cm wide and just 0.75cm thick. It packs down to a compact 44 x 46 x 9cm with an inbuilt wrap-around cover, meaning it will fit just about anywhere in the back of your 4WD.

• The perfect partner for your portable solar blankets or panels, the 6 metre length allowing you to camp in the cool shade and still set up your solar in full sun. Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. The Anderson-compatible quick connect plugs are rated for up to 50A of current and make setting up camp quick and easy.

• This 20A solar charge controller is lithium-compatible with dedicated multi-stage charging profiles for different battery types, and can accept up to 46V of solar input. it can suit just about any setup - AGM or lithium, 12V or 24V right up to 780W of solar input with a 20A charge rating. 390W of power from 12V nominal solar panels and 780W from 24V panels.

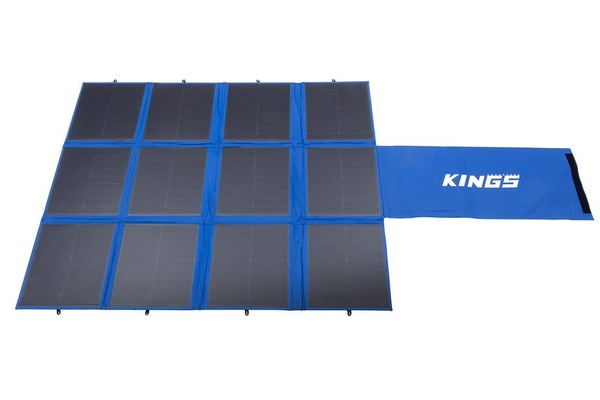

KINGS 360W FOLDING SOLAR BLANKET


Grade A PET coated cells


360W to keep your devices charged wherever you go camping, traveling.


Output 360W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.147V
ISC (Short Circuit Current) 18.85A
Note VOC and ISC can vary by up to +/-1v and +/-1A Review regulator for max voltage and current rating
IMP (Maximum Power Current) 16.71A
VMP (Voltage at Maximum Power) 21.60V
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.28%/°C
Pmax Temperature Coefficient -0.36%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Open Dimensions (LxWxH) 165 x 142 x 0.75cm
Folded Dimensions (LxWxH) 44 x 46 x 9cm
Weight 9.6kg

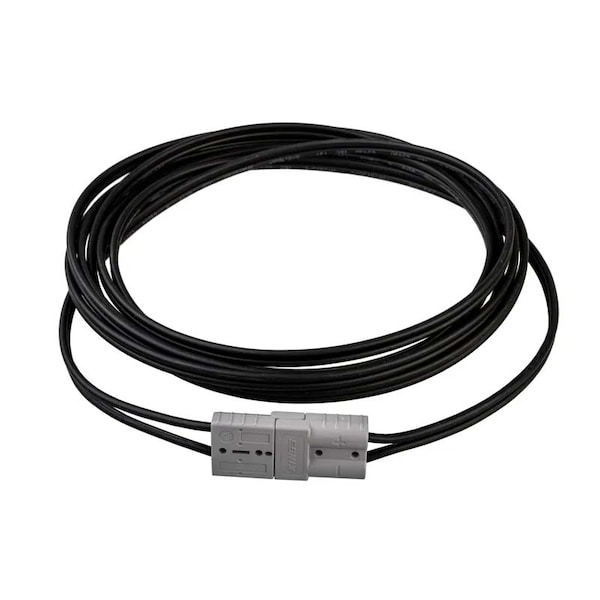

6M SOLAR EXTENSION LEAD
2.5MM2 COPPER


Conductor Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation 0.8mm PVC
Outer Sheath 1mm PVC
Outer Diameter 9.3mm
Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug  UL94-V0 Flame Resistant Thermoplastic
Connector  Copper
Maximum Rated Volt 300V

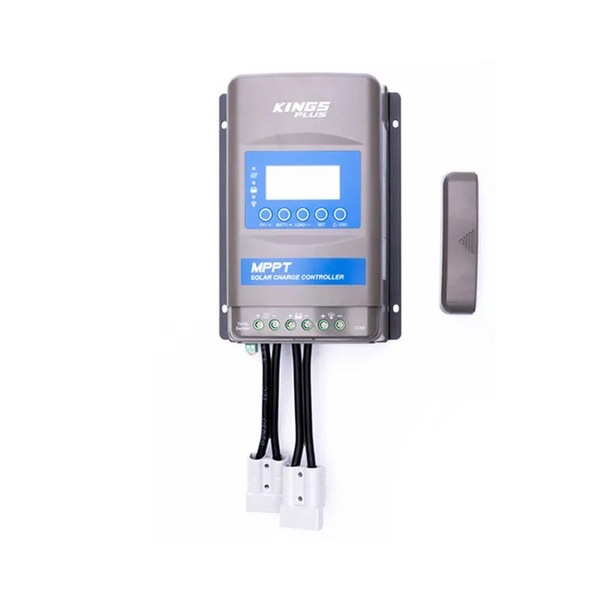

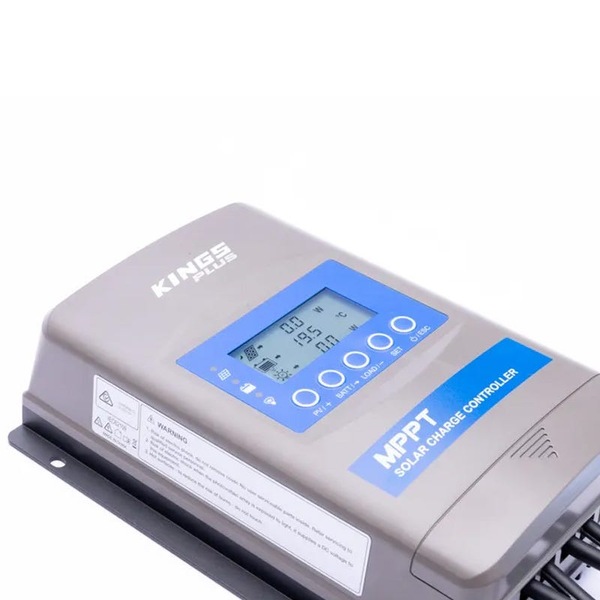

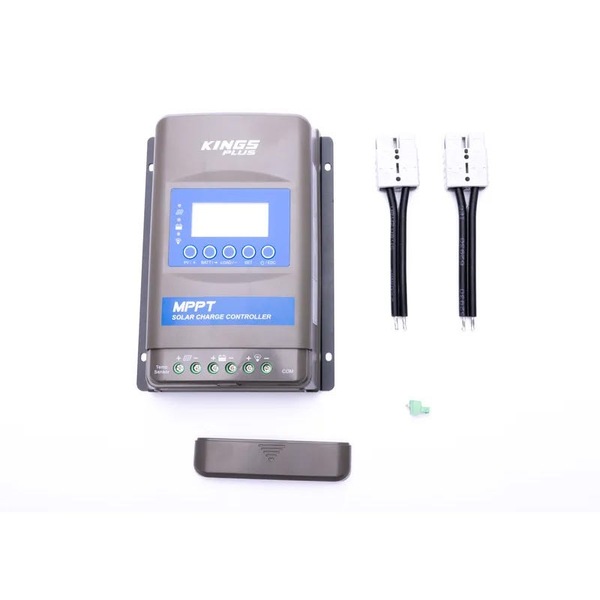

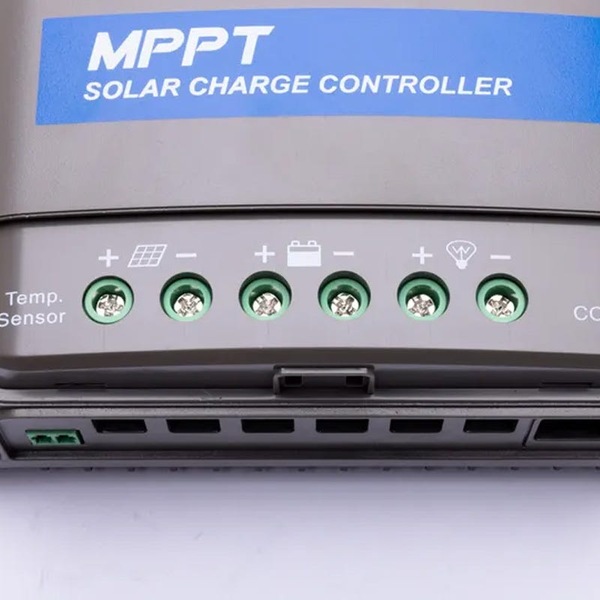

20A MPPT SOLAR REGULATOR

AGM And Lithium Compatible (12V/24V)- Sealed, Gel, Flooded, Lifepo4, Li(NiCoMn)O2
Wire Specification - 100mm Double Insulated XLPO 6mm2 + Quick Connect Plugs
Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
IP Rating IP33
Body Dimensions (Mounting Hole Dimensions) 217 X 158 X 57 mm (160 X 149 mm)
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Maximum Solar Power Input 390W (12V) 780w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)

MPN: SC-CO-360W-6MLEAD-PMPPTREG
