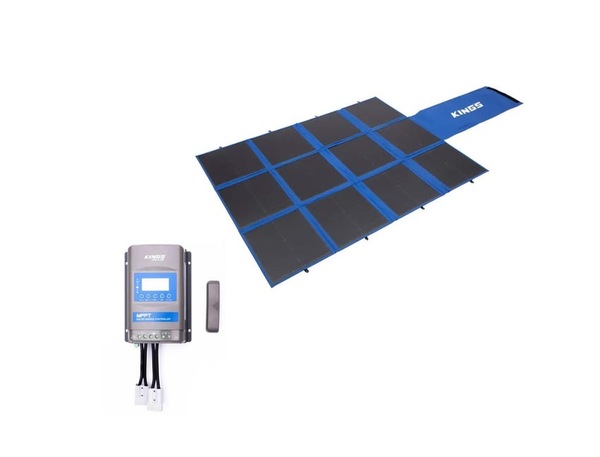

Kings 360W Folding Solar Blanket Grade A cells+ 20A MPPT Solar Regulator

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$368

Collect 368 Everyday Rewards points

Log in to MyDeal to link your card
$20.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
Pay in 4 interest-free payments of $92.00 with Learn More
keep your devices charged wherever you go. Designed with portability in mind, its lightweight and compact design makes it easy to transport and store without sacrificing power. Whether you're camping, traveling, or setting up a remote power system. It features ultra-black solar technology with enlarged busbars, ensuring highly efficient solar power generation. The cells are then protected by a double-layered anti-crack flexible PET film

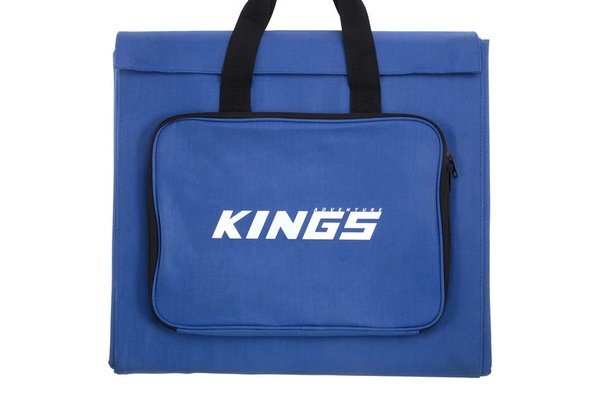

• 2.34m² surface area and thoroughly tested using our in-house solar simulator to meet industry standards. The 360W Solar blanket measures a generous 165cm long by 142cm wide and just 0.75cm thick. It packs down to a compact 44 x 46 x 9cm with an inbuilt wrap-around cover, meaning it will fit just about anywhere in the back of your 4WD.

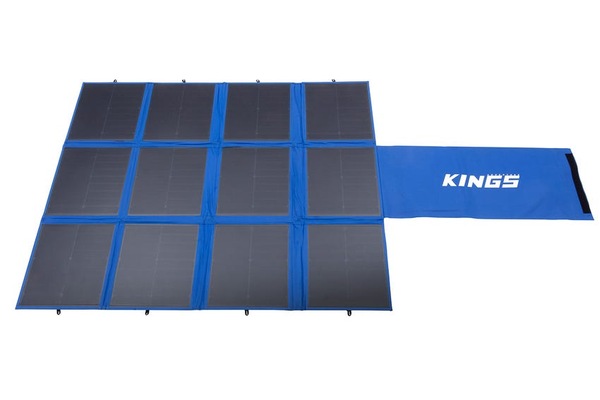

KINGS 360W FOLDING SOLAR BLANKET


Up to 30A of charge at 12V | Grade A PET coated cells


360W output to keep your devices charged wherever you go camping, traveling


It has enlarged busbars, ensuring highly efficient solar power generation. The cells are then protected by a double-layered anti-crack flexible PET film





Output 360W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.147V
ISC (Short Circuit Current) 18.85A
Note VOC and ISC can vary by up to +/-1v and +/-1A Review regulator for max voltage and current rating
IMP (Maximum Power Current) 16.71A
VMP (Voltage at Maximum Power) 21.60V
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.28%/°C
Pmax Temperature Coefficient -0.36%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5

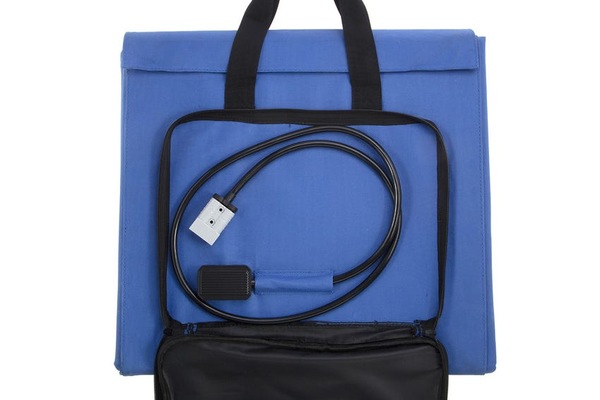

Connection Kings Quick Connect (Anderson Style) Plug
Open Dimensions (LxWxH) 165 x 142 x 0.75cm
Folded Dimensions (LxWxH) 44 x 46 x 9cm

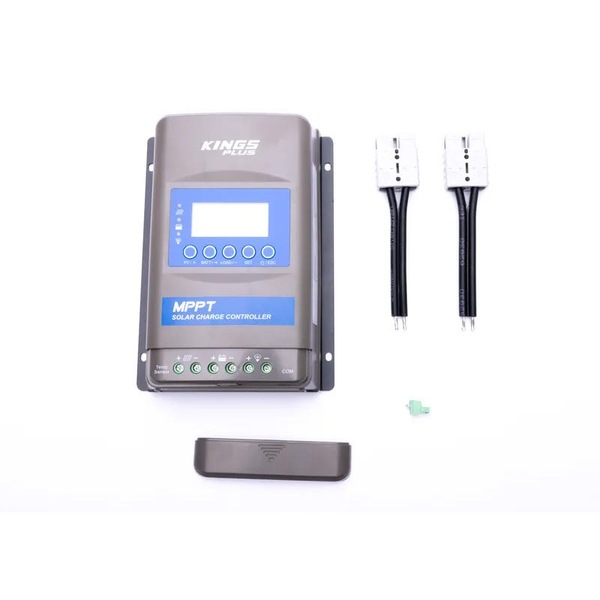

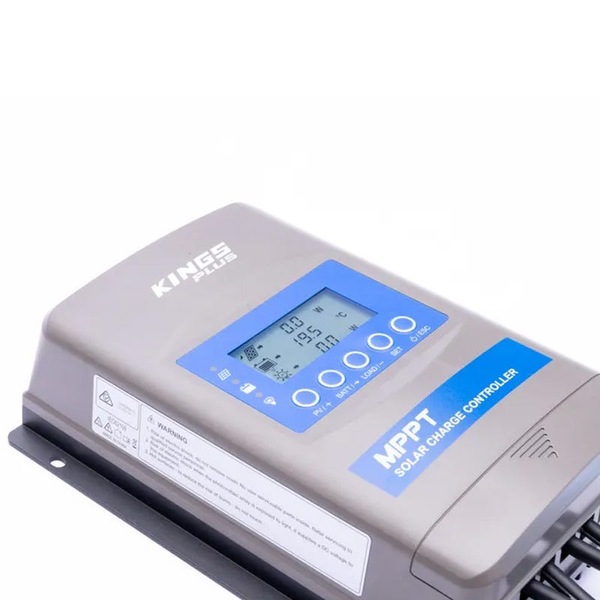

PREMIUM 20A MPPT SOLAR REGULATOR

Suits AGM or lithium, 12V or 24V right up to 780W of solar input with a 20A charge rating - and it has a 3 year warranty.


It accepts up to 390W of power from 12V nominal solar panels and 780W from 24V panels.


AGM And Lithium Compatible (12V/24V)- Sealed, Gel, Flooded, Lifepo4, Li(NiCoMn)O2, User Adjustable
Wire Specification - 100mm Double Insulated XLPO 6mm2 + Quick Connect Plugs

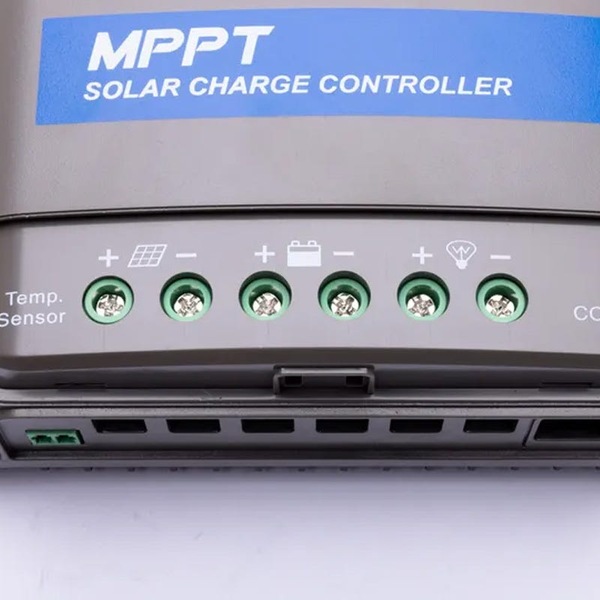

Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
IP Rating IP33 Dust And Water Resistant
Body Dimensions (Mounting Hole Dimensions) 217 X 158 X 57 mm (160 X 149 mm)
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Maximum Solar Power Input 390W (12V) 780w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)

MPN: SC-CO-360W-PMPPTREG
