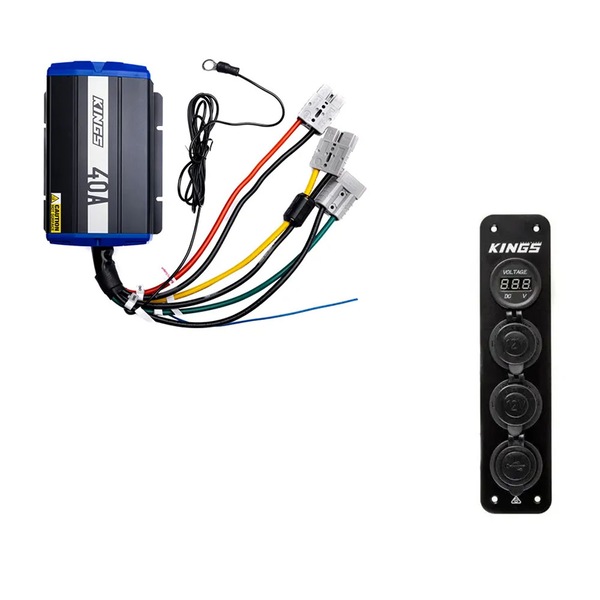

Adventure Kings 40A 12V DCDC Charger with 12V Accessory Panel

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$208.95

Collect 208 Everyday Rewards points

Log in to MyDeal to link your card
$20.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
40A Multi-Stage Battery Charger. Built-in MPPT Solar Regulator with Solar Priority Charging

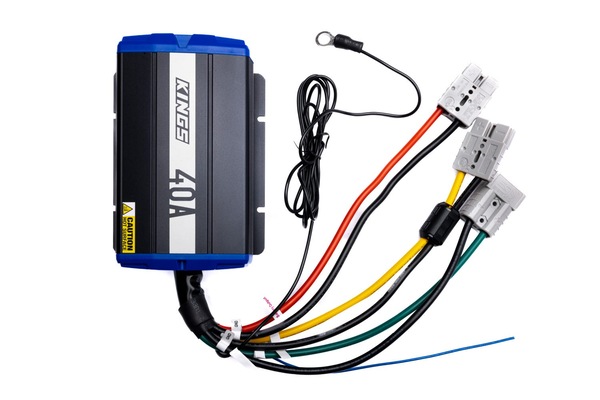

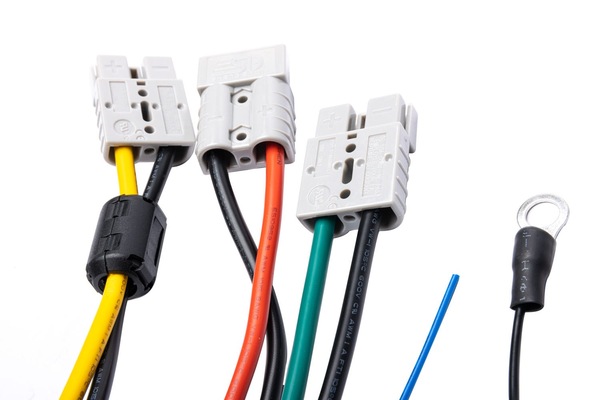

• Push Button Battery Type Selection for Lithium or AGM. Quick Connect Plugs make wiring super easy

• Accessory panel has Digital LED Voltmeter, Twin 10A cig sockets, Twin USB sockets – 2.1A and 1A

• Comes pre-wired with fuses

• 12/24V input ideal for 4WDs, Caravans, Boats, Trucks, Camper Trailers, Campervans & More!


The Kings 40A DCDC Charger has built in MPPT Solar Regulator.
Driving at night without solar input, the charger will pull only from your alternator.
When you stop at camp and turn off your vehicle, the DCDC will automatically swap over to solar charging.
If you're driving in the sun with both alternator and solar input, the DCDC will automatically prioritise solar input once it reaches the changeover threshold of 350W of solar power input.

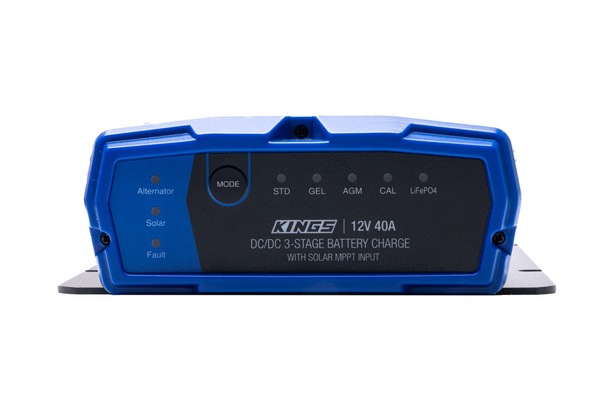

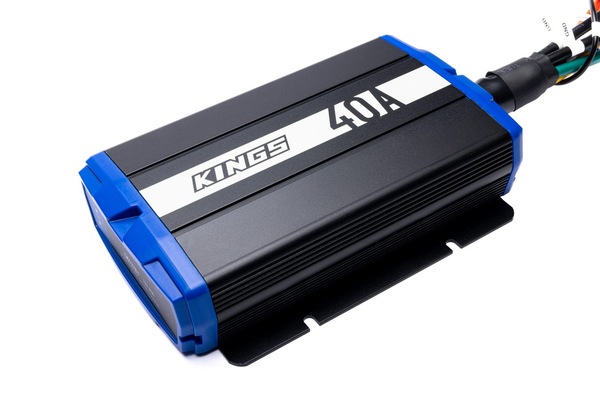

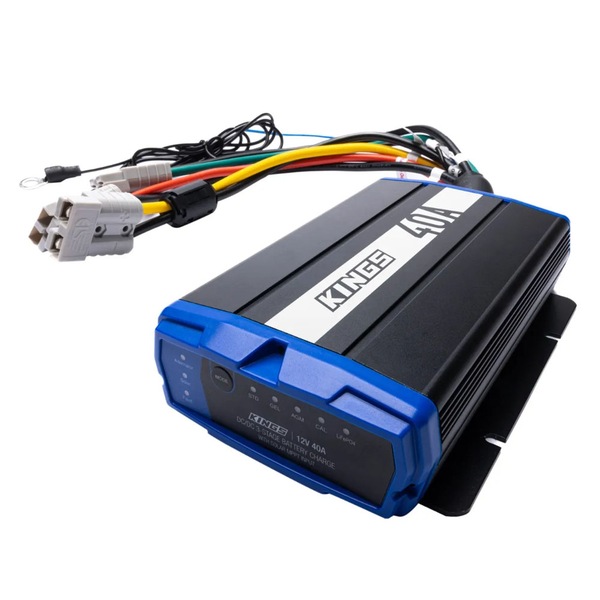

Kings 40A DCDC Charger

Max. Continuous Charging Current 40A
Max. Output Power 500W
Max. Input Current 47A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Min. Input start-up Voltage - Vehicle 10V to recognise battery (12V to start charging)
Solar Input Range 10 - 32V (Minimum 12V to start)
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 18V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA

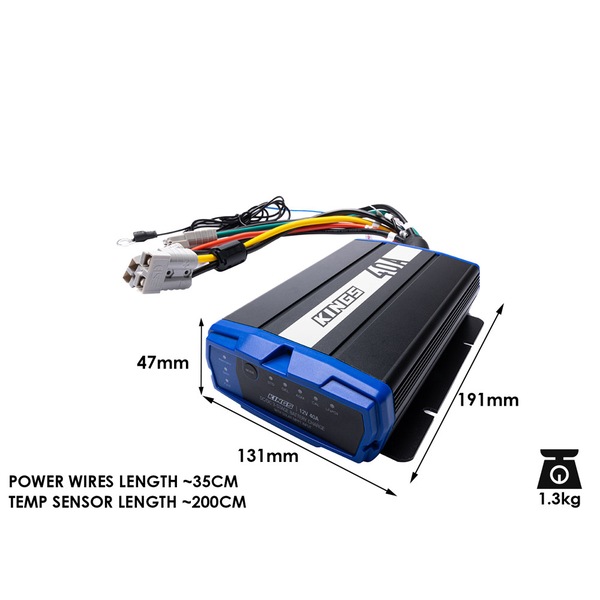

Dimensions (LxWxH) 191mm x 131mm x 47mm
Weight ~1.3kg
Temperature Compensation Yes ±18mV/°C
Temperature Sensor(s) Yes
Battery Chemistry Selection – Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes – not supplied (50A Suggested)
IP Rating IP66
Built-in Protections Yes - Over Voltage, Reverse Polarity, Over-Temperature Protection

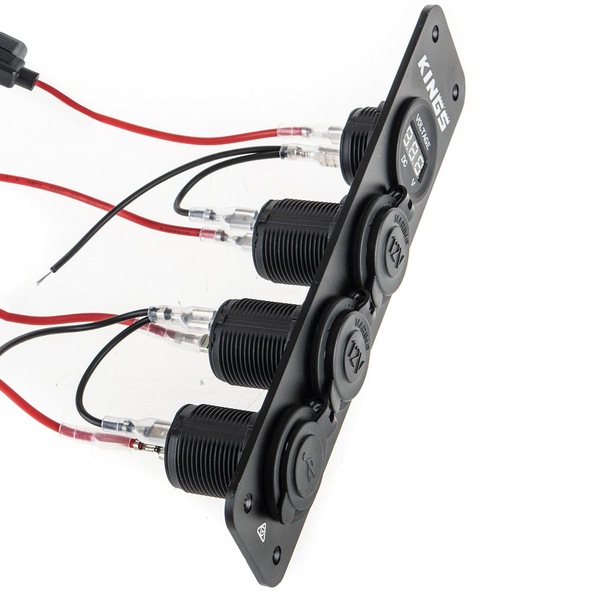

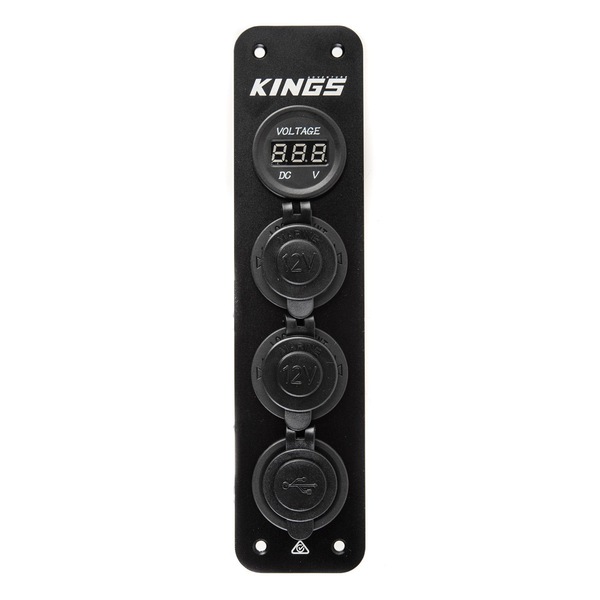

Adventure Kings 12V Accessory Panel
Voltmeter Type - Digital LED
12v Sockets - 2 x standard cig sockets to suit fridges etc

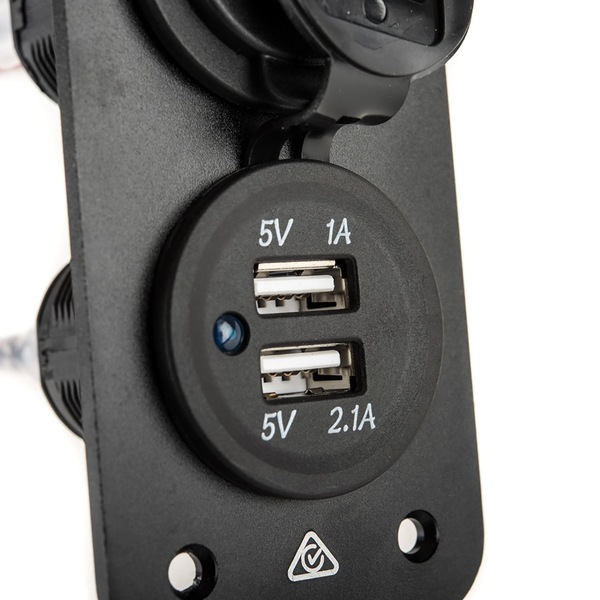

USB Sockets 1 x 2.1A fast charging, 1 x 1A
Fuses 4 – 2 x 10A fuses on cig circuits, 5A fuses on USB and voltmeter circuits
Dimensions 210mm (H) x 50mm (W)

MPN: SC-CO-DC40A-12VPANEL
